Atlas Sound TSD-TXHL - 100V & 4 Ohm Speaker Level to Line Level Converter

SKU TSD-TXHL
Sold out
Original price £126.00 (inc. VAT) - Original price £126.00 (inc. VAT)
Original price £126.00 (inc. VAT)
£126.00 (inc. VAT)
£126.00 (inc. VAT) - £126.00 (inc. VAT)
Current price £126.00 (inc. VAT)
DETAILS

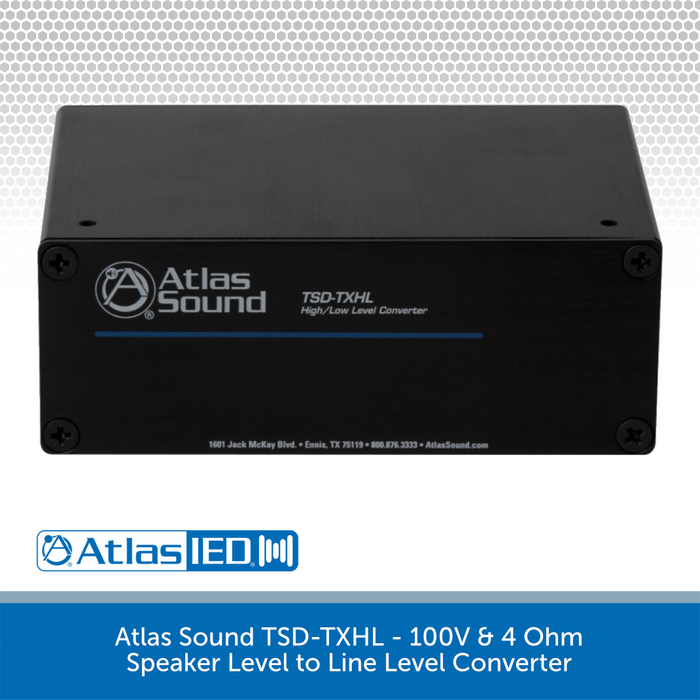

The Atlas Sound TSD-TXHL is a handy device that can convert a 100V Line or low impedance (down to 4 Ohm) speaker level signal to a line-level signal.

This is ideal for routing an audio signal to other devices such as an active subwoofer or amplifier, when your primary amplifier doesn't have a line output. It's also great for connecting devices such as these when the primary amplifier is too far away for a normal line-level signal.

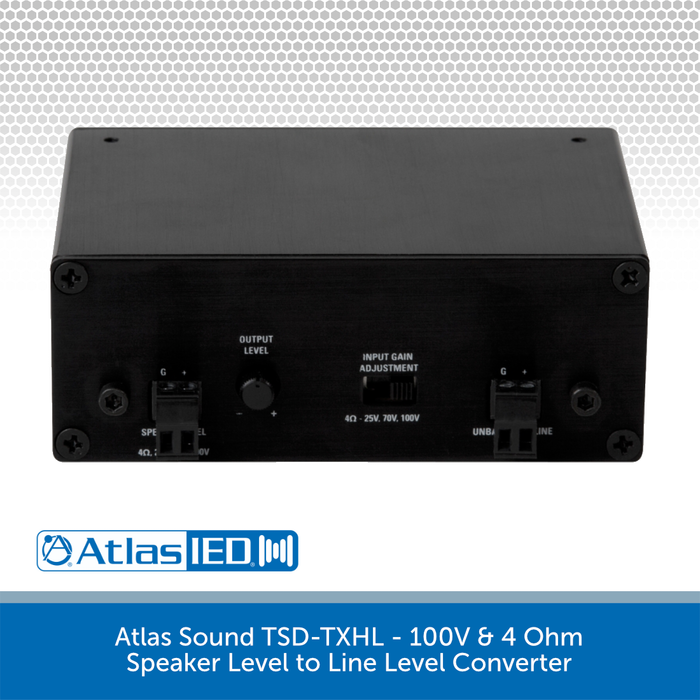

The TSD-TXHL is a passive unit meaning no external power is required and features a volume control to adjust the volume to your liking. There is a switch to toggle between your speaker level input (4 Ohm, 25V, 70V and 100V), and phoenix terminals to connect the speaker inputs and output.

Example:

An example could be an amplifier in a storage room, and a subwoofer in the front of house. It may be impractical to connect a normal line-level signal due to the distance between the two devices, however a feed from a nearby speaker could be routed to the subwoofer, with the TSD-TXHL connecting them.

Audio Applications

  • System Isolation
  • Level Matching
  • Add Zones anywhere a speaker system exists

Key Features

  • Speaker Level to Line Level converter
  • Works with 4Ω, 25/70/100v speaker systems
  • Variable output level
  • Transformer isolated
  • Trim level control
  • Cable management system
  • Multiple mounting configurations
  • Wide bandwidth frequency response
  • Separate ground connections
  • Removable Input/Output connectors
  • No external power required
  • Compact chassis design
SPECS & DOWNLOADS

Atlas Sound TSD-TXHL Specifications

  • Chassis Material: Aluminum
  • High Level Input: Qty 1, Amplifier speaker ouputs 4/8Ω, 25/70/100v
  • Connection: Removable 2 position captive screw 3.5mm spacing
  • Output Type: Qty 1 Unbalanced Line
  • Output Connection: Removable 2 position captive screw 3.5mm spacing
  • Output Impedance: 600Ω Unbalanced
  • Line Output Level: Max output 1v ±10%
  • Level control: Qty1, Removable knob with security cover
  • Input Level Adjustment: Three selections 4Ω -25/70/100v
  • Transformer: Isolation step down
  • Frequency Response: 40Hz~25kHz (-3dB)
  • Power Requirements: None - Passive
  • Dimensions: 39(H) x 191(W) x 70(D) mm
  • Weight (Net): 0.17kg
  • Weight (Gross): 0.25kg

Atlas Sound TSD-TXHL PDF Downloads

Download the Spec Sheet Here

Download the User Manual Here





}
