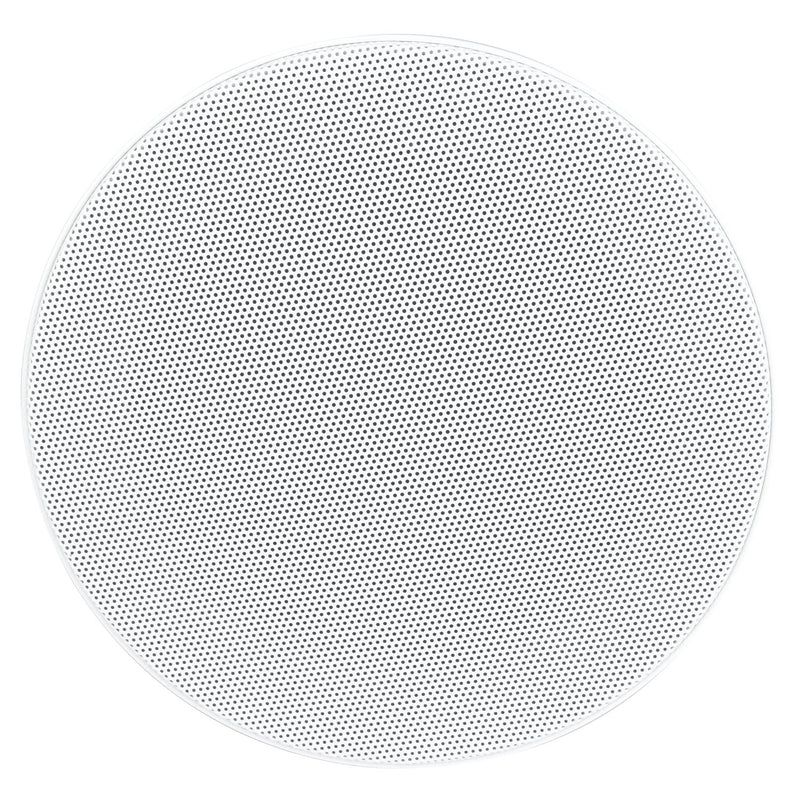

Adastra CA-5D Fire-Rated 5.25" 100V & 8 Ohm Ceiling Speaker - EN54-24 Certified
The Adastra CA-5D is a Fire-Rated 5.25" 100V Recessed Ceiling Speaker certified to EN54-24, housed in a V0 fire-retardant ABS basket and dome with a ceramic terminal block, thermal fuse and 3-way quick-fit ceiling clamps ā a practical and compliant ceiling speaker for fire-rated commercial public address installations.
EN54-24 Fire-Rated Ceiling Speaker for Commercial PA Installations
The Adastra CA-5D is a professional fire-rated recessed ceiling loudspeaker designed for 100V distributed public address systems in commercial buildings where EN54-24 fire certification is a requirement. Fully certified to EN54-24 for use in fire-rated commercial installations, the CA-5D is suitable for offices, retail environments, hotels, educational facilities, healthcare buildings and any other commercial space where life safety audio system compliance is required. The moulded basket and top dome are constructed from V0 fire-retardant ABS material ā the highest standard of flame retardancy for plastic enclosures ā ensuring the speaker assembly maintains its structural integrity in the event of a fire.
Fire-Safe Internal Construction
The 5.25" dual cone driver is coated in a fire-resistant finish and connected via fire-resistant cable to a ceramic terminal block and 100V transformer ā ensuring reliable operation in elevated temperature conditions during a fire event. The 100V line transformer provides tappings at 0.75W, 1.5W, 3W and 6W for flexible integration into large-scale distributed audio systems, and cable access is via gland knock-out holes for clean, professional installation wiring.
Quick & Easy Ceiling Installation
The CA-5D features 3-way quick-fit ceiling clamps for fast, straightforward recessed installation ā a significant time-saving advantage on large-scale commercial projects where multiple speakers need to be installed efficiently. The 140mm cutout diameter and compact 165mm overall diameter keep the ceiling footprint minimal for a discreet, professional appearance in any commercial interior.
Adastra CA-5D Key Features:
- EN54-24 Certified: Fully compliant for use in fire-rated commercial public address and voice alarm installations.
- 5.25" Coated Dual Cone Driver: Fire-resistant coating for reliable performance in elevated temperature conditions.
- V0 Fire-Retardant ABS Construction: Highest standard of flame retardancy for the moulded basket and dome enclosure.
- Ceramic Terminal Block & Thermal Fuse: Fire-safe internal wiring for reliable operation during a fire event.
- Fire-Resistant Internal Cable: Maintains speaker integrity in elevated temperature conditions.
- 100V Line Transformer: Tappings at 0.75W, 1.5W, 3W and 6W for flexible distributed system integration.
- 3-Way Quick-Fit Ceiling Clamps: Fast, straightforward recessed installation ā no tools required for clamping.
- 8 Ohm Low Impedance: Available for direct amplifier connection where required.
- 92dB Sensitivity (1W/1m): Efficient audio performance for effective coverage across commercial spaces.
- 105Hzā15kHz Frequency Response: Clear speech and music reproduction for public address applications.
- Cable Access via Gland Knock-Out Holes: Clean, professional installation wiring.
-
140mm Cutout Diameter: Compact ceiling footprint for a discreet, professional appearance.
Specifications:
