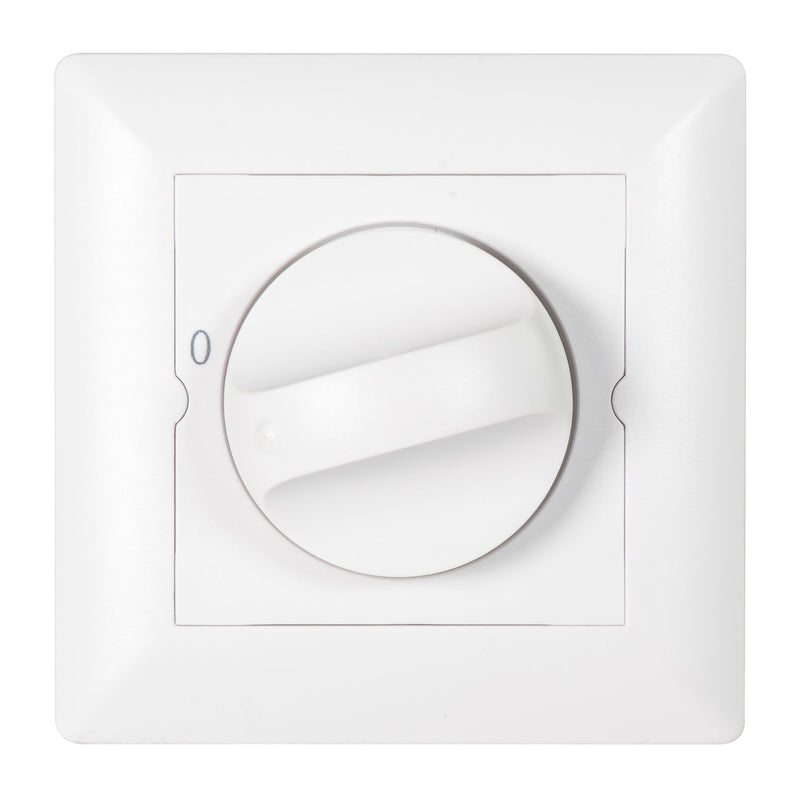

Adastra AT20-100VR 20W 100V Volume Control Attenuator with 24V Relay

by Adastra
SKU 952.463
Sold out
Original price £22.99 (inc. VAT) - Original price £22.99 (inc. VAT)
Original price £22.99 (inc. VAT)
£22.99 (inc. VAT)
£22.99 (inc. VAT) - £22.99 (inc. VAT)
Current price £22.99 (inc. VAT)

The Adastra AT20-100VR is a 20W 100V Line Wall-Mount Volume Control with an 11-position rotary switch providing up to 33dB of attenuation in 3dB steps and a 24V relay for automatic bypass to full volume when triggered from a fire alarm panel — supplied with a surface mount back box.

The Adastra AT20-100VR is a wall-mount 100V line attenuator designed for controlling output volume at individual speaker zones in distributed 100V public address and background music installations — handling up to 20W of 100V line audio for slightly larger speaker loads than the AT10-100VR. A large rotary switch with 11 positions provides accurate, stepped volume control with 3dB attenuation per step — up to 33dB total — for precise and consistent level adjustment at each zone location.

The built-in 24V relay automatically bypasses the attenuator to full volume when triggered from a fire alarm panel or emergency system, ensuring emergency announcements are always broadcast at full level regardless of the local volume setting. Supplied with a surface mount back box, the AT20-100VR can also be fitted into a standard flush-mount pattress box with a minimum internal depth of 47mm.

Adastra AT20-100VR Key Features:

  • 20W 100V Line Attenuator: For controlling speaker volume in 100V distributed audio systems.
  • 11-Position Rotary Switch: 3dB attenuation per step — up to 33dB total attenuation for precise volume control.
  • 24V Relay Emergency Bypass: Automatically overrides to full volume when triggered from a fire alarm panel.
  • Surface Mount Back Box Included: Ready to install straight out of the box.
  • Flush Mount Compatible: Fits standard pattress box with minimum 47mm internal depth.
  • Screw Terminal Connections: In, Out and Relay +/- for clean, professional installation wiring.

Read Now - How to control the volume of your 100V line audio system

      Specifications:

      • Power Handling (Max): 20W
      • Graduation: 11-position x 3dB (up to 33dB attenuation)
      • Emergency Control: 24V bypass to full level
      • Connections: In, Out, Relay +/- screw terminals
      • Mounting Depth: 47mm minimum
      • Dimensions: 86 x 86 x 70mm
      • Weight: 246g

      Adastra - Commercial Amplifiers & Speakers

      Adastra has been providing audio equipment since 1949, with a focus has always on practical, affordable, and installer-friendly design.

      Their range covers the full scope of what a commercial installation demands, from zoned background music and public address through to noise pollution control and induction loop systems. Hardware includes speakers, amplifiers, mixers, cable and everything inbetween.

      Adastra sits naturally alongside what we do at Audio Volt. Their products are built for real-world commercial environments, priced accessibly, and backed by decades of industry presence, making them a solid choice whether you are specifying a simple background system or something more involved.

      View the Adastra range here
