Adastra A6300 3-Zone (6 x 300W) Bluetooth Mixer Amplifier, 4Ω Class-D, USB/FM/Optical
The Adastra A6300 is a 3-Zone 6 x 300W Class-D Mixer Amplifier with switchable stereo or dual mono outputs per zone, 3 stereo line inputs, optical S/PDIF, Bluetooth, USB/MicroSD media player, FM tuner, 2 mic inputs with voice override and 24V emergency mute — stepping up from the A4300 with three independent zones for larger commercial background music and PA installations.

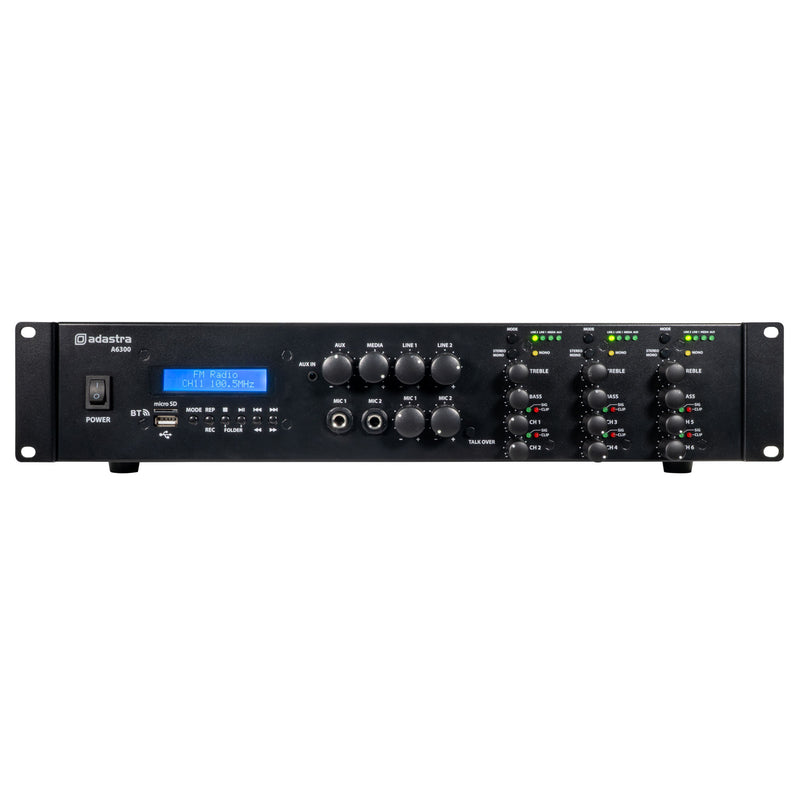

The Adastra A6300 is the 3-zone model in the A Series range of commercial Class-D mixer amplifiers — delivering 6 x 300W at 4 Ohm (6 x 150W at 8 Ohm) across three independent output zones in a compact 2U rack-mount package.
Each zone provides two 300W channels and can be independently assigned its own input source, EQ settings and volume level — making the A6300 the ideal choice for larger installations requiring different audio content or volume levels across three separate areas simultaneously. Designed for retail, hospitality, public buildings and leisure venues where true three-zone audio flexibility and high output power are required, the A6300 provides the same sophisticated functionality and comprehensive control surface as the A4300 with the added capability of a third fully independent output zone.
Multiple Input Sources & Flexible Zone Control
Each of the three output zones can be independently assigned to any of the available input sources — two stereo RCA line inputs, a 3.5mm aux input, optical S/PDIF digital input for AV system integration, USB/MicroSD media player, FM tuner or Bluetooth receiver. Each zone features independent 2-band EQ with bass and treble controls alongside master volume, and can be configured to operate in stereo or summed to dual mono depending on the speaker layout requirements of each area.
Built-In Media Player, Bluetooth & FM Tuner
The onboard media player supports MP3 audio playback from USB flash drives and MicroSD cards, and a Bluetooth receiver enables wireless streaming from smartphones and tablets. A built-in FM tuner with F-type external aerial connection provides reliable radio reception for background music without requiring a separate tuner unit. All source options are selectable per zone from the front panel for straightforward day-to-day operation.
Microphone Inputs with Voice Override & Emergency Mute
Two microphone inputs — accessible from both front and rear panel 6.3mm jack connectors — each have individual level controls and can be set to override the stereo line input automatically when a microphone signal is detected, ensuring voice announcements and paging are heard clearly over background music across all zones. A 24V emergency mute terminal on the rear panel allows integration with fire alarm panels and building management systems for automatic audio muting in emergency situations.
Adastra A6300 Key Features:
- 3-Zone 6 x 300W Class-D Amplifier (4 Ohm): Three independent output zones each delivering 2 x 300W for larger multi-zone commercial installations.
- Stereo or Dual Mono Output Per Zone: Each zone independently switchable between stereo and summed dual mono.
- Independent Zone Source Selection: Any input source assignable to any zone independently.
- 2 x Stereo RCA Line Inputs: For CD players, media sources and other line-level devices.
- 3.5mm Aux Input: Additional line-level source connectivity.
- Optical S/PDIF Input: TOSLink digital audio input for AV system integration.
- USB/MicroSD Media Player: MP3 playback from flash drives and MicroSD cards.
- Bluetooth Receiver: Wireless streaming from smartphones and tablets.
- FM Tuner: Built-in FM radio with F-type external aerial connection.
- 2-Band EQ Per Zone: Independent bass and treble control per output zone.
- Independent Zone Volume Control: Individual master volume per output zone.
- 2 x Mic Inputs with Voice Override: Front and rear panel 6.3mm jack — automatic override of line input for announcements and paging.
- 24V Emergency Mute: Rear panel terminal for fire alarm panel and building management system integration.
- 92dB Dynamic Range: Clean, professional audio performance for commercial installations.
- < 0.1% THD+N: Low distortion for accurate, high-quality audio reproduction.
- Comprehensive Protection: Thermal, over-current, over-voltage and short-circuit protection.
-
2U 19" Rack Mountable: Compact installation footprint for professional equipment racks.
Specifications:
