Zenith LSP204 MKII 2 In 4 Out Loudspeaker Processor
DETAILS
The Zenith LSP204 MKII is a professional 2-in / 4-out loudspeaker processor designed for precise control of PA and installed sound systems.
The Zenith LSP204 MKII is a powerful digital loudspeaker management system built around a high-performance 24-bit DSP engine, designed to give sound engineers complete control over system tuning, protection and optimisation. With two XLR inputs and four XLR outputs, it is ideal for configuring stereo 2-way systems, mono 4-way systems or more complex speaker layouts in venues such as live music venues, theatres, houses of worship, conference rooms and fixed PA installations.
Pre-loaded with a range of standard system presets including stereo 2-way configurations, the LSP204 MKII allows fast setup straight out of the box. These presets can be copied, edited and stored into user memory locations, making it easy to fine-tune systems for specific speakers, amplifiers and rooms. Using the supplied Windows PC editing software, technicians can also create, backup and duplicate presets for consistent deployment across multiple venues.
Each input and output channel is equipped with a full 7-band parametric EQ, allowing precise tonal shaping and room correction. Multiple filter types are available including parametric, low-shelf and high-shelf options, while the wide frequency and bandwidth ranges make it suitable for everything from subwoofer tuning to vocal clarity and system voicing.
The LSP204 MKII also includes professional crossover filters with selectable Butterworth, Bessel or Linkwitz-Riley responses, and slopes up to 48dB per octave. This makes it easy to create accurate crossover points between subwoofers, mid-range and high-frequency drivers, ensuring smooth frequency transitions and maximum system efficiency.
For system alignment and protection, the processor features up to 1 second of delay on every input and output, allowing precise time-alignment between speaker arrays. Integrated compressors on each channel protect loudspeakers from overload while maintaining consistent output levels, and phase reverse switches allow quick correction of polarity issues during system setup.

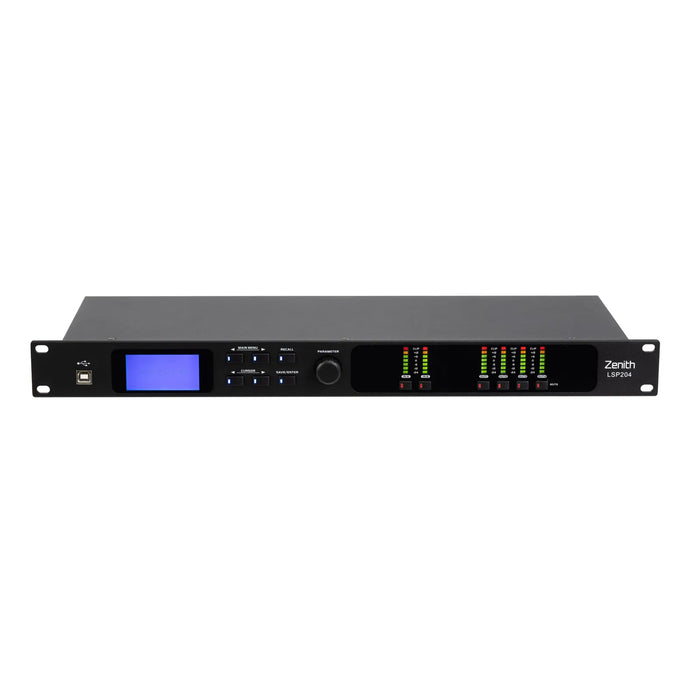

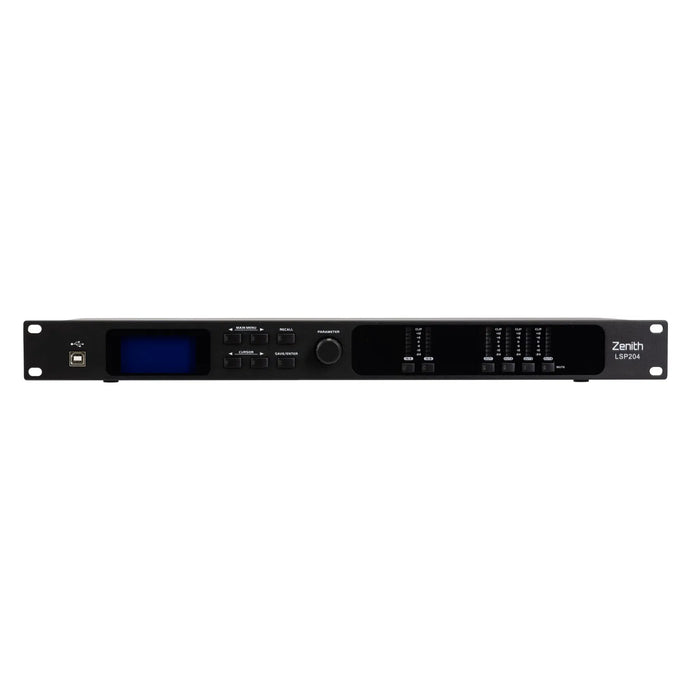

The front-panel jog wheel and LCD display provide fast access to all parameters, while LED input and output meters give instant visual feedback of signal levels. Multi-channel linking and copy functions simplify setup on complex systems, allowing adjustments to be made across multiple outputs at once. For deeper control and easier configuration, the included Windows PC software connects via USB, giving a clear graphical interface for editing, storing and managing presets.
Zenith LSP204 MKII Key Features:
- 2 In / 4 Out Configuration: Ideal for stereo 2-way, mono 4-way and multi-speaker sound system setups.
- 24-bit DSP Engine: High-performance processing with professional-grade AD/DA converters and 48kHz sampling rate.
- Advanced Parametric EQ: 7-band PEQ on every input and output with shelving and parametric filter options.
- Professional Crossover Filters: Butterworth, Bessel and Linkwitz-Riley filter types with slopes up to 48dB per octave.
- Comprehensive Delay Control: Up to 1 second of delay per input and output for accurate speaker alignment.
- Built-In Dynamics Processing: Independent compressors on every channel with full control over threshold, ratio, attack and release.
- Preset Memory & PC Control: Factory presets plus user-editable memories with Windows software for backup and system duplication.
- Front Panel Control: Jog wheel, LCD display and LED meters for fast on-site setup and monitoring.
- Channel Linking & Copying: Easily apply settings across multiple channels for faster configuration.

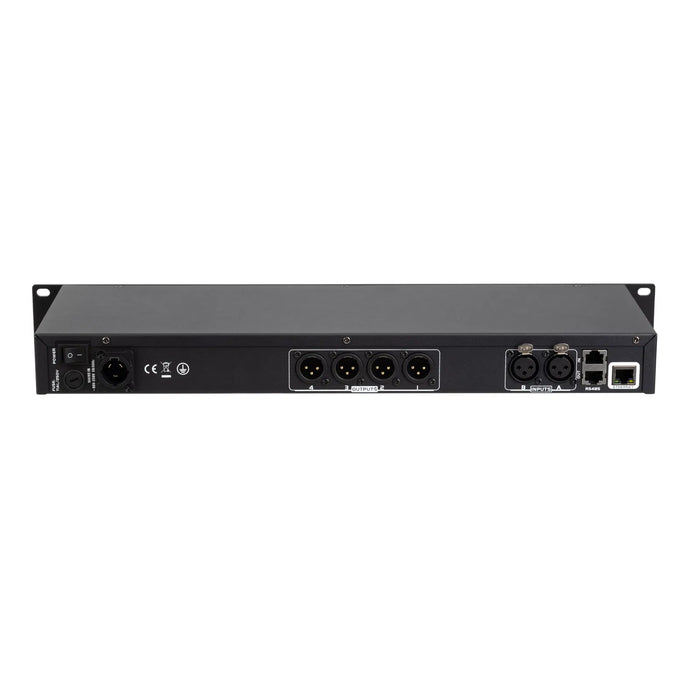

- Professional Connectivity: Balanced XLR inputs and outputs for noise-free integration into PA systems.
SPECS & DOWNLOADS
Zenith LSP204 MKII:
- Inputs: 2 x Balanced XLR
- Outputs: 4 x Balanced XLR
- DSP Resolution: 24-bit
- Sampling Rate: 48kHz
- Input / Output Level Control: -40dB to +12dB in 0.1dB steps
- EQ Type: 7-band parametric EQ on each input and output
- EQ Frequency Range: 19.7Hz – 21.9kHz
- EQ Gain Range: -30dB to +15dB
- EQ Bandwidth: 0.017 to 4.750 octaves
- Crossover Filters: High-pass and low-pass per output
- Filter Slopes: 12, 24, 36 or 48 dB per octave
- Filter Types: Butterworth, Bessel, Linkwitz-Riley
- Delay: Up to 1 second per input and output
- Dynamics: Compressor on every input and output with adjustable threshold, ratio, attack, release and knee
- Phase Control: Phase reverse on every input and output
- Display: LCD with jog wheel control
- Level Meters: 7-segment LED for each input and output
- PC Control: Windows-based software via USB
- Power Supply: 90–250V AC, 50/60Hz
- Dimensions (H x W x D): 45 x 482 x 158mm
-
Weight: 2kg
