W-Audio DTM 10-Way Wireless UHF Headset & Lapel Microphone System + Flightcase (CH38/70)
DETAILS

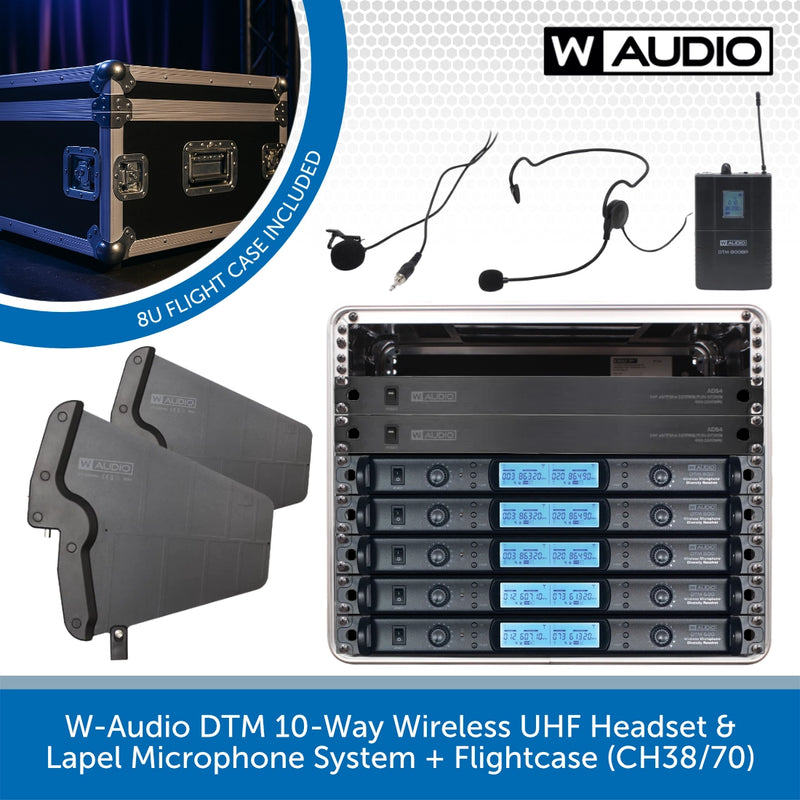

W-Audio DTM 10-Way Wireless UHF Headset & Lapel Microphone System V2 (CH38/70) With 8U Flightcase.
The W-Audio DTM 10-Way Wireless UHF Headset & Lapel Microphone System V2 is a complete and professional solution for multi-user wireless audio setups in theatres, schools, houses of worship and event venues.
This bundle combines 8 channels on Channel 38 (606.0–614.0MHz) and 2 additional channels on Channel 70 (863.0–865.0MHz), providing flexibility and maximum usability in environments with mixed licensing needs. With 10 beltpack transmitters and both headset and lapel microphones included, users can choose the right mic for their performance or presentation.

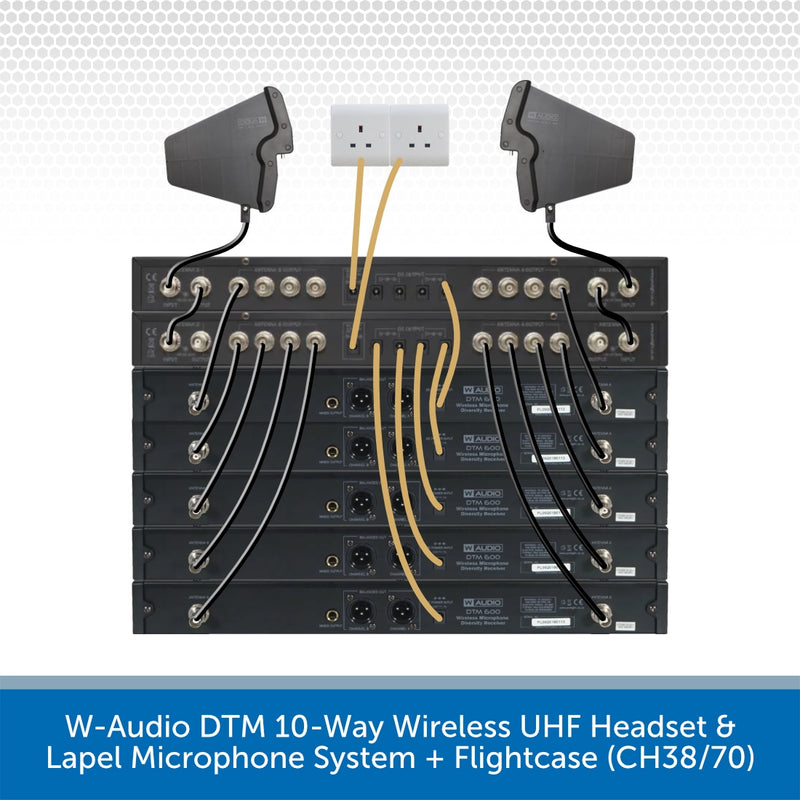

To ensure consistent performance and tidy installation, this package also includes a heavy-duty 8U flightcase along with 2x W-Audio ADS4 UHF Antenna Distributors and two RPA2 Remote Paddle Antennas. These professional accessories allow all receivers to share antenna inputs and deliver reliable signal reception without interference or clutter. For transport safety, systems are supplied uninstalled within the case.
Ideal for touring AV setups or permanent installations, the system offers 300 user-selectable UHF frequencies per receiver, auto scanning, IR sync, and rack-mounting capability. Balanced XLR and mixed 1/4" jack outputs provide versatile connection options to PA systems and mixers, while each beltpack transmitter offers clear audio and dependable operation for a wide range of users.
W-Audio DTM 10-Way System + Flightcase Key Features:
- 10-Channel Wireless Microphone System with 8 x CH38 (606–614MHz) and 2 x CH70 (863–865MHz)
- Includes Headset & Lapel Microphones for each beltpack transmitter
- 300 Preset Frequencies per receiver with auto scan and IR sync
- Phase Lock Loop (PLL) synthesised control and high RF stability
- Balanced XLR Outputs and 1/4” mixed output for each receiver
- W-Audio ADS4 Antenna Distributors and 2 x RPA2 Remote Paddle Antennas
- 8U Flightcase Included (equipment not pre-installed for shipping safety)
- Perfect for Multi-Mic Applications in education, worship, performance and business events

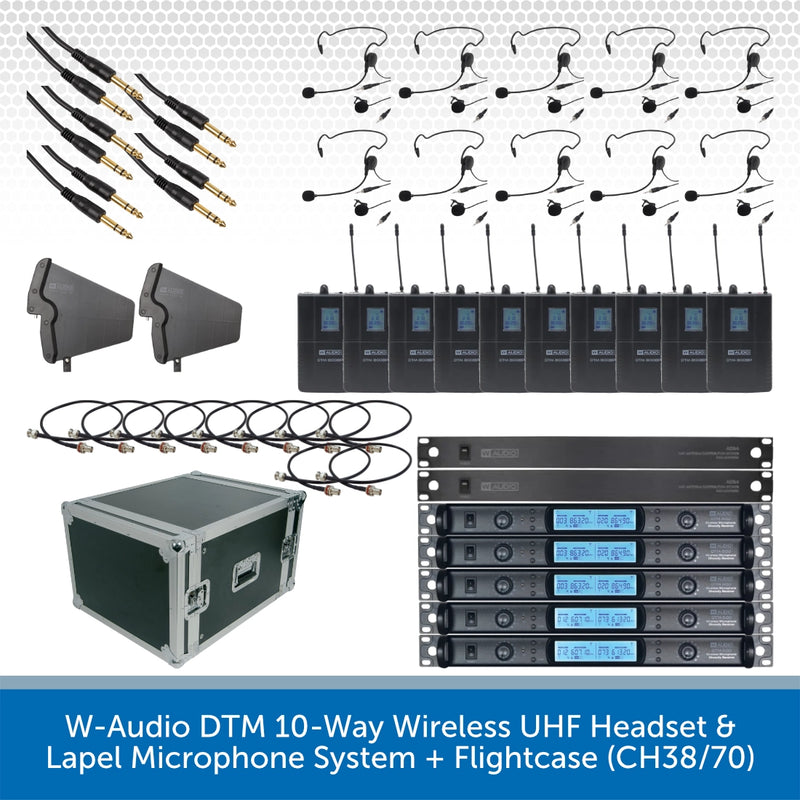

What’s Included:
- 4 x DTM 600H UHF Receivers (CH38)
- 1 x DTM 800H UHF Receivers (CH70)
- 10 x Wireless Beltpack Transmitters
- 10 x Headset Microphones
- 10 x Lapel/Tie-Clip Microphones
- 5 x Power Supplies
- 5 x ¼” Jack to Jack Connecting Cables
- 2 x W-Audio ADS4 Antenna Distributor
- 2 x W-Audio RPA2 Remote Paddle Antennas
- 8U Flightcase (equipment not pre-installed)
- User Manuals
SPECS & DOWNLOADS
W-Audio DTM 600 Specifications
Download the User Manual HERE >
- Frequency response: (handheld): 40Hz-15kHz
- Transmitter battery configuration: 2 x 1.5V AA (not supplied)
- Audio output level: 400mV
- Rack Mount: Included
- Dynamic range: 96dB
- Receiver power supply: 12V DC (mains adaptor supplied)
- Software Version: 2
W-Audio DTM 800 Specifications
- Frequency response: (handheld): 40Hz-15kHz
- Transmitter battery configuration: 2 x 1.5V AA (not supplied)
- Audio output level: 400mV
- Rack Mount: Included
- Dynamic range: 96dB
- Receiver power supply: 12V DC (mains adaptor supplied)
- Software Version: 2
W-Audio DTM 600BP Specifications
- Includes: 1x Transmitter, 1x Headset Mic, 1x Lavalier Mic
- Beltpack dimensions: 100 x 65 x 30mm
- Battery type: 2 x 1.5V AA (not supplied)

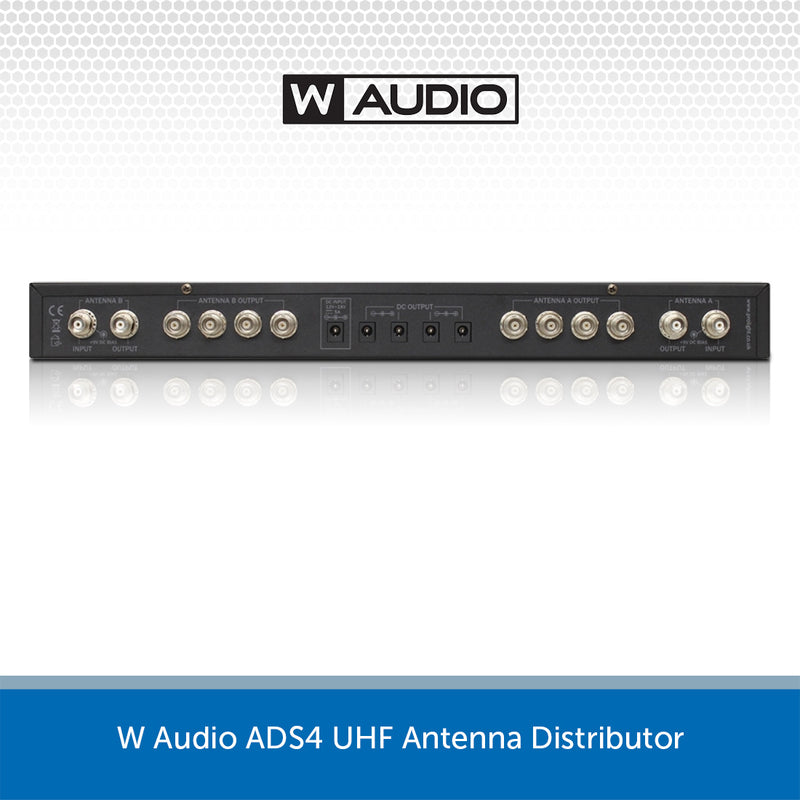

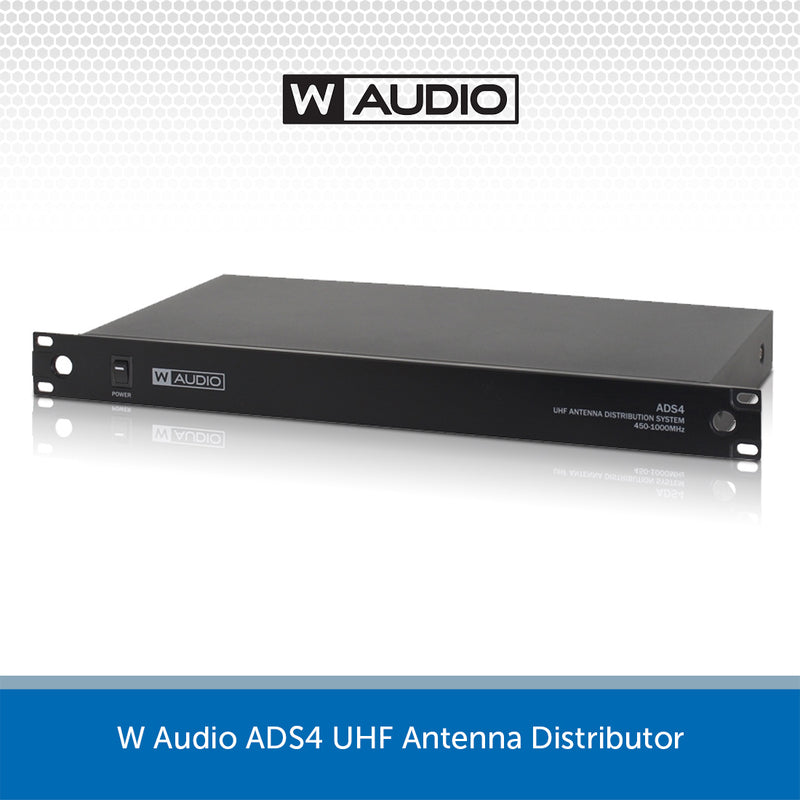

W Audio ADS4 Specifications
- Power supply: DC 8-12V, 5A (adaptor supplied)
- Dimensions: 50 x 480 x 240mm
- Weight: 2.3kg

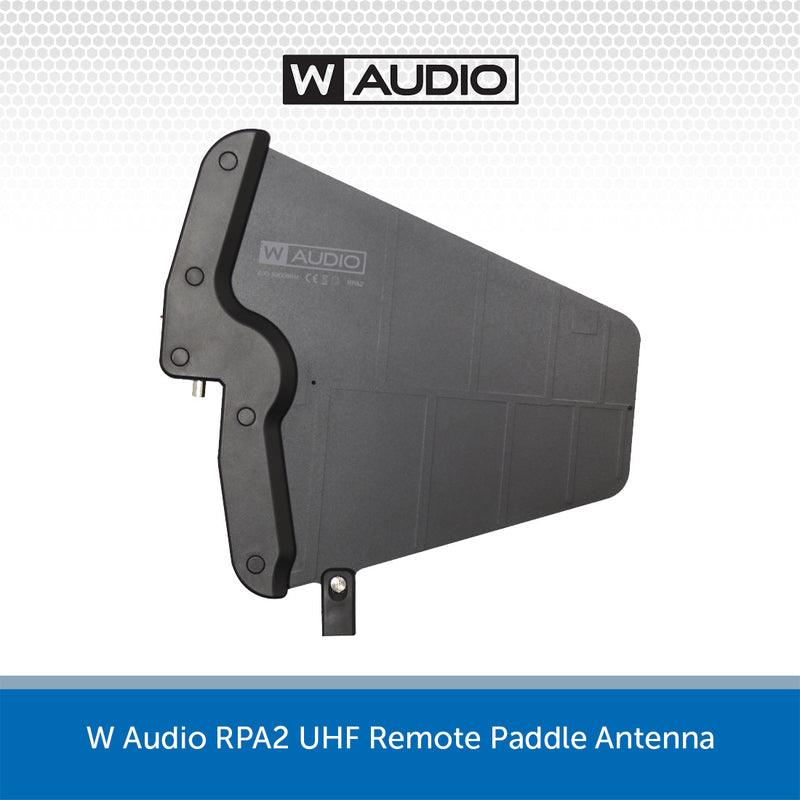

W Audio RPA2 Specifications
- Power supply: 8-12V DC bias via BNC (not supplied)
- Dimensions: 330 x 310 x 30mm
- Weight: 0.5kg
Citronic Flightcase Specifications
- Weight: 17kg
- Fixing rails: Front and rear
- Internal dimensions: 465 x 365 x 500mm
- External dimensions: 635 x 410 x 535mm
- Size: 8U
