DETAILS

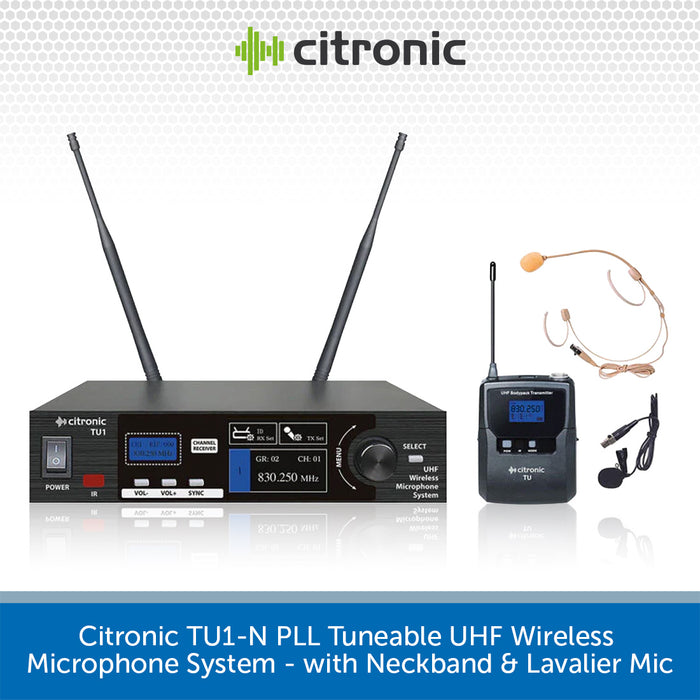

The Citronic TU1-N is a PLL Tuneable UHF True Diversity Wireless Bodypack System delivering reliable, professional-grade wireless performance with both neckband and lavalier microphones included, licence-free UK and EU operation and an intuitive full-colour TFT display for effortless channel management.

The Citronic TU1-N has been designed to provide a reliable, adaptable and uncompromising wireless microphone solution for stage performances, conferences, theatrical productions, presentations and other vocal applications where a discreet, hands-free microphone setup is required. Built around a true diversity UHF receiver with individually programmable channels, the TU-series delivers the kind of dependable, interference-free wireless performance that demanding professional applications require — all within a system that is straightforward to set up, manage and expand.

Intelligent Channel Management

At the heart of the TU-series is a sophisticated channel management system that sets it apart from simpler wireless alternatives. The full-colour TFT display and rotary encoder on the receiver's front panel allow complete programming of carrier frequency, EQ settings, transmission power and even the display backlight colour for easy channel identification on busy multi-channel setups. Each channel wirelessly syncs to its paired bodypack transmitter via an IR connection, automatically configuring the transmitter to match the receiver settings — avoiding the complication of having to manually adjust multiple controls on each transmitter separately. An auto frequency sweep function identifies and locks onto the clearest available frequencies for reliable, drop-out free operation.

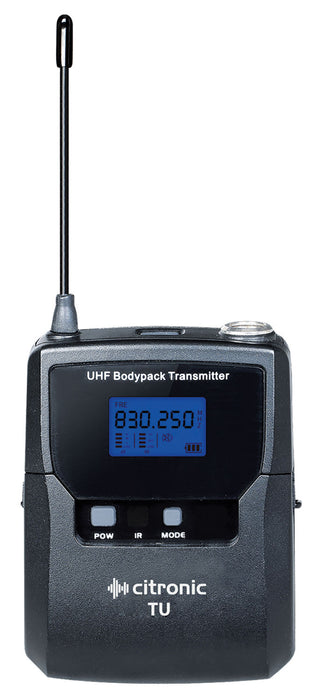

Compact Bodypack Transmitter with Two Microphone Options

The TU1-N is supplied with a compact and lightweight bodypack transmitter — weighing just 74g without batteries — along with both a neckband microphone and a lavalier microphone, giving performers and presenters the flexibility to choose the most suitable option for their application. Both microphones feature fully balanced signal connections for clean, interference-free audio transmission. The neckband microphone is ideal for theatrical and stage applications where secure, consistent microphone positioning is critical, whilst the lavalier microphone offers a more discreet solution for presentations, conferences and broadcast applications. A wireless range of up to 60 metres provides ample freedom of movement. Two AA batteries are supplied per transmitter.

Flexible Connectivity & Tuning

Each channel of the TU1-N receiver features an independent 7-band EQ for precise tonal shaping to suit different voices, microphone types and acoustic environments. Individual XLR outputs per channel allow direct connection to mixing desks and PA systems, whilst a single mixed jack output provides a convenient alternative for simpler setups. Twin BNC antennas with true diversity reception and internal antenna distribution can be connected at the rear of the receiver or repositioned to the front panel when rack-mounted using the supplied BNC extension cables. The system operates licence-free within the 863–865MHz UHF band in the UK and EU, with additional channel 65 frequencies (823–832MHz) also available with a PMSE licence.

Citronic TU1-N Key Features:

• True Diversity UHF Reception: Dual antenna true diversity with internal distribution for reliable, interference-free wireless performance up to 60 metres.
• PLL Tuneable Channels: Each channel is individually tuneable across 8 groups of 8–16 carrier frequencies within the licence-free UHF and regulated duplex gap bands.
• Full-Colour TFT Display: Front panel display with rotary encoder for easy programming of frequency, EQ, transmission power and backlight colour identification.
• Wireless IR Transmitter Sync: Receiver wirelessly syncs channel settings to the paired bodypack transmitter via IR connection for effortless setup.
• Independent 7-Band EQ Per Channel: Precise tonal control for each channel to suit different voices and acoustic environments.
• Auto Frequency Sweep: Automatically identifies and locks onto the clearest available frequencies for drop-out free operation.
• Compact Lightweight Bodypack: Weighing just 74g without batteries, the discreet bodypack transmitter is comfortable for extended wear during performances and presentations.
• Neckband & Lavalier Microphones Both Included: Two microphone options supplied for maximum versatility across stage, theatrical and presentation applications.
• Fully Balanced Microphone Connections: Both supplied microphones feature fully balanced signal connections for clean, interference-free audio.
• Individual XLR Outputs & Mix Jack Output: Flexible output options for integration with mixing desks, PA systems and simpler single-output setups.
• Licence-Free UK & EU Operation: Operates within the 863–865MHz licence-free UHF band, with PMSE-licensed 823–832MHz frequencies also available.

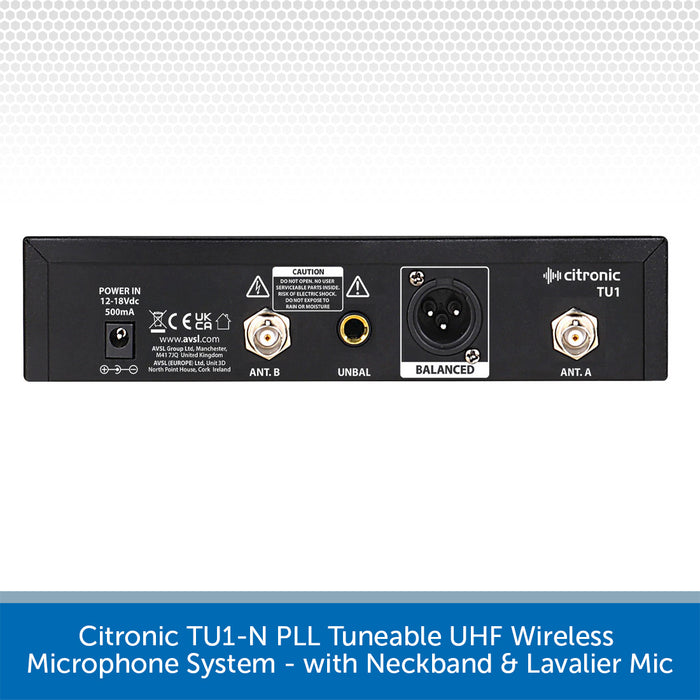

• Front or Rear BNC Antenna Connection: Twin BNC antennas with supplied extension cables for flexible rack-mounted or desktop use.
• Expandable System: Available as 1, 2 or 4-channel configurations for scalable wireless setups.
• Batteries Included: 2 x AA batteries supplied per transmitter.
• Mains Adaptor Included: 12–18V DC, 500mA power supply supplied.


SPECS & DOWNLOADS

Download the PDF User Manual Here >

Citronic TU1-N Specifications:

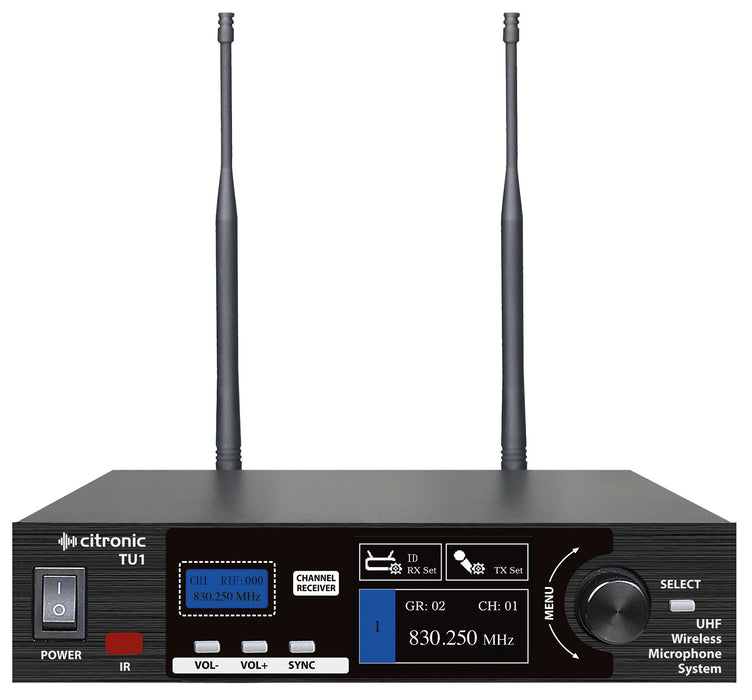

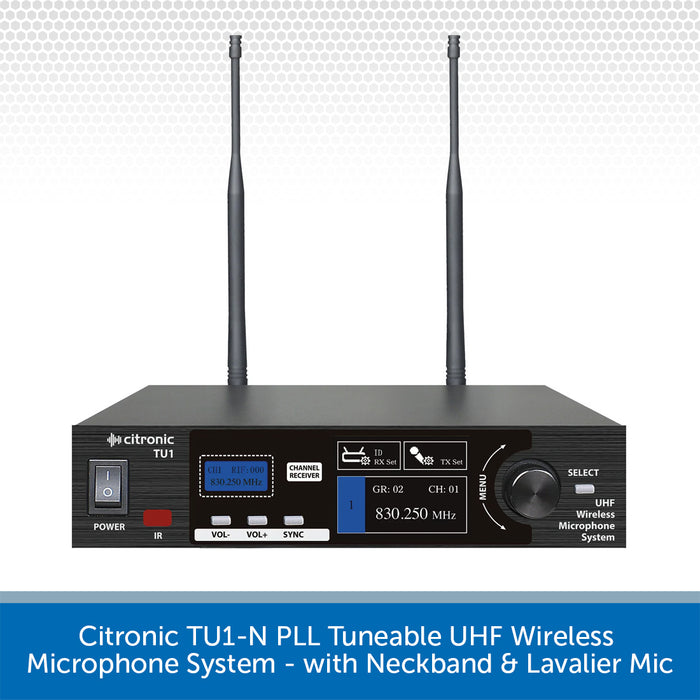

Receiver

• System Type: True diversity UHF PLL tuneable
• Carrier Frequencies: 823–832MHz (PMSE licence required) / 863–865MHz (licence-free)
• Channel Groups: 8 groups of 8–16 frequencies
• Outputs: Individual XLR per channel, single mix jack output
• Antenna Connection: 2 x BNC (rear or front panel via supplied extension cables)
• Display: Full-colour TFT with rotary encoder
• EQ: Independent 7-band per channel
• Power Supply: 12–18V DC, 500mA (mains adaptor included)
• Dimensions: 205 x 185 x 44mm
• Weight: 0.935kg

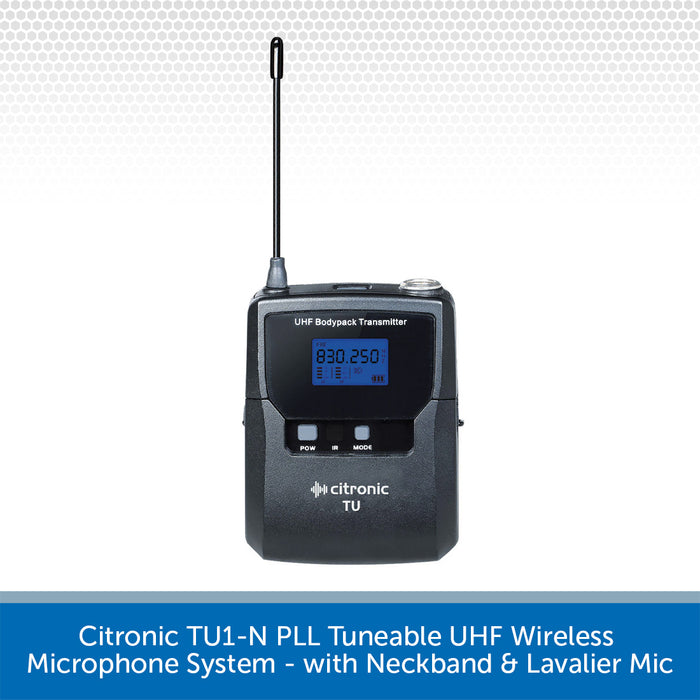

Bodypack Transmitter

• Wireless Range: Up to 60 metres
• Batteries: 2 x AA (included)
• Dimensions: 90 x 60 x 25mm
• Weight: 74g (without batteries)

Neckband Microphone

• Connection: Fully balanced
• Dimensions: 180 x 140 x 60mm
• Weight: 28g

Lavalier Microphone

• Connection: Fully balanced
• Dimensions: 27 x 12mm Ø
• Weight: 23g
