Waves Microplayer MKIII & Bosch In-Ceiling Speaker PA System

SKU WAVES-PA-BUN1
Original price £419.00 (inc. VAT) - Original price £419.00 (inc. VAT)
Original price £419.00 (inc. VAT)
£419.00 (inc. VAT)
£419.00 (inc. VAT) - £419.00 (inc. VAT)
Current price £419.00 (inc. VAT)
DETAILS

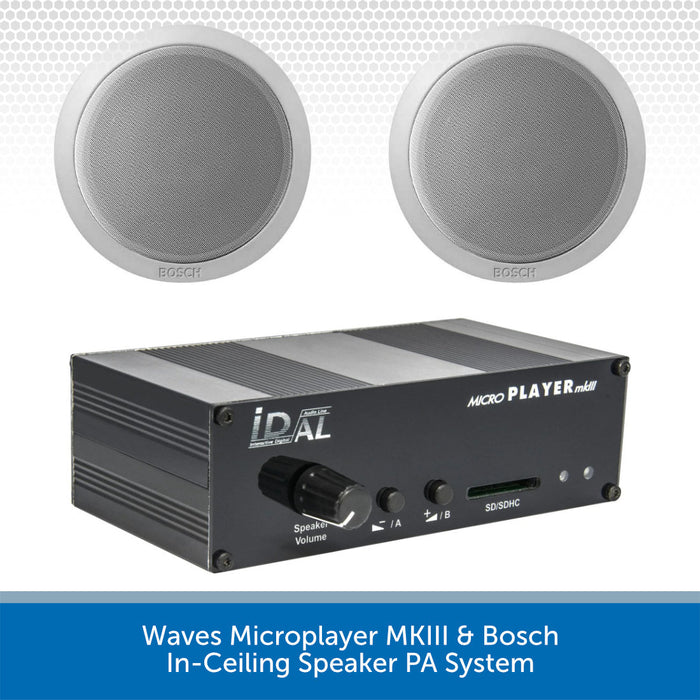

Waves Microplayer MKIII+ In-Ceiling Bundle – Discreet Messaging & PA System.

The Waves Microplayer MKIII+ In-Ceiling Speaker Bundle is an ideal solution for public spaces with false ceilings, such as doctor’s surgeries, dental practices, pharmacies, retail stores, libraries, and hotels.

This system allows scheduled or on-demand playback of pre-recorded messages, announcements, or background music. For example, a surgery can use it to play reminders such as “Book your flu jab” at set times, or broadcast general practice information to patients in the waiting room.

The Microplayer MKIII+ can be installed on or below a desk, counter, shelf, or hidden above a false ceiling tile, keeping it accessible for SD/USB media, playback control, or remote operation while remaining unobtrusive.

This bundle includes two Bosch LHM 0606/10 in-ceiling speakers with fire domes and 20m of speaker cable, providing clear, intelligible audio. The built-in 2 × 10W Class-D amplifier powers the included speakers directly, making this a compact and professional solution for automated announcements, staff-triggered messages, or emergency alerts.

Bundle Key Features:

  • Complete bundle: Waves Microplayer MKIII+, 2 × Bosch LHM 0606/10 in-ceiling speakers with fire domes, 20m speaker cable
  • Pre-recorded messages: Perfect for timed reminders, staff alerts, or patient notifications
  • Trigger playback: Messages can be activated via buttons, sensors, or RS-232 commands
  • Integrated amplifier: 2 × 10W Class-D drives the included speakers
  • Discreet installation: Fits under desks, counters, shelves, or above false ceiling tiles
  • Multi-purpose: Public address, waiting room messaging, background music, or emergency announcements
SPECS & DOWNLOADS

Waves Microplayer MKIII:

Download the PDF User Manual HERE >

  • Headphones: Stereo 3.5mm mini-jack
  • Line Out: Stereo RCA connectors unbalanced
  • Speaker Outputs:
    • 2 × 8 W – 8 Ω, THD+N = 1%, 1 kHz
    • 2 × 10 W – 8 Ω, THD+N = 10%, 1 kHz
    • 2 × 15 W – 4 Ω, THD+N = 1%, 1 kHz
    • 2 × 19 W – 4 Ω, THD+N = 10%, 1 kHz
  • Digital Inputs: 4 combined configurable opto-isolated terminal block connector, 3.81mm
  • Outputs: 2 MOSFET outputs (500 mA per output, max 20 V) on 3.81 mm pluggable terminal block
  • Buttons: 2 configurable buttons
  • RS232 Control: RS-232 serial link on a 3.81 mm pluggable terminal block (9600, 19200, or 38400 bauds)
  • Supported Files:
    • MP3 (.mp3): MPEG-1/2 Audio Layer III, mono/stereo, 16 bits, 44.1 kHz, from 32 kbit/s to 320 kbit/s, CBR (Constant Bit Rate) or VBR (Variable Bit Rate), with or without ID3v1/2 tags¹
    • WAV (.wav): mono/stereo, 16-bit LPCM, 44.1 kHz, WAVE_FORMAT_PCM or WAVE_FORMAT_EXTENSIBLE
    • TXT (.txt): text file for serial (serial.txt) and configuration (config.txt) usages – raw text format (only printable 7-bit ASCII characters) with CR/LF, LF or CR end of line characters
  • Storage Devices (SD Card Slot):
    • File system supported: FAT32
    • Accepted storage device types: SDSC cards, SDHC cards, USB Flash Drives
    • Accepts 1000 folders maximum at the root, containing up to 999 files each
  • Player power supply input: Nominal voltage: 12 V DC
  • Supplied PSU Voltage: From 100 V to 240 V
  • Frequency: From 50 Hz to 60 Hz
  • Dimensions (WHD): 140 mm (1/3 rack width) x 43 mm (1U) x 107 mm
  • Weight: 240g

Bosch LHM 0606/10 Ceiling Speakers:

Download the PDF User Manual HERE >

  • Impedance:  4 Ω
  • Frequency Response Min:  80Hz
  • Frequency Response Max:  18kHz
  • External Width:  199mm
  • External Depth:  70.5mm
  • Loudspeaker Diameter:  6 "
  • Behind Panel Depth:  54.5 mm
  • Sound Level SPL:  94 dB
  • Panel Cutout Diameter:  165 mm
  • Operating Temperature Min:  -25 °C
  • Input Voltage:  100 V
  • Power Max:  9 W
  • Colour:  White
  • Power Rating RMS:  6 W
  • Weight:  620 g
  • Operating Temperature Max:  55 °C

Bosch LBC 3080/01 Fire Dome:

Download the PDF User Manual HERE >

  • Colour: Flame Red
  • External Depth: 87mm
  • External Diameter: 147mm
  • Weight: 360g

AudioKraft Apollo LSZH Speaker Cable:

  • Sheath: Purple LSZH
  • CSA: 2 x 0.75mm²
  • Strands: 2 x (12 x 0.2mmØ Cu + 12 x 0.2mmØ CCA)
  • Dimensions: 7mmØ
  • Current: 6A max.
}
