Cloud 4-Zone Pendant Speaker Kit with Wall Controls & Cable - 8, 12 or 16 Speakers
The Cloud 4-Zone Pendant Speaker Kit combines the Cloud 46-240 4-Zone Mixer Amplifier with Cloud CVS-P62T 6.5" pendant speakers, zone wall controls and 100m of TruSound LSHF speaker cable.
A complete, professional multi-zone audio solution for bars, restaurants, hotels, gyms, leisure centres, warehouses, factories and places of worship where pendant suspension delivers superior 360Β° coverage in large open spaces and high-ceiling environments.
The Cloud 4-Zone Pendant Speaker Kit brings together everything needed to design, install and commission a professional multi-zone background music and public address system in a single package β with the key advantage of pendant-mounting speakers that deliver 360Β° horizontal dispersion for even, consistent sound coverage across large open areas, warehouses, factories, industrial spaces and high-ceiling environments where conventional wall or ceiling speakers would provide insufficient coverage. Built around the Cloud Electronics 46-240 4-Zone Mixer Amplifier and paired with Cloud CVS-P62T 2-way coaxial pendant speakers, zone wall controls and a 100m drum of TruSound LSHF speaker cable, this kit provides a complete, professional and scalable audio solution for a wide range of commercial environments.
Whether you are installing background music across four independently controlled zones in a bar, restaurant or hotel with large open areas, atrium spaces or high-bay ceilings, providing separate audio zones across a warehouse or factory floor, providing background music and PA across a gym floor, sports hall and reception areas in a leisure centre, or equipping a house of worship with independently managed audio zones across a main hall, side chapel and ancillary rooms, this kit provides the amplification, speakers, control and cabling needed to complete the installation from a single, carefully specified package.

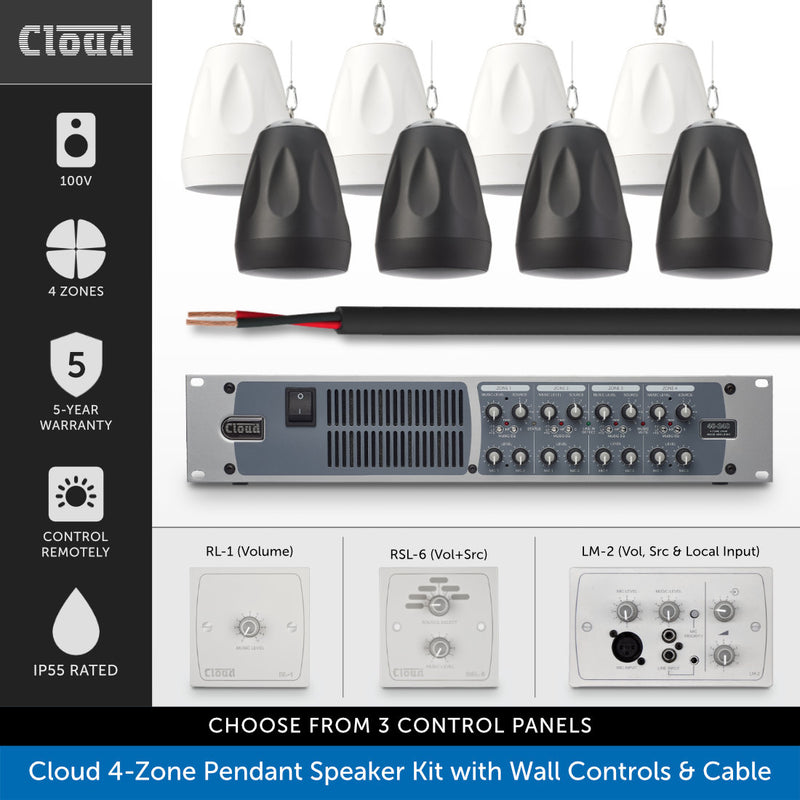

Whatβs Included:
- 1 x Cloud Electronics 46-240 4-Zone Mixer Amplifier (4 x 240W, 4Ξ©/8Ξ©/100V)
- 8, 12 or 16 x Cloud CVS-P62T 6.5" Pendant Speakers (Black or White β please select)
- 4 x Zone Wall Control Panels β select variant:
- Cloud RL-1 Volume Control (Default)
- Cloud RSL-6 Volume & Source Control
- Cloud LM-2 Volume, Source & Local Input Wall Plate
- 1 x TruSound 16/2 1.5mm LSHF Speaker Cable β 100m Drum (Black)
- 1 x 100m 2-Core Screened Audio Cable (Black) β for wall panel to amplifier connection
Cloud 46-240 4-Zone Mixer Amplifier
At the heart of the system is the Cloud Electronics 46-240 β a high-power 4-zone mixer amplifier delivering 240W per zone across four independently controlled output zones, with support for both low-impedance (4Ξ©/8Ξ©) and high-impedance (70V/100V) speaker systems. Each zone provides independent source selection and volume control, manageable from the front panel or via the included zone wall controls. Six stereo line inputs (four balanced) and two microphone inputs with priority override provide comprehensive source connectivity for background music players, streaming devices, microphones and paging sources. A digital paging interface ensures full compatibility with Cloud PM-Series paging microphones, and Ethernet and RS-232 ports enable integration into wider building automation and control systems. Built-in limiters, thermal protection, short-circuit protection and an auto standby mode ensure reliable, energy-efficient continuous commercial operation.
Cloud CVS-P62T Pendant Speakers
The Cloud CVS-P62T is a professional 6.5" 2-way coaxial pendant loudspeaker specifically designed for high-quality music reproduction in large open areas and high-ceiling environments. Suspended freely from any convenient overhead point β from a solid ceiling or within an open ceiling structure β the CVS-P62T delivers 360Β° horizontal dispersion for even, consistent audio coverage throughout the listening area below, making it the ideal choice wherever conventional directional speakers cannot provide the required coverage pattern.
The coaxial driver arrangement combines a 6.5" polypropylene cone woofer with soft rubber surround and a 1" aluminium dome tweeter for wide-range, music-optimised performance from 90Hz to 20kHz. An integral multi-tap transformer supports 25V, 70V and 100V line operation with five power tappings selectable via a rotary switch on the upper surface of the enclosure β alongside an 8 Ohm low-impedance setting for flexible integration into any audio system. A removable top cover protects connections and the power selector switch from dust and debris after installation, and a painted aluminium grille seals the bottom face of the enclosure. A complete set of suspension components β including eye bolt with nut and washer, cable and carabiner β is included with each loudspeaker. Available in black or white β please select your preferred colour before adding to basket.
Cloud Zone Wall Controls β Select Your Preferred Option
Each kit is supplied with four wall control panels β one per zone β allowing local volume and source control from within each area of the venue. Three wall control options are available, selectable as a variant on this listing:
RL-1 Volume Only (Default) β The Cloud RL-1 surface-mount level control provides straightforward local volume adjustment for each zone, fitting into a standard UK single-gang electrical back box. The ideal choice for simple background music installations where local volume control is the primary requirement.
RSL-6 Volume & Source (Upgrade) β The Cloud RSL-6 flush-mount wall plate adds remote source selection alongside volume control, allowing staff in each zone to independently select which audio source is playing in their area as well as adjusting the volume level.
LM-2 Volume, Source & Local Input (Premium) β The Cloud LM-2 Active Wall Plate provides the most comprehensive local control option, adding a balanced XLR microphone input, RCA stereo line input and 3.5mm stereo input directly on the wall plate alongside full source selection and volume control β ideal for gyms, seminar rooms, houses of worship and any environment where local presenter or instructor input is required.
TruSound 16/2 LSHF Speaker Cable
One 100m drum of TruSound 16/2 1.5mm (16AWG) LSHF speaker cable is included as standard, constructed with oxygen-free copper conductors and a low smoke halogen-free, UV and weather-resistant jacket β suitable for both indoor and outdoor installation. Additional cable is available separately in the Frequently Bought Together section.Screened Audio Cable for Wall Panel Connection
A 100m drum of 2-core screened audio cable is also included for connecting the zone wall control panels back to the Cloud 46-240 Mixer Amplifier. The figure-8 lap screen cable features oxygen-free copper conductors and a screen that significantly reduces the risk of interference when running alongside data, mains and lighting cables β an important consideration in commercial installations where signal cables often share conduit or trunking with other services.
Cloud 4-Zone Speaker Package Key Features:
- Complete 4-Zone Commercial Audio Kit with Pendant Speakers: Amplifier, pendant speakers, zone wall controls and speaker cable in one package β ideal for large open spaces and high-ceiling environments.
- Cloud CVS-P62T 6.5" Pendant Speakers: 360Β° horizontal dispersion for even, consistent coverage in large open areas, atriums and high-ceiling spaces where wall or ceiling speakers are insufficient.
- 6.5" Coaxial 2-Way Driver: Polypropylene cone woofer with rubber surround and 1" aluminium dome tweeter for wide-range, music-optimised performance.
- 88dB Sensitivity / 40W Max Power Input: Efficient performance for commercial open-space environments.
- 25V / 70V / 100V Line & 8 Ohm Operation: Five-tapping rotary switch for flexible integration into any audio system.
- Full Suspension Components Included Per Speaker: Eye bolt, nut, washer, cable and carabiner β ready to hang straight out of the box.
- Removable Top Cover: Protects connections and power selector switch from dust and debris after installation.
- Cloud 46-240 4-Zone Mixer Amplifier: 4 x 240W Class-D, independent zone source selection and volume control, 6 stereo line inputs, 2 mic inputs with priority override, digital paging interface, Ethernet and RS-232.
-
Three Wall Control Options (4 panels per kit β one per zone):
- RL-1 β Volume Only (Default)
- RSL-6 β Volume & Source (Upgrade)
- LM-2 β Volume, Source & Local Input (Premium)
- 100m TruSound LSHF Speaker Cable: 16/2 1.5mm OFC, low smoke halogen-free, UV and weather resistant β supplied on a 100m drum.
- 100V Line & Low Impedance Compatible: CVS-P62T speakers and 46-240 amplifier support both 100V line and low-impedance operation.
- Ideal for Warehouses & Factories: 360Β° pendant dispersion provides even coverage across large industrial floor areas where wall-mounted speakers cannot reach.
- Ideal for High-Bay Retail & Hospitality: Bars, restaurants and retail outlets with high-bay ceilings benefit from pendant mounting for consistent audio at listener level.
- Ideal for Gyms & Leisure Centres: With LM-2 wall plates for local instructor input in exercise rooms.
- Ideal for Places of Worship: With local control and input for prayer halls and large open halls.
-
Authorised Cloud Electronics Dealer: Genuine Cloud Electronics products with full manufacturer support.
Manuals & Data Sheets:
Cloud CVS Pendant Speaker User Manual
Cloud RL & RSL Series User Manual
Specifications:
