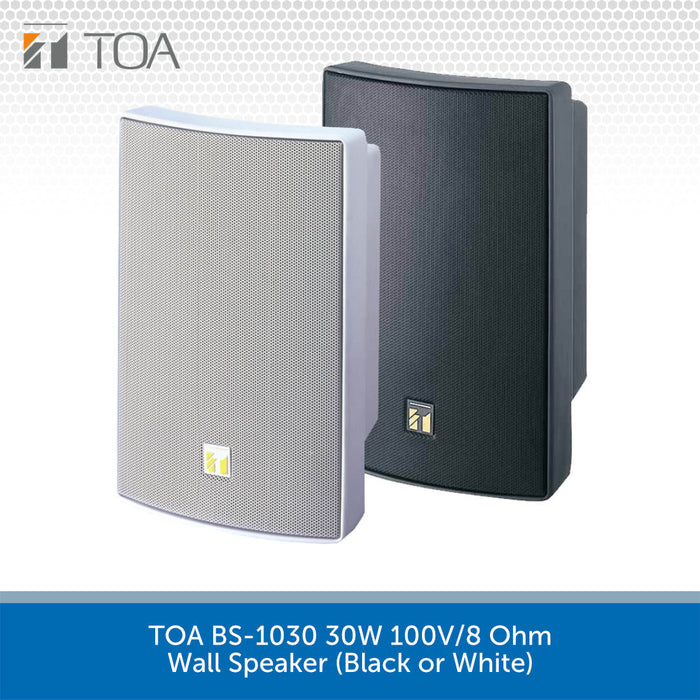

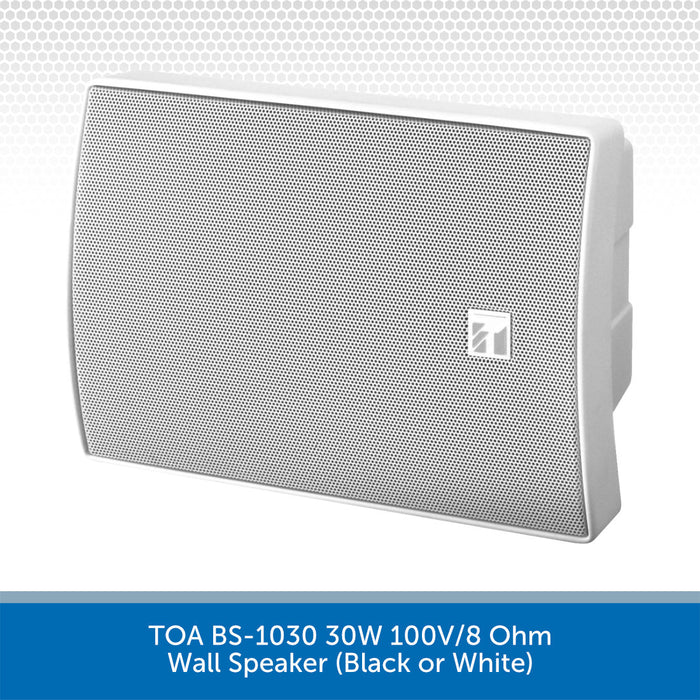

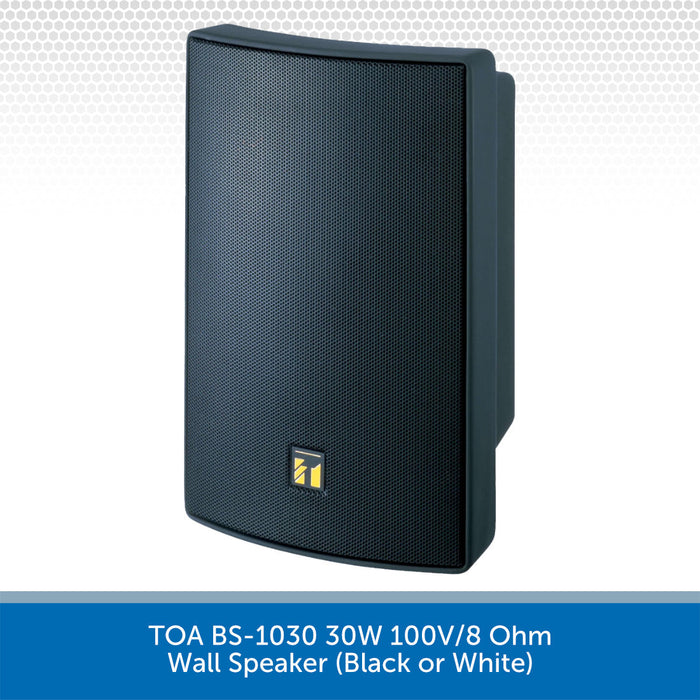

TOA BS-1030 30W 100V/8 Ohm Wall Speaker (Black or White)

by TOA
SKU BS1030B
Original price £114.00 (inc. VAT) - Original price £114.00 (inc. VAT)
Original price
£114.00 (inc. VAT)
£114.00 (inc. VAT) - £114.00 (inc. VAT)
Current price £114.00 (inc. VAT)
Colour: Black
DETAILS

A compact, high-power bass-reflex speaker designed for clear announcements and full-range music playback in indoor and sheltered outdoor environments.

The TOA BS-1030 is a versatile 2-way bass-reflex speaker offering wide frequency response and strong output performance. Designed for both speech and music applications, it features a 12 cm dynamic cone woofer paired with a 2.5 cm balanced dome tweeter, delivering clear highs and solid low-frequency support.

A rotary switch allows easy selection between low impedance (8Ω) and high impedance (70V/100V) operation, making it suitable for both distributed line systems and conventional low-impedance setups. Their splash-proof construction (IPX4 rated) permits installation under eaves or sheltered exterior locations where the speaker is not directly exposed to rainfall.

With multiple mounting options and a durable ABS resin enclosure, the BS-1030 Series provides a cost-effective and reliable solution for commercial PA systems, retail spaces, schools, warehouses, and hospitality venues.

TOA BS-1030 Key Features:

  • 2-way bass-reflex speaker design
  • Suitable for announcements and music playback
  • Selectable 8Ω low impedance or 70V/100V high impedance
  • Wide frequency response (80 Hz – 20 kHz)
  • Rotary switch for easy impedance selection
  • IPX4 splash-proof construction
  • Installable vertically or horizontally
  • Durable ABS resin cabinet

View the TOA product range HERE

SPECIFICATION

TOA BS-1030 Projector Speaker Specifications

  • Frequency Response: 80 Hz – 20 kHz

  • Sensitivity (1 W, 1 m): 90 dB

  • Rated Input (100 V): 30 W

  • Tappings (100 V Line): 330 Ω (30 W) / 500 Ω (20 W) / 670 Ω (15 W) / 1 kΩ (10 W) / 2 kΩ (5 W)

  • Tappings (70 V Line): 170 Ω (30 W) / 250 Ω (20 W) / 330 Ω (15 W) / 500 Ω (10 W) / 1 kΩ (5 W)

  • Rated Impedance (Low Impedance): 8 Ω

  • Speaker Components: 12 cm dynamic cone-type woofer / 2.5 cm balanced dome tweeter

  • Dust / Water Protection: IPX4 (vertical or horizontal installation)

  • Dimensions (W × H × D): 196 × 290 × 150 mm

  • Finish: ABS resin, black (RAL 9011 or equivalent)

  • Operating Temperature: -10 °C to +50 °C

  • Weight: 2.5 kg

DOWNLOADS

TOA BS-1030 PDF Download

Download the product Spec Sheet HERE

}
