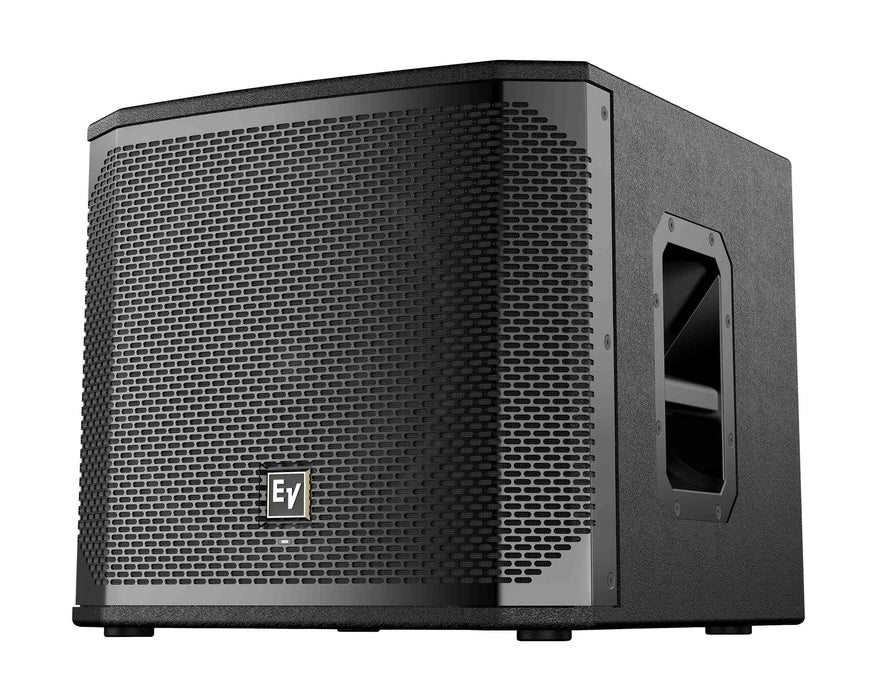

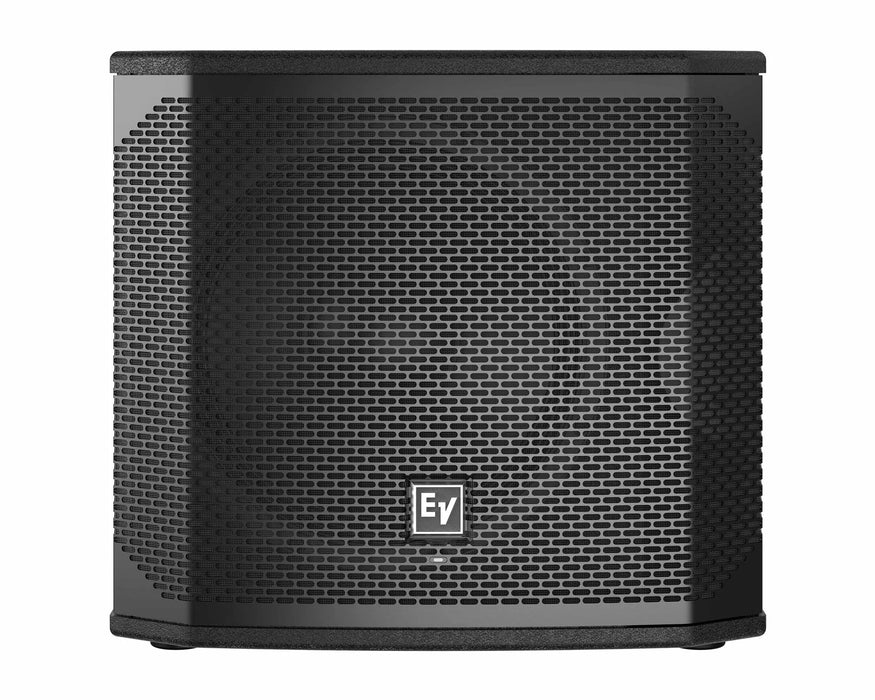

Electro-Voice ELX200-12SP 12" Active PA Subwoofer 1200W (Black)

SKU ELEELX20012SP
Original price £699.00 (inc. VAT) - Original price £699.00 (inc. VAT)
Original price £699.00 (inc. VAT)
£699.00 (inc. VAT)
£699.00 (inc. VAT) - £699.00 (inc. VAT)
Current price £699.00 (inc. VAT)
DETAILS

Electro-Voice ELX200-12SP delivers deep bass performance in a compact design.

The Electro-Voice ELX200-12SP is a 12-inch powered subwoofer designed for portable and installed sound systems where compact size and strong bass performance are essential.

Equipped with a high-efficiency Class-D amplifier delivering up to 1200W of power, it produces a maximum SPL of 129 dB for impactful low-frequency reinforcement.

Featuring EV’s QuickSmartDSP, the ELX200-12SP provides intuitive system control via an onboard LCD or wirelessly through the QuickSmart Mobile app using Bluetooth Low Energy technology. Users can easily configure the subwoofer with presets, system-match crossovers, three-band EQ, and user-programmable settings, while also monitoring limiter status and system performance in real time.

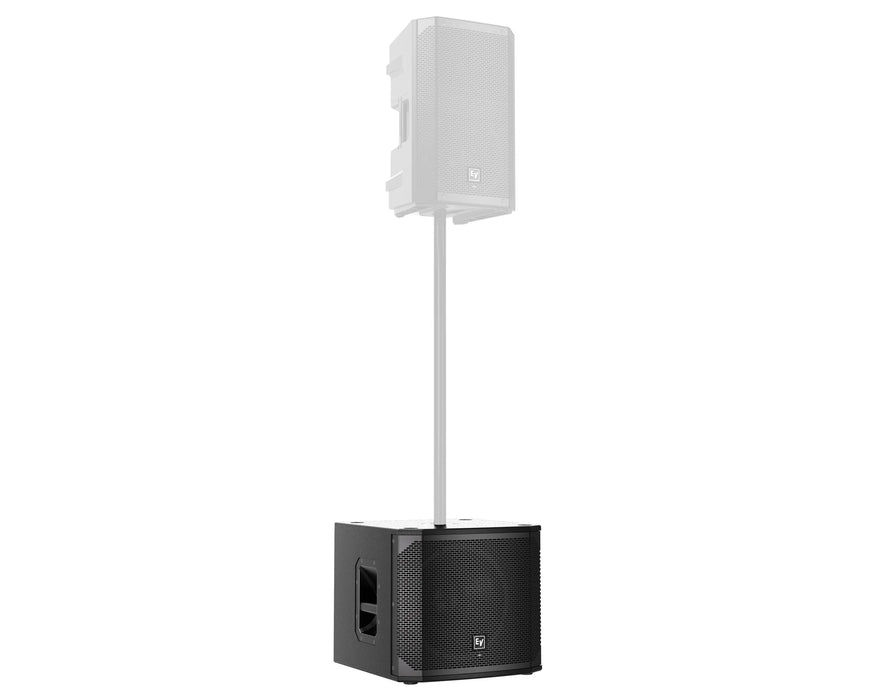

The enclosure is constructed from durable 15 mm plywood with EVCoat finish, ensuring reliability for touring and installations alike. With its M20 threaded pole mount and dual-handle design, the ELX200-12SP is both practical and robust, making it a versatile choice for bands, DJs, schools, houses of worship, and conference venues.

Electro-Voice ELX200-12SP Key Features:

  • Powerful Class-D Amplifier: 1200 W output with up to 129 dB peak SPL.
  • Professional Transducer: 12-inch EVS-12L woofer designed for extended low-frequency performance.
  • QuickSmartDSP: Best-in-class digital processing with presets, EQ, and user memory.
  • Wireless Control: Bluetooth-enabled QuickSmart Mobile app for remote setup and monitoring.
  • Durable Construction: 15 mm plywood cabinet with EVCoat and integrated M20 pole mount.
SPECS & DOWNLOADS

Download the PDF Data Sheet HERE >

Electro-Voice ELX200-12SP Specifications:

  • Colour: Black
  • Power Rating: 1200 W
  • Powered or Passive: Powered
  • Speaker Type: Subwoofer
  • Max. SPL/1m (calc): 129 dB
  • Frequency Response (-3 dB): 49 Hz – 135 Hz
  • Frequency Range (-10 dB): 41 Hz – 165 Hz
  • LF Driver: EVS-12L (12")
  • Low-Pass Frequency: Adjustable (80 Hz, 100 Hz, 120 Hz, 150 Hz)

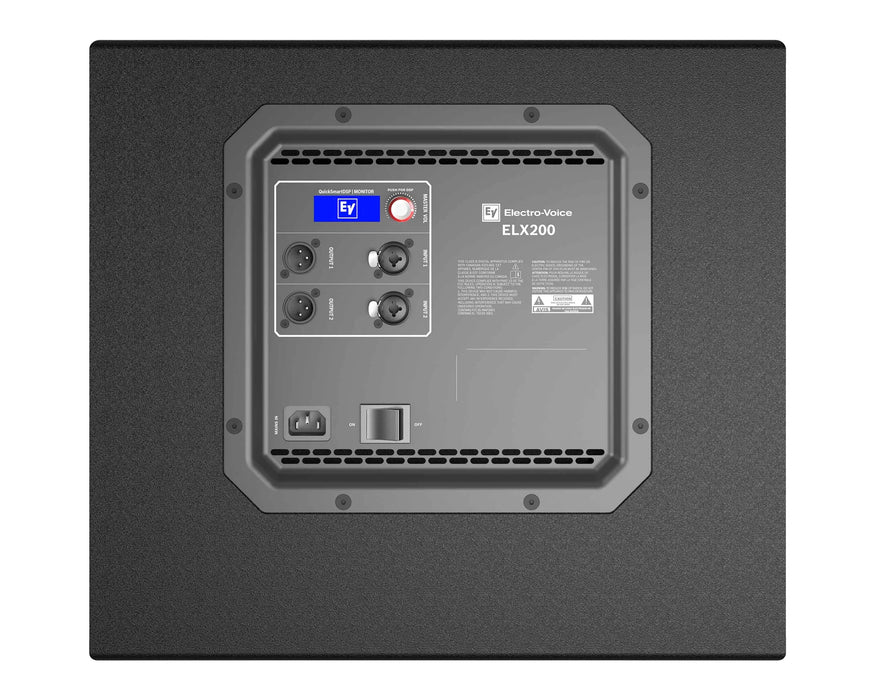

  • Connector Type: 2x XLR/TRS combo jacks, 2x XLR link outputs
  • Enclosure Material: 15 mm plywood with EVCoat
  • Grille: 18 AWG steel with powdercoat
  • Power Consumption: 100 – 240 V~, 50 – 60 Hz, 1.8 A
  • Dimensions (H x W x D): 397 x 445 x 457 mm
  • Weight Net: 19.1 kg
  • Shipping Weight: 22.3 kg
    }
