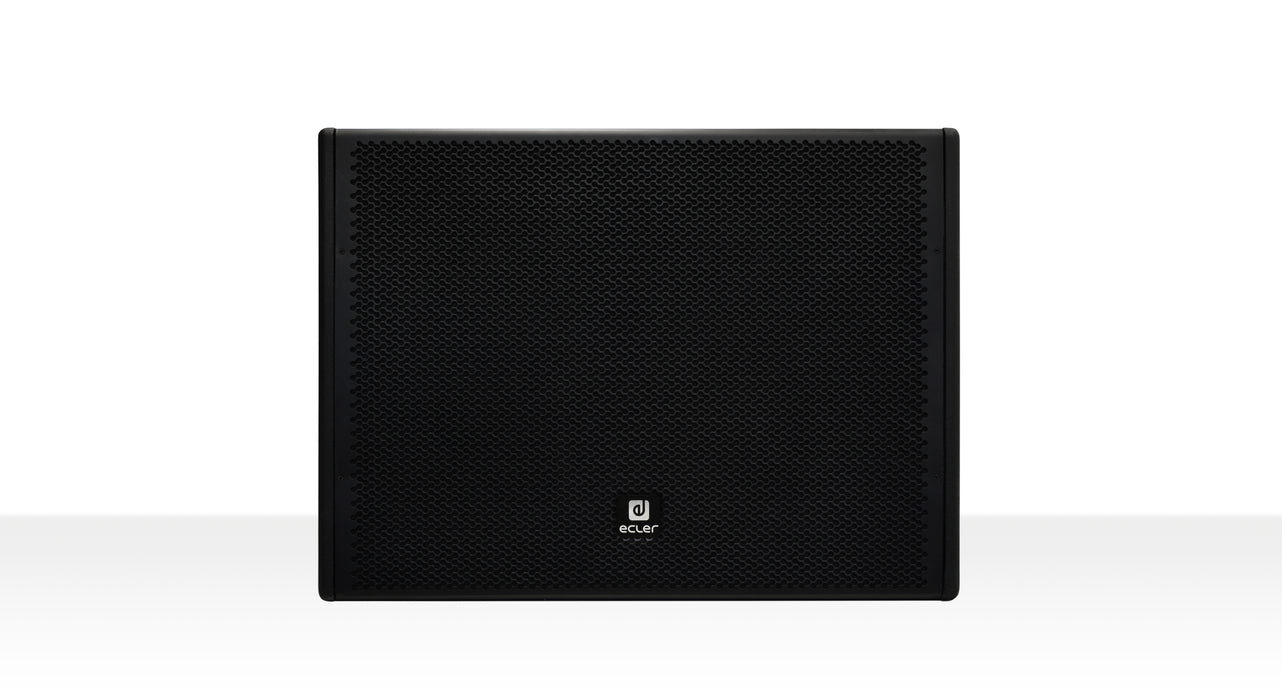

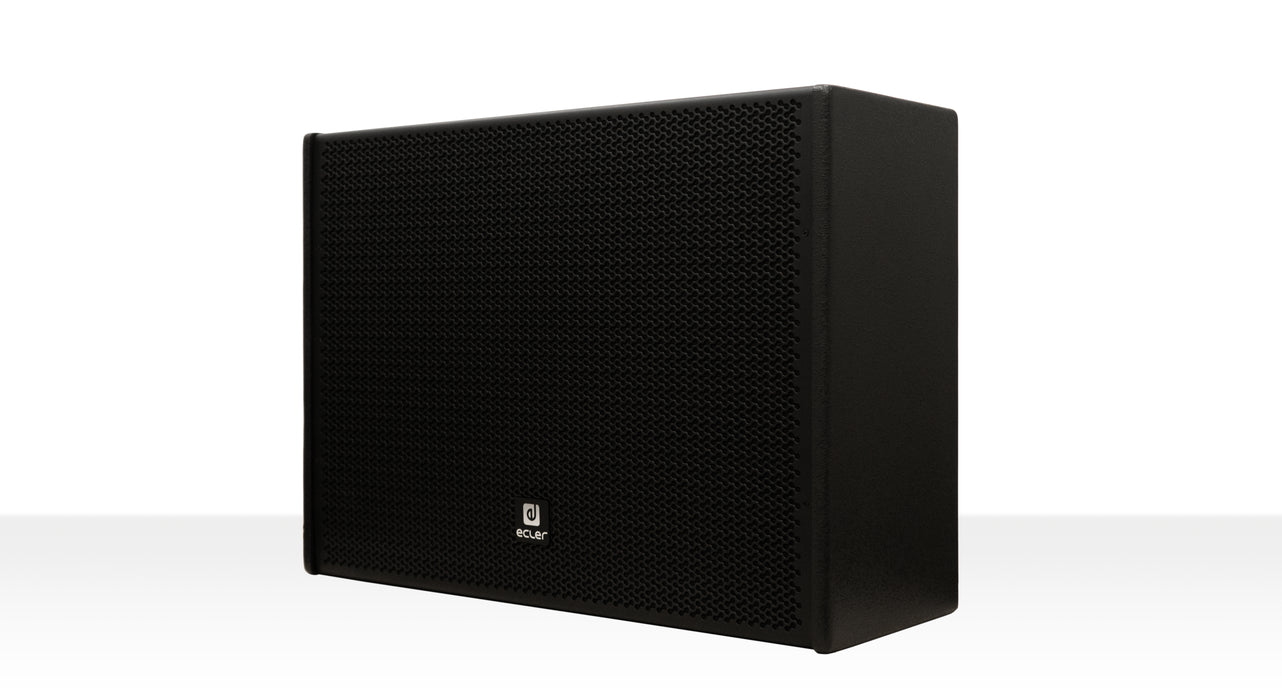

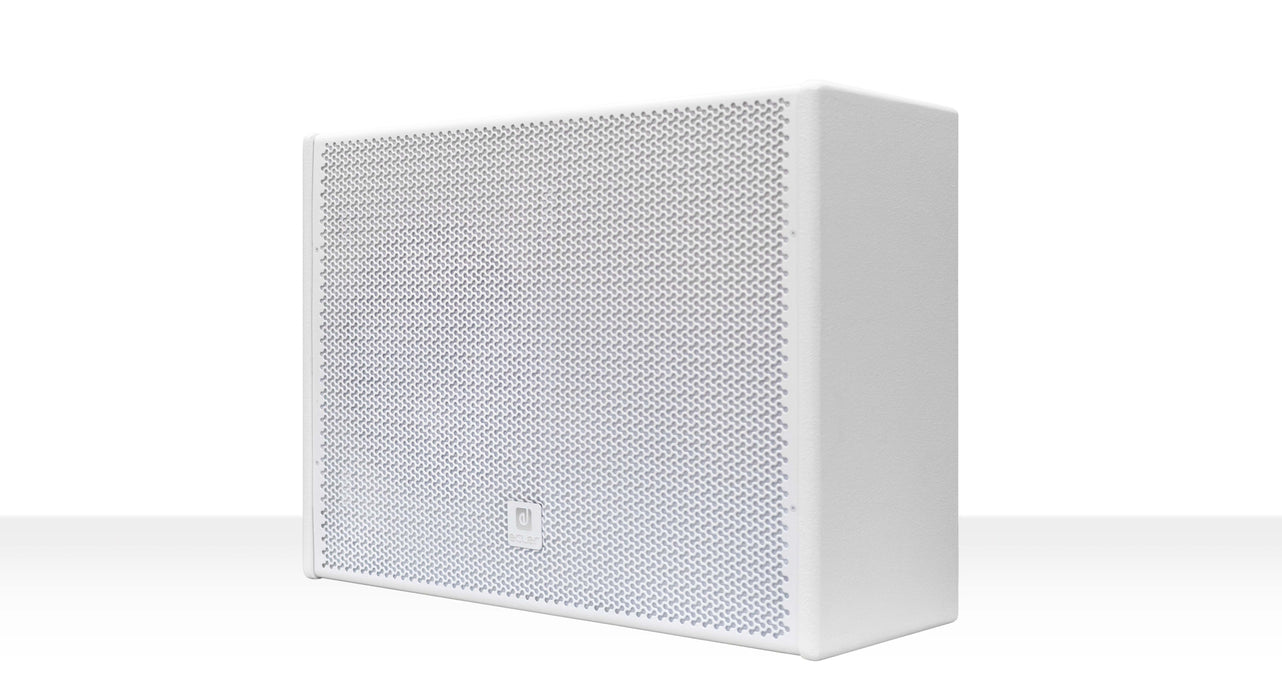

Ecler ARQISSB10i 10" Passive Subwoofer, 150W/8Ω – Black or White

by Ecler
SKU CARQISSB10IB
Original price £579.00 (inc. VAT) - Original price £579.00 (inc. VAT)
Original price £579.00 (inc. VAT)
£579.00 (inc. VAT)
£579.00 (inc. VAT) - £579.00 (inc. VAT)
Current price £579.00 (inc. VAT)
Colour: Black
DETAILS

Compact, Stylish Bass Reinforcement for Architectural Installations.

The Ecler ARQISSB10i is a compact 10” passive subwoofer designed to deliver powerful, high-quality low-frequency reinforcement for commercial spaces where discreet integration and stylish aesthetics are just as important as performance.

With 150W RMS (600W peak) power handling at 8Ω, the ARQISSB10i provides tight, punchy bass that enhances music playback in retail spaces, bars, restaurants, hospitality venues, or any fixed installation requiring clean, reliable low-end support.

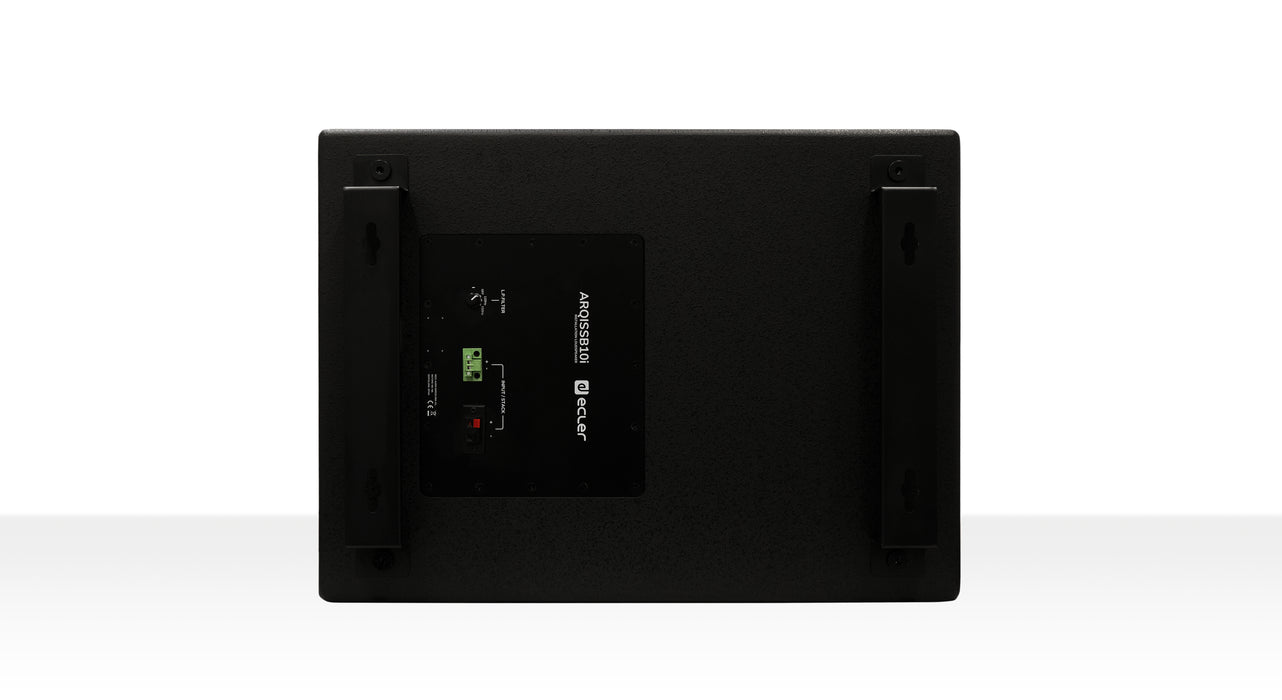

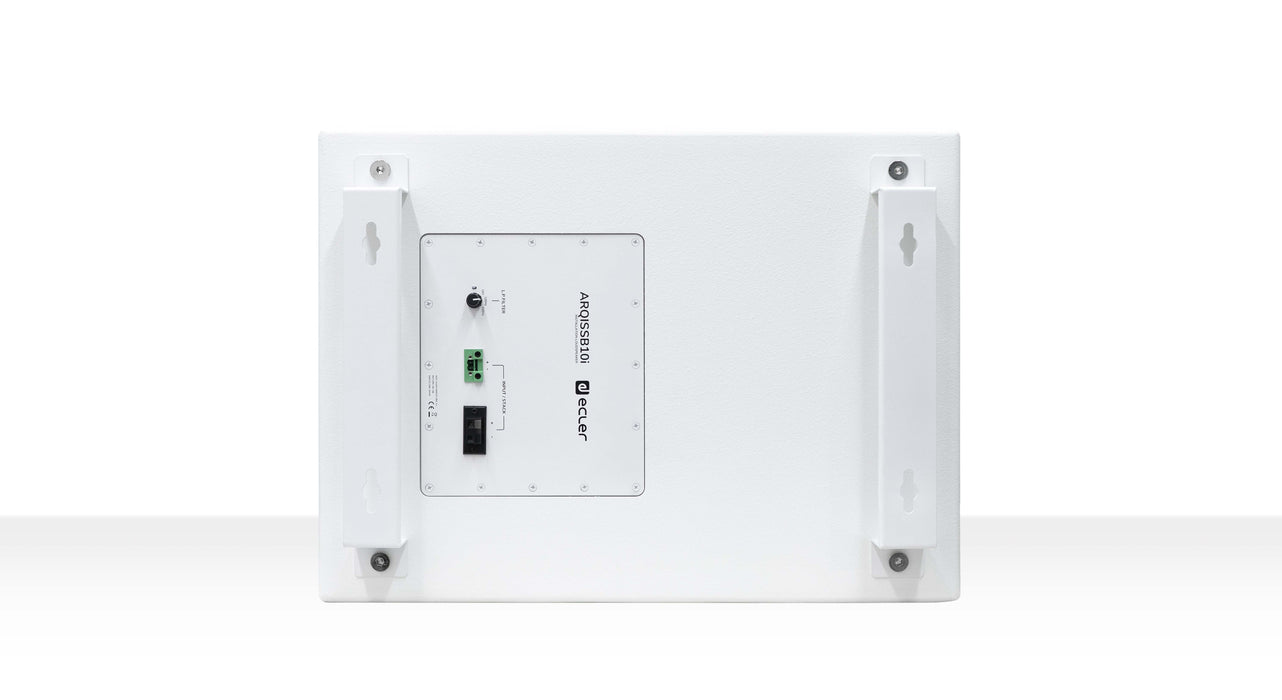

The ARQISSB10i combines practicality with flexibility. Its built-in internal low-pass filter offers two selectable frequency settings, allowing you to tailor the bass response to your environment. Multiple mounting options are available thanks to 12 M8 flying points, and the included wall bracket enables secure wall installation. For easy system integration, the subwoofer is fitted with both Euroblock and spring-loaded input terminals.

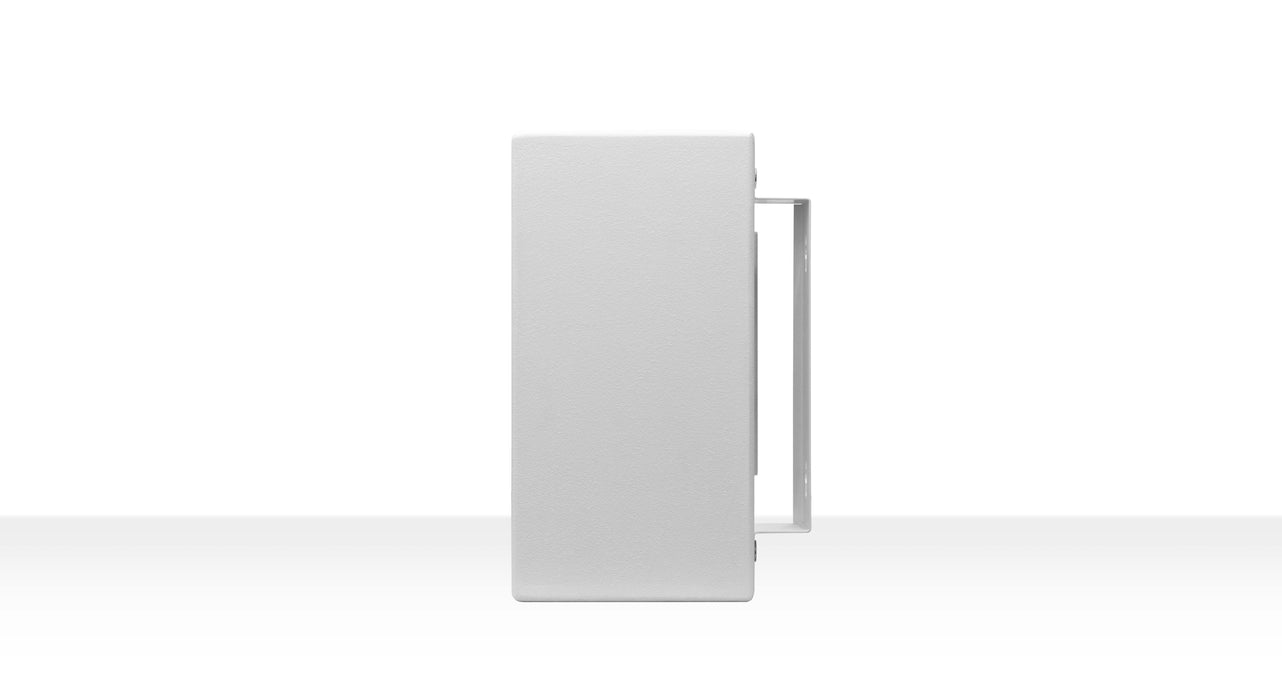

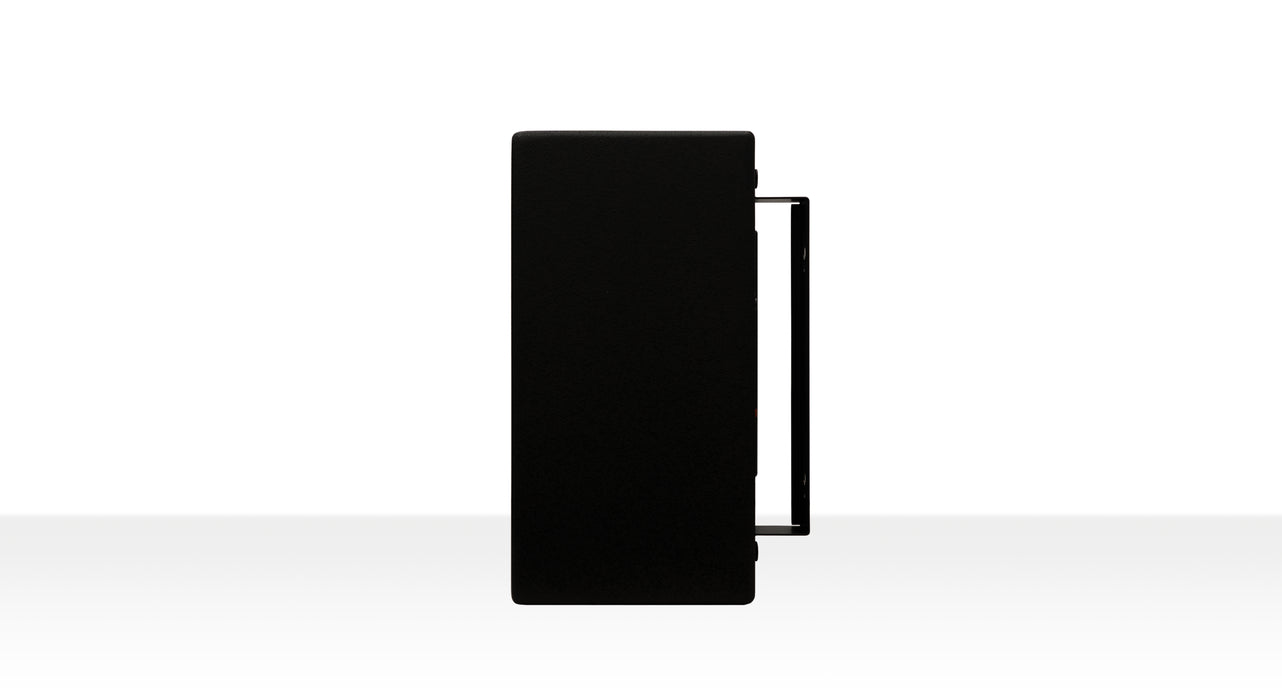

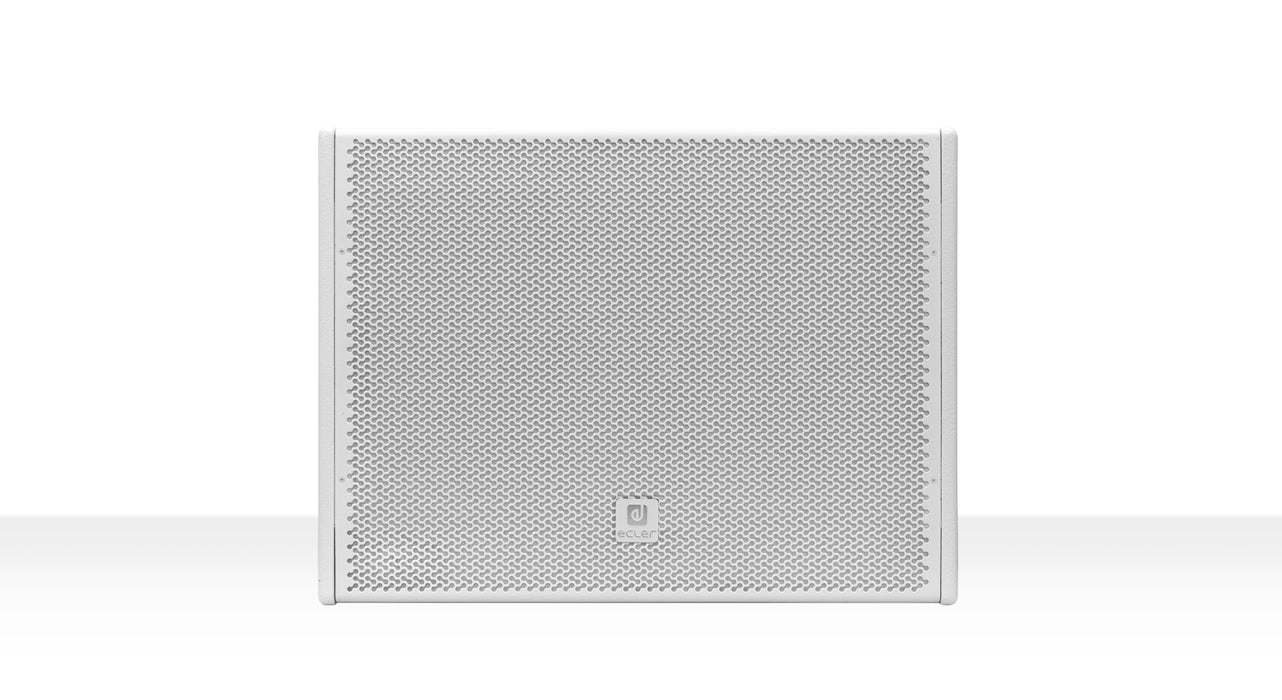

The robust MDF cabinet and steel grille ensure durability while the sleek design in black (RAL 9005) or white (RAL 9003) blends perfectly with any modern interior. This makes the ARQISSB10i a dependable choice for installers and system designers who need to balance audio quality with architectural style.

Ecler ARQISSB10i Key Features:

  • Performance: 150W RMS / 600W Peak at 8Ω for clean, reliable bass
  • Driver: 10” low-frequency woofer with a wide effective frequency range (54 Hz – 4 kHz)
  • Selectable LPF: Internal low-pass filter with two settings for flexible system tuning
  • Mounting Options: 12 x M8 flying points, rubber feet, and wall bracket included
  • Connections: Euroblock and spring-loaded input terminals for versatile wiring
  • Durable & Stylish: MDF enclosure with steel grille, available in black or white
  • Environment Rated: IP31 protection for indoor installations
SPECS & DOWNLOADS

Ecler ARQISSB10i Specifications

Download the PDF Data Sheet HERE >

  • Effective Frequency Range: 54 Hz – 4 kHz (-10dB)
  • Power Handling: 150W RMS / 600W Peak
  • Sensitivity: 92 dB (1W/1m)
  • Maximum SPL: 114 dB continuous / 120 dB peak
  • Recommended Amplifier Power: 300W RMS
  • Ways: 1-way subwoofer
  • Driver: 10” LF woofer
  • Nominal Impedance: 8Ω
  • Low-Pass Filter: Internal LPF with 2 frequency settings
  • Recommended High-Pass Filter: 60 Hz, minimum 12 dB/octave
  • Connection Type: 1 x Euroblock & 1 x Terminal
  • Installation Options: Surface, wall-mounted, desktop
  • Flying Points: 12 x M8
  • Enclosure Material: MDF
  • Grille Material: Steel
  • Environmental: IP31 rated
  • Dimensions: 600 x 442 x 228 mm
  • Weight: 16.5 kg
  • Included Accessories: 4 x rubber feet, screws, 1 wall bracket
  • Finished Colour: White (RAL 9003) or Black (RAL 9005)
}
