Bose Sub2 Powered Bass Module / Active Subwoofer for L1 Pro Systems

SKU BOSESUB2
Original price £1,039.00 (inc. VAT) - Original price £1,039.00 (inc. VAT)
Original price £1,039.00 (inc. VAT)
£1,039.00 (inc. VAT)
£1,039.00 (inc. VAT) - £1,039.00 (inc. VAT)
Current price £1,039.00 (inc. VAT)
DETAILS

The Bose Sub2 delivers powerful bass down to 29 Hz in a slim, portable design, making it the ideal companion for Bose L1 Pro systems.

The Bose Sub2 Powered Bass Module is a compact, professional-grade active subwoofer that extends the low end of your portable PA system with deep bass performance down to 29 Hz. Its innovative 10" × 18" RaceTrack driver provides the impact of a larger woofer while keeping the cabinet slim, lightweight, and easier to transport, all without sacrificing sound quality.

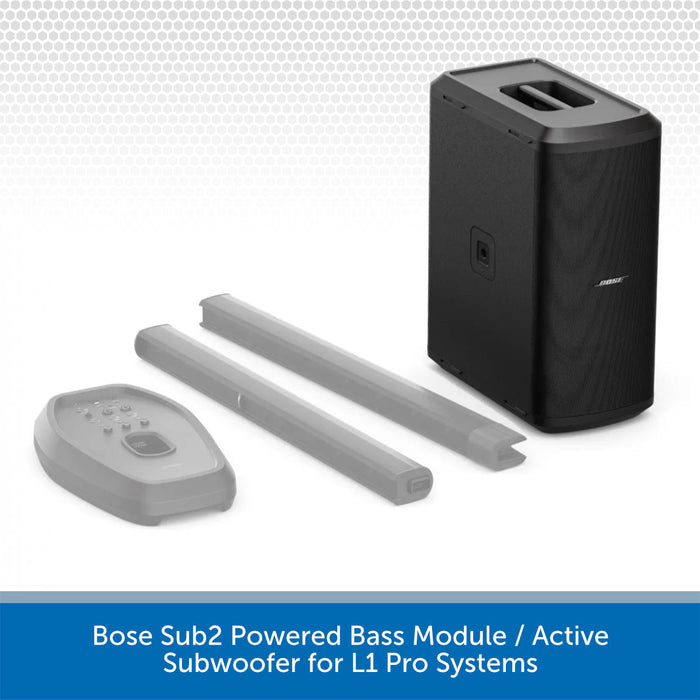

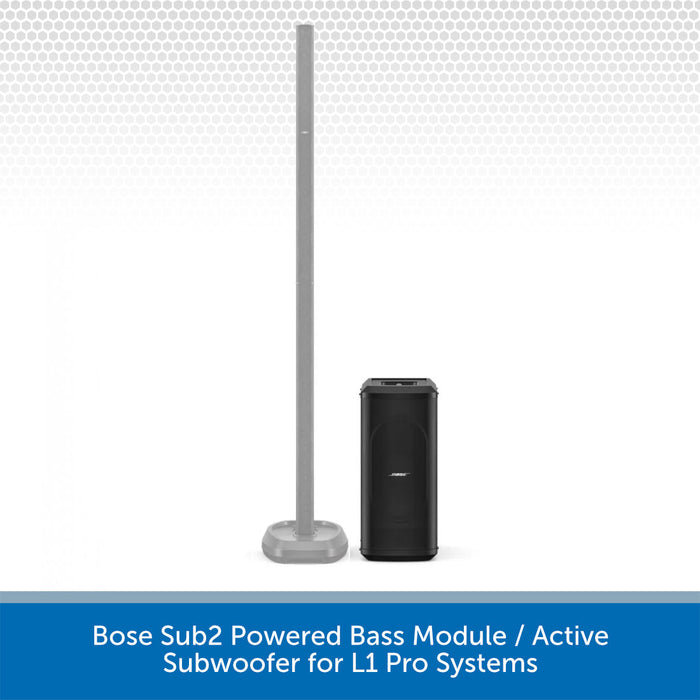

Designed to integrate seamlessly with the L1 Pro32 Portable Line Array System via SubMatch connectivity, the Sub2 ensures quick setup with a single cable that carries power, audio, and system control. It also pairs perfectly with the L1 Pro8, L1 Pro16, and S1 Pro+, giving you versatile bass reinforcement options across different applications.

For more demanding performances, you can stack two Sub2 units for maximum low-end punch, or use Cardioid Mode to control bass dispersion by reducing rear-firing energy and focusing it towards your audience. With onboard DSP, EQ controls, and app integration via the Bose Music app, the Sub2 offers flexibility for live music, houses of worship, schools, and corporate events, all in a rugged enclosure built for the road.

Bose Sub2 Key Features:

  • Deep Bass Extension – Delivers powerful lows down to 29 Hz.
  • Slim RaceTrack Driver – 10" × 18" design provides high-output performance in a compact enclosure.
  • Seamless Integration – SubMatch connectivity with L1 Pro32 for single-cable audio, power, and automatic EQ optimisation.

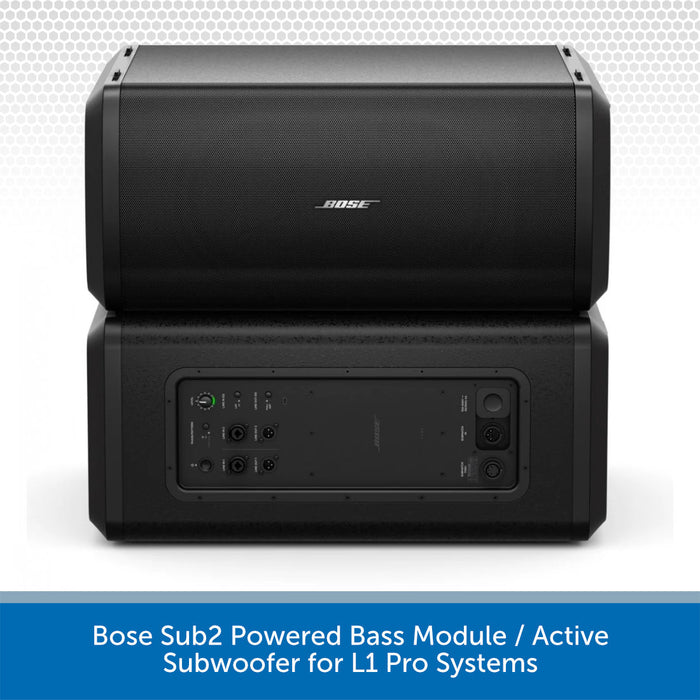

  • Flexible Setup Options – Stack two Sub2s or activate Cardioid Mode for directional bass control.
  • Smart DSP Processing – Input/output EQ, phase and pattern control for easy system optimisation.
  • Portable Build – Lightweight yet rugged polypropylene/plywood enclosure with steel grille.
  • Wide Compatibility – Works with Bose L1 Pro8, Pro16, Pro32, and S1 Pro+ systems.
SPECS & DOWNLOADS

Download the PDF Data Sheet HERE >

Bose Sub2 Specifications

Amplification

  • Number of Channels: 1
  • Power Class: Class D
  • Peak Power Handling: 1000 W

Performance

  • Frequency Range (-10 dB): 29 Hz – 260 Hz
  • Crossover: 200 Hz
  • Maximum SPL @ 1 m: 129.8 dB
  • Coverage: Omnidirectional (with -10 dB rear rejection in Cardioid Mode)

Transducer

  • Low-Frequency Driver: 1 × RaceTrack 10" × 18" (254 × 457 mm)

Inputs & Outputs

  • Audio Inputs: (1) XLR/¼" TRS combo, (1) SubMatch (proprietary multi-pin)
  • Sensitivity Options: +10 dB to +45 dB
  • Phantom Power: No

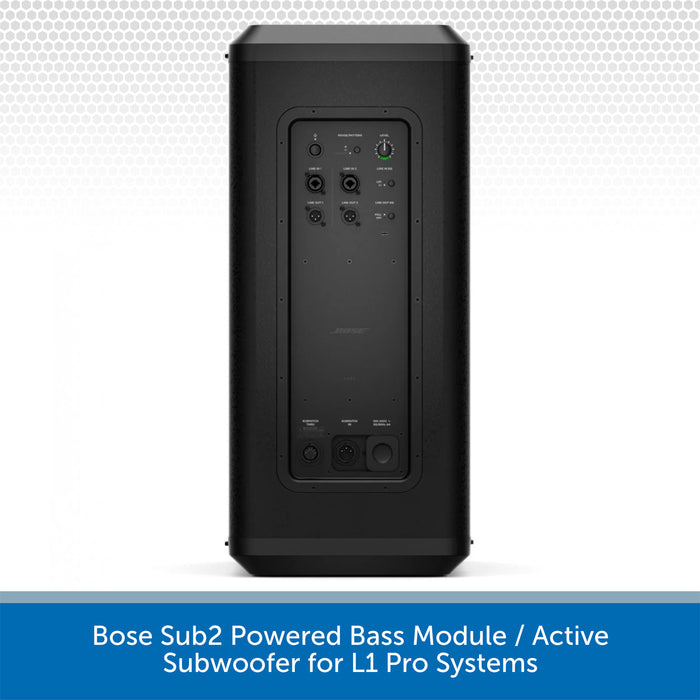

Controls & Indicators

  • Rear Panel: Power, EQ, Volume
  • LEDs: Standby, Signal/Clip, Input/Output EQ, Phase/Pattern

Connectivity & Software

  • SubMatch for audio/power/control
  • USB Type-C (computer interface)
  • Bose Music app (Android/iOS)

Power Requirements

  • AC Input: 100–240 VAC (±20%, 50/60 Hz)
  • Connector: IEC, SubMatch
  • Current Draw: 15.2 A (120 VAC, 60 Hz) / 28.6 A (230 VAC, 50 Hz)

Physical

  • Enclosure: High-impact polypropylene, birch plywood
  • Grille: Powder-coated perforated steel
  • Cooling: Convection
  • Colour: Black
  • Dimensions (H × W × D): 694 × 317 × 551 mm (27.3 × 12.5 × 21.7 in)
  • Net Weight: 23.0 kg (50.7 lb)
  • Shipping Dimensions: 660 × 385 × 790 mm (26.0 × 15.2 × 31.1 in)
  • Shipping Weight: 27.7 kg (61.0 lb)
}
