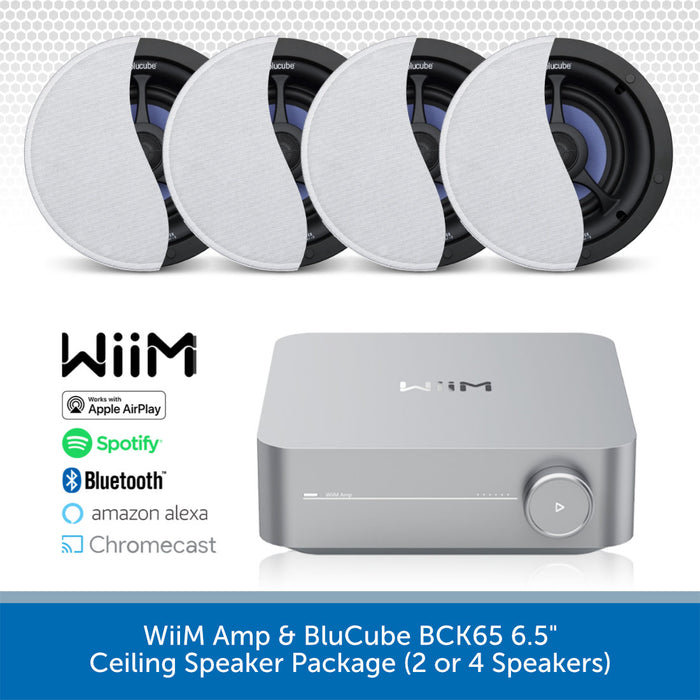

WiiM Amp & BluCube BCK65 6.5" Ceiling Speaker Package (2 or 4 Speakers)
DETAILS
WiiM Amp & BluCube BCK65 6.5" Ceiling Speaker Package – Smart Streaming & Precision Ceiling Audio.
This high-quality audio package combines the advanced streaming capabilities of the WiiM Amp with the balanced performance of BluCube BCK65 ceiling speakers.
It’s a versatile and discreet sound solution ideal for kitchens, lounges, home offices, or even commercial settings like salons and small retail spaces—offering a clean, built-in aesthetic with detailed, room-filling sound.
Whether you're listening to your favourite playlists, enjoying internet radio, or boosting your TV audio, the WiiM Amp delivers an intuitive experience through Wi-Fi, Bluetooth, HDMI ARC and voice control support. Pair it with Alexa, Google or Siri-compatible devices for hands-free operation, or use the user-friendly mobile app to adjust everything from volume and EQ settings to input sources.
The BluCube BCK65 ceiling speakers feature high-performance components including a 6.5" woven Kevlar driver and titanium dome tweeter. Their discreet, rimless design blends into the ceiling while offering high-fidelity sound, with adjustable woofer and tweeter levels for fine-tuned performance that adapts to the acoustics of your space.
What’s Included:
- 1 x WiiM Amp – Compact Streaming Amplifier with HDMI ARC & Voice Control
- 2 or 4 x BluCube BCK65 6.5" Kevlar In-Ceiling Speakers
Speaker cable not included but available separately. BluCube BCK65 speakers are supplied with round magnetic rimless grilles.
WiiM Amp – Smart Streaming Amplifier for Multi-Room and Home Entertainment
- 60W per channel @ 8Ω / 120W @ 4Ω – Powerful stereo output for a range of speaker types
- Built-in Wi-Fi and Bluetooth – Stream wirelessly from Spotify, Tidal, Amazon Music, and more
- HDMI ARC input – Easily connect to your TV for high-quality audio integration
- Multiple inputs and outputs – Includes Optical, Line-in, USB, and dedicated subwoofer output
- Multi-room support – Expandable system compatible with other WiiM devices
- Voice control ready – Use with Alexa, Google Assistant, or Siri via compatible smart speakers
- Advanced EQ settings – Customise sound with 24 presets, a 10-band graphic EQ, and 4-band parametric EQ
- Flexible control – Intuitive mobile app for source selection, volume, and audio tuning

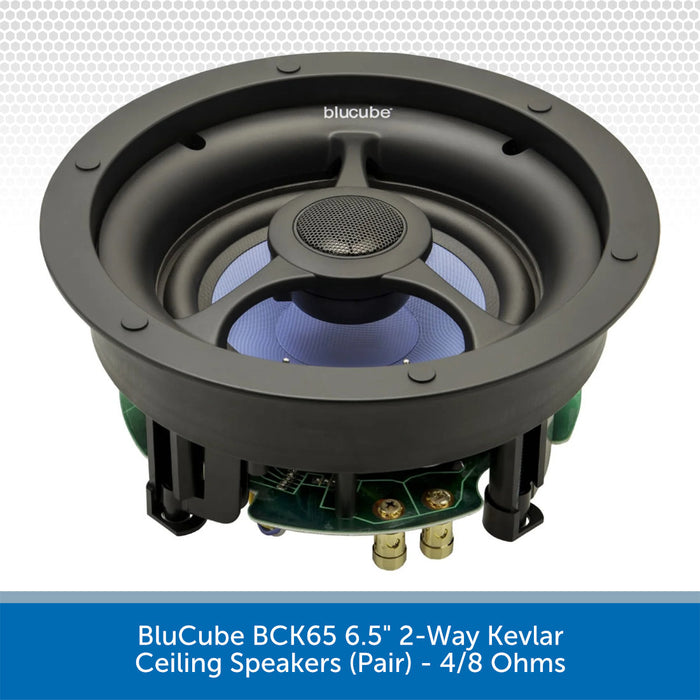

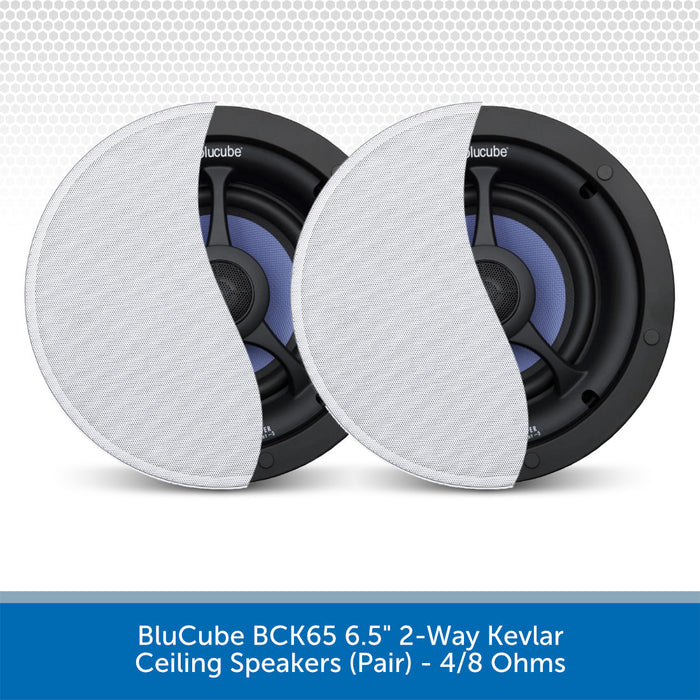

BluCube BCK65 6.5" In-Ceiling Speakers – High-Performance Audio with Adjustable Sound
- 6.5" woven Kevlar driver – Delivers clear, natural midrange and tight bass response
- Titanium dome tweeter with tilt & swivel – Aims high frequencies for optimised dispersion
- Integrated woofer and tweeter attenuation – Fine-tune output to suit room acoustics
- Selectable 4Ω/8Ω impedance – Easily matches with a variety of amplifiers

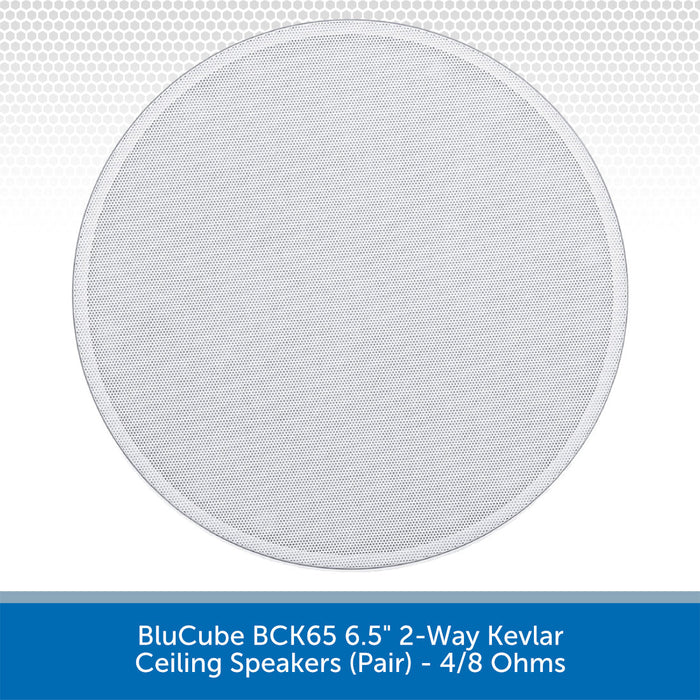

- Rimless magnetic grille – Provides a low-profile, modern ceiling finish
- High-grade crossover network – Ensures smooth, balanced frequency response
-
Durable construction – Built to last and backed by a 5-year warranty
Whether you're creating a stylish home audio system or designing a seamless multi-room setup, this package offers a great balance of modern smart streaming and high-quality ceiling sound. It's a discreet and reliable solution that looks as good as it sounds.
SPECS & DOWNLOADS
WiiM Amp Specifications
Download the WiiM Amp PDF User Manual HERE >
Audio Input
- HDMI ARC
- Optical/SPDIF
- RCA
Audio Output
- Passive Speaker Terminal
- Subwoofer Output
- SNR: 98 dB
- THD + N: 0.002% (-92 dB)
Power Input: 100-240V 50/60Hz AC Power
Network: 802.11 b/g/n/ac 2.4 GHz and 5 GHz dual band Wi-Fi
10/100M Ethernet
Bluetooth: Bluetooth 5.0, A2DP, AVRCP, Support SBC, AAC Codec
Audio Codec: MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG, AIFF
Streaming Protocol: AirPlay 2, Chromecast Audio, Spotify Connect, TIDAL Connect, Alexa Cast, DLNA, Qplay 2.0, Squeezelite
Streaming Services in App: Spotify, Amazon Music, Deezer, TuneIn, Tidal, Qobuz, SoundCloud, Pandora, iHeartRadio, vTuner, Napster, Sound Machine, etc.
LED: Three-color status LED - Red, Green, and White
Six Volume LED
Controls: Volume knob, Play/Pause, and more
Dimensions: 190 x 190 x 63 mm (7.48 x 7.48 x 2.48 inches)
Weight: 1.84 kg (4.1 lbs)
BluCube BCK65 Specifications
- Woofer: 6.5″ woven Kevlar, 1″ voice coil, 22 oz magnet, bumped back plate, vented pole piece
- Tweeter: 1″ titanium dome, ferro-fluid cooled, 30° swivel and pivot, neodymium magnet
- Crossover: FR4 board with 18dB per octave network, +/- 3dB attenuation switches on woofer & tweeter, 4ohm/8ohm switchable on PCB, Polyimide switch-auto protect reset switch, 14AWG connection to woofer section. Gold Plated terminals will accept 14AWG wire
- Frequency Response: 45Hz-22KHz
- Sensitivity: 88dB at 1W/1 M
- Recommended Amplifier Power: 10-125 watts
- Impedance: 4ohm/8ohm selectable on PCB
- Cut-out size: 202 mm (7.95″)
- Depth: 101mm (4″)
