Marantz MODEL M1 & 2 x Bowers & Wilkins CCM684 8" Ceiling Speaker Package
DETAILS
Powerful Marantz MODEL M1 Streaming Amplifier with B&W CCM684 8" Ceiling Speakers.
This package combines the Marantz MODEL M1 streaming amplifier with two Bowers & Wilkins CCM684 8" ceiling speakers, offering a premium solution for high-quality, discreet in-ceiling audio.
Perfect for living rooms, kitchens, and open-plan spaces, it delivers exceptional sound clarity and depth.

The MODEL M1 produces 2 x 100W per channel (8Ω) with low distortion, ensuring smooth and detailed playback. Featuring HEOS® Built-in, it supports streaming from popular platforms like TIDAL, Amazon Music HD, Spotify, and more. HDMI eARC and Dolby Digital+ enable superior TV sound integration, while a subwoofer output adds extra low-end performance when needed.

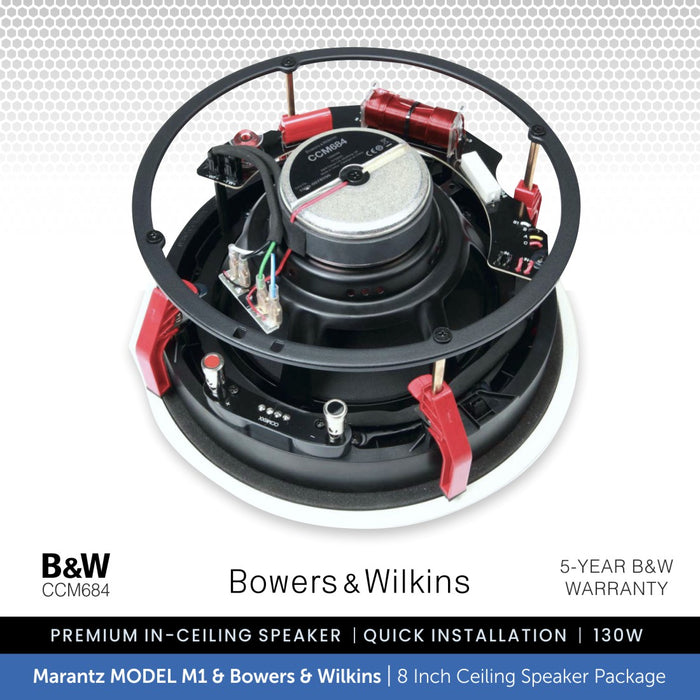

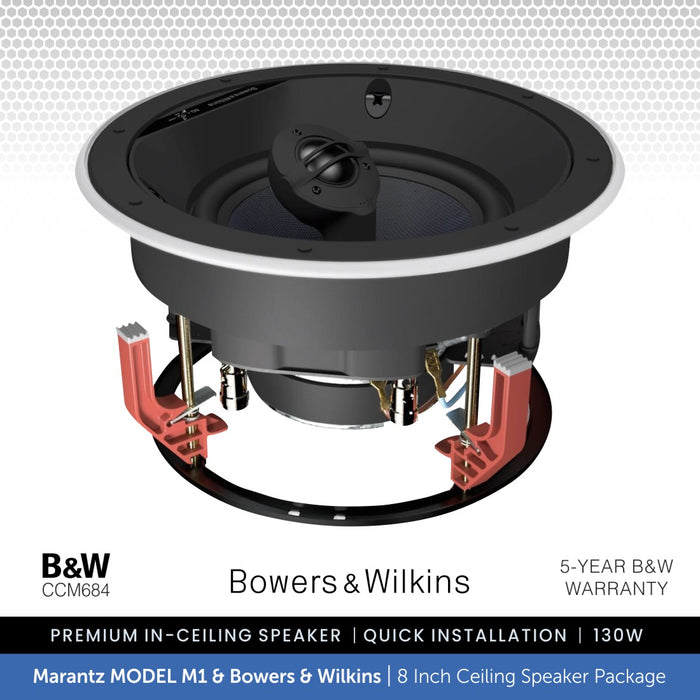

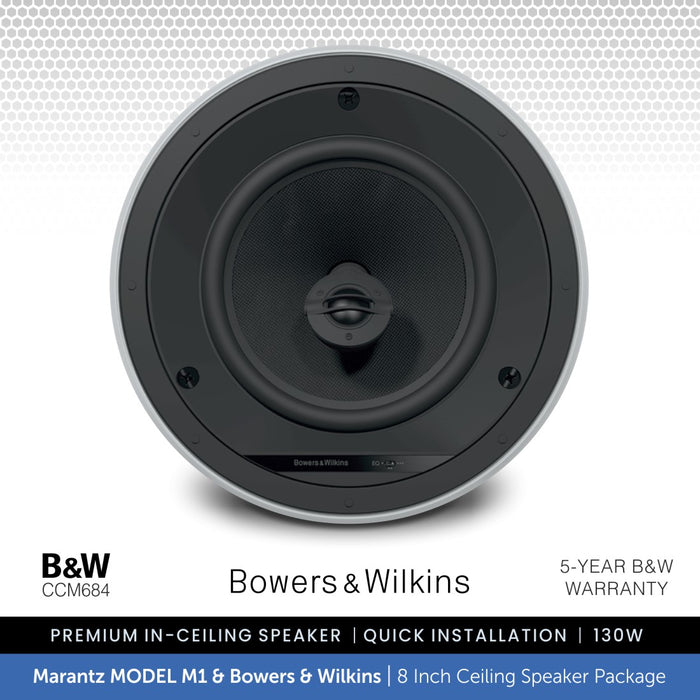

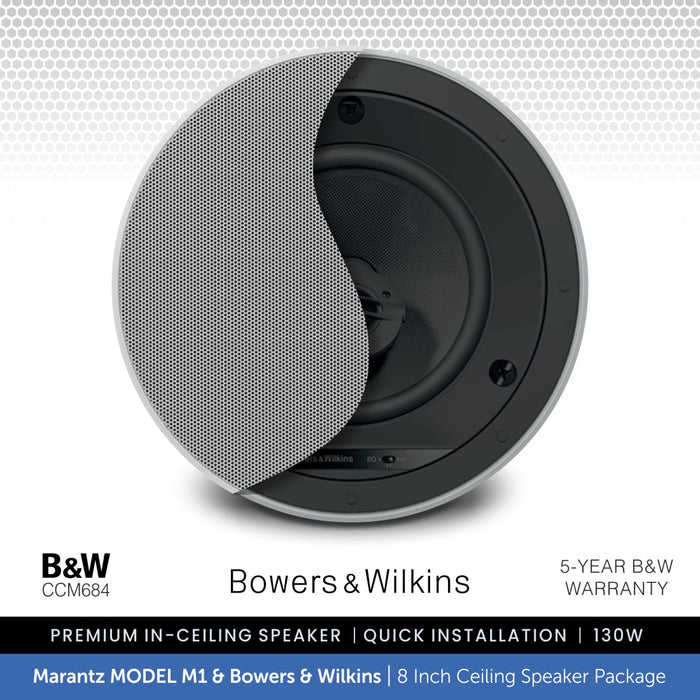

The Bowers & Wilkins CCM684 is designed for powerful, room-filling sound with its 8" woven glass fibre bass/midrange driver and pivoting soft dome tweeter. The three-position EQ switch allows you to tailor the sound to your space, and QuickDogs™ mounting ensures a fast and easy installation.
Please note: speaker cable is not included in this package but will be available as a recommended add-on under “Frequently Bought Together” on the product page.

Marantz MODEL M1 / B&W CCM684 Package Key Features:
- Complete Audio Package: Marantz MODEL M1 amplifier with 2 x B&W CCM684 ceiling speakers.
- High-Performance Amplification: 2 x 100W per channel (8Ω) with subwoofer output.
- HEOS® Built-in: Stream music wirelessly from TIDAL, Amazon Music HD, Spotify, and more.
- TV Audio Integration: HDMI eARC and Dolby Digital+ for crystal-clear sound.
- Premium In-Ceiling Speakers: 8" woven glass fibre bass/midrange driver for deep, dynamic sound.
- Adjustable Tweeter: Pivoting soft dome tweeter for optimised off-axis response.
- EQ Control: Three-position switch for tailored sound performance.
- Quick Installation: QuickDogs™ mounting and plug-and-play design.
- Compact & Discreet: Sleek, low-profile speakers blend seamlessly into the ceiling.
-
Warranty: 5-year manufacturer’s warranty for peace of mind.
SPECS & DOWNLOADS
Download the Spec Sheet HERE >
Marantz MODEL M1 Specifications:
- Amplifier Output (8Ω): 2 x 100W (THD 0.05%)
- Amplifier Output (4Ω): 2 x 125W (THD 0.05%)
- Frequency Response: 20Hz – 20kHz (±1dB)
- Speaker Impedance: 4 – 16Ω
- Inputs: HDMI eARC, 2 x Optical (TOSLINK), RCA Stereo
- Outputs: Subwoofer Out (RCA)
- Streaming: HEOS®, AirPlay 2, Spotify Connect, Bluetooth 4.2
- Audio Formats: WAV, ALAC, FLAC (24/192), DSD (2.8/5.6MHz), MP3, AAC, WMA
- Sound Modes: Stereo, Direct, Virtual, Dialog Enhancer, Night Mode
- Control: HEOS app (iOS, Android), IR Learning, TCP/IP (Crestron, Control4, AMX)
- Networking: Ethernet, Dual-Band Wi-Fi
- Dimensions (W x D x H): 239 x 217 x 84 mm
- Weight: 2.2 kg
-
Colour: Black
B&W CCM684 Specifications:
Download the PDF Data Sheet HERE >
- Description: 2-way in-ceiling system
- Drive Units: 1x ø25mm (1in) soft dome tweeter, 1x ø200mm (8in) black glass fibre cone bass/midrange
- Frequency Range (-6dB): 35Hz – 35kHz
- Sensitivity: 88 dB
- Nominal Impedance: 8Ω (minimum 4.5Ω)
- Power Handling: 130W

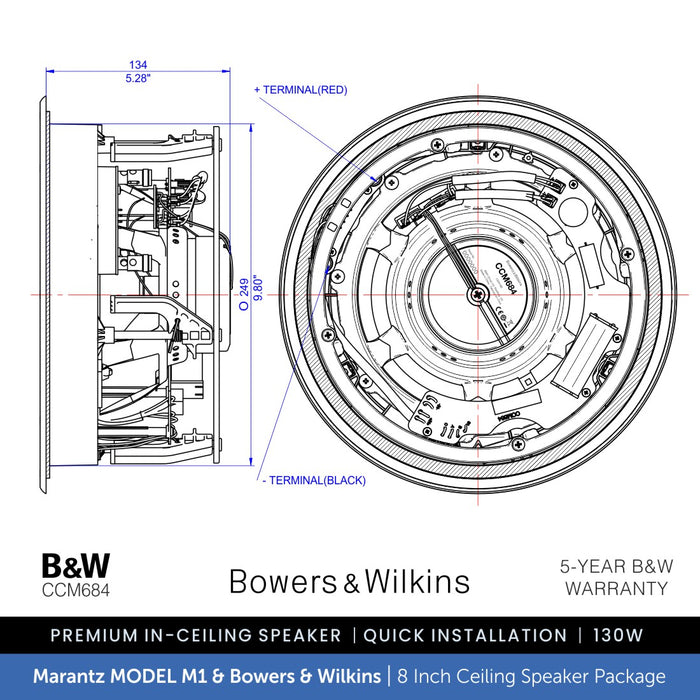

- Frame Diameter: 290mm
- Cut-out Diameter: 250mm
-
Depth behind surface: 133mm
- Protrusion: 4mm
