Marantz MODEL M1 & 2 x Bowers & Wilkins CCM664 6" Ceiling Speaker Package
DETAILS
Compact High-Performance Audio with Marantz MODEL M1 & B&W CCM664 6" Ceiling Speakers.

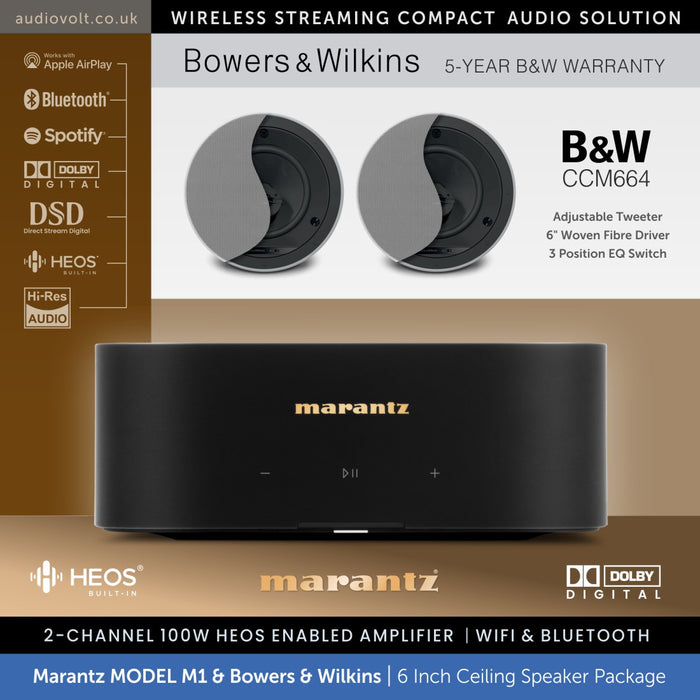

This package combines the Marantz MODEL M1 wireless streaming amplifier with two Bowers & Wilkins CCM664 6" in-ceiling speakers, creating a compact, high-quality audio solution for residential installations or small multi-room setups.
Perfect for living rooms, kitchens, or home offices, it delivers detailed Marantz sound in a sleek, space-saving form factor.

The MODEL M1 provides 2 x 100W per channel (8Ω) of low-distortion amplification, with subwoofer output for room-filling bass. HDMI eARC and Dolby Digital+ ensure excellent TV audio, while HEOS® Built-in enables streaming from services like TIDAL, Amazon Music HD, Spotify, AirPlay2, and Bluetooth. Its compact dimensions and versatile connectivity make it ideal for discreet, high-performance installations.

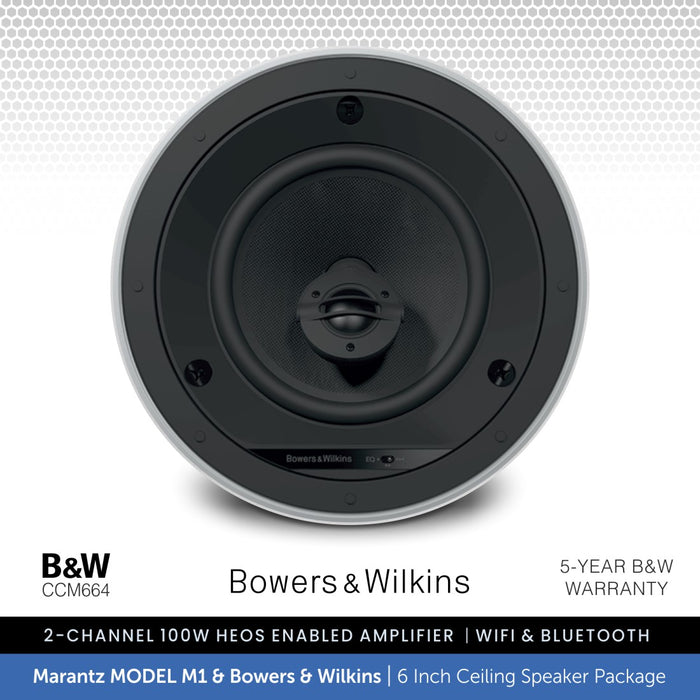

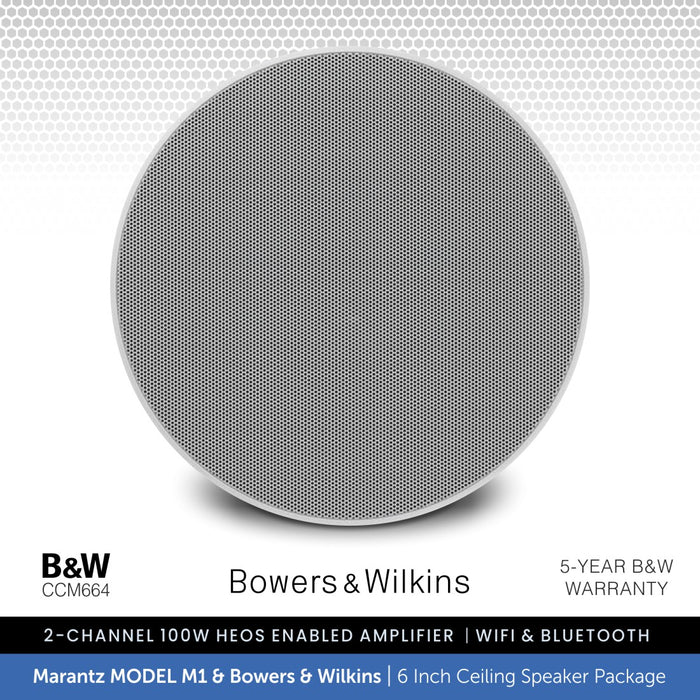

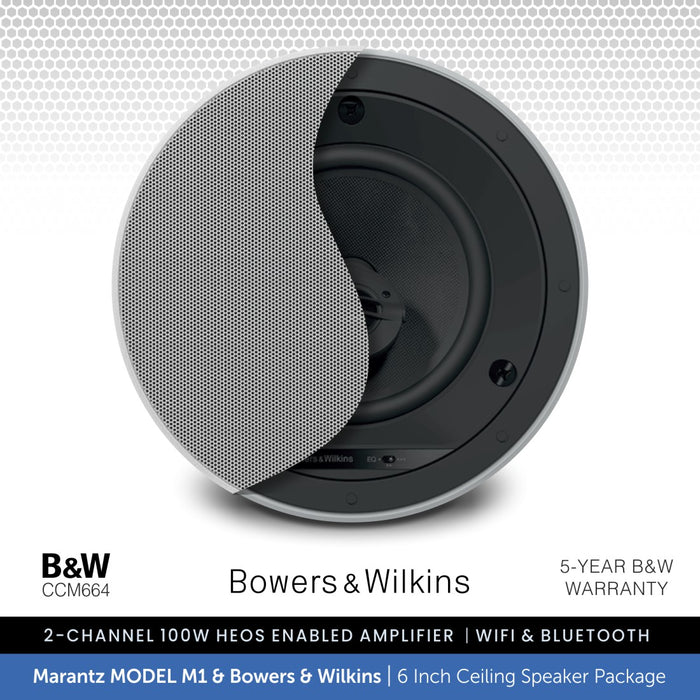

The Bowers & Wilkins CCM664 speakers feature a 6" woven glass fibre bass/midrange driver and a 25mm soft dome tweeter with adjustable tilt, providing smooth, detailed high frequencies and balanced sound. QuickDogs™ mounting and a three-position EQ switch allow for fast installation and fine-tuned performance. These in-ceiling speakers are backed by a 5-year manufacturer’s warranty.
Please note: speaker cable is not included in this package but will be available as a recommended add-on under “Frequently Bought Together” on the product page.

Marantz MODEL M1 / B&W CCM664 Package Key Features:
- Complete Audio Package: Marantz MODEL M1 amplifier with 2 x B&W CCM664 ceiling speakers.
- High-Performance Amplification: 2 x 100W per channel (8Ω) with subwoofer output.
- HEOS® Built-in: Stream from TIDAL, Amazon Music HD, Spotify, AirPlay2, and Bluetooth.
- TV Audio: HDMI eARC and Dolby Digital+ for superior sound.
- Premium In-Ceiling Speakers: 6" woven glass fibre bass/midrange, 25mm soft dome tweeter.
- Adjustable Audio: Tweeter tilt and 3-position EQ switch for optimal off-axis response.

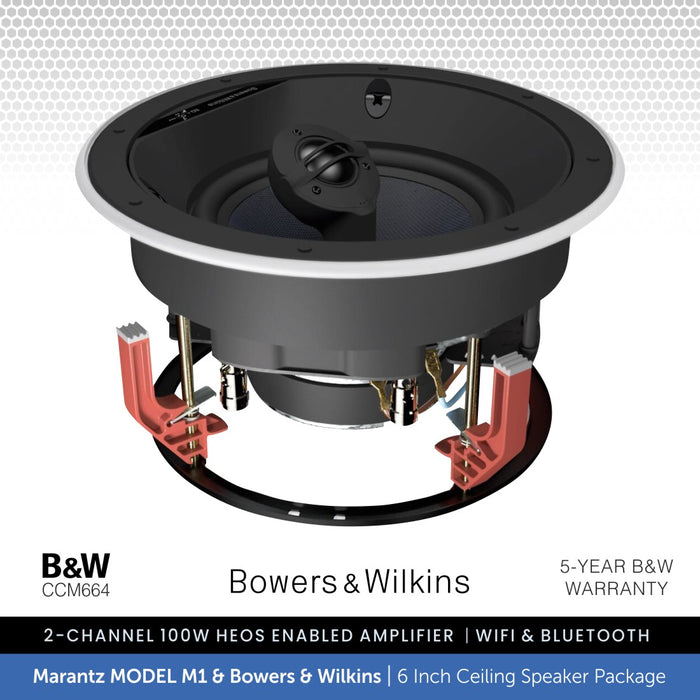

- Quick Installation: QuickDogs™ mounting system and plug-and-play design.
- Compact & Discreet: Low-profile design ideal for home installations.
- High-Resolution Sound: Natural, detailed audio with clear highs and strong midrange.
-
Warranty: 5-year manufacturer’s warranty.
SPECS & DOWNLOADS
Download the Spec Sheet HERE >
Marantz MODEL M1 Specifications:
- Amplifier Output (8Ω): 2 x 100W (THD 0.05%)
- Amplifier Output (4Ω): 2 x 125W (THD 0.05%)
- Frequency Response: 20Hz – 20kHz (±1dB)
- Speaker Impedance: 4 – 16Ω
- Inputs: HDMI eARC, 2 x Optical (TOSLINK), RCA Stereo
- Outputs: Subwoofer Out (RCA)
- Streaming: HEOS®, AirPlay 2, Spotify Connect, Bluetooth 4.2
- Audio Formats: WAV, ALAC, FLAC (24/192), DSD (2.8/5.6MHz), MP3, AAC, WMA
- Sound Modes: Stereo, Direct, Virtual, Dialog Enhancer, Night Mode
- Control: HEOS app (iOS, Android), IR Learning, TCP/IP (Crestron, Control4, AMX)
- Networking: Ethernet, Dual-Band Wi-Fi
- Dimensions (W x D x H): 239 x 217 x 84 mm
- Weight: 2.2 kg
-
Colour: Black
B&W CCM664 Specifications:
Download the PDF User Manual HERE >
- Description: 2-way in-ceiling system
- Drive Units: 1x ø25mm (1in) soft dome tweeter, 1x ø150mm (6in) black glass fibre cone bass/midrange
- Frequency Range (-6dB): 45Hz – 35kHz
- Sensitivity: 87 dB
- Nominal Impedance: 8Ω (minimum 5Ω)
- Power Handling: 130W

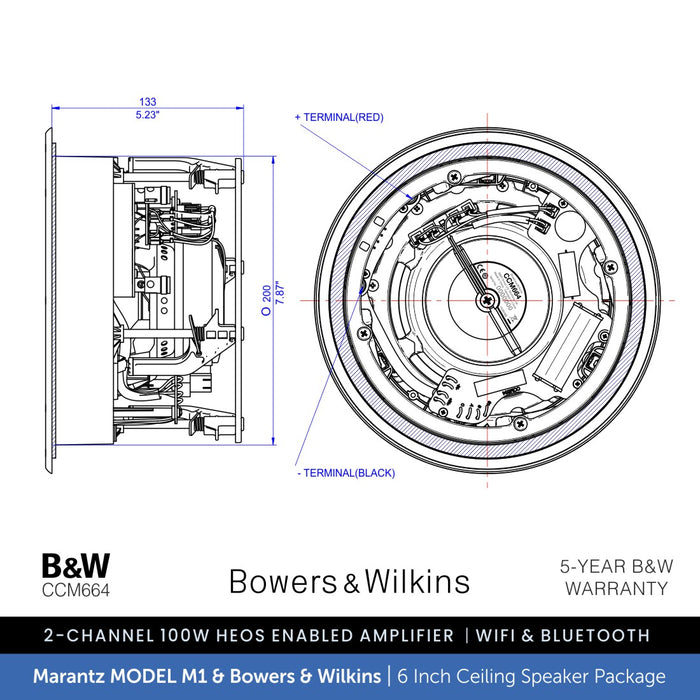

- Frame Diameter: 240mm
- Cut-out Diameter: 202mm
-
Depth behind surface: 133mm
- Protrusion: 4mm
