Zenith LSP408 MKII 4 In 8 Out Loudspeaker Processor
DETAILS
The Zenith LSP408 MKII is a professional 4-in / 8-out loudspeaker processor offering total control for complex PA and installed sound systems.

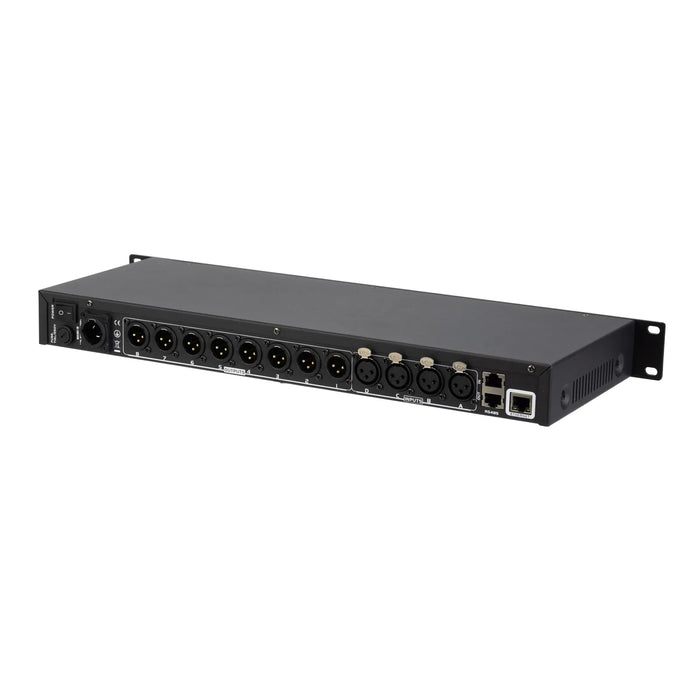

The Zenith LSP408 MKII is a high-performance loudspeaker management system designed for larger and more complex sound installations, including multi-zone venues, theatres, houses of worship, live music venues, and conference facilities. Featuring four XLR inputs and eight XLR outputs, the processor provides flexible routing options for stereo, multi-way and multi-zone speaker configurations.
Pre-loaded with standard presets for typical 2-way stereo systems, the LSP408 MKII allows rapid setup while giving the sound technician the ability to create, edit, store, and recall custom presets. Using the intuitive Windows-based PC software, presets can also be backed up, duplicated or shared between systems, ensuring consistent sound quality across multiple installations.
Each input features a 4-band parametric EQ, while each output is equipped with a 5-band parametric EQ, enabling precise tonal shaping for individual speakers or speaker groups. The processor also includes high-pass and low-pass output filters, with selectable Butterworth, Bessel, or Linkwitz-Riley filter types and slopes up to 48dB per octave, allowing accurate crossover points for subwoofers, midrange, and high-frequency drivers.
Time alignment is easy with up to 1 second of delay on each input and output, helping to synchronise speaker arrays in large spaces. Built-in compressors on every channel provide protection and dynamic control, while phase reverse switches allow rapid correction of polarity issues during system setup.

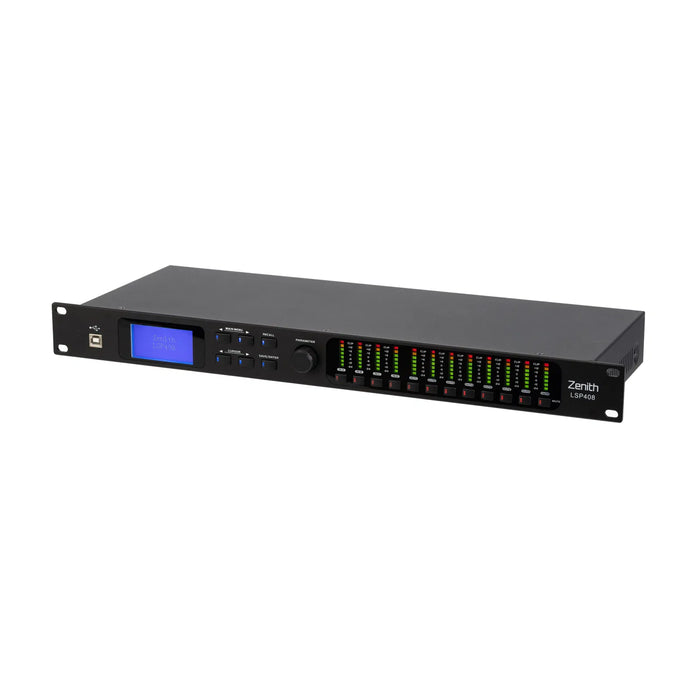

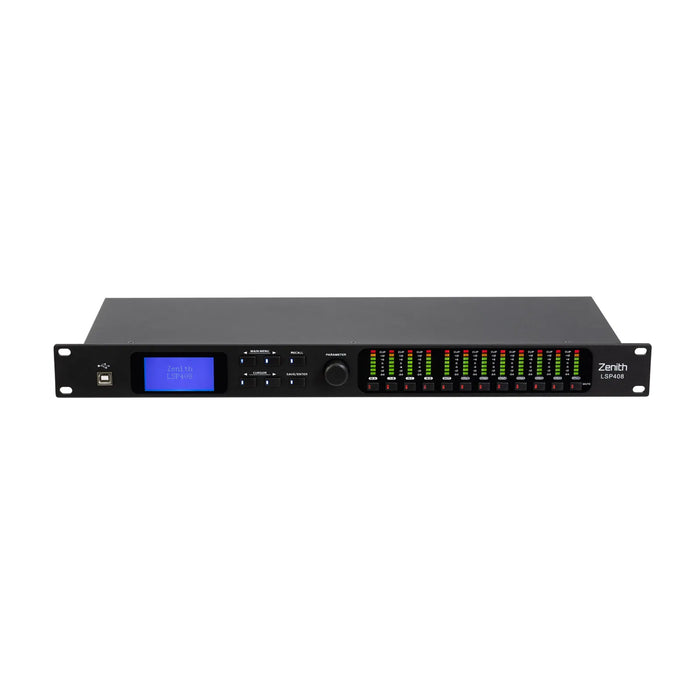

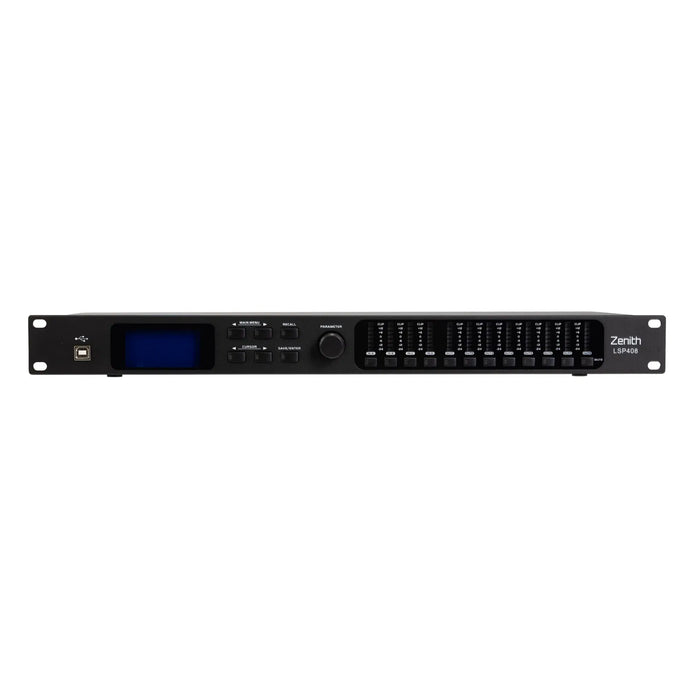

The front-panel jog wheel, LCD display, and 7-segment LED level indicators provide clear, fast feedback for live adjustments. Advanced functions such as multi-channel linking and channel copying simplify complex configurations, allowing changes to be applied simultaneously across multiple outputs. The included PC software on USB ensures in-depth control and management for professional sound engineers.
Zenith LSP408 MKII Key Features:
- 4 In / 8 Out Configuration: Perfect for multi-zone, multi-way, and complex sound installations.
- 24-bit DSP Engine: Professional DSP processing with high-quality AD/DA converters and 48kHz sampling.
- Comprehensive Parametric EQ: 4-band EQ per input and 5-band EQ per output with low/high shelf and parametric filters.
- Professional Crossover Filters: High-pass and low-pass filters with Butterworth, Bessel, or Linkwitz-Riley options, slopes up to 48dB/oct.
- Delay Control: Up to 1 second per input and output for accurate speaker alignment and time correction.
- Dynamic Processing: Independent compressor on every channel with adjustable threshold, ratio, attack, release, and knee type.
- Preset Memory & PC Control: Factory and user-editable presets, with Windows software for backup, duplication, and system management.
- Front Panel Operation: Jog wheel, LCD display, and LED level indicators for rapid configuration and monitoring.
- Channel Linking & Copying: Apply parameters across multiple channels simultaneously for faster system setup.
-
Professional Connectivity: Balanced XLR inputs and outputs for clean, reliable integration into commercial audio systems.
SPECS & DOWNLOADS
Zenith LSP408 MKII:
- Inputs: 4 x Balanced XLR
- Outputs: 8 x Balanced XLR
- DSP Resolution: 24-bit
- Sampling Rate: 48kHz
- Input / Output Level Control: -40dB to +12dB in 0.1dB steps
- Input EQ: 4-band parametric EQ per input
- Output EQ: 5-band parametric EQ per output
- EQ Frequency Range: 19.7Hz – 21.9kHz
- EQ Gain Range: -30dB to +15dB
- EQ Bandwidth: 0.017 – 4.750 octaves
- Crossover Filters: High-pass and low-pass per output
- Filter Slopes: 12, 24, 36, or 48 dB per octave
- Filter Types: Butterworth, Bessel, Linkwitz-Riley
- Delay: Up to 1 second per input and output
- Dynamics: Compressor on each input and output with adjustable threshold, ratio, attack, release, and knee
- Phase Control: Phase reverse on each input and output
- Display: LCD with jog wheel control
- Level Meters: 7-segment LED for each input and output
- PC Control: Windows-based software via USB
- Power Supply: 90–250V AC, 50/60Hz
- Dimensions (H x W x D): 45 x 482 x 158mm
-
Weight: 2kg
