Ecler SAMI-402 4-Channel 19" Analogue Stereo Rack Mixer

Name: Ecler SAMI-402 4-Channel 19" Analogue Stereo Rack Mixer
Brand: Ecler
SKU: CSAMI402
Price: 399.0 GBP
Availability: InStock

by Ecler

SKU CSAMI402

Save 4%

£417.00 (inc. VAT)

£417.00 (inc. VAT) - £417.00 (inc. VAT)

£417.00 (inc. VAT)

£399.00 (inc. VAT)

£399.00 (inc. VAT) - £399.00 (inc. VAT)

£399.00 (inc. VAT)

DETAILS

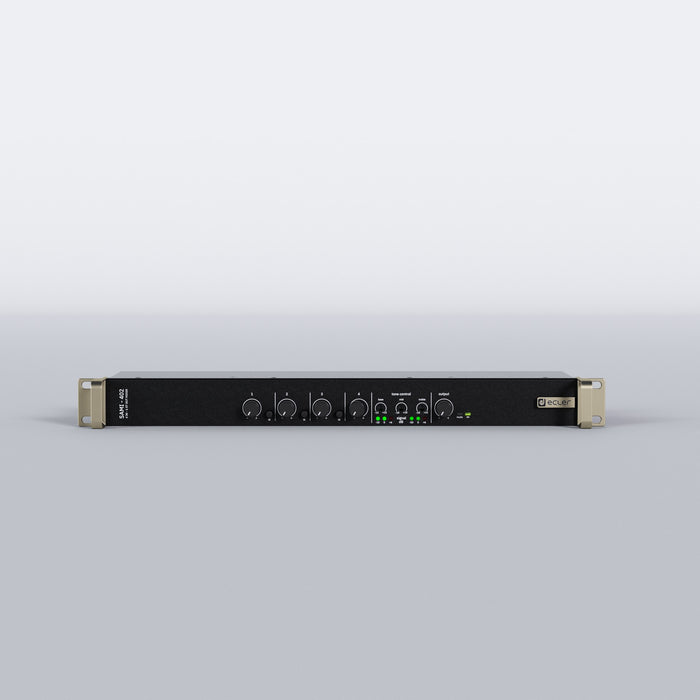

The Ecler SAMI-402 is a 4-Channel 19" Analogue Stereo Installation Rack Mixer delivering three MIC/LINE stereo inputs, one LINE stereo input, 3-band tone control, talkover priority and a MUTE remote control port.

Compact, professional and versatile 1RU mixer for retail, education, corporate, hospitality and sports and wellness installations.

The Ecler SAMI-402 has been designed specifically for professional fixed audio installations across a wide range of commercial environments — including retail stores, educational facilities, corporate offices, hospitality venues and sports and wellness spaces. In a compact 1RU 19" rack format, the SAMI-402 provides a well-specified four-channel analogue stereo mixing solution with three MIC/LINE stereo inputs and one dedicated LINE stereo input, accommodating a flexible combination of microphone and line-level sources from a single rack-mountable unit. The result is a clean, professional and highly practical mixer that simplifies installation audio system design without compromising on features or audio quality.

High-Quality Audio Performance

The SAMI-402 delivers excellent audio performance across all input types. Line inputs achieve a frequency response of 10Hz to 50kHz (-1dB), THD+Noise of less than 0.005% and a signal-to-noise ratio of greater than 100dB — figures that reflect the quality of Ecler's engineering heritage. Balanced MIC inputs achieve a frequency response of 10Hz to 30kHz (-1dB) and SNR greater than 85dB, with a common mode rejection ratio of greater than 60dB at 1kHz for clean, interference-free microphone amplification. All MIC inputs support +18V phantom power for condenser microphones, and microphone sensitivity can be fine-tuned via rear panel adjustment for precise level matching across different microphone types and installation scenarios.

Talkover, Tone Control & Flexible Output

The SAMI-402 includes a number of features specifically tailored for professional installation use. A 3-band tone control section — with Bass at 100Hz ±15dB, Mid at 2kHz ±15dB and Treble at 10kHz ±15dB — allows tonal shaping of the mix output to suit different room acoustics and system requirements. A talkover (priority) function is assignable from each MIC/LINE input over the mix bus, with a 2-second release time and -30dB ducking effect — ensuring microphone announcements are always clearly heard above background music. The main mix output is switchable between stereo and mono operation, with an additional AUX/REC output for recording or zone feed applications. Output levels are internally selectable at 0dB or +6dB to suit different downstream equipment requirements.

Remote Control & Safety Integration

The SAMI-402 includes a MUTE remote control input triggered by external dry contact closure — enabling straightforward integration with fire detection systems, emergency alert systems and other safety devices for automatic audio muting in an emergency. This makes the SAMI-402 a compliant and practical choice for commercial installations where fire safety integration is a requirement. Power LED, MUTE LED and VU-meter level LEDs provide clear front panel status monitoring at all times. The unit is passively cooled for silent operation and is supplied with a ±17.5VDC multi-plug external PSU, Euroblocks, rubber feet and mini jumpers.

Ecler SAMI-402 Key Features:

4-Channel 19" 1RU Installation Mixer: 3 x MIC/LINE stereo inputs and 1 x LINE stereo input in a compact, professional rack-mount format.
+18V Phantom Power: Available on all MIC inputs for condenser microphone compatibility.
3-Band Tone Control: Bass (100Hz ±15dB), Mid (2kHz ±15dB) and Treble (10kHz ±15dB) for tonal shaping to suit different room acoustics.
Talkover (Priority) Function: Assignable from each MIC/LINE input over the mix bus with 2-second release time and -30dB ducking effect.
Adjustable MIC Sensitivity: Rear panel microphone sensitivity adjustment (±15dB) for precise level matching across different microphone types.
Main Mix Output: Switchable stereo/mono output via 3-pin Euroblock with internally selectable output level (0dB or +6dB).
AUX/REC Output: Additional stereo RCA output for recording or zone feed applications.
MUTE Remote Control Input: External dry contact closure for integration with fire detection systems and other safety devices.
Excellent Audio Specifications: Line THD+Noise < 0.005%, SNR > 100dB, frequency response 10Hz–50kHz (-1dB).
Passive Cooling: Silent operation for noise-sensitive installation environments.
Universal Mains Input: 100–240V AC, 50–60Hz via external PSU.
Compact 1RU Format: 482.5 x 44 x 153.7mm for efficient use of rack space.
Supplied with PSU, Euroblocks, Rubber Feet & Mini Jumpers: Ready for immediate installation out of the box.

SPECS & DOWNLOADS

Ecler SAMI-402 Specifications:

Download the PDF Data Sheet HERE >

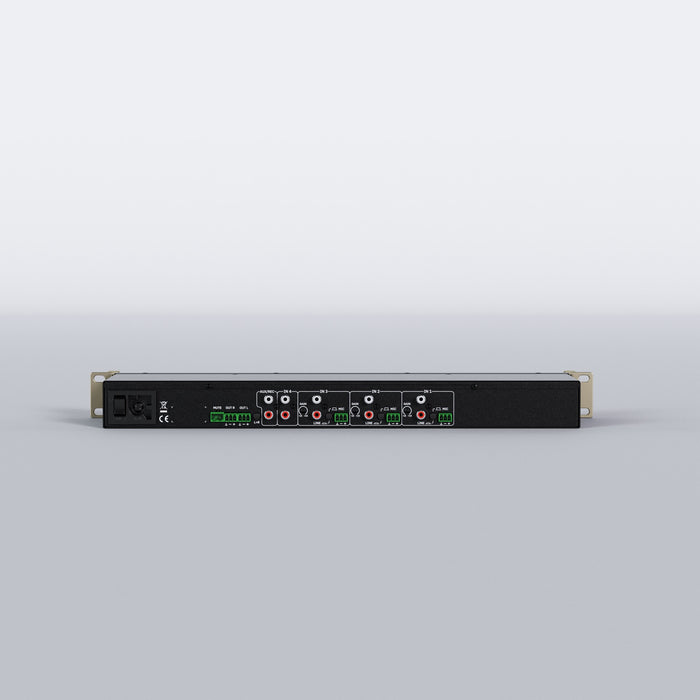

Inputs

Input Channels: 3 x MIC/LINE stereo, 1 x LINE stereo
MIC Connection: 3-pin Euroblock (balanced)
LINE Connection: RCA
Input Sensitivity: LINE 1–3: 0dB / LINE 4: 0dB or -6dB (internally selectable) / MIC 1–3 BAL: -35dB
Input Sensitivity Adjust: MIC/LINE ±15dB
Input Impedance: LINE 1–3: 50kΩ / LINE 4: 50kΩ / MIC 1–3 BAL: >1kΩ
Phantom Power: +18VDC (all MIC inputs)
CMRR: MIC > 60dB at 1kHz

Outputs

Main Output: 1 x stereo/2 x mono (3-pin Euroblock), 0dB or +6dB (internally selectable), 600Ω
AUX/REC Output: 1 x stereo RCA, 0dB or +6dB (internally selectable), 10kΩ

Signal

Frequency Response: LINE: 10Hz–50kHz (-1dB) / MIC BAL: 10Hz–30kHz (-1dB)
THD+Noise: LINE < 0.005% / MIC BAL < 0.04%
SNR: LINE > 100dB / MIC BAL > 85dB

Control

Tone Control: 3-band — Bass 100Hz ±15dB / Mid 2kHz ±15dB / Treble 10kHz ±15dB
Talkover: 2-second release time, -30dB ducking effect
MUTE Port: NO/NC dry contact closure
Indicators: Power LED, MUTE LED, VU-meter level LEDs

Electrical

Power Supply: ±17.5VDC external PSU (included)
Mains Input: 100–240V AC, 50–60Hz
Power Consumption: 10.8VA / 4.5W
Cooling: Passive

Physical

Installation Format: 19" rack, 1RU
Dimensions (W x H x D): 482.5 x 44 x 153.7mm
Weight: 1.75kg
Operating Temperature: -10°C to +40°C
Operating Humidity: < 85% RH
Included Accessories: ±17.5VDC multi-plug PSU, Euroblocks, rubber feet, mini jumpers

}
