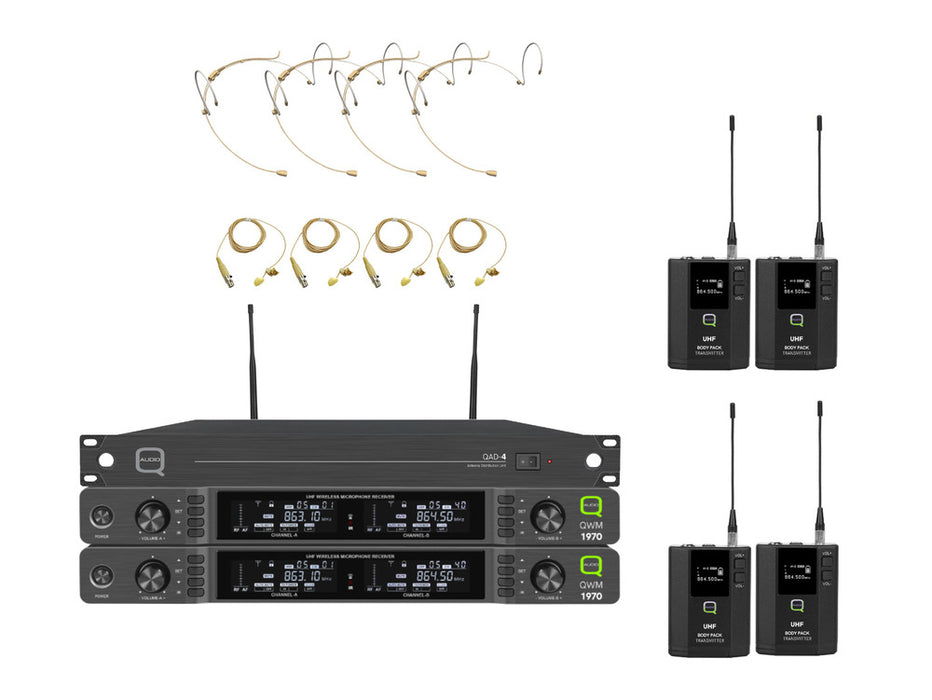

Q-Audio QWM 1970 4-Way Headworn/Lapel Wireless Microphone System (CH38)

by Q Audio
SKU QWM1970BP-4W
Original price £659.00 (inc. VAT) - Original price £659.00 (inc. VAT)
Original price £659.00 (inc. VAT)
£659.00 (inc. VAT)
£659.00 (inc. VAT) - £659.00 (inc. VAT)
Current price £659.00 (inc. VAT)
DETAILS

Q-Audio QWM1970 Delivers Reliable 4-Way Wireless Performance For Schools, Theatres, And Places Of Worship.

The Q-Audio QWM1970 is a professional 4-channel true diversity wireless system, designed for venues that require reliable, easy-to-use microphones for multiple users. This complete package is ideal for schools, theatres, places of worship, and conference settings, supporting speech, vocals, and instrument use with ease.

Included in the bundle are two dual true diversity receivers and four bodypack transmitters, giving you up to four simultaneous channels. Each transmitter comes with a beige head-worn microphone for discreet, close-miked speech and a lapel microphone for hands-free presenting. Musicians can also connect instruments using the four included instrument cables.

To ensure stable RF performance in busy environments, the system includes the Q-Audio QAD-4 antenna distribution unit and BNC leads. The QAD-4 routes antennas to multiple receivers, simplifying setup, improving reception, and supporting system expansion with its dual 1:4 active splitter and DC power distribution.

Key Features:

  • Complete 4-Way System: Includes headworn, lapel, and instrument connectivity for flexible applications
  • True Diversity Receivers: 2x QWM1970 dual receivers for stable, interference-free performance
  • Bodypack Transmitters: 4x QWM1970BP units with IR sync for easy channel selection
  • Microphones: 4x beige head-worn and 4x beige lapel microphones included
  • Instrument Support: 4x instrument cables for guitar or keyboard use
  • Antenna Distribution: QAD-4 unit with BNC cables for simplified, reliable RF coverage
  • UK Venue Ready: Ideal for schools, theatres, conference rooms, and places of worship

Box Contents:

  • 2x QWM 1970 True Diversity Dual Receivers
  • 4x QWM 1970BP Body Pack Transmitters
  • 4x Beige Head Worn Microphones
  • 4x Beige Lapel Microphones
  • 4x Instrument Cables
  • 1x QAD 4 Antenna Distribution Unit
SPECS & DOWNLOADS

Download the PDF User Manual HERE >

Q-Audio QWM 1970 4-Way System Specifications:

Receiver

  • Frequency: 606 - 614 MHz
  • Bandwidth: 8 MHz
  • Dynamic Range: 96 dB
  • Distortion: <0.1%
  • Signal/Noise Ratio: 96 dB
  • Frequency Response: 30 Hz - 20 kHz ±2 dB
  • Receiving Sensitivity: -95 dBm
  • Power Supply: DC 12V 1A

Bodypack Transmitter

  • Frequency: 606 - 614 MHz
  • Frequency Switching: IR Sync
  • Harmonic Radiation: <-50 dBc
  • Output Power: Up to 30 mW
  • Batteries Required: 2x 1.5V AA
  • Battery Life: >5 hours

Antenna Distribution

  • Bandwidth: UHF 450 - 1000 MHz
  • Antenna In/Link Out Connections: BNC
  • Antenna Inputs: 2
  • Antenna Link: 2
  • Antenna Outputs: 8
  • Antenna Power (via Input): 9V 100mA
  • Power Input Connection: 1x 12V DC Jack
  • Power Output Connections: 4x 12V DC Jack
}
