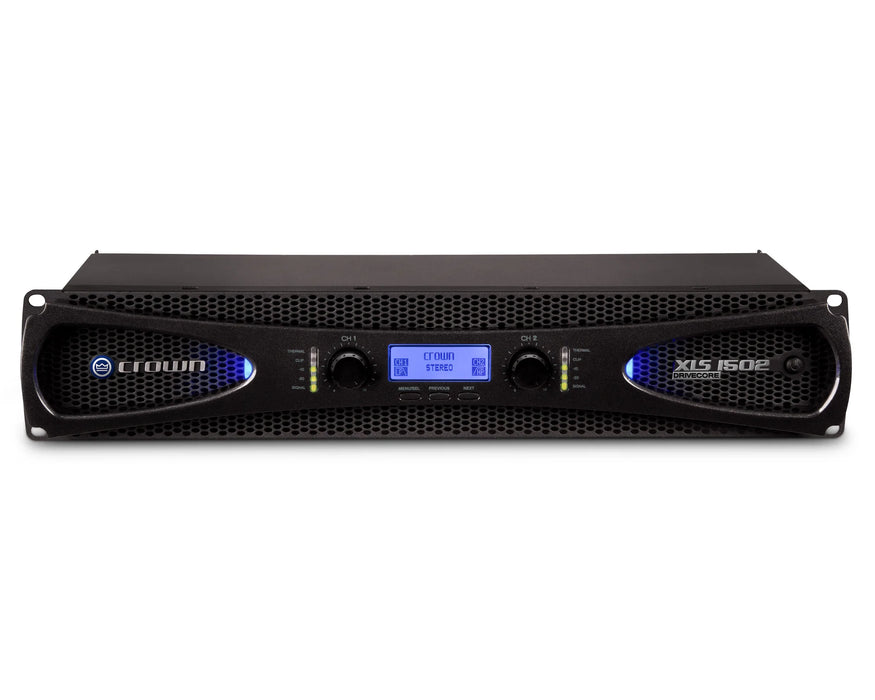

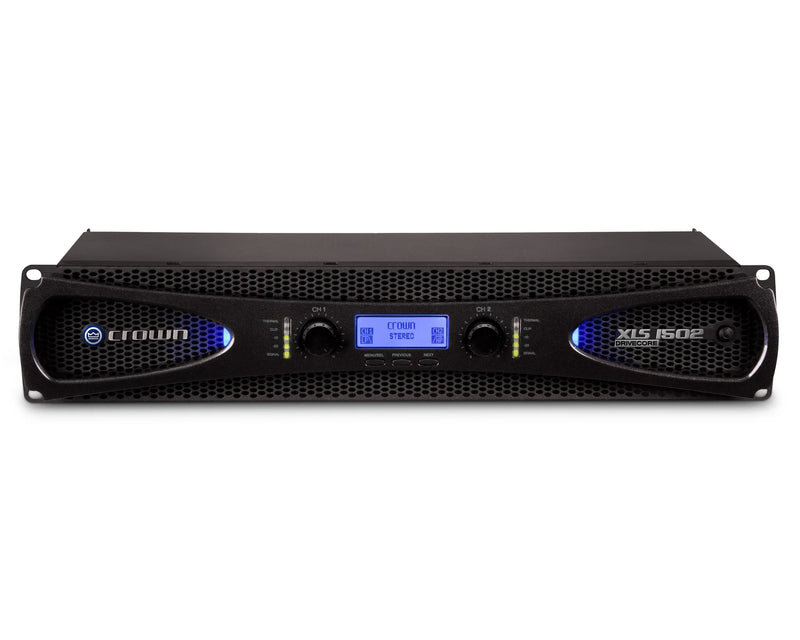

Crown XLS 1502 DriveCore 2 Power Amplifier with DSP – 2 x 525W @ 4Ω

SKU CROXLS1502
Original price £499.00 (inc. VAT) - Original price £499.00 (inc. VAT)
Original price £499.00 (inc. VAT)
£499.00 (inc. VAT)
£499.00 (inc. VAT) - £499.00 (inc. VAT)
Current price £499.00 (inc. VAT)
DETAILS

Crown XLS 1502 delivers higher power, advanced DSP control, and lightweight DriveCore 2 efficiency for professional sound reinforcement.

The Crown XLS 1502 from the DriveCore 2 series is a robust, ultra-efficient Class D power amplifier designed for demanding audio applications in venues such as schools, houses of worship, theatres, conference spaces, and live performance environments. Featuring Crown’s patented DriveCore technology, the XLS 1502 delivers powerful, crystal-clear sound with plenty of headroom, all while weighing just 3.9kg for easy transport and installation.

This second-generation DriveCore model offers a refined design with a larger LCD display and enhanced DSP functions for even greater control. The integrated PureBand™ Crossover System ensures precise frequency management, while Peakx™ Limiters allow for maximum output without risking speaker damage. Selectable input sensitivity, a secure menu lock, and flexible connection options make the XLS 1502 a versatile and reliable choice for any audio setup.

Whether you’re powering a portable PA system or installing it into a fixed rack, the XLS 1502 delivers consistent, distortion-free performance with efficient forced-air cooling to prevent overheating during extended use.

Crown XLS 1502 Key Features:

  • Patented DriveCore Technology: Ultra-efficient Class D amplifier weighing only 3.9kg.
  • Enhanced DSP Control: Band pass filter per channel for precise sound tuning.
  • Selectable Input Sensitivity: Choose between 1.4Vrms and 0.775Vrms for optimal system matching.
  • Peakx™ Limiters: Maximise output while protecting your speakers.

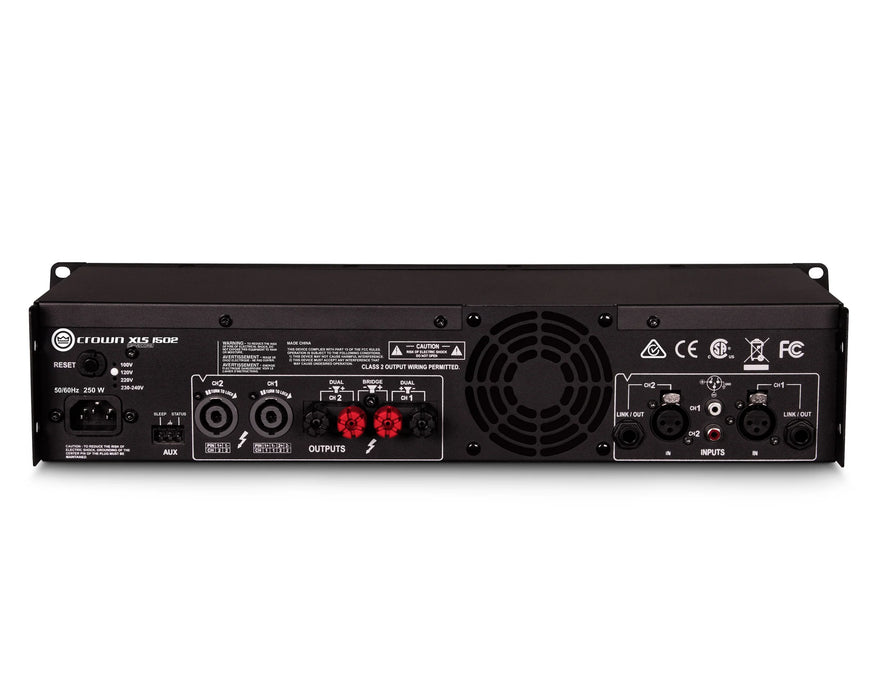

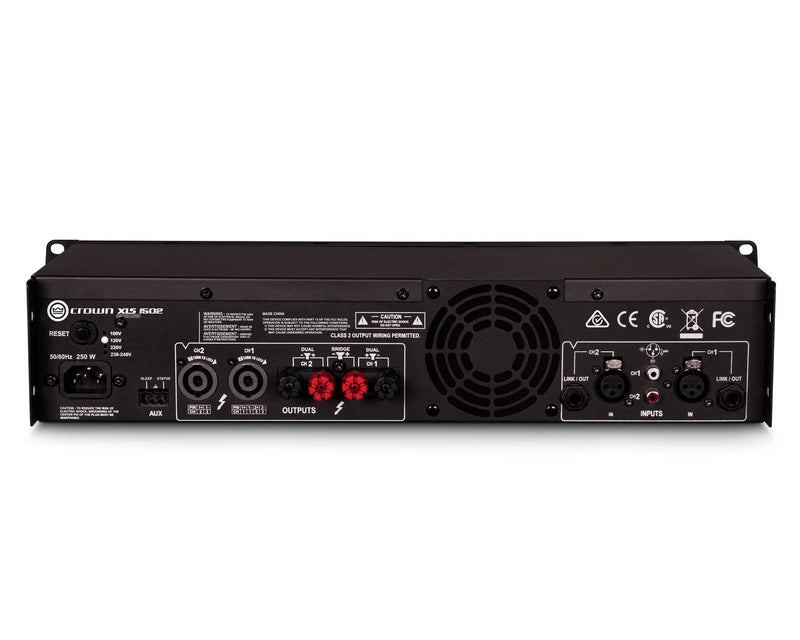

  • Flexible Connectivity: XLR, 1/4", and RCA inputs to suit different audio setups.
  • PureBand™ Crossover System: Provides accurate frequency management for superior sound.
  • Display & LED Control: Disable lights to minimise distractions in dark environments.
  • Menu Lock Security: Prevents accidental changes during operation.
  • Remote Power Trigger: Convenient for installed systems.
  • Efficient Cooling: Forced-air fans to maintain optimal operating temperatures.
    SPECS & DOWNLOADS

    Crown XLS 1502 Specifications

    Download the PDF Data Sheet HERE >

    • Model: XLS 1502
    • Channels: 2
    • Power Output (2Ω Dual): 775W
    • Power Output (4Ω Dual): 525W
    • Power Output (8Ω Dual): 300W
    • Power Output (4Ω Bridged): 1550W
    • Power Output (8Ω Bridged): 1050W
    • Sensitivity: 1.4Vrms
    • Frequency Response: +0dB, -1dB
    • Signal to Noise: > 103dB (@ 0.775Vrms, 6dB lower)
    • Intermodulation Distortion: < 0.3%
    • Damping Factor: > 200
    • THD: < 0.5%
    • Crosstalk (1kHz): > 85dB
    • Crosstalk (20kHz): > 55dB
    • Dimensions (H x W x D): 3.5" x 19" x 7.7"
    • Weight: 3.9kg
      }
