AUDAC PMQ240 - WaveDynamics™ 4 x 240W Quad-Channel Power Amplifier 70V/100V/8Ω
DETAILS
The Audac PMQ240 is a quad-channel Class-D 70/100V amplifier delivering 4 x 240W with WaveDynamics™ DSP, perfect for premium public address and multi-zone audio systems.
The Audac PMQ240 is part of the PMQ series of professional 70/100V power amplifiers, designed to deliver premium sound reinforcement in schools, retail spaces, houses of worship, hotels, and conference facilities. With 4 x 240W of Class-D power, this amplifier is ideal for driving multiple speaker zones with exceptional clarity and reliability.

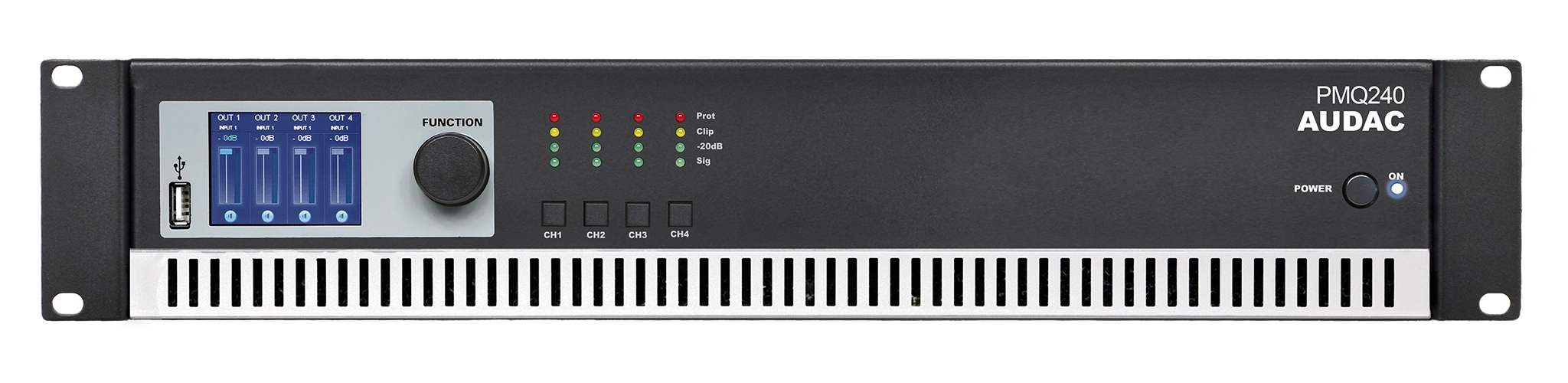

Featuring Audac’s WaveDynamics™ DSP technology and a 2.5” LCD display, the PMQ240 allows for straightforward system configuration, with tools including low/high/band-pass filters, a 7-band parametric EQ, delay, and dynamic bass boost. System access can be set at User or Administrator level, with password or USB-key protection for secure operation.

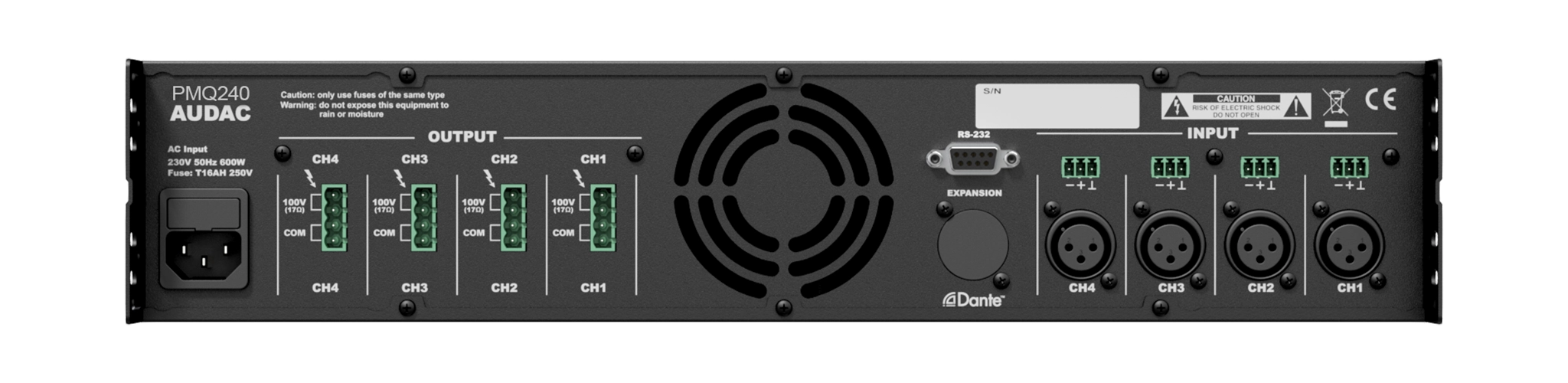

Preloaded loudspeaker presets and USB-configurable system settings make it quick and easy to achieve optimal sound performance while ensuring loudspeaker protection. Connectivity includes XLR and terminal block inputs with link-through, plus 4-pin Euroblock outputs. RS232 control makes integration with third-party systems straightforward, and the optional Dante™/AES67 interface allows high-quality networked audio streaming over standard Ethernet.
The PMQ240 is TouchLink™ compatible, enabling virtual zone creation when used with other compatible devices, and supports remote configuration through the AUDAC Touch™ app when paired with the ANI44XT expansion card. The intuitive Scroll-Push™ user interface provides a simple way to navigate menus and adjust settings directly from the amplifier.
AUDAC PMQ240 Key Features:
- Quad-Channel 70/100V Power: 4 x 240W output for multi-zone distributed audio systems.
- WaveDynamics™ DSP: Advanced loudspeaker management with EQ, filters, delay, and presets.
- Intuitive Control: 2.5” LCD screen with Scroll-Push™ interface for easy setup.
- Flexible Connectivity: XLR & Euroblock inputs with link-through, 4-pin Euroblock outputs.
- Optional Dante™/AES67 Expansion: Networked audio streaming over Ethernet.
- TouchLink™ Compatible: Create virtual audio zones with compatible devices.
- AUDAC Touch™ Ready: Remote system control via mobile, tablet, or PC (with ANI44XT installed).
- Secure Access Levels: User & Administrator modes with password or USB-key protection.
-
Comprehensive Protection: Short circuit, overload, overheating, and signal limiting.
SPECS & DOWNLOADS
Download the Product Data Sheet HERE >
AUDAC PMQ240 Specifications:
- Amplifier Type: Class-D
- Channels: 4
- Output Power (AES): 4 x 240W @ 8Ω, 4 x 240W @ 100V
- Frequency Response: 50 Hz – 20 kHz (±3 dB)
- Signal-to-Noise Ratio: >95 dB
- THD+N: <0.05% (1/2 Rated Power)
- Crosstalk: >70 dB (@1 kHz)
- Input Sensitivity: -30 dB ~ +5 dB
- Input Impedance: 10 kΩ balanced
- Input Connector: XLR & 3-pin Euro Terminal Block (3.81 mm)
- Output Connector: 4-pin Euro Terminal Block (Pitch 5.08 mm)
- Common Mode Rejection: 70 dB
- Damping Factor: >200
- Protection: DC, short circuit, overheating, overload, signal limiting
- Access Levels: User & Administrator via password / USB-key
- Cooling: Temperature-controlled fan
- Operating Temperature: 0° ~ 40° @ 95% humidity
- Power Supply: Switching mode AC 100-120V / 220-240V, 50/60Hz
- Dimensions: 482 x 88 x 420 mm (W x H x D)
- Weight: 8.05 kg
- Mounting: 19” rack, 2 HE
- Construction: Steel
-
Colour: Black
