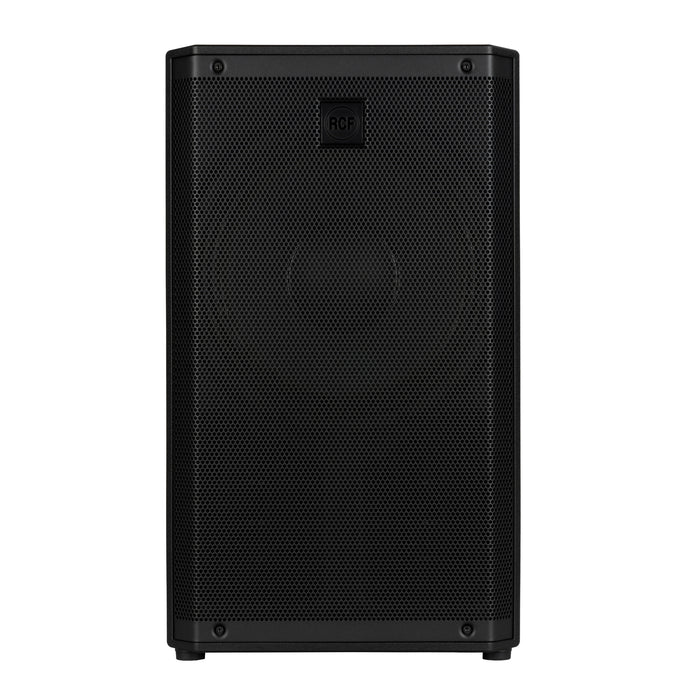

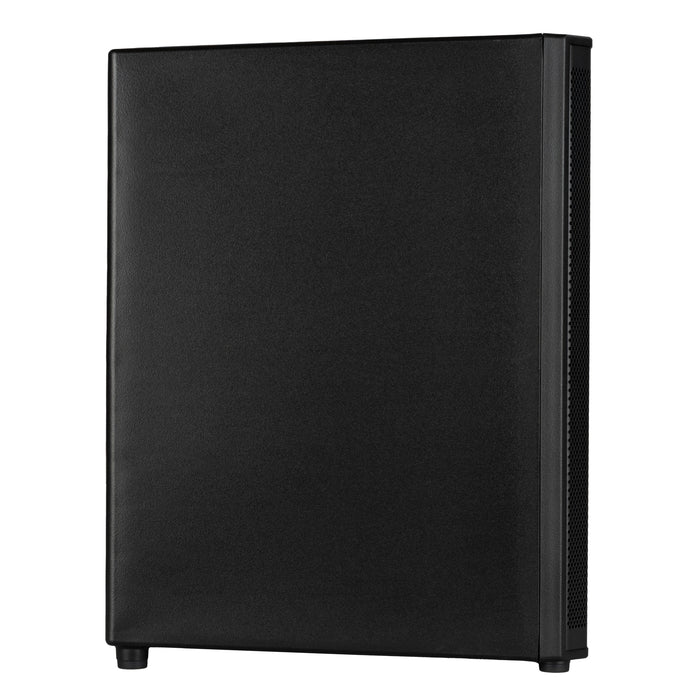

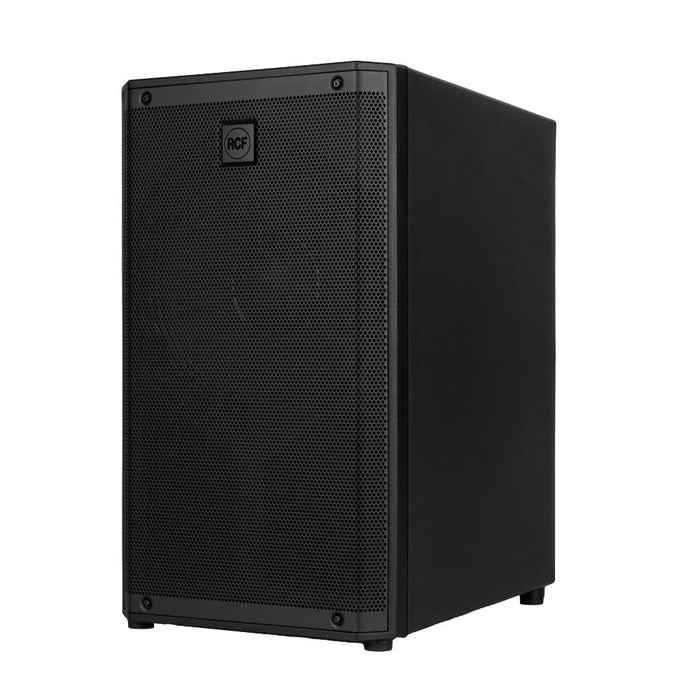

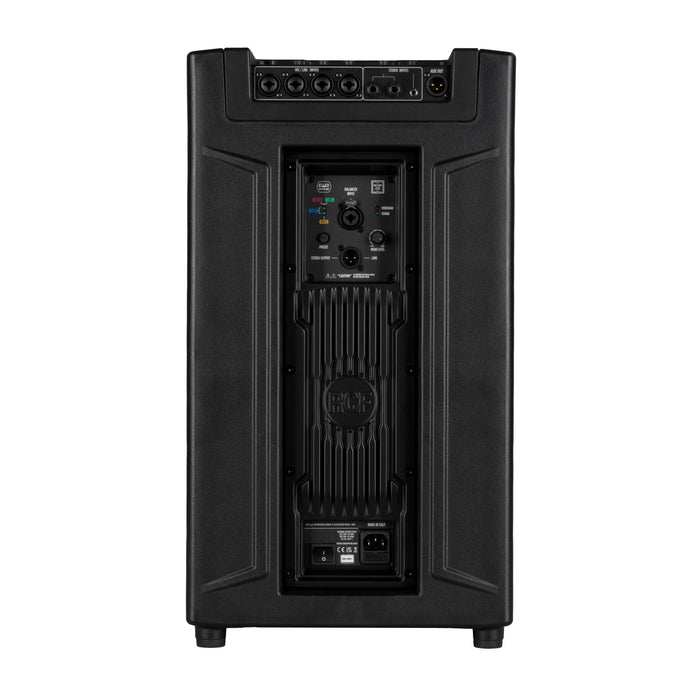

RCF EVOX JMIX9 Black 3-Way Portable Active Column PA System + Digital Mixer

Name: RCF EVOX JMIX9 Black 3-Way Portable Active Column PA System + Digital Mixer
Brand: RCF
SKU: RCFEVOXJMIX9
Price: 1499.0 GBP
Availability: OutOfStock

by RCF

SKU RCFEVOXJMIX9

Sold out

£1,524.00 (inc. VAT)

£1,524.00 (inc. VAT) - £1,524.00 (inc. VAT)

£1,524.00 (inc. VAT)

£1,499.00 (inc. VAT)

£1,499.00 (inc. VAT) - £1,499.00 (inc. VAT)

£1,499.00 (inc. VAT)

DETAILS

RCF EVOX JMIX9 Black – High-Power Three-Way Active Column PA System with Integrated Digital Mixer.

The RCF EVOX JMIX9 Black is a high-performance three-way active column PA system with an integrated 8-channel digital mixer, delivering a complete all-in-one sound solution for professional live sound applications.

Combining the acoustic performance of the EVOX J9 with a built-in true-stereo digital mixer, the JMIX9 features a 1.75” neodymium compression driver with True Resistive Waveguide, six 3” neodymium full-range transducers, and a high-power 12” woofer. Powered by a 2100W Class-D amplifier and capable of up to 130 dB Max SPL, the EVOX JMIX9 is ideal for bands, DJs, venues, corporate events, and performers who require powerful sound with full mixing control in a single, portable system.

Integrated 8-Channel Digital Mixer

At the core of the EVOX JMIX9 is a powerful 8-channel true-stereo digital mixer, providing full control over your audio system without the need for external hardware. The bright 2.4” colour touch display and physical encoders offer fast, intuitive access to all mixer functions, while the JMixRemote app for iOS and Android enables complete wireless control via Bluetooth.

The mixer includes four MIC/LINE combo inputs with high-performance THAT® preamps and individual phantom power, plus stereo line and 3.5mm inputs shared with Bluetooth audio streaming. Each channel features high-pass filtering, compression, and 3-band EQ, along with internal stereo reverb for professional-quality vocal and instrument processing.

High-Powered Class-D Amplification

The EVOX JMIX9 is powered by a 2100W onboard dual-channel Class-D amplifier, delivering fast transient response, high efficiency, and exceptional headroom. The fanless cooling design uses a solid aluminium heat exchanger for silent operation and long-term reliability.

Three DSP presets are available: Linear/Live for accurate reproduction, Club for enhanced low-end and highs, and Voice for maximum intelligibility. The advanced input stage includes low-distortion circuitry and an intelligent safety limiter to preserve signal quality at any level.

Exceptional Sound with True Resistive Waveguide

The EVOX JMIX9 features a 1.75” neodymium compression driver coupled with RCF’s True Resistive Waveguide, delivering consistent 120° horizontal and 40° vertical coverage for even sound dispersion across the audience.

Six forward-facing 3” neodymium full-range drivers provide a balanced point-source response with excellent vocal clarity, while the high-excursion 12” woofer in a bass-reflex enclosure delivers deep, controlled low frequencies suitable for music-driven and speech-based applications alike.

Designed for Portability and Easy Setup

Built with a sleek composite cabinet and aluminium stand mount, the EVOX JMIX9 is designed for fast deployment and easy transport. A lightweight aluminium pole with integrated connections links the column to the subwoofer, allowing for clean, cable-free setup.

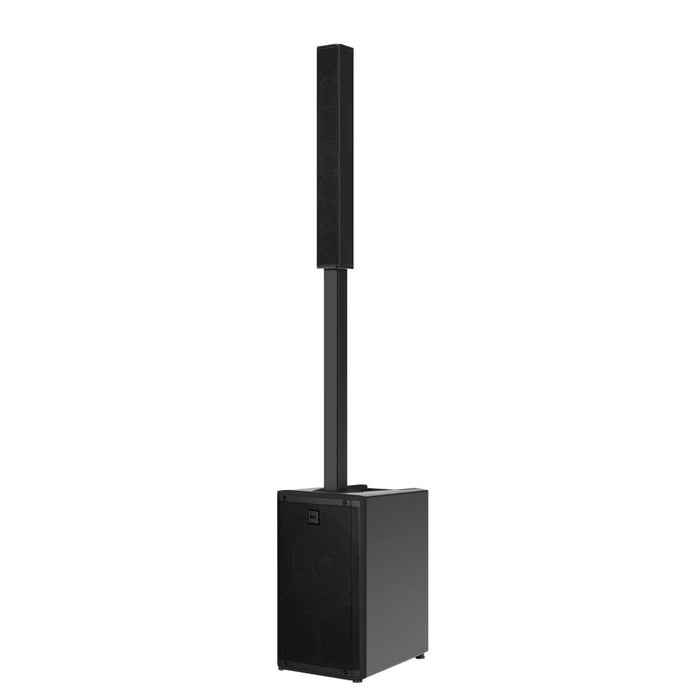

Multiple height configurations are supported, including zero-offset mounting directly onto the subwoofer or standard height using the supplied pole. A padded carry bag for the column is included as standard, with optional subwoofer covers and trolley systems available for touring and storage.

Advanced DSP, FiRPHASE & Bass Motion Control

The EVOX JMIX9 uses RCF’s real-time DSP platform, incorporating advanced protection and tuning algorithms for maximum performance and reliability. FiRPHASE processing ensures precise phase alignment and transparent sound, delivering consistent coverage and accurate imaging with minimal latency.

Bass Motion Control (BMC) allows the system to reproduce extremely low frequencies without compromising woofer stability. Unlike traditional high-pass filters, BMC preserves phase and frequency response while protecting the driver from over-excursion, resulting in deeper bass and improved sound integrity.

RCF EVOX JMIX9 Key Features:

Three-way active column PA system with integrated digital mixer
8-channel true-stereo digital mixer with touch screen and encoders
Wireless control via JMixRemote app (iOS & Android)
2100W Class-D amplifier with built-in DSP
130 dB Max SPL for demanding live applications
1.75” neodymium compression driver with True Resistive Waveguide

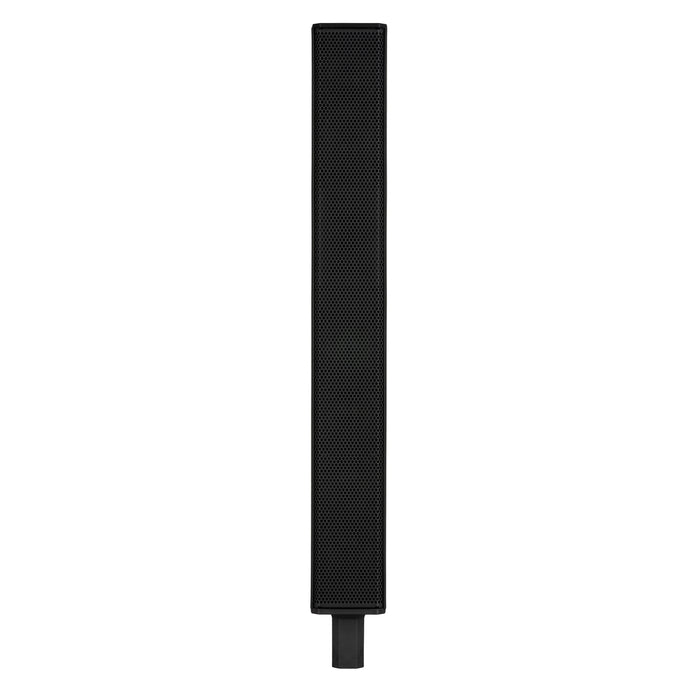

6 x 3” neodymium full-range drivers for detailed midrange

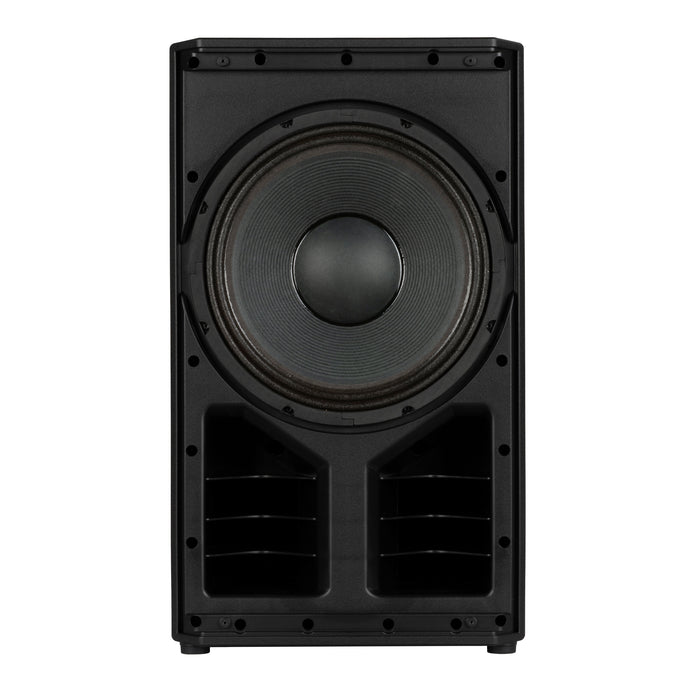

12” high-power woofer for deep, controlled bass
Bluetooth audio streaming and phantom power on mic channels
FiRPHASE and Bass Motion Control DSP processing
Multiple EQ presets: Linear/Live, Club, Voice
Lightweight composite cabinet with aluminium stand mount

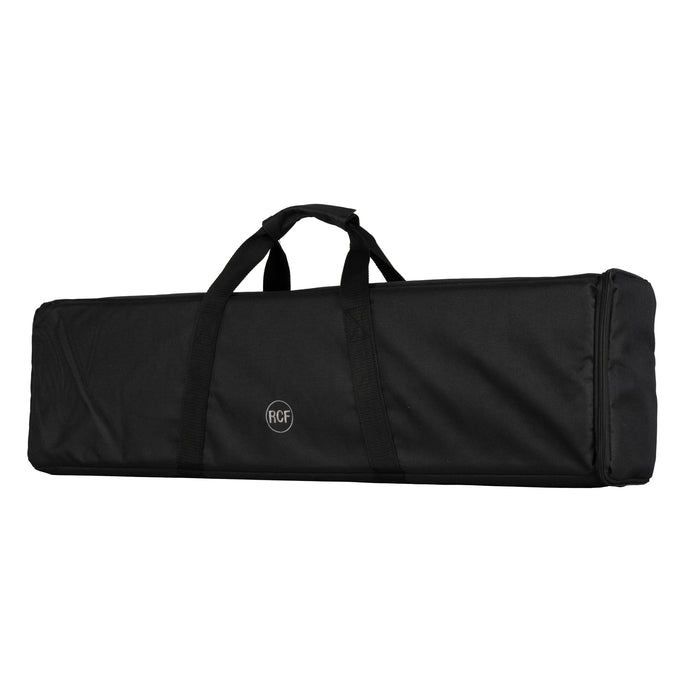

Padded carry bag for column included as standard
Variable height configuration with quick-fit pole system

SPECS & DOWNLOADS

RCF EVOX JMIX9 Specifications

Acoustical Specifications

Frequency Response: 40 Hz ÷ 20 kHz
Max SPL: 130 dB
Horizontal Coverage Angle: 120°
Vertical Coverage Angle: 40°
Compression Driver: 1 x 0.75" neo, 1.75" v.c
Full-Range Drivers: 6 x 3.0" neo, 1.0" v.c
Woofer: 12", 2.5" v.c

Input/Output Section

Input Signal: Balanced/Unbalanced
Input Connectors: Combo XLR/Jack
Output Connectors: XLR
Input Sensitivity: -2 dBu / +4 dBu

Processor Section

Crossover Frequencies: 200 Hz / 1800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter

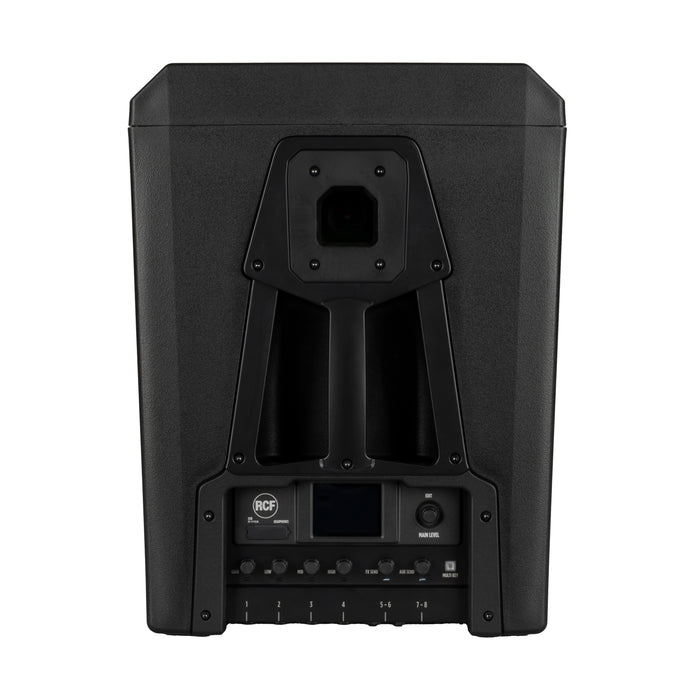

Controls: Digital mixer via touch screen and encoders

Amplifier Specifications

Total Power (Peak): 2100 W
High Frequencies: 700 W
Low Frequencies: 1400 W
Cooling: Convection

Digital Mixer Specifications

Processing Channels: 8
Signal Processing: 32-bit
A/D – D/A Conversion: 24-bit / 48 kHz
Dynamic Range: 114 dB
Mic Inputs: 4 (with +48V Phantom Power)
Stereo Line Inputs: 2
Bluetooth Audio: Yes
Internal Effects: Stereo Reverb
Main Output EQ: 8-band
AUX Output: Yes
Headphone Output: Yes

Cabinet

Cabinet Material: PP Composite
Handles: 1 Top
Pole Mount/Cap: Quick-fit socket
Grille: Steel
Colour: Black

Physical & Dimensions

Height: 2080 mm
Width: 350 mm
Depth: 463 mm
Weight: 28.8 kg

}
