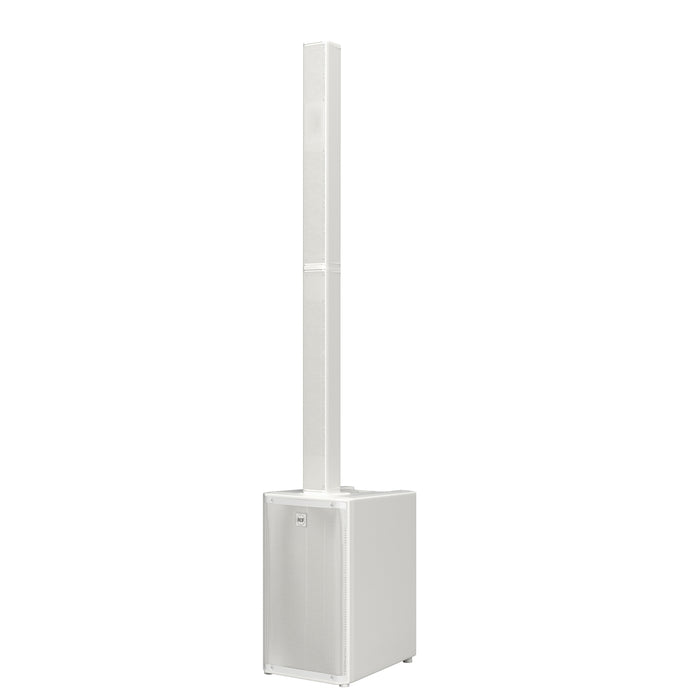

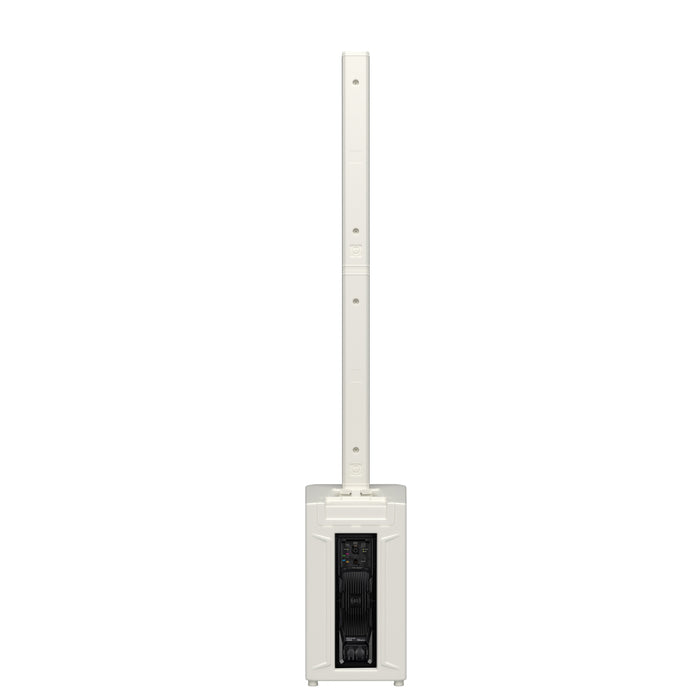

RCF EVOX J11 White 3-Way Portable Active Column PA System

Name: RCF EVOX J11 White 3-Way Portable Active Column PA System
Brand: RCF
Price: 1524.0 GBP
Availability: OutOfStock

by RCF

SKU

Sold out

£1,524.00 (inc. VAT) - £1,524.00 (inc. VAT)

£1,524.00 (inc. VAT)

£1,524.00 (inc. VAT) - £1,524.00 (inc. VAT)

£1,524.00 (inc. VAT)

DETAILS

The RCF EVOX J11 White is a high-performance 3-way portable column PA system designed for maximum clarity, power and elegant visual integration.

The RCF EVOX J11 White is an active, three-way portable column PA system engineered for professional users who require powerful, high-definition sound in a visually discreet format.

Finished in a clean white design, it is ideal for venues where aesthetics matter just as much as performance, including wedding venues, hotels, corporate spaces, places of worship, restaurants, and premium event environments.

The system combines a 1.75" neodymium compression driver with a 120° x 40° True Resistive Waveguide, alongside 12 x 3" neodymium full-range drivers and a high-power 12" woofer housed in a bass-reflex enclosure. This configuration delivers articulate mids, crystal-clear vocals and deep, controlled low frequencies, with wide and consistent audience coverage.

Powered by a dual-channel 3500W Class-D amplifier with advanced DSP, the EVOX J11 White delivers an impressive 132 dB Max SPL while maintaining exceptional clarity and transient response. Part of the EVOX J Series, it incorporates RCF’s tour-grade technology into a sleek, neutral system that blends seamlessly into professional environments while offering fast setup and effortless portability.

High-Powered Class-D Amplification

The EVOX J11 White is driven by RCF’s next-generation 3500W dual-channel Class-D amplifier, delivering up to 2.5x more power than previous architectures. This results in extremely high sound pressure levels, ultra-fast attack and realistic transient response with minimal thermal buildup.

The amplifier is highly energy-efficient and uses convection cooling with no internal fan, ensuring silent operation. It is mounted on a solid aluminium heat exchanger and mechanically coupled to the internal frame for long-term reliability and stability in demanding applications.

Exceptional Sound with Wide Coverage

At the heart of the system is a 1.75" neodymium compression driver with a True Resistive Waveguide (TRW), providing resonance-free loading and constant 120° x 40° coverage. This ensures even sound dispersion across both seated and standing audiences.

The forward radiation of the 12 x 3" neodymium full-range drivers delivers a balanced point-source response, while the high-power 12" woofer provides deep, tight low-end performance, making the EVOX J11 suitable for both speech-focused applications and bass-heavy music playback.

Designed for Portability and Easy Setup

Despite its power and output capability, the EVOX J11 White remains compact and easy to deploy. The two-piece column array connects quickly using RCF’s integrated quick-fit system, allowing fast setup and teardown for mobile applications.

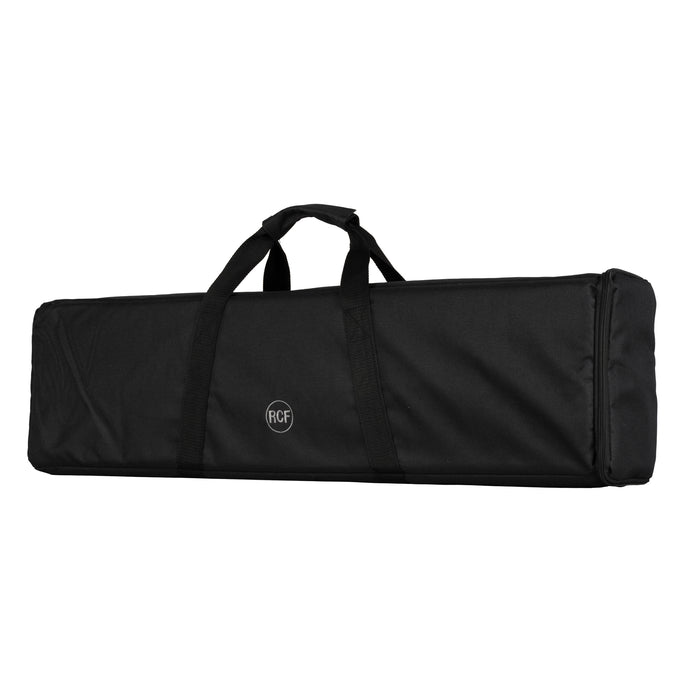

A padded carry bag for the top column is included as standard, protecting the system during transport and making it ideal for DJs, live performers and production companies. Optional accessories include aluminium pole extensions for height adjustment and protective subwoofer covers or trolley covers with wheels for enhanced mobility.

Advanced DSP, FiRPHASE and Bass Motion Control

The EVOX J11 White features RCF’s powerful DSP platform, incorporating proprietary algorithms for system protection and tuning. This includes FiRPHASE processing, which optimises phase response for transparent sound, precise imaging and consistent coverage with low latency.

Bass Motion Control® (BMC) ensures extended low-frequency performance without compromising woofer stability. Unlike traditional high-pass filters, BMC dynamically controls cone excursion while maintaining the natural phase and frequency response, delivering deeper bass with improved sound integrity.

SUB AX Integration with ACE Presets

For applications requiring extended low-end impact, the EVOX J11 White integrates seamlessly with RCF SUB AX Series subwoofers. Using RCF’s Advanced Crossover Engine (ACE), dedicated presets automatically optimise time alignment, phase response and crossover tuning for perfect system integration at the touch of a button.

RCF EVOX J11 Key Features:

3-way active portable column PA system
3500W dual-channel Class-D amplifier with onboard DSP
132 dB Max SPL output
1.75" neodymium compression driver with True Resistive Waveguide
12 x 3" neodymium full-range drivers
High-power 12" woofer in bass-reflex enclosure
120° x 40° wide and consistent sound coverage
FiRPHASE processing for phase optimisation
Bass Motion Control® for extended low-frequency performance
Fanless convection cooling for silent operation
Composite cabinet with aluminium stand mount
Powercon TRUE1 TOP IN/OUT connections
Padded carry bag for column array included
Finished in White (RAL 9003)

SPECS & DOWNLOADS

RCF EVOX J11 Specifications

Acoustical Specifications

Frequency Response: 37 Hz ÷ 20 kHz
Max SPL: 132 dB
Horizontal Coverage Angle: 120°
Vertical Coverage Angle: 40°
Compression Driver: 1 x 0.75" neo, 1.75" v.c
Full-Range Drivers: 12 x 3.0" neo, 1.0" v.c
Woofer: 12", 2.5" v.c

Input/Output Section

Input Signal: Balanced/Unbalanced
Input Connectors: Combo XLR/Jack
Output Connectors: XLR
Input Sensitivity: +4 dBu

Processor Section

Crossover Frequencies: 160 Hz / 1800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Presets (Linear/Live, Club, Voice)

Amplifier Specifications

Total Power (Peak): 3500 W
High Frequencies: 1500 W
Low Frequencies: 2000 W
Cooling: Convection
Connections: Powercon TRUE1 TOP IN/OUT

Cabinet

Cabinet Material: PP Composite
Handles: 1 Top
Pole Mount/Cap: Quick-fit socket
Grille: Steel
Colour: White

Physical & Dimensions

Height: 2285 mm
Width: 400 mm
Depth: 460 mm
Weight: 29 kg

}
