Bose L1 Pro32 Portable PA System With Sub2 Powered Subwoofer
DETAILS
Professional Portable Bose PA System With 180° Coverage & Deep Bass To 29 Hz

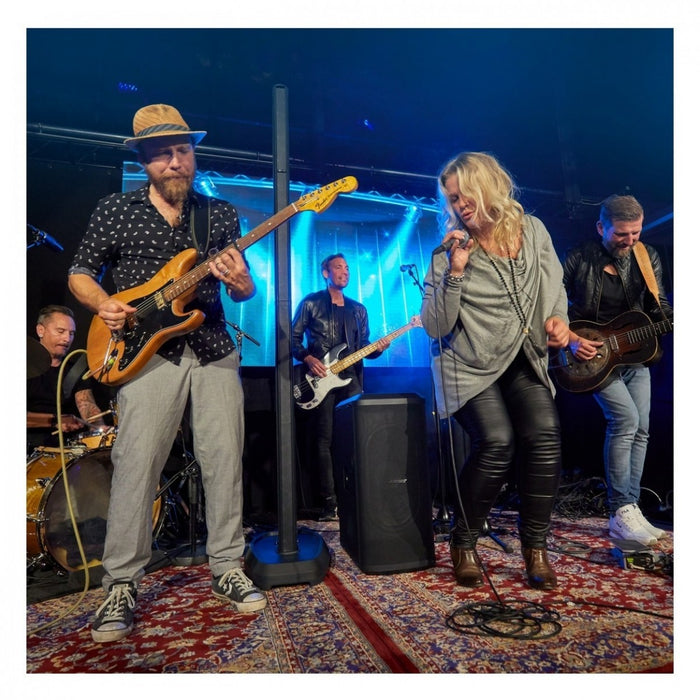

The Bose L1 Pro32 Portable Line Array PA System with Sub2 Powered Subwoofer delivers powerful, detailed sound with extended bass, making it ideal for larger venues, live music, schools, places of worship, and corporate events. With 180° horizontal coverage and focused vertical control, the L1 Pro32 ensures consistent clarity across the audience while maintaining high SPL levels over distance.

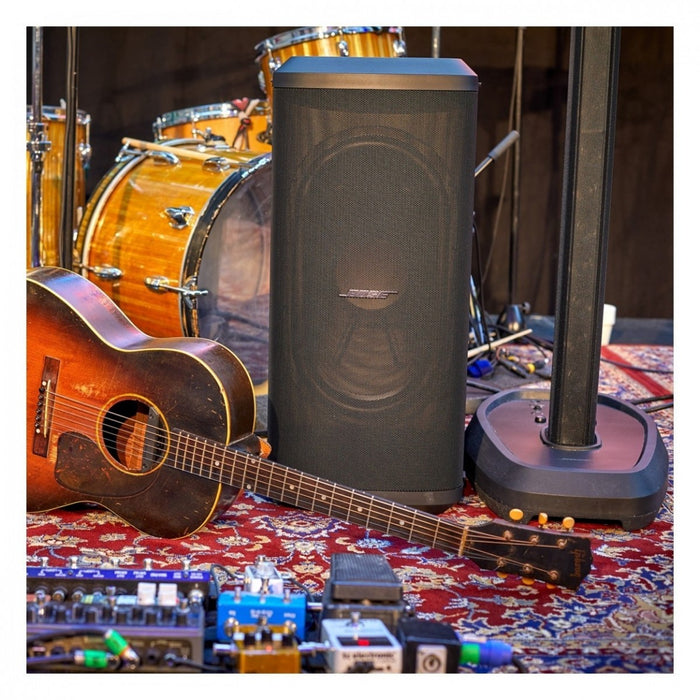

The system features a 32-driver articulated line array for balanced, even sound, paired with the Bose Sub2 Powered Bass Module. Thanks to its innovative 10" × 18" RaceTrack driver, the Sub2 produces bold, low-end performance down to 29 Hz in a slim, easily portable cabinet. For demanding applications, two Sub2 units can be combined for even greater output or used in Cardioid Mode to reduce rear bass and project sound toward the audience.

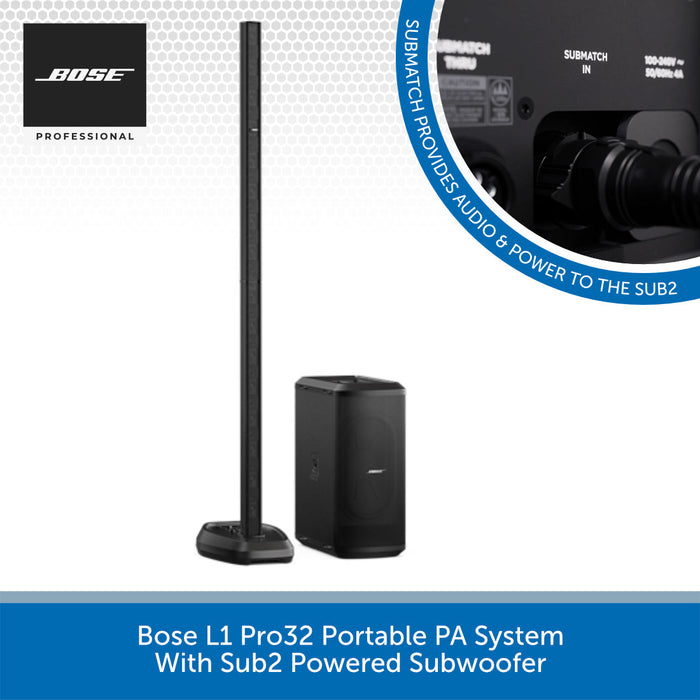

Setup is simple with SubMatch connectivity, allowing power, audio, and system optimisation through a single cable when used with the L1 Pro32. The integrated 3-channel mixer provides inputs for microphones, instruments, and playback devices with EQ, reverb, and Bluetooth streaming, while the Bose Music App offers full wireless control from a phone or tablet.
Lightweight yet powerful, the Bose L1 Pro32 with Sub2 is a premium solution for performers and venues needing professional-grade sound reinforcement with maximum portability and flexible bass performance.
Bose L1 Pro32 + Sub2 Key Features:

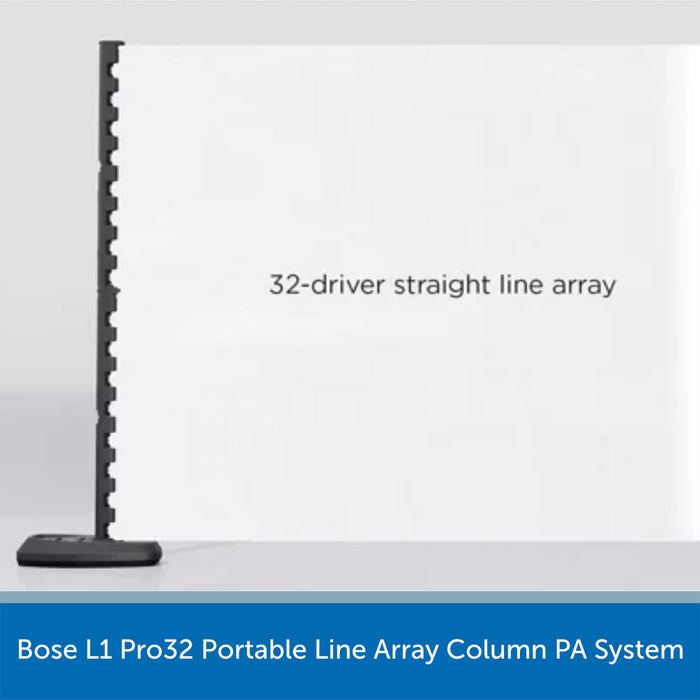

- 32-Driver Array: Articulated drivers deliver superior clarity and balance.
- 180° Horizontal Coverage: Wide dispersion for consistent sound across the room.
- Extended Bass: Sub2 delivers deep low-end down to 29 Hz.
- RaceTrack Driver: Unique 10" × 18" design provides big bass in a slim cabinet.

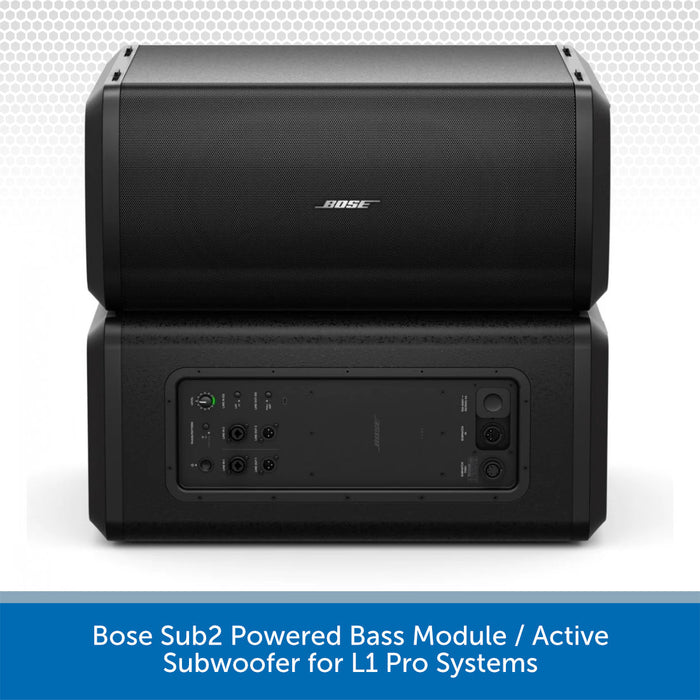

- Flexible Bass Options: Stack two Sub2s or use Cardioid Mode for directional control.

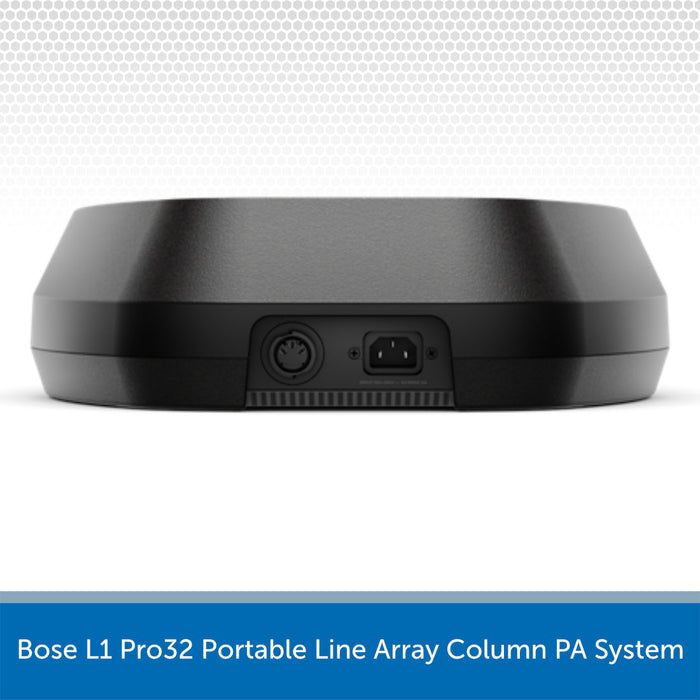

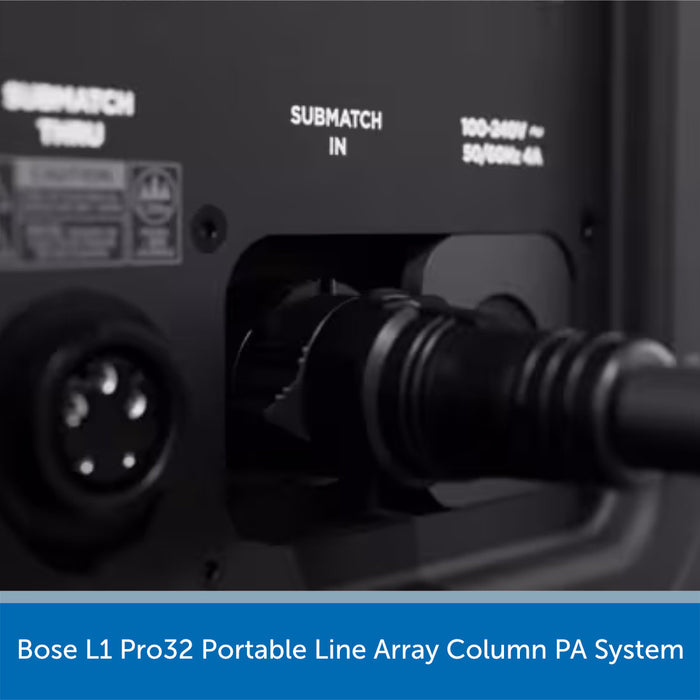

- SubMatch Connectivity: Single-cable setup for audio, power, and EQ optimisation.

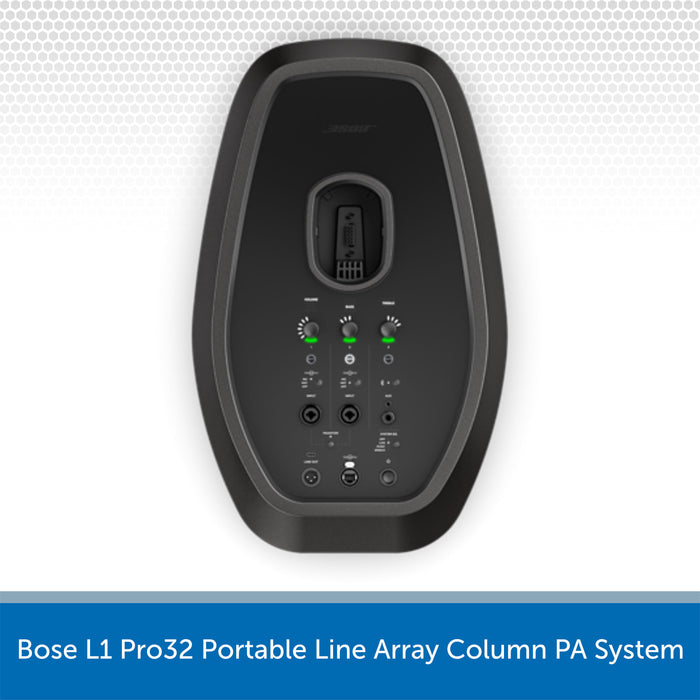

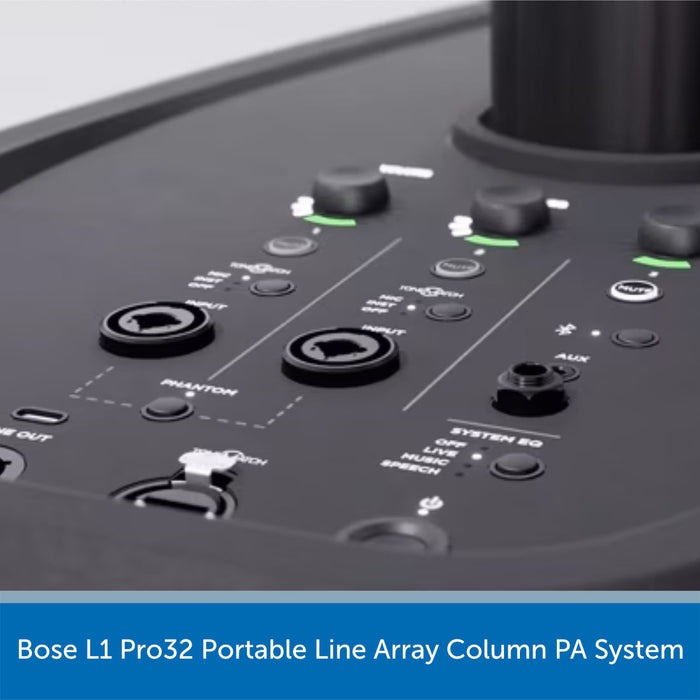

- Onboard 3-Channel Mixer: With EQ, reverb, phantom power, aux input, and Bluetooth.
- Wireless Control: Full mixer control via the Bose Music App.
-

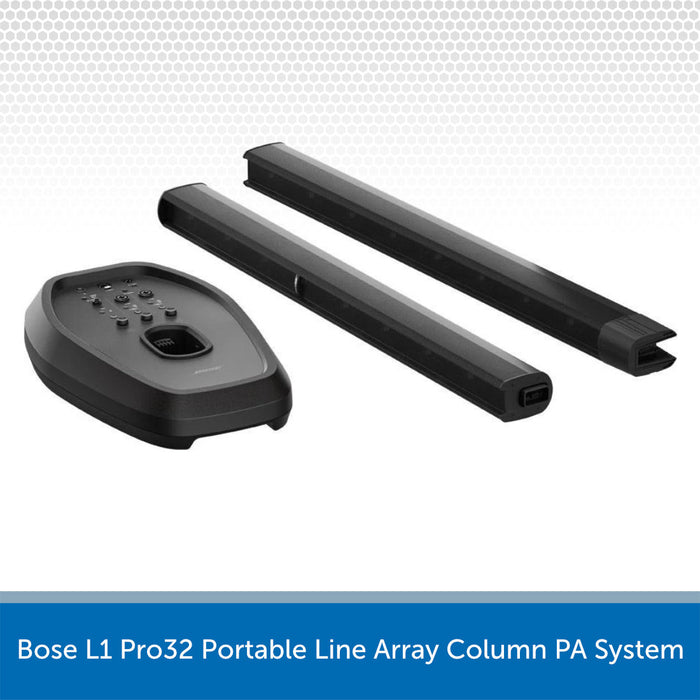

Portable Design: Slim, lightweight system built for easy transport and durability.
SPECS & DOWNLOADS
Bose L1 Pro32 Specifications
Download the Owner's Guide HERE >
- Model Name: L1 Pro32
- Product Code: 840921-2100
- Frequency Response: With Sub1: 40Hz – 16kHz (-3dB) / With Sub2: 37Hz – 16kHz (-3dB)
- Frequency Range: With Sub1: 30Hz – 18kHz (-10dB) / With Sub2: 30Hz – 18kHz (-10dB)
- Maximum SPL: 117dB Continuous / 123dB Peak @ 1m
- Horizontal Coverage: 180°
- Vertical Coverage: 0° straight array
- High/Mid Drivers: 32 x 2" articulated drivers
- Amplifier Type: Two-channel Class-D
- Power Output: 480W
- Onboard Mixer: 3 channels with rotary encoders, EQ, and reverb
- Input Connectors: 2 x XLR/TRS combo, 1 x 1/4", 1 x 1/8" (3.5mm), Bluetooth
- Phantom Power: Channel 1 & 2
- Bluetooth: AAC, SBC (audio), LE (system control)
- ToneMatch Port: Yes (for T4S or T8S mixers)
- Enclosure Material: High-impact polypropylene (power stand), high-impact ABS (array)
- Dimensions (H x W x D): 2120 × 351 × 573mm (83.5" × 13.8" × 22.5")
-
Weight: 13.1kg / 28.9lbs

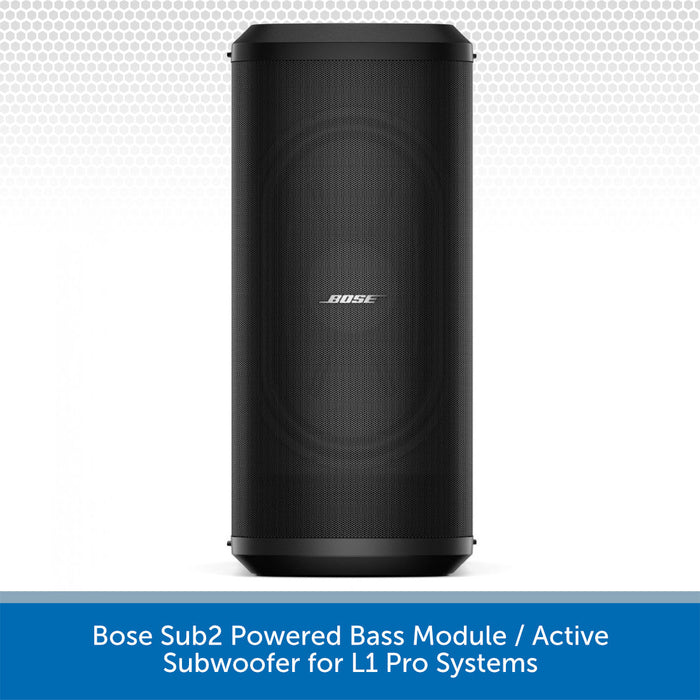

Bose Sub2 Specifications
Download the PDF Data Sheet HERE >
- Frequency Range (-10 dB): 29 Hz – 250 Hz
- Driver: 1 × 10" × 18" RaceTrack low-frequency driver
- Crossover: 200 Hz
- Max SPL: 123 dB
- Amplifier Power: 1000W Class-D

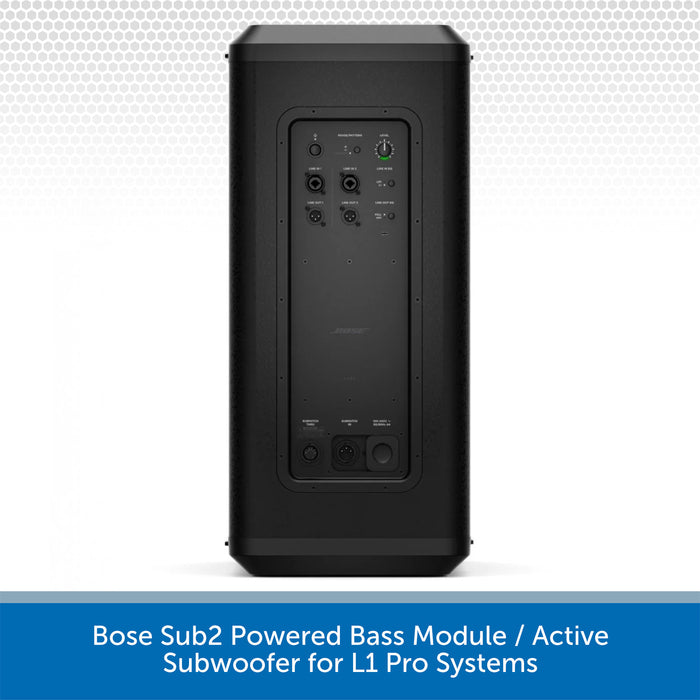

- Inputs: 1 × XLR-1/4" TRS combo, 1 × SubMatch multi-pin
- Controls: Power, EQ, volume control
- DSP Functions: Input EQ, output EQ, phase/pattern control
- Indicators: Standby, signal/clip, EQ, phase/pattern LEDs
- Cooling: Convection
- Enclosure: High-impact polypropylene/plywood with steel grille
- Dimensions (H × W × D): 606 × 339 × 551mm
- Weight: 23.4kg
- Connectivity: USB-C (computer interface), Bose Music App support
-
Colour: Black
