Bose L1 Pro32 Portable PA System With Sub1 Powered Subwoofer
DETAILS
Powerful, Portable Bose PA System With 180° Coverage & Deep Bass.
The Bose L1 Pro32 Portable Line Array PA System with Sub1 Powered Subwoofer is designed for DJs, singer-songwriters, and bands who need professional clarity and consistent coverage in larger venues. Delivering wide 180° horizontal sound dispersion with focused vertical control, the L1 Pro32 ensures every member of the audience enjoys the same immersive sound experience.
At the heart of the system is a 32-driver articulated line array, providing detailed clarity and even sound across the room. Paired with the Bose Sub1 Powered Bass Module, the setup produces bold, powerful low-end performance down to 40 Hz. Thanks to Bose’s innovative RaceTrack driver design, the Sub1 achieves deep bass in a slimmer, more portable cabinet without compromising sound quality. For extra output, two Sub1s can be combined or configured in Cardioid Mode to reduce stage rumble and direct bass toward the audience.

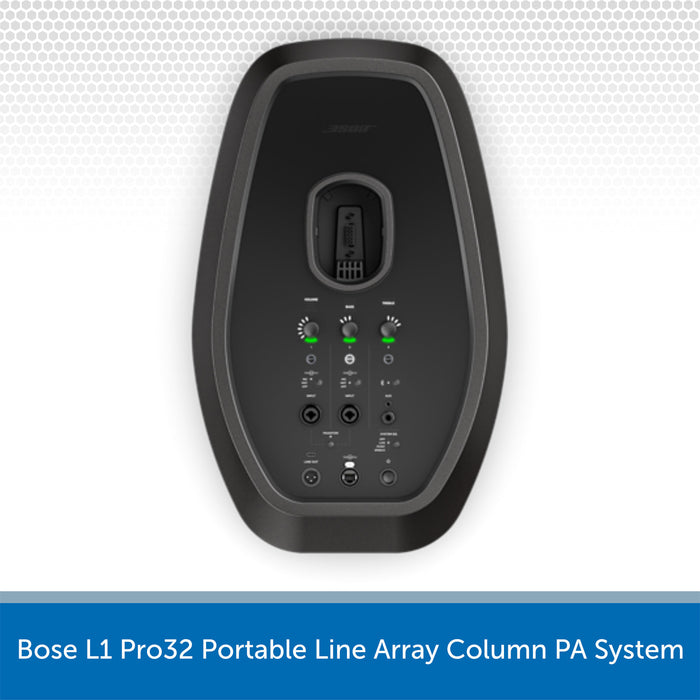

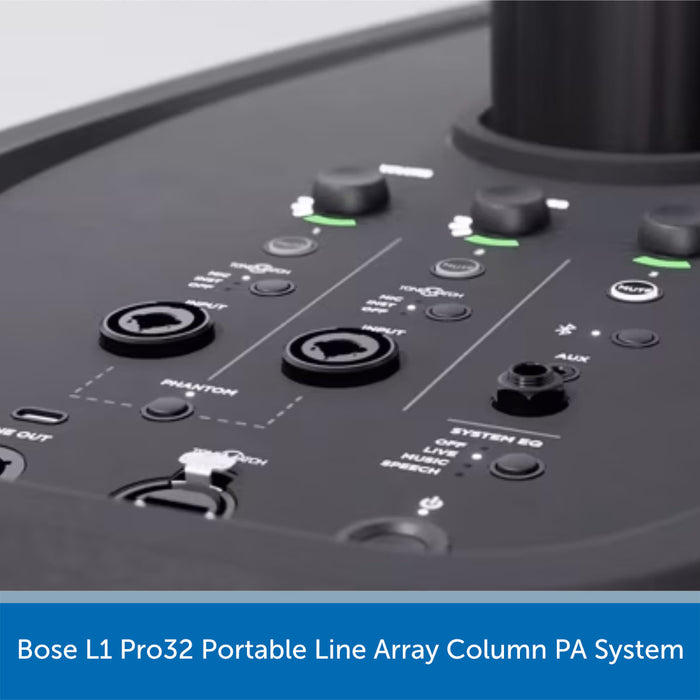

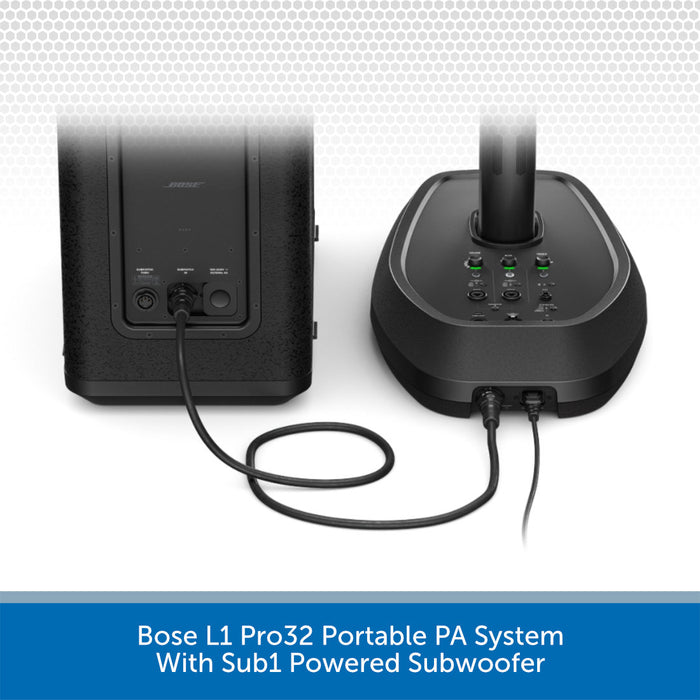

Connectivity is simple and versatile. The L1 Pro32 includes an integrated 3-channel mixer with two XLR/TRS combo inputs (with phantom power), plus aux and Bluetooth inputs. Illuminated rotary encoders allow quick control of volume, EQ, and reverb, while onboard system EQ presets make it easy to optimise for live performance, recorded music, or speech. The Bose SubMatch connection carries audio, power, and automatic system calibration through a single cable, reducing setup time and cabling needs.
For wireless control, the Bose Music App allows complete mixer access from your phone or tablet. Despite its professional-grade performance, the L1 Pro32 with Sub1 remains slim, lightweight, and portable — ideal for mobile performers, schools, houses of worship, and event spaces needing reliable, high-quality sound reinforcement.
Bose L1 Pro32 + Sub1 Key Features:

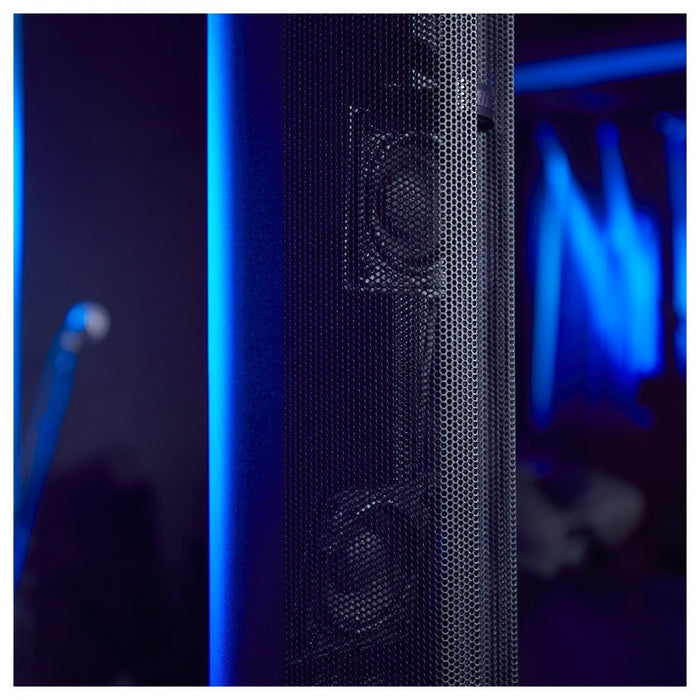

- Superior Clarity: 32-driver articulated line array provides detailed, even coverage.
- Wide Coverage: 180° horizontal dispersion ensures consistent sound across the venue.
- Focused Throw: Highest SPL over distance of any L1 system for larger spaces.
- Deep Bass Response: Sub1 delivers performance down to 40 Hz in a slim enclosure.
- RaceTrack Driver: 7" × 13" driver design provides big bass from a compact cabinet.
- Flexible Bass Options: Stack two Sub1s or use Cardioid Mode for directional control.

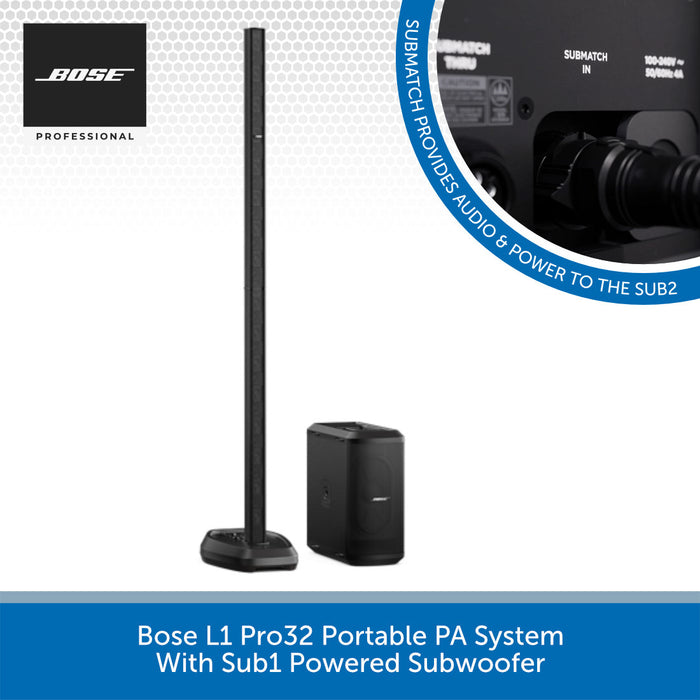

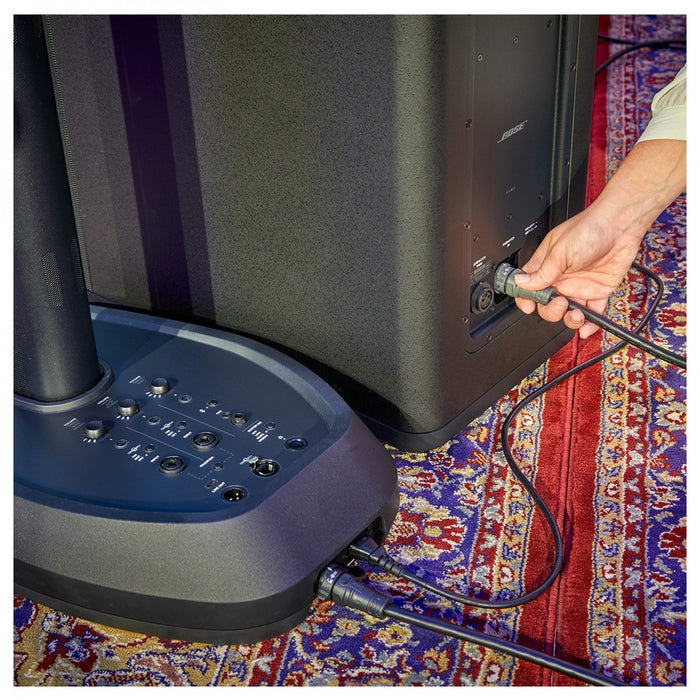

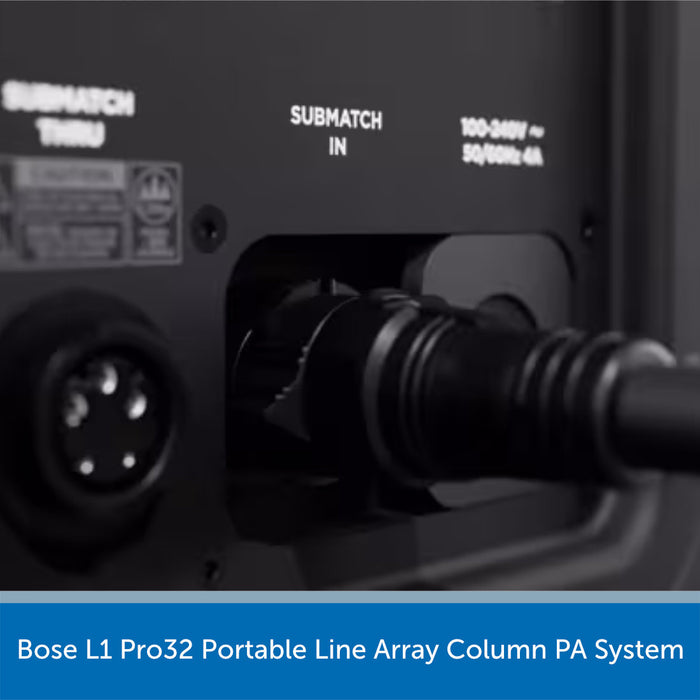

- SubMatch Connectivity: Single-cable connection for power, audio, and EQ optimisation.
- Integrated Mixer: 3-channel mixer with phantom power, EQ, reverb, aux, and Bluetooth.
- Wireless Control: Bose Music App enables full mixer control from mobile devices.

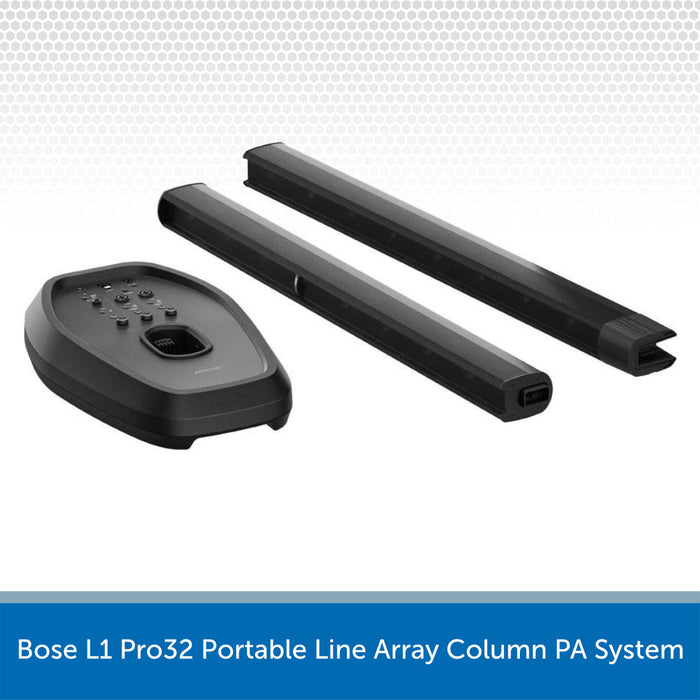

- Portable Design: Lightweight, slim system for easy transport and setup.
SPECS & DOWNLOADS
Bose L1 Pro32 Specifications
Download the Owner's Guide HERE >
- Model Name: L1 Pro32
- Product Code: 840921-2100
- Frequency Response: With Sub1: 40Hz – 16kHz (-3dB) / With Sub2: 37Hz – 16kHz (-3dB)
- Frequency Range: With Sub1: 30Hz – 18kHz (-10dB) / With Sub2: 30Hz – 18kHz (-10dB)
- Maximum SPL: 117dB Continuous / 123dB Peak @ 1m
- Horizontal Coverage: 180°
- Vertical Coverage: 0° straight array
- High/Mid Drivers: 32 x 2" articulated drivers
- Amplifier Type: Two-channel Class-D
- Power Output: 480W
- Onboard Mixer: 3 channels with rotary encoders, EQ, and reverb
- Input Connectors: 2 x XLR/TRS combo, 1 x 1/4", 1 x 1/8" (3.5mm), Bluetooth
- Phantom Power: Channel 1 & 2
- Bluetooth: AAC, SBC (audio), LE (system control)
- ToneMatch Port: Yes (for T4S or T8S mixers)
- Enclosure Material: High-impact polypropylene (power stand), high-impact ABS (array)
- Dimensions (H x W x D): 2120 × 351 × 573mm (83.5" × 13.8" × 22.5")
-
Weight: 13.1kg / 28.9lbs
Bose Sub1 Specifications
Download the PDF Data Sheet HERE >
- Frequency Range (-10 dB): 32 Hz – 250 Hz
- Driver: 1 × 7" × 13" RaceTrack low-frequency driver
- Crossover: 200 Hz
- Max SPL: 124.6 dB
- Power Handling (Peak): 480 W
- Amplifier Class: Class D
- Inputs: 1 × XLR-1/4" TRS combo, 1 × SubMatch (multi-pin)
- Controls: Power, EQ, volume control
- DSP Functions: Input EQ, output EQ, phase/pattern control
- Indicators: Standby, signal/clip, EQ, phase/pattern LEDs
- Cooling System: Convection
- Enclosure: High-impact polypropylene and birch plywood with perforated steel grille
- Dimensions (H × W × D): 533 × 260 × 529 mm (21.0 × 10.2 × 20.8 in)
- Weight: 15.5 kg (34.1 lb)
- Shipping Dimensions (H × W × D): 620 × 620 × 330 mm
- Shipping Weight: 18.0 kg (39.6 lb)
- Connectivity: USB Type-C (computer interface), Bose Music App support (iOS/Android)
- Colour: Black
