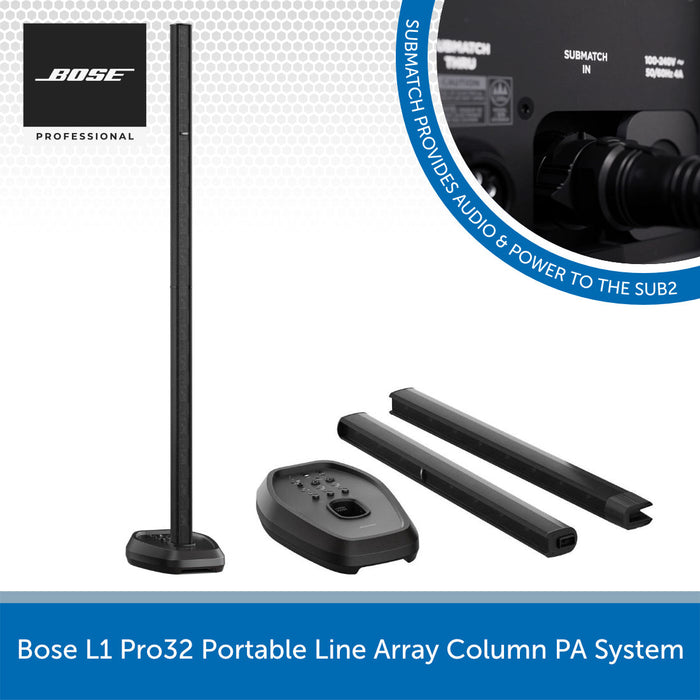

Bose L1 Pro32 Portable Line Array Column PA System
DETAILS
Bose L1 Pro32 delivers superior clarity and 180° coverage with a 32-driver line array for powerful sound in larger venues.
The Bose L1 Pro32 Portable Line Array PA System is the most advanced L1 system to date, designed for DJs, singer-songwriters, and bands performing in larger venues.
With 32 articulated 2" drivers arranged in a straight line array, the L1 Pro32 provides 180° horizontal coverage and the most focused vertical coverage of any L1 system, ensuring even, consistent sound throughout the room.
When paired with either the Bose Sub1 or Sub2 Powered Bass Modules, the L1 Pro32 delivers powerful low-end performance. The Sub1 offers a more compact solution, while the Sub2 delivers deeper, louder bass with a neodymium RaceTrack driver. Both subwoofers connect via proprietary SubMatch technology, providing a single-cable solution that carries power, audio, and automatic system optimisation.
The L1 Pro32 also features an integrated 3-channel mixer with two XLR/TRS combo inputs (with phantom power), aux inputs, and Bluetooth streaming. Each channel includes illuminated rotary encoders for instant access to volume, tone, and reverb. System EQ presets allow quick adaptation for live music, recorded music, or other applications, while the dedicated ToneMatch port provides seamless integration with Bose T4S or T8S mixers.
For added convenience, the Bose Music App enables complete wireless mixer control from your phone or tablet. Designed with portability in mind, the L1 Pro32 is slim, lightweight, and easy to transport while delivering professional-grade performance night after night.
Bose L1 Pro32 Key Features:
- Superior clarity: 32-driver articulated line array provides detailed, even coverage.
- Wide horizontal coverage: 180° dispersion ensures consistent sound across the venue.
- Focused vertical coverage: Highest SPL over distance of any L1 system.
- Flexible bass options: Pair with Sub1 for portability or Sub2 for deeper, louder performance.
- SubMatch connectivity: Single-cable connection carries power, audio, and EQ optimisation.
- Integrated mixer: 3 channels with phantom power, EQ, reverb, aux, and Bluetooth.
- Wireless control: Bose Music App enables remote mixing from a mobile device.
- System EQ presets: Optimised settings for live music, recorded music, and more.
-
Portable design: Slim, lightweight enclosure for easy transport and setup.
SPECS & DOWNLOADS
Download the Owner's Guide HERE >
Bose L1 Pro32 Specifications
- Model Name: L1 Pro32
- Product Code: 840921-2100
- Frequency Response: With Sub1: 40Hz – 16kHz (-3dB) / With Sub2: 37Hz – 16kHz (-3dB)
- Frequency Range: With Sub1: 30Hz – 18kHz (-10dB) / With Sub2: 30Hz – 18kHz (-10dB)
- Maximum SPL: 117dB Continuous / 123dB Peak @ 1m
- Horizontal Coverage: 180°
- Vertical Coverage: 0° straight array
- High/Mid Drivers: 32 x 2" articulated drivers
- Amplifier Type: Two-channel Class-D
- Power Output: 480W
- Onboard Mixer: 3 channels with rotary encoders, EQ, and reverb
- Input Connectors: 2 x XLR/TRS combo, 1 x 1/4", 1 x 1/8" (3.5mm), Bluetooth
- Phantom Power: Channel 1 & 2
- Bluetooth: AAC, SBC (audio), LE (system control)
- ToneMatch Port: Yes (for T4S or T8S mixers)
- Enclosure Material: High-impact polypropylene (power stand), high-impact ABS (array)
- Dimensions (H x W x D): 2120 × 351 × 573mm (83.5" × 13.8" × 22.5")
-
Weight: 13.1kg / 28.9lbs
