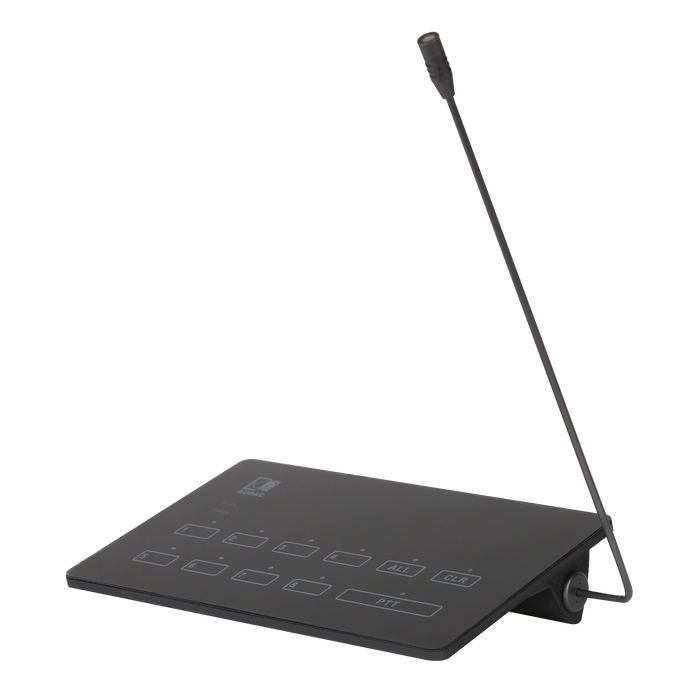

Audac MPX88 SurfaceTouch™ 8-Zone Paging Microphone
DETAILS

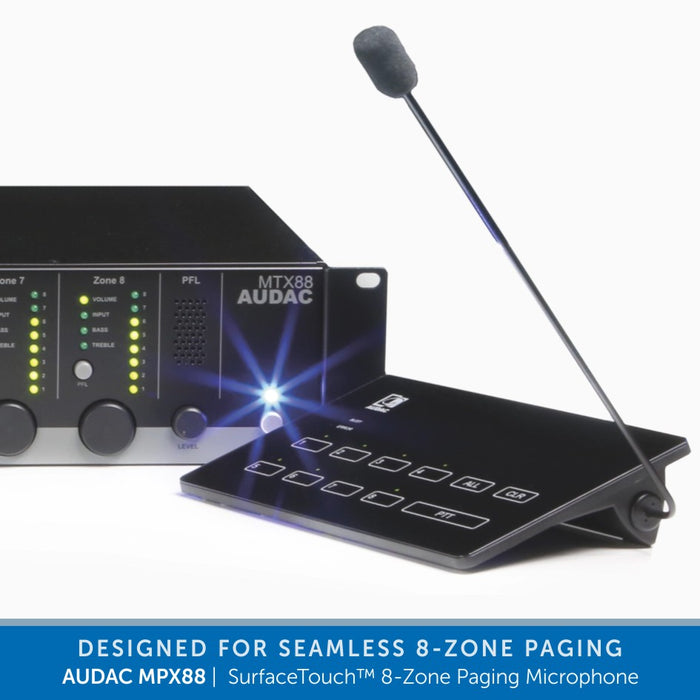

The Audac MPX88 is a premium SurfaceTouch™ paging microphone engineered for seamless 8-zone paging with the MTX88 matrix.
The Audac MPX88 is an advanced 8-zone paging microphone designed specifically for integration with the MTX88 audio matrix system. It is ideal for larger commercial environments such as offices, hotels, public buildings, educational facilities, and multi-room paging installations where clear and reliable communication is essential.
Its modern design features a real glass front panel with an anti-glare coating, offering a sleek and professional appearance suited to contemporary interiors. The SurfaceTouch™ capacitive buttons eliminate mechanical components, providing smooth, durable, and responsive control. Illuminated indicators show the microphone status, selected zones, and data bus activity, ensuring simple operation at a glance.
Announcements are made through a high-quality tiltable pipe-neck condenser microphone with a cardioid pickup pattern, ensuring focused and clear voice reproduction. A built-in chime tone can be played before speaking to signal upcoming announcements. The unit connects to the MTX88 via a fixed 2-metre RJ45 cable, with the option to extend distances up to 300m using CAT5E or better cabling.
For expanded installations, multiple MPX88 microphones can be cascaded using the priority-configurable databus and the optional ARJ03P junction box, providing scalable paging across complex systems.
Audac MPX88 Key Features:
- 8-Zone Paging : Designed for seamless use with the MTX88 8-zone audio matrix.

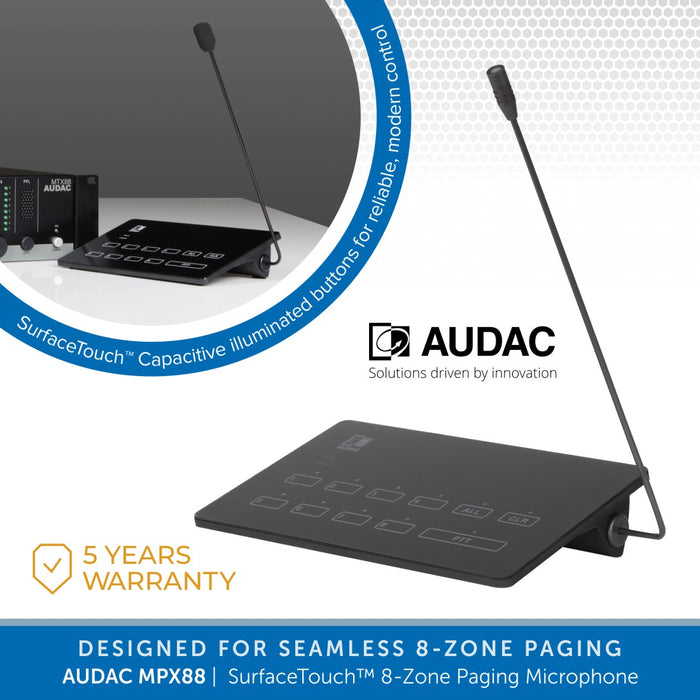

- SurfaceTouch™ Controls : Capacitive illuminated buttons for smooth, modern operation.
- Cardioid Condenser Microphone : High-quality back-electret capsule with excellent speech clarity.

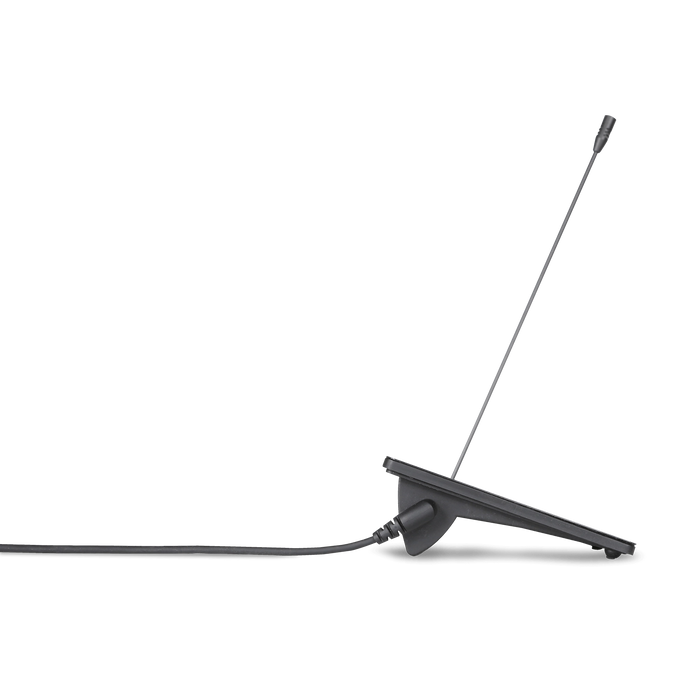

- Tiltable Pipe-Neck Design : Adjustable microphone arm for optimal positioning.
- Integrated Chime Tone : Audible pre-announcement tone for clear communication.
- LED Status Indicators : Level, zone selection, and databus activity indicators.
- Glass Front Panel : Anti-glare real glass surface for an elegant, premium finish.
- Long-Distance Connectivity : Extendable up to 300 m using CAT5E or higher cable.
- Cascade Compatible : Supports multiple paging stations via RS-485 databus.
-
Fixed RJ45 Connection : Includes a 2 m connection cable for plug-and-play setup.
SPECS & DOWNLOADS
Download the Product Data Sheet HERE >
Audac MPX88 Specifications:
- Microphone Type : Back electret condenser
- Microphone Length : 250 mm
- Frequency Response : 50 Hz – 16 kHz (±3 dB)
- Sensitivity : 45 dB
- Max SPL : 130 dB
- Polar Pattern : Cardioid
- Power Consumption : 1.5 W
- Power Supply : 24 V DC (from MTX)
- Connector : RJ45 (fixed 2 m cable)
- Databus Control : RS-485
- Databus Audio : Differential analogue
- Paging Zones : 8 zones (for MTX88)
- Dimensions : 221.5 x 43 x 111.6 mm
- Weight : 0.33 kg
- Construction : ABS
- Colour : Black (RAL9004)
-
Accessories Included : Windscreen, fixed 2 m connection cable
