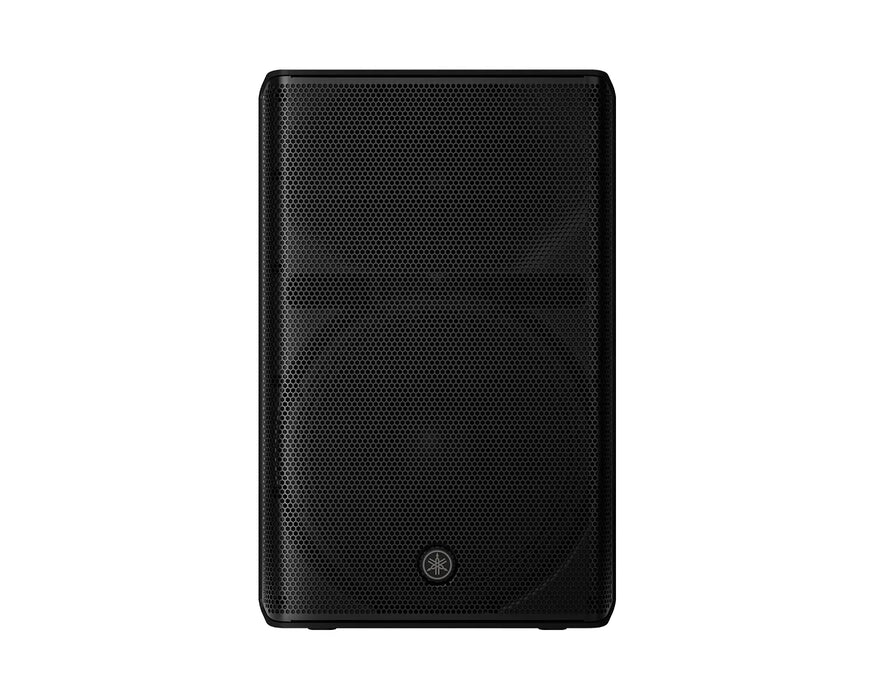

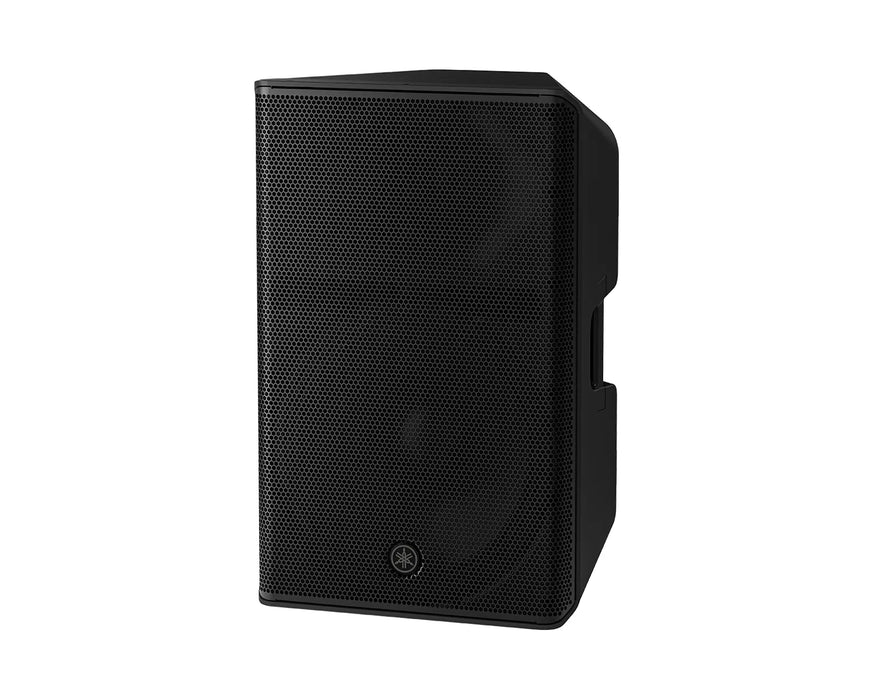

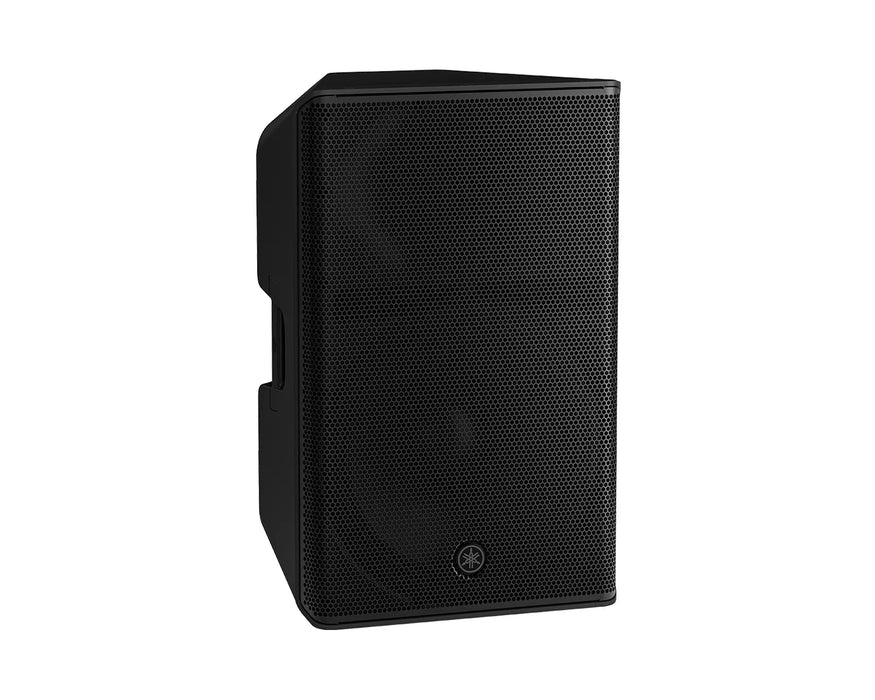

Yamaha DXR15 MK3 15" 2-Way Active Loudspeaker, 1000W
The Yamaha DXR15 MK3 is a 15" 2-Way Bi-Amped Active Loudspeaker delivering 134dB SPL and 2000W Class-D amplification, featuring Advanced FIR-X tuning, Drive Motion Calibration DSP, Bluetooth 5.0 streaming and wireless remote control.
The Yamaha DXR15 MK3 is the largest and most low-frequency capable model in the DXR MK3 series, delivering the deepest frequency range in the lineup with a bass response extending down to 46Hz.
Designed for live music, DJ events and professional sound reinforcement applications that demand strong, well-controlled low-frequency presence alongside the DXR series' characteristic clarity and precision, the DXR15 MK3 makes a compelling choice as a main front-of-house speaker for larger performances, events and venues. With the same 134dB SPL output as the DXR12 MK3 but with the additional low-end weight and body that only a 15" driver can deliver, the DXR15 MK3 brings the complete DXR MK3 package to those who need maximum low-frequency performance from a single full-range cabinet.
Premium Components & Advanced Amplification
The DXR15 MK3 features a 15" cone LF driver with a 3" voice coil — the largest in the DXR MK3 series — paired with a 1.75" diaphragm compression driver on a 1" throat HF unit, both engineered to Yamaha's exacting standards for high-durability and long-term reliability. The newly developed 2000W Class-D amplifier — delivering 1700W to the LF driver and 300W to the HF driver — is coupled with a switched power supply for smooth, stable operation and high-efficiency power delivery across demanding sustained use. The large-diameter horn secures directivity control across a wide frequency range with a 90° horizontal by 60° vertical coverage pattern, whilst optimised port positioning in the lightweight injection-moulded polypropylene enclosure reduces standing wave effects for cleaner, more accurate bass reproduction. Five-speed fan cooling ensures the amplifier maintains optimal operating temperature throughout extended high-power use.
Intelligent High-Performance DSP
The DXR15 MK3 is equipped with onboard 32-bit/96kHz DSP incorporating Yamaha's proprietary FIR-X tuning technology — providing FIR filtering and corrective EQ at a crossover frequency of 1.8kHz for exceptionally smooth phase characteristics and clear, distortion-free sound reproduction. Drive Motion Calibration corrects the motion of the LF driver using a proprietary DSP algorithm, ensuring the speaker's behaviour accurately follows the input signal and delivering clear, linear low-frequency performance that surpasses conventional limitations — particularly valuable in a 15" driver where controlling cone excursion and maintaining accuracy at high output levels is most challenging. An internal accelerometer automatically detects the speaker's orientation, with a switchable Auto V/H Position mode in the FOH/Main and Monitor DSP settings for streamlined setup. An intelligent feedback suppressor handles both handheld microphone feedback suppression and detection and setting of feedback-prone points for fixed microphones. DSP modes include FOH/Main, Monitor, DJ, Live Music, Speech and Off, with a selectable HPF between 50Hz and 118Hz at 12–48dB/octave.
Flexible Control & Connectivity

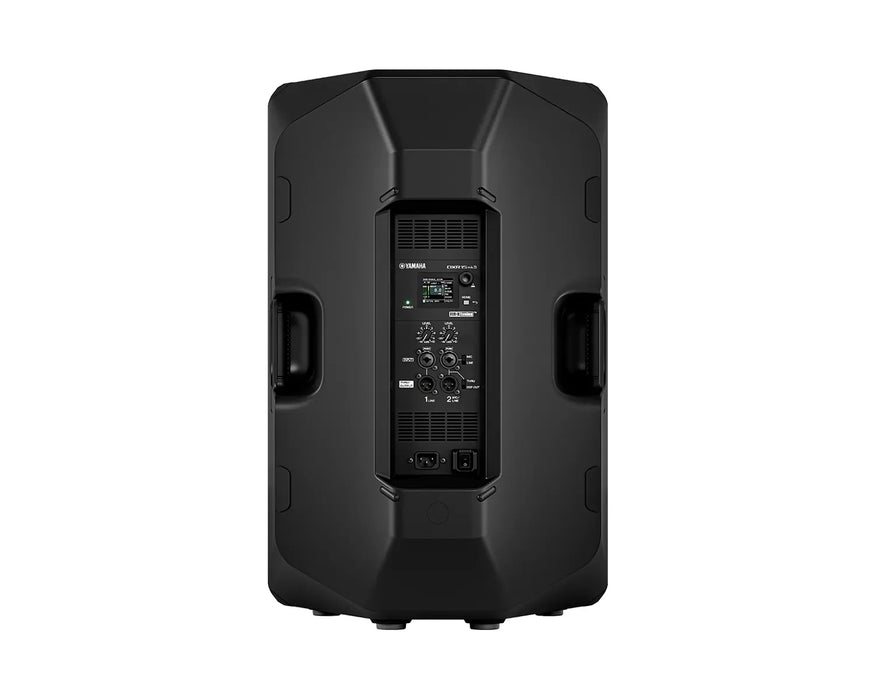

Two combo input connectors provide flexible analogue source connection — INPUT1 with a 20kΩ balanced impedance and maximum input level of +24dBu, and INPUT2 with a 6kΩ balanced impedance accommodating both line (+24dBu) and microphone (-6dBu) level signals. Two XLR outputs provide thru and DSP out options for easy system expansion and signal distribution. Bluetooth 5.0 (A2DP, SBC/AAC, Class 1) enables wireless audio streaming from smartphones and compatible devices. The rear-mounted LCD panel and encoder provide clear on-unit DSP mode selection, parametric EQ, delay, routing and preset recall, whilst the D-Remote app for iOS and Android enables full wireless remote control of all parameters for up to ten devices simultaneously with grouping for unified level and mute control.
Versatile Mounting & Transport
The DXR15 MK3 features two side rubber-coated handles, dual 35mm pole mount sockets at 0° and -7° down tilt, and a floor monitor angle of 52°. Comprehensive rigging points accommodate M10 eyebolts at the top and rear, M8 fixings at the bottom for the optional UB-DXR15A U-bracket, and side mounting points — supporting both vertical and horizontal fixed installation configurations. An optional speaker cover (SPCVR-DXR153) provides protection during transport, storage and outdoor use.
Yamaha DXR15 MK3 Key Features:
- 15" LF & 1.75" HF Proprietary High-Durability Drivers: Yamaha's largest DXR MK3 driver configuration with 3" LF voice coil and 1" throat compression driver for exceptional low-frequency depth and clarity.
- 2000W Class-D Amplifier: 1700W LF + 300W HF bi-amped configuration with switched power supply for smooth, stable high-efficiency operation.
- 134dB SPL / 46Hz Low-Frequency Extension: Powerful output with the deepest bass response in the DXR MK3 series for DJ events and live performances demanding strong low-frequency presence.
- 90° x 60° Coverage Pattern: Wide horizontal and focused vertical coverage for consistent, even sound distribution.
- 96kHz / 32-bit DSP with FIR-X Tuning: Yamaha's proprietary FIR filtering and corrective EQ at 1.8kHz crossover for smooth phase characteristics and distortion-free sound.
- Drive Motion Calibration: Proprietary DSP algorithm corrects LF driver motion for clear, linear low-frequency performance beyond conventional limitations.
- 6 DSP Modes: FOH/Main, Monitor, DJ, Live Music, Speech and Off with optimised factory presets for different applications.
- Intelligent Feedback Suppressor: Automatic feedback elimination for both handheld and fixed microphone applications.
- Auto V/H Position Detection: Internal accelerometer for automatic DSP optimisation based on speaker orientation.
- Bluetooth 5.0 (SBC & AAC): Wireless audio streaming from smartphones and compatible devices.
- D-Remote App (iOS & Android): Full wireless remote control for up to ten devices simultaneously with grouping.
- Rear LCD Panel & Encoder: Clear on-unit DSP mode selection, EQ, delay, routing and preset recall.
- 2 x Combo Inputs: Flexible analogue connectivity for line and microphone level sources.
- 2 x XLR Outputs: Thru and DSP out for easy system expansion.
- Five-Speed Fan Cooling: Ensures optimal amplifier temperature throughout extended high-power use.
- Dual-Angle Pole Mount Sockets: 0° and -7° down tilt options for focused coverage.
- 52° Floor Monitor Angle: Optimised wedge angle for monitoring applications.
- Comprehensive Rigging Points: M10 and M8 eyebolt compatible points for safe and secure suspension and bracket mounting.
- Lightweight PP Enclosure: Reduced cabinet resonance and weight for practical transport and deployment.
- Optional U-Bracket (UB-DXR15A): Vertical and horizontal fixed installation mounting.
-
Optional Speaker Cover (SPCVR-DXR153): Protection during transport, storage and outdoor use.
