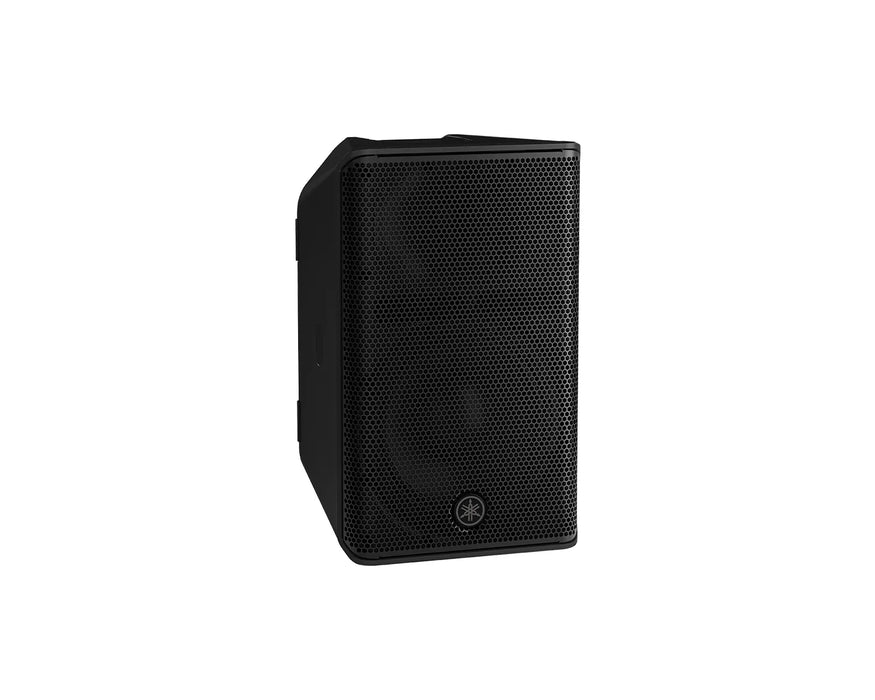

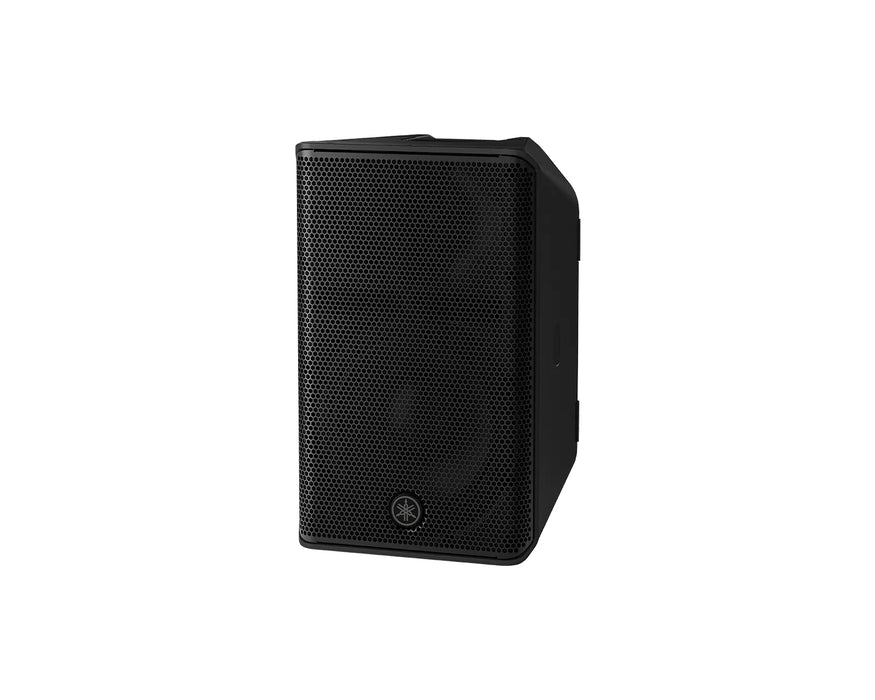

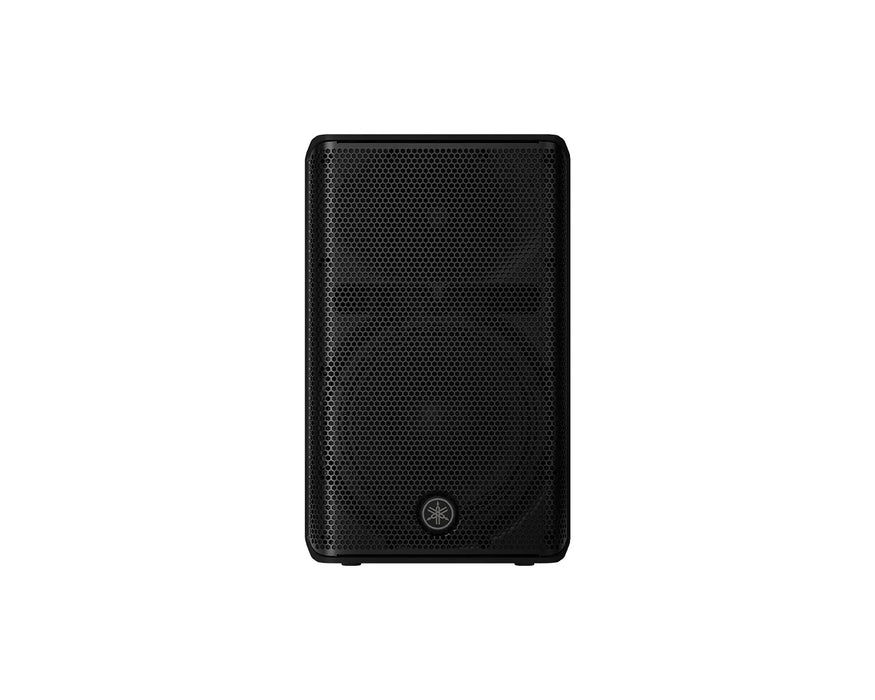

Yamaha DXR10 MK3 10" 2-Way Active Loudspeaker, 1000W
The Yamaha DXR10 MK3 is a compact 10" 2-Way Bi-Amped Active Loudspeaker delivering 132dB SPL and 2000W Class-D amplification, featuring Advanced FIR-X tuning, Drive Motion Calibration DSP, Bluetooth streaming and wireless remote control.
The Yamaha DXR10 MK3 is the most compact model in Yamaha's highly regarded DXR MK3 series, representing a significant upgrade of the acoustic performance, functionality and power that has made the DXR range one of Yamaha's most celebrated loudspeaker lines.
Designed for live music, DJ sets, speeches, corporate events and more, the DXR10 MK3 delivers exceptional clarity, precision and a powerful 132dB SPL output in a lightweight, injection-moulded enclosure that makes it a genuinely versatile utility speaker suitable for a wide variety of applications and environments. Whether used as a front-of-house main speaker, a floor monitor, a supplementary fill speaker or a compact standalone system, the DXR10 MK3 adapts effortlessly to the demands of the performance or event.
Premium Components & Advanced Amplification
At the heart of the DXR10 MK3 is a 10" proprietary high-durability LF driver paired with a 1.75" HF unit, both engineered to Yamaha's exacting standards for long-term reliability and consistent performance. The newly developed 2000W Class-D amplifier with switched power supply delivers smooth, stable operation and high-efficiency power delivery across demanding sustained use. The large-diameter horn secures directivity control across a wide frequency range, whilst optimised port positioning in the lightweight form-injection moulded enclosure reduces standing wave effects and cabinet resonance — contributing to the DXR10 MK3's clean, precise and detailed sound at all output levels.
Intelligent High-Performance DSP
The DXR10 MK3 is equipped with onboard 96kHz DSP incorporating Yamaha's proprietary FIR-X tuning technology — providing FIR filtering and corrective EQ for exceptionally smooth phase characteristics and clear, distortion-free sound reproduction. Drive Motion Calibration corrects the motion of the LF driver using a proprietary DSP algorithm, ensuring the speaker's behaviour accurately follows the input signal and delivering clear, linear low-frequency performance that surpasses conventional limitations. An internal accelerometer automatically detects the speaker's orientation, with a switchable Auto V/H Position mode in the FOH/Main and Monitor DSP settings that streamlines setup by automatically optimising the DSP configuration for the detected orientation. An intelligent feedback suppressor automatically identifies and eliminates unwanted microphone feedback — with separate modes for handheld microphone feedback suppression and detection and setting of feedback-prone points for fixed microphone applications.
Flexible Control & Connectivity

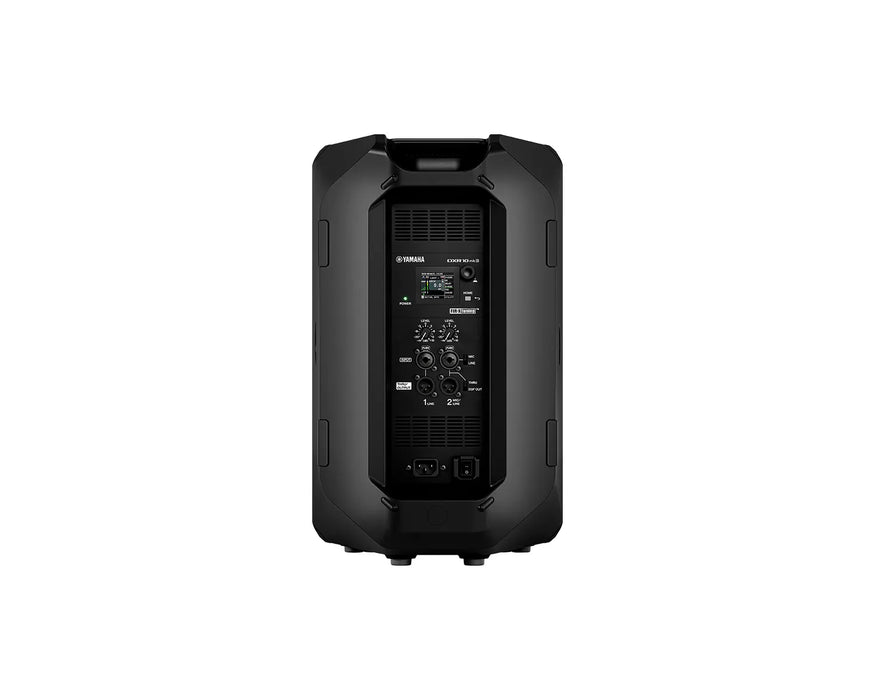

DSP modes, parametric EQ, delay, routing and user preset recall are all accessible via the rear-mounted high-visibility LCD panel and encoder for precise and straightforward on-unit control. The dedicated D-Remote app for iOS and Android devices enables full wireless remote control of all parameters — including monitoring of speaker limiting, temperature and error alerts — for up to ten devices simultaneously, with grouping for unified level and mute control across a system. Bluetooth audio streaming allows wireless playback directly from smartphones and other compatible devices, and the DXR10 MK3 supports up to eight user presets alongside a range of optimised factory presets for different applications.
Versatile Mounting & Transport
The DXR10 MK3 features rubber-coated handles, rigging points compatible with commercial eyebolts and dual-angle pole mount sockets offering both 0° and -7° down tilt for focused coverage and clearer sound delivery. An optional U-bracket (UB-DXRDHR10A) supports both vertical and horizontal fixed installation mounting, and an optional speaker cover (SPCVR-DXR103) protects the unit during transport, storage and outdoor use.
Yamaha DXR10 MK3 Key Features:
- 10" LF & 1.75" HF Proprietary High-Durability Drivers: Premium Yamaha driver configuration for exceptional clarity, precision and long-term reliability.
- 2000W Class-D Amplifier: Newly developed high-efficiency Class-D amplification with switched power supply for smooth, stable operation.
- 132dB SPL: Powerful output for live music, DJ sets, speeches, corporate events and a wide range of professional applications.
- 96kHz DSP with FIR-X Tuning: Yamaha's proprietary FIR filtering and corrective EQ for exceptionally smooth phase characteristics and distortion-free sound.
- Drive Motion Calibration: Proprietary DSP algorithm corrects LF driver motion for clear, linear low-frequency performance beyond conventional limitations.
- Intelligent Feedback Suppressor: Automatically eliminates unwanted microphone feedback with separate modes for handheld and fixed microphone applications.
- Auto V/H Position Detection: Internal accelerometer detects speaker orientation for automatic DSP optimisation in FOH/Main and Monitor modes.
- Large-Diameter Horn: Consistent directivity control across a wide frequency range for even, precise coverage.
- Optimised Port Positioning: Reduces standing wave effects for cleaner, more accurate bass reproduction.
- Bluetooth Audio Streaming: Wireless audio playback from smartphones and compatible devices.
- D-Remote App (iOS & Android): Full wireless remote control of all parameters, monitoring and grouping for up to ten devices simultaneously.
- Rear LCD Panel & Encoder: Clear, precise on-unit DSP mode selection, EQ, delay, routing and preset recall.
- 8 User Presets + Factory Presets: Flexible preset management for different applications and configurations.
- Dual-Angle Pole Mount Sockets: 0° and -7° down tilt options for focused coverage.
- Rigging Points: Compatible with commercial eyebolts for safe and secure suspension.
- Rubber-Coated Handles: Practical carry handles for comfortable transportation.
- Lightweight Form-Injection Moulded Enclosure: Reduced cabinet resonance and weight for easy transport and deployment.
- Optional U-Bracket (UB-DXRDHR10A): Vertical and horizontal fixed installation mounting.
-
Optional Speaker Cover (SPCVR-DXR103): Protection during transport, storage and outdoor use.
