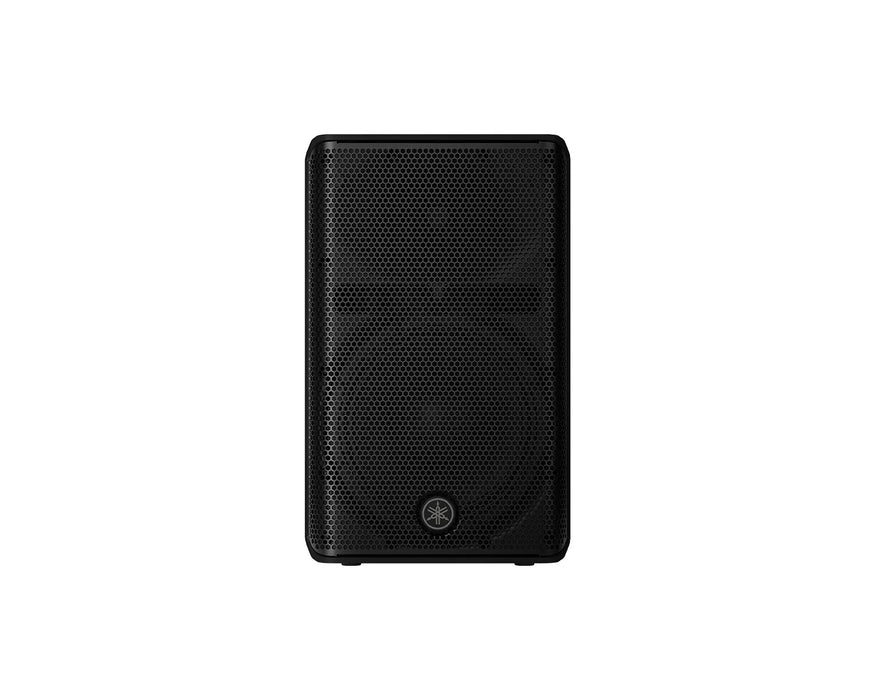

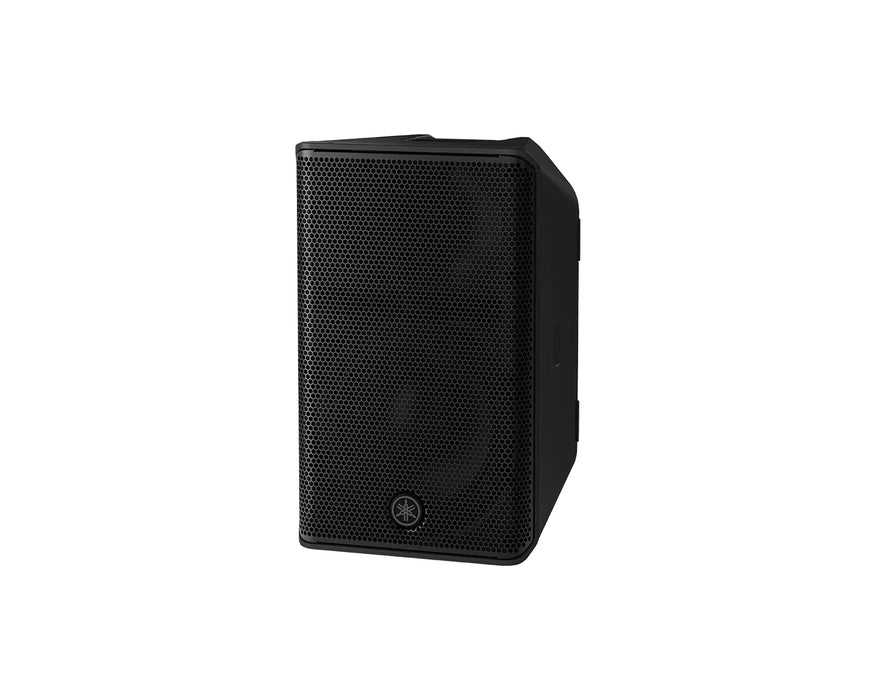

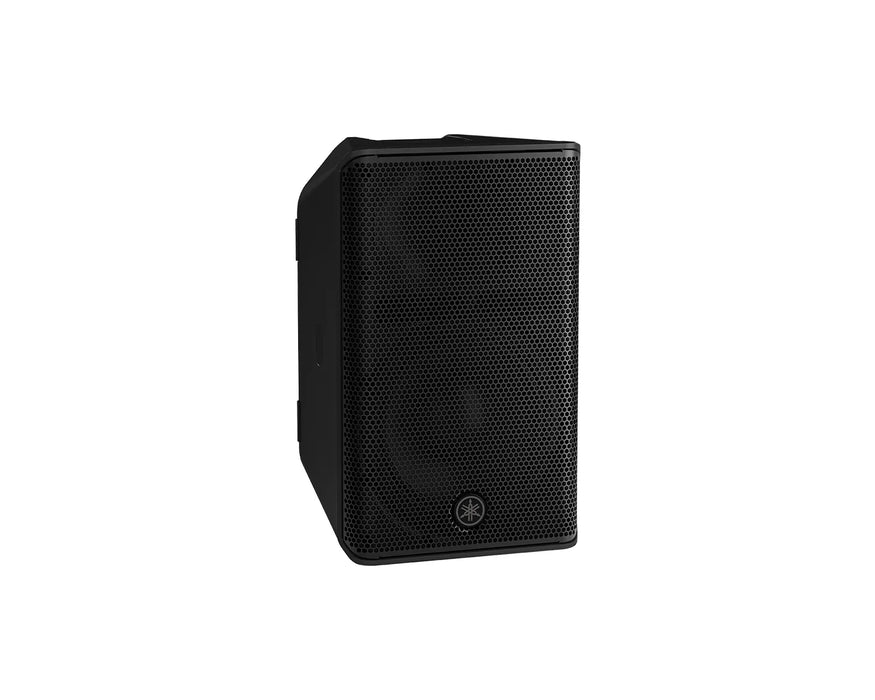

Yamaha CXR10 MK3 10" 2-Way Passive Loudspeaker, 550W 8 Ohm
The Yamaha CXR10 MK3 is a compact 10" 2-Way Passive Loudspeaker delivering 550W program power and 93dB sensitivity, combining Yamaha's proprietary high-durability drivers with an optimised bass-reflex enclosure.
The Yamaha CXR10 MK3 is the most compact model in Yamaha's CXR MK3 series — the passive counterpart to the acclaimed DXR MK3 range — delivering the same premium driver technology, enclosure design and acoustic performance in an unpowered format primarily intended for installation, fixed system and corporate event applications.
Where nearby power sources may be limited or where an existing amplifier infrastructure is already in place, the CXR10 MK3 provides a clean, professional and highly versatile passive loudspeaker solution that integrates seamlessly with compatible amplification. When used with Yamaha PX and PC-D Series amplifiers or other compatible signal processors, the CXR10 MK3 can take full advantage of dedicated speaker processor tuning settings for optimised performance.
Premium Components & Acoustic Design
The CXR10 MK3 features the same 10" cone LF driver with 2.5" voice coil and 1.75" diaphragm compression driver on a 1" throat HF unit as its active DXR counterpart — both engineered to Yamaha's exacting standards for high-durability and long-term reliability. A passive crossover at 2.0kHz provides clean driver integration across the full frequency range, delivering a wide frequency response from 54Hz to 20kHz with a sensitivity of 93dB at 1W/1m and a calculated peak SPL of 123dB.
The large-diameter horn secures directivity control across a wide frequency range with a 90° horizontal by 60° vertical coverage pattern, whilst optimised port positioning in the lightweight injection-moulded polypropylene enclosure reduces standing wave effects and cabinet resonance for cleaner, more accurate bass reproduction.
Flexible Installation & Deployment

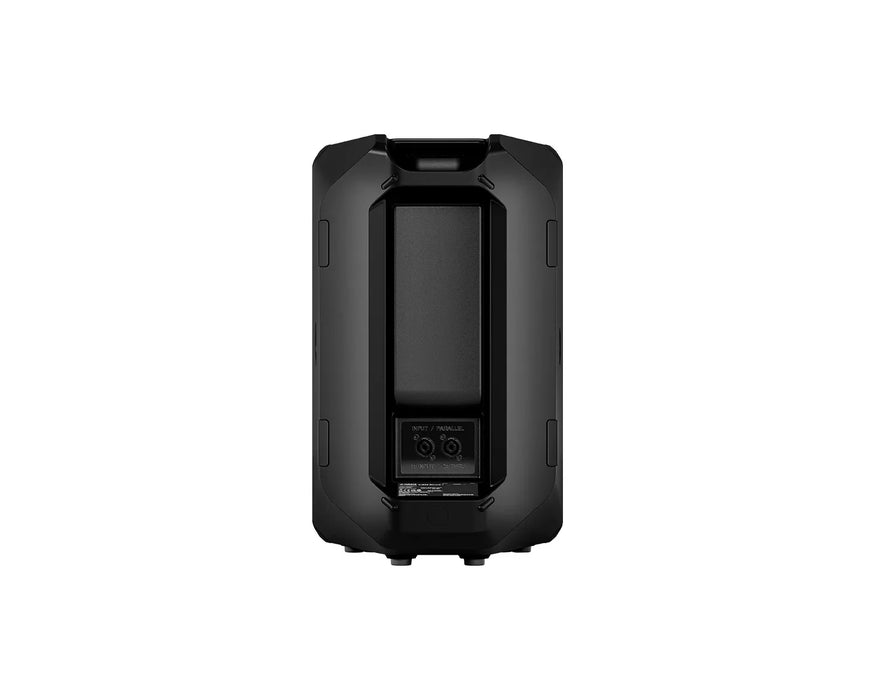

The CXR10 MK3 has been designed for maximum deployment flexibility in professional fixed installation and live sound environments. Two parallel-connected Speakon NL4MP connectors provide secure, professional-grade speaker connectivity with easy daisy-chaining to additional cabinets. Dual 35mm pole mount sockets at 0° and -7° down tilt accommodate standard speaker stands, whilst a floor monitor angle of 55° makes the CXR10 MK3 equally practical as a stage monitor when required.
Comprehensive rigging points accommodate M8 eyebolts at the top and rear, along with M8 fixings at the bottom and side for the optional UB-DXRDHR10A U-bracket — supporting both vertical and horizontal fixed installation configurations. An optional speaker cover (SPCVR-DXR103) provides protection during transport, storage and outdoor use.
Yamaha CXR10 MK3 Key Features:
- 10" LF & 1.75" HF Proprietary High-Durability Drivers: Premium Yamaha driver configuration with 2.5" LF voice coil and 1" throat compression driver for exceptional clarity and long-term reliability.
- 550W Program / 1100W Peak Power Handling: Robust power handling for professional sound reinforcement applications across a wide range of venues and events.
- 93dB Sensitivity / 123dB Peak SPL: High acoustic efficiency for powerful output from compatible professional amplification.
- 8 Ohm Nominal Impedance: Standard impedance for straightforward integration with professional amplifiers.
- 2.0kHz Passive Crossover: Clean driver integration for smooth, accurate full-range sound reproduction.
- 90° x 60° Coverage Pattern: Wide horizontal and focused vertical coverage for consistent, even sound distribution.
- Frequency Response 54Hz–20kHz: Extended low-frequency response for full-range sound reinforcement without a subwoofer in many applications.
- Large-Diameter Horn: Consistent directivity control across a wide frequency range.
- Optimised Port Positioning: Reduces standing wave effects for cleaner, more accurate bass reproduction.
- 2 x Speakon NL4MP Connectors: Parallel-connected for secure speaker wiring and easy cabinet daisy-chaining.
- Dual-Angle Pole Mount Sockets: 0° and -7° down tilt options for focused coverage.
- 55° Floor Monitor Angle: Practical wedge angle for monitoring applications.
- Comprehensive Rigging Points: M8 eyebolt compatible points for safe and secure suspension and bracket mounting.
- Lightweight PP Enclosure: Reduced cabinet resonance and weight for easy transport and deployment.
- Yamaha PX & PC-D Series Compatible: Takes full advantage of dedicated Yamaha speaker processor tuning settings when used with compatible amplifiers.
- Optional U-Bracket (UB-DXRDHR10A): Vertical and horizontal fixed installation mounting.
-
Optional Speaker Cover (SPCVR-DXR103): Protection during transport, storage and outdoor use.
