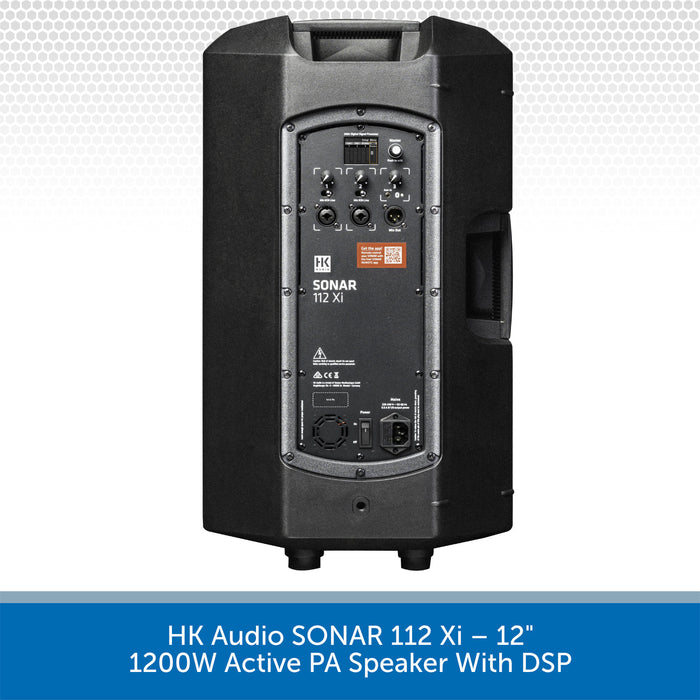

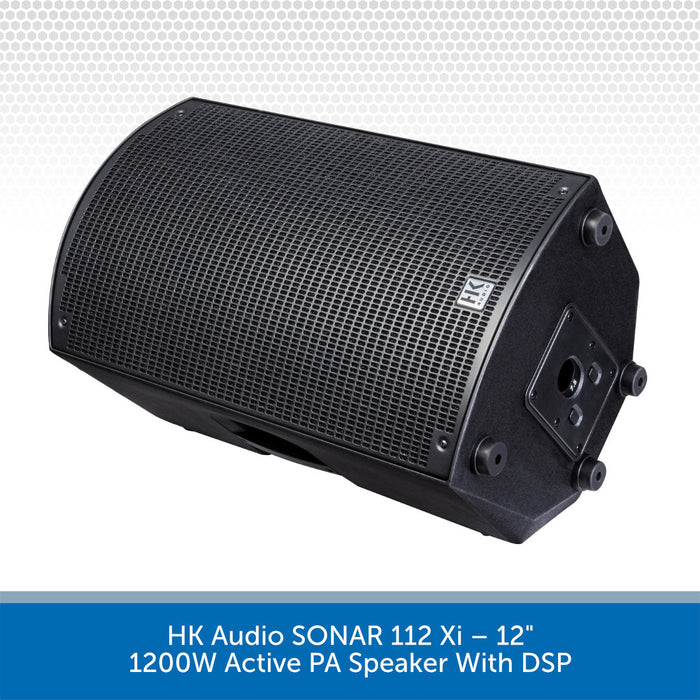

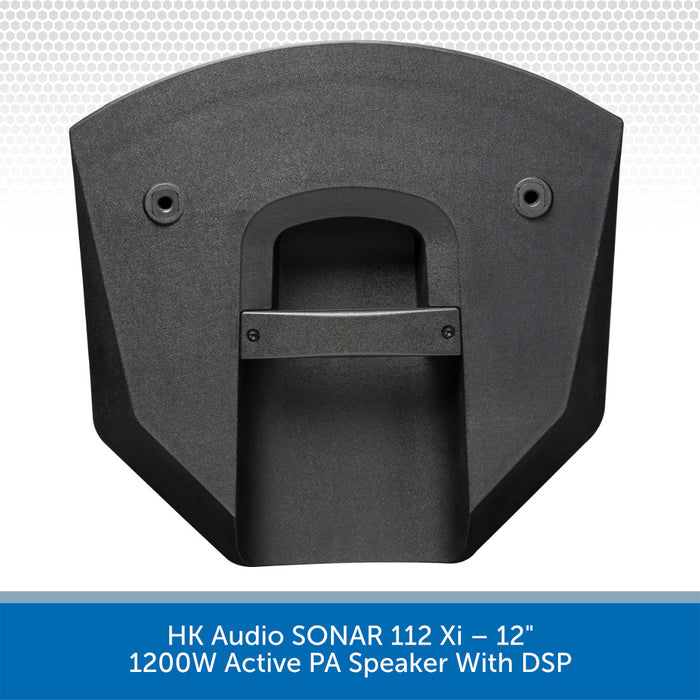

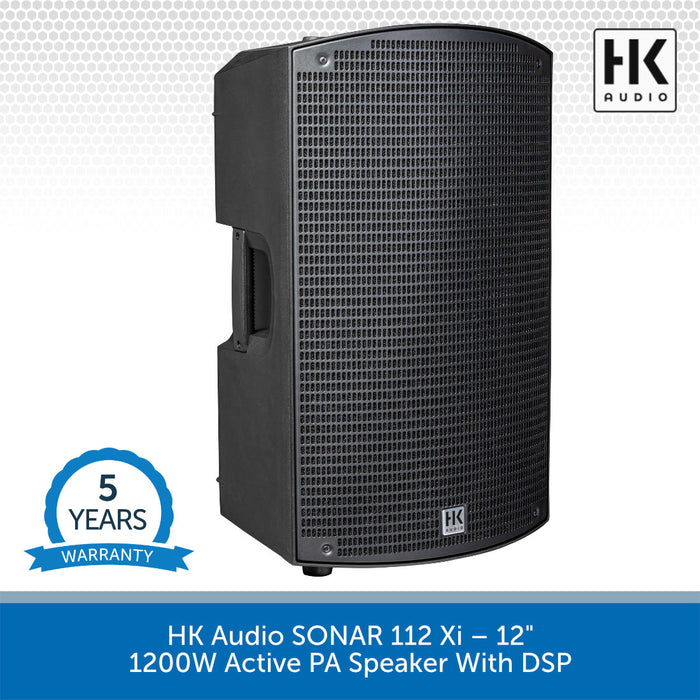

HK Audio SONAR 112 Xi – 12" 1200W Active PA Speaker With DSP
DETAILS
Versatile 12" active loudspeaker with 1200W power, Bluetooth streaming, and app control for live sound, monitoring, and playback.
The HK Audio SONAR 112 Xi is a flexible active loudspeaker designed for professional live sound, stage monitoring, and playback. Delivering up to 130 dB SPL with a wide frequency range from 54 Hz to 20 kHz, it combines a 12-inch woofer and 1-inch compression driver for strong bass, clear mids, and crisp highs.
Built-in DSP and remote control
A powerful DSP section with 3-band EQ, low-cut filter, delay, and multiple presets lets you tailor the sound for live, DJ, or monitor use. All functions can be controlled from the speaker’s rotary knob and colour display or wirelessly via the free SONAR REMOTE app for iOS and Android.
Connectivity and streaming
The onboard mixer offers two XLR/jack combo inputs, a stereo mini jack input, and an XLR mix output for flexible routing. Bluetooth 5.0 with True Wireless Stereo allows seamless streaming and stereo pairing of two SONAR Xi units, making it perfect for mobile DJs and event setups.
Portable and robust
With a rugged plastic cabinet, steel grille, and integrated SingleGrip handles, the SONAR 112 Xi is built for reliability on the road. A tiltable pole mount, monitor angle, and rigging points provide versatile placement options, while weighing just 15.9 kg for easy transport.
HK Audio's 5-year manufacturer warranty offers added peace of mind for professional users.
HK Audio SONAR 112 Xi Key Features:
- 12" active 2-way loudspeaker with 1200W power
- Wide frequency response: 54 Hz – 20 kHz
- Up to 130 dB SPL peak output
- Integrated DSP with EQ, low-cut filter, presets, and delay
- Bluetooth 5.0 with TWS stereo pairing
- Remote app control for iOS and Android
- Two mic/line inputs, AUX input, and XLR mix out
- Rugged cabinet with steel grille and carry handles
SPECS & DOWNLOADS
HK Audio SONAR 112 Xi Specifications
- Concept: Active 2-way loudspeaker
- Cabinet principle: Bass reflex
- Max. SPL peak: 127 dB
- Max. SPL calculated: 130 dB
- Frequency range -6 dB: 58 Hz - 18 kHz
- Frequency range -10 dB: 54 Hz - 20 kHz
- Dispersion angle: 90° x 60°
- Mid/high frequency: 1 x 12" cone speaker
- High frequency: 1 x 1" compression driver
- Horn: Constant directivity horn
- Analog input: 2 x XLR/jack combo (Mic/Line), 1 x 3.5 mm stereo mini jack
- Mix output: 1 x XLR symm.
- Power amplifier: Class AB + D
- Amplifier output peak: 1200 W
- Power consumption: 0.6 A / 220-240 V AC, 1.2 A / 100-120 V AC
- Speaker protection: Thermo, overload, subsonic filter, peak and RMS limiter
- Display: 1.83" colour display
- DSP functions: Volume, level metering, 3-band EQ, low-cut, delay, presets, BT
- pairing
- Remote app: SONAR REMOTE (iOS, Android)
- Filter presets: Live, DJ, Monitor
- Bluetooth: Yes (5.0), TWS stereo
- Rigging/pole mount: 35 mm tiltable, 3 x M10, monitor angle 35°
- Carrying handles: 2 x SingleGrip
- Cabinet material: Plastic
- Colour: Jet black (RAL 9005)
- Front grille: Steel with anti-corrosion coating, backed with acoustic foam
- Dimensions (W x H x D): 36.5 x 62.9 x 35.5 cm / 14-3/8 x 24-3/4 x 13-31/32 in
- Weight: 15.9 kg / 35.1 lbs
