HK Audio SONAR 115 Speaker & Subwoofer Bundle with warranty badge on a white background

HK Audio SONAR 115 Speaker & Subwoofer Bundle, 5400W

Name: HK Audio SONAR 115 Speaker & Subwoofer Bundle, 5400W
Brand: HK Audio
SKU: SONAR115-BUN
Price: 1989.0 GBP
Availability: InStock

by HK Audio

SKU SONAR115-BUN

£1,989.00 (inc. VAT) - £1,989.00 (inc. VAT)

£1,989.00 (inc. VAT)

£1,989.00 (inc. VAT) - £1,989.00 (inc. VAT)

£1,989.00 (inc. VAT)

DETAILS

2 x Powerful 15" PA speakers and 2 x Subwoofers with 5400W total output, Bluetooth streaming, and app control for live sound, monitoring, and playback.

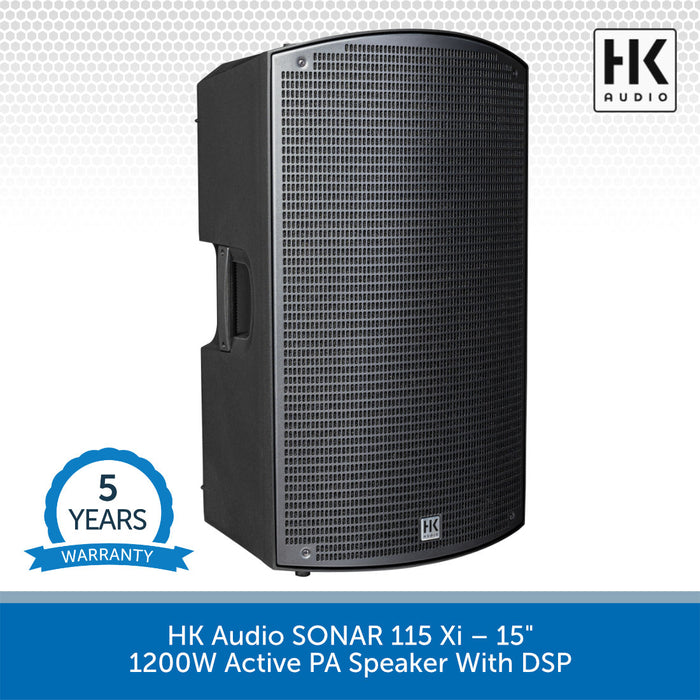

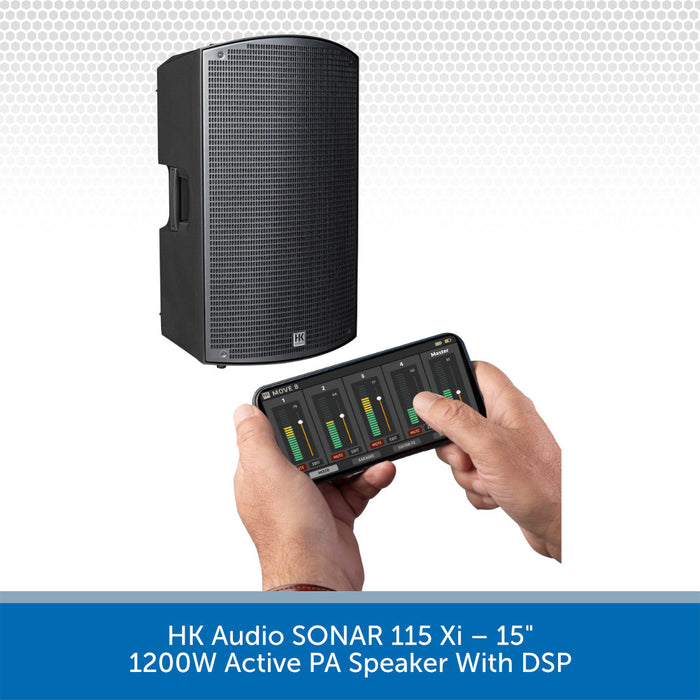

The HK Audio SONAR 115 Xi is a versatile active loudspeaker designed for full-range sound, stage monitoring, and satellite use with a subwoofer. Its 15-inch woofer delivers powerful low-end performance, giving you impressive bass even without a dedicated sub. With up to 133 dB SPL, it offers strong output for live performances, DJs, and events.

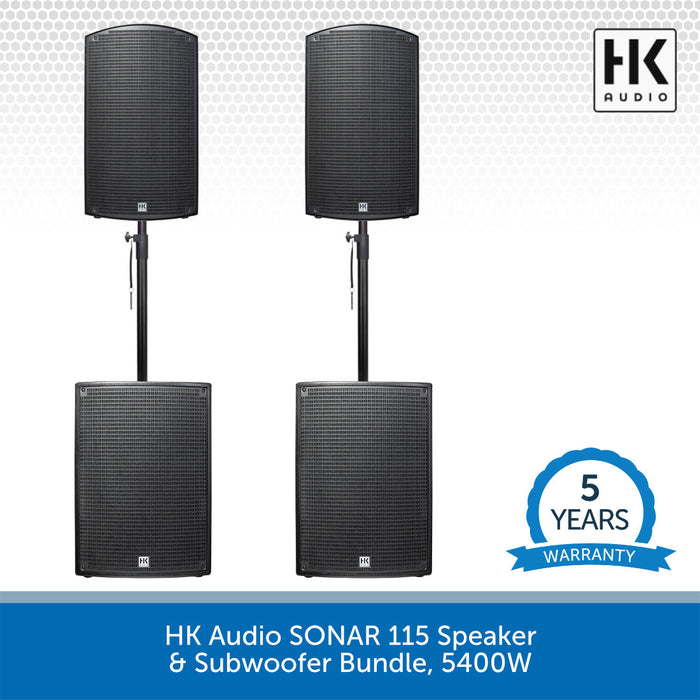

Included in the kit:

2 x HK Audio SONAR 115Xi
2 x HK Audio SONAR 115 Sub D
2 x Stagecore MSA 220BK Poles

DSP control and app integration

Built-in DSP functions include 3-band EQ, low-cut filters, delay, and filter presets for live, DJ, or monitor applications. Adjustments are made easily via the rotary control and colour display. For full wireless convenience, the free SONAR REMOTE app (iOS/Android) gives you control of all key functions from your phone or tablet.

Flexible inputs and Bluetooth streaming

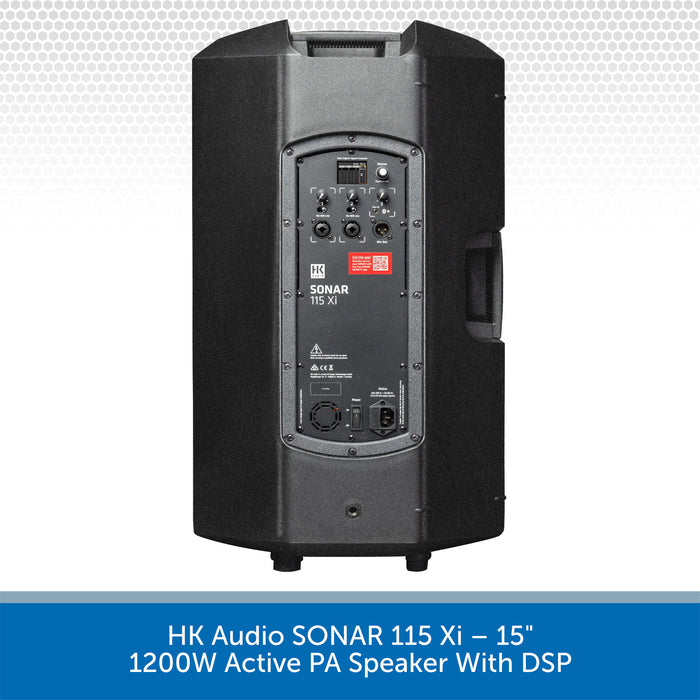

The mixer section provides two XLR/jack combo inputs and a stereo mini jack input, along with an XLR mix out. Bluetooth 5.0 with True Wireless Stereo makes it easy to stream music and pair two SONAR Xi speakers for stereo playback.

Portable and reliable design

Despite its large driver and high output, the SONAR 115 Xi remains portable at 19.5 kg. A rugged cabinet, steel grille, and two SingleGrip handles ensure durability and ease of transport. With pole mounting, rigging points, and a monitor angle, it adapts to a wide range of setups.

HK Audio's 5-year manufacturer warranty offers added peace of mind for professional users.

HK Audio SONAR 115 Xi Key Features:

15" active 2-way loudspeaker with 1200W power
Extended low-end performance without needing a subwoofer
Up to 133 dB SPL peak output
DSP with EQ, delay, presets, and low-cut filters
Bluetooth 5.0 with TWS stereo pairing
Remote app control for iOS and Android
Two mic/line inputs, AUX input, and XLR mix out
Rugged cabinet with steel grille and carry handles

High-Powered Bass Extension for Live Sound, DJs, Bands & Installed Systems.

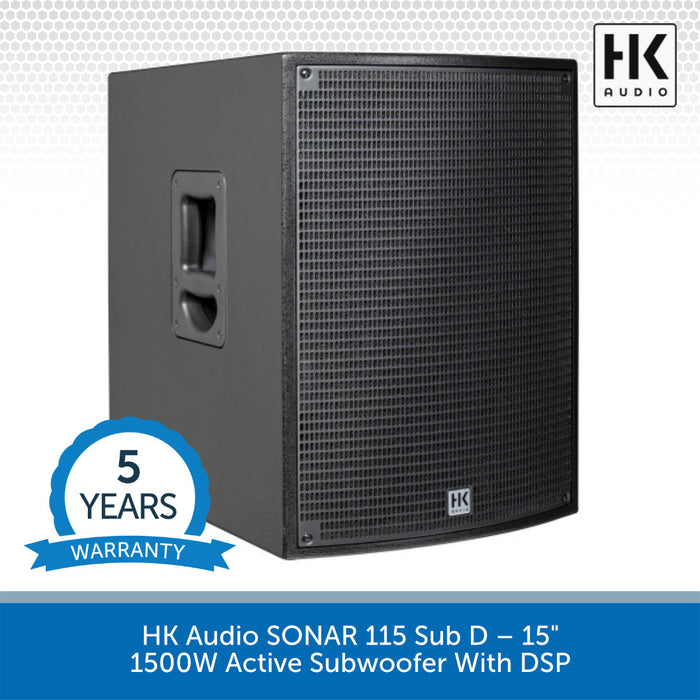

The HK Audio SONAR 115 Sub D is a high-performance 15" active subwoofer designed to deliver deep, controlled bass for live music applications, mobile DJs, bands, and venues. With 1500 watts of peak power and HK Audio’s renowned acoustic engineering, it offers a powerful low-end foundation for SONAR full-range speakers—or any professional PA needing extended bass response.

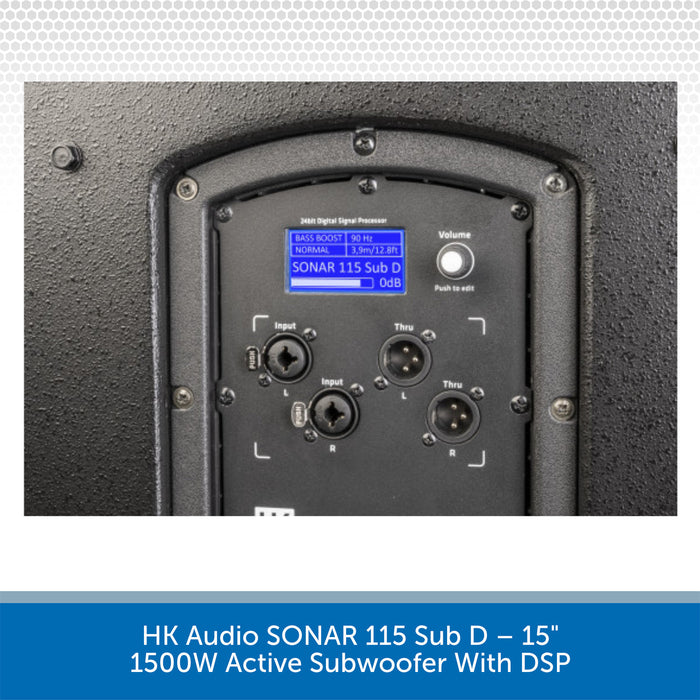

A built-in 24-bit DSP and bright LCD screen allow easy control over crossover frequency (60–150 Hz), polarity, delay, and Bass Boost, while the robust Class-D amplifier and long-excursion woofer produce an impressive 128 dB max SPL. Its bass reflex enclosure ensures efficient low-end output from 36 Hz upwards.

Advanced DSP & Cardioid Mode for Stage Control

The SONAR 115 Sub D features an intuitive interface for real-time sound shaping. One standout feature is the built-in Cardioid Mode—a rare inclusion at this price point—allowing you to reduce unwanted bass energy on stage. Simply connect a second sub facing backward and activate the Cardioid Rear and Cardioid Front presets to significantly improve front-to-rear SPL ratio.

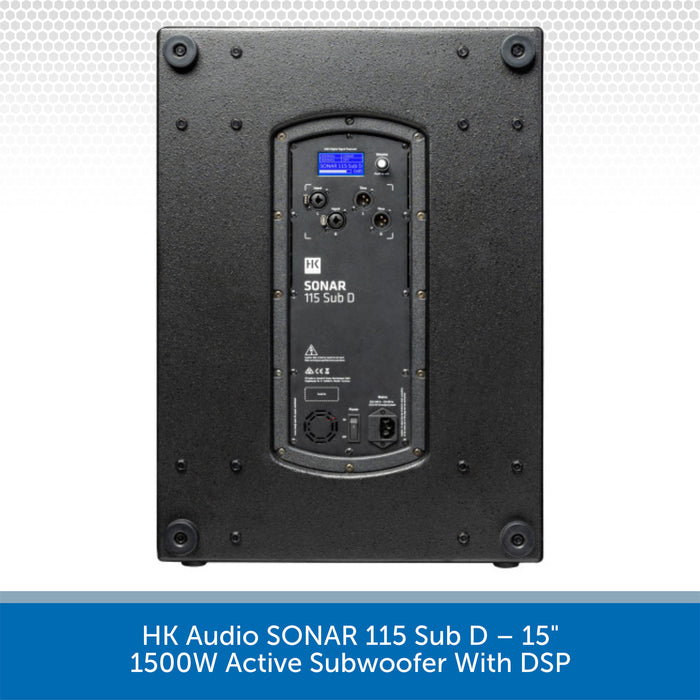

Other useful presets include a dedicated SONAR mode for full-range system integration. Rear-panel controls also let you dim the front LED and LCD for discreet stage use.

Road-Ready Construction & Flexible Setup

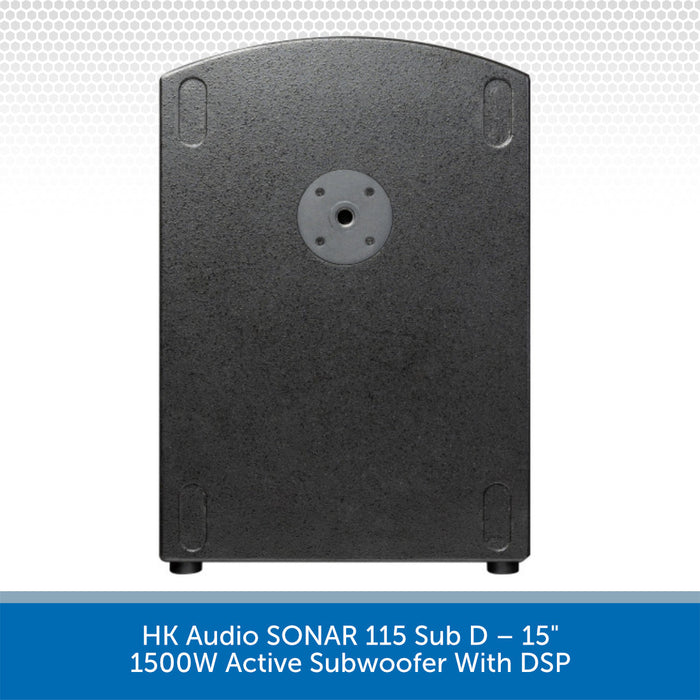

Housed in a rugged wooden cabinet with MultiGrip handles, steel grille, and M20 top-mounted pole socket, the SONAR 115 Sub D is built for professional use. Optional wheel assembly compatibility makes transport easier for touring users. Balanced XLR/jack combo inputs and XLR thru outputs allow seamless integration with a wide range of PA systems.

HK Audio SONAR 115 Sub D Key Features:

1500W Peak Class-D Amplifier: Clean, high-headroom bass power
15” Long-Throw Woofer: Deep bass response down to 36 Hz
DSP Control with LCD Screen: X-over (60–150 Hz), Delay, Polarity, EQ
Built-In Cardioid Mode: Reduces rear bass spill for better stage clarity
SONAR Preset: Optimised crossover with SONAR full-range tops
Dual XLR/Jack Inputs & XLR Thru Outs: Easy system integration
Rugged Wooden Cabinet with MultiGrip Handles: Tour-ready design
M20 Pole Mount & Optional Wheels: Easy setup and transport
Covered by HK Audio’s 5-Year Warranty for long-term reliability

SPECS & DOWNLOADS

HK Audio SONAR 115 Xi Specifications

Concept: Active 2-way loudspeaker
Cabinet principle: Bass reflex
Max. SPL peak: 130 dB
Max. SPL calculated: 133 dB
Frequency range -6 dB: 56 Hz - 18 kHz
Frequency range -10 dB: 50 Hz - 20 kHz
Dispersion angle: 90° x 60°
Mid/high frequency: 1 x 15" cone speaker
High frequency: 1 x 1" compression driver
Horn: Constant directivity horn
Analog input: 2 x XLR/jack combo (Mic/Line), 1 x 3.5 mm stereo mini jack
Mix output: 1 x XLR symm.
Power amplifier: Class AB + D
Amplifier output peak: 1200 W
Power consumption: 0.6 A / 220-240 V AC, 1.2 A / 100-120 V AC
Speaker protection: Thermo, overload, subsonic filter, peak and RMS limiter
Display: 1.83" colour display
DSP functions: Volume, level metering, 3-band EQ, low-cut, delay, presets, BT
pairing
Remote app: SONAR REMOTE (iOS, Android)
Filter presets: Live, DJ, Monitor
Bluetooth: Yes (5.0), TWS stereo

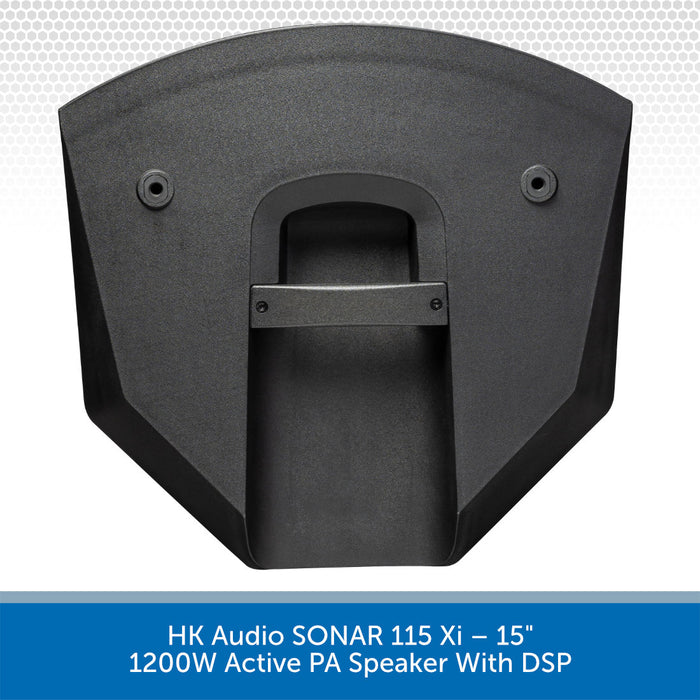

Rigging/pole mount: 35 mm tiltable, 3 x M10, monitor angle 35°
Carrying handles: 2 x SingleGrip
Cabinet material: Plastic
Colour: Jet black (RAL 9005)
Front grille: Steel with anti-corrosion coating, backed with acoustic foam
Dimensions (W x H x D): 42.5 x 72.9 x 41.5 cm / 16-23/32 x 28-11/16 x 16-11/32 in
Weight: 19.5 kg / 43.0 lbs

HK Audio SONAR 115 Sub D Specifications

Type: Active Subwoofer (Bass Reflex)
Amplifier Output (Peak): 1500 W Class D
Woofer: 1 x 15" high-performance driver
Max SPL (Calculated): 128 dB
Frequency Range (-10 dB): 36 Hz – X-Over
Crossover Range: 60 – 150 Hz (variable)
Inputs: 2 x Balanced XLR/Jack Combo
Outputs: 2 x Balanced XLR Thru
DSP Functions: Bass Boost, Delay, Polarity, Cardioid Mode, Display Dim
Cabinet: Wood with acrylic enamel finish
Mounting: M20 pole mount, wheel preparation
Dimensions (W x H x D): 43 x 61.2 x 61.6 cm
Weight: 28.4 kg
Colour: Jet Black (RAL 9005)

}
