HH TRE-1501 15" Speaker, TRS-1800 Sub, TRM-1201 Monitor & Q16FX Mixer Bundle, 2800W

Name: HH TRE-1501 15" Speaker, TRS-1800 Sub, TRM-1201 Monitor & Q16FX Mixer Bundle, 2800W
Brand: HH Audio
SKU: TRE-1501-TRM-1201-Q16FX
Price: 2449.0 GBP
Availability: InStock

by HH Audio

SKU TRE-1501-TRM-1201-Q16FX

Save 9%

£2,704.00 (inc. VAT)

£2,704.00 (inc. VAT) - £2,704.00 (inc. VAT)

£2,704.00 (inc. VAT)

£2,449.00 (inc. VAT)

£2,449.00 (inc. VAT) - £2,449.00 (inc. VAT)

£2,449.00 (inc. VAT)

DETAILS

A professional sound system for live bands, DJs, and venues.

This HH Tensor bundle includes everything you need for a powerful, professional PA setup. With two TRE-1501 tops, two TRS-1800 subwoofers, the versatile Q16FX analogue mixer, and one TRM-1201 active monitor, it’s ideal for live bands, DJs, venues, and mobile sound hire.

Included in the box:

2 x HH Tensor TRE-1501 15” active PA speakers
2 x HH TRS-1800 active 18" subwoofers
2 x Speaker Poles
1 x HH Q16FX 16-channel analogue mixer
6 x IEC mains cables

NOTE: 5 x XLR cables required to connect everything, purchase them HERE .

Key Features:

2 x 700W RMS TRE-1501 active speakers with built-in DSP and 4 EQ modes
Onboard 2-channel mixer with combo inputs for plug-and-play flexibility
Rugged cabinet with pole-mount socket, handles, and flying points
2 x TRS-1800 2000W peak active subwoofers for deep, controlled bass
Q16FX analogue mixer with 10 mic/line and 4 stereo inputs
16 built-in DSP effects with reverb and delay options
USB interface for 2-in/2-out digital audio at 24-bit / 48kHz
3-band EQ on each channel and global phantom power
TRM-1201 active monitor with dual voicing modes for stage or FOH
Ideal for live bands, events, DJs, and mobile sound setups

HH Tensor TRE-1501 Active Speakers with DSP Control

The TRE-1501 is a 1400W peak active loudspeaker with a 15" LF driver and 1.33" compression HF driver. Built for high-output performance, it delivers up to 130dB SPL and covers a wide 90° x 60° field.

It includes an intelligent onboard DSP with selectable EQ modes: Music, Live, Monitor, and Vocal. The 2-channel mixer accepts mic, instrument, or line-level inputs. A durable, lightweight cabinet design with 45° monitor angle and mounting options makes it ideal for both FOH and wedge use.

HH Q16FX Analogue Mixer

The Q16FX gives you 16 channels of clean, responsive mixing with six mic inputs, four stereo line channels, and a stereo RCA input.

Channels 1 to 4 feature single-knob compressors to help you manage vocal or instrument dynamics. A 3-band EQ and low-cut filter across all channels allow accurate tone shaping for live or recording use.

Built-in 16-effect DSP includes reverbs, delays, and echoes to add depth and clarity to your mix.

The onboard USB audio interface (2-in/2-out) makes it suitable for basic multitrack recording, streaming, or backing track playback.

A 9-band graphic EQ with feedback detection lets you fine-tune your main mix. With two aux sends, subgroup routing, and an 8-segment LED meter, the Q12FX offers versatile control in a compact footprint.

HH TRS-1800 Subwoofer

The Tensor TRS-1800 has been engineered to deliver unparalleled performance to meet your requirements. The high-grade class D amplifier combined with the long throw 18-inch HH-designed woofer delivers the ultimate in low-end performance.

The stereo input and high-pass output connections provide optimal crossover separation between your full-range and sub frequencies: Creating a flawless front-of-house mix. Need more bass? No problem.

The shape preset boosts subharmonic frequencies delivering a deeper bass response. All are enclosed in a solid, lightweight enclosure with optimal bass porting.

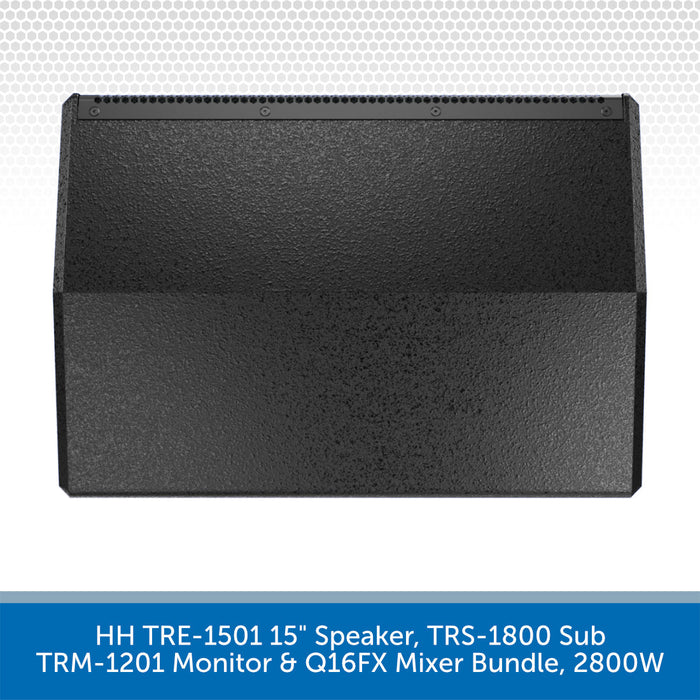

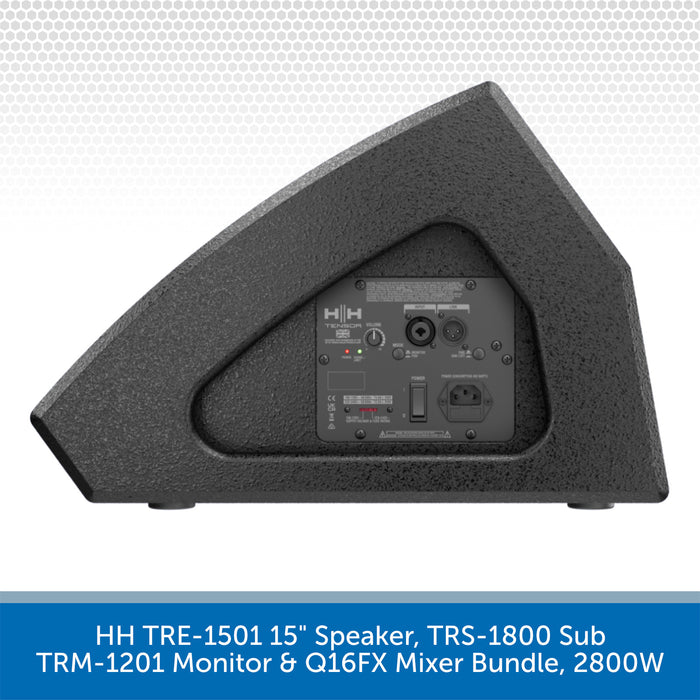

HH TRM-1201 Active Monitor Speaker

The TRM-1201 is a compact, powerful monitor designed for clear stage sound. It features a HH 12-inch driver and 1-inch compression driver, driven by a 1400W peak Class D amplifier.

Dual voicing modes (Monitor and FOH) allow flexible use as a stage wedge or a small PA speaker. The balanced XLR/6.3mm combi input and balanced XLR output with ground lift make setup simple.

The plywood cabinet with 35° monitor angle, carry handles, and reinforced grille is built for tough, regular use.

SPECS & DOWNLOADS

HH Tensor TRE-1501 Specifications

Model: TRE-1501
System type: 2 way active 15" loudspeaker, Bass reflex
Power Rating: 1400W Peak, 700W Continuous
Frequency response: 41Hz-20KHz
Max SPL (1M) (Peak): 131 dB SPL
LF Driver: 15" HH designed professional low mid driver featuring imported glass reinforced cone
HF Driver: 1" Compression Driver
Coverage: 90°H X 60°V
Crossover Frequency: 2.5KHz
Input Connectors: 2x Balanced Combi XLR/1/4" Jack connectors
Output Connectors: 1x Balanced XLR Mix Output
Indicators: Power, Clip Indicator, EQ Mode, Front illuminated logo
EQ: User selectable performance presets for Music, Live, Monitor, Vocal
DSP: Crossover, EQ, Dual Band Limiters, Phase and Time Optimisation
Protection: Comprehensive protection and clip free limiting + clip indicator
Controls: 2x channel gain, Master Volume, logo on/off, Ground Lift, EQ Mode
AC Power: User Switcheable 100-120V~ or 220-240V~ 50/60HZ
AC Power Consumption: 300W Typical
Cabinet: Robust polypropylene cabinet with two handles and monitor angle
Finish: Black
Grille: Heavy Gauge powder-coated steel, Black with acoustic foam backing
Other: 35mm Distance Pole Socket
Flying points: 4 x M8 Mounting Points
Unit dimensions (HWD): 694 x 420 x 385 mm
Unit weight: 18Kg, 39.7 lbs

HH Q16FX Specifications

Mic inputs: 10 x XLR (CH1–10)
Line inputs (mono): 8 x ¼” TRS (CH1–8)
Line inputs with mic (stereo): 2 x stereo ¼” TRS (CH9–12)
Line inputs (stereo): 2 x stereo ¼” TRS (CH13–16)
EQ: 3-band per channel (±15dB), Low 100Hz, Mid 2.5kHz, High 12kHz
Low cut: 75Hz cut-off @ 18dB/Octave (CH1–12)
Compressor: Single-knob (CH1–8), 2:1 ratio, 9dB makeup gain, -8dBu threshold
Main outputs: Balanced stereo XLR
Monitor outputs: Stereo ¼” TRS
Subgroup outputs: 2 x ¼” TRS
FX send: Mono ¼” TRS
Aux send: Mono ¼” TRS
Phones: ¼” TRS
RCA: Stereo phono sockets (in/out)
Effects: 16 DSP effects (reverb, delay) with enable switch and parameter control
Graphic EQ: 9-band with feedback detection and on/off switch
USB audio: 2-in / 2-out, 24-bit, 48kHz sample rate
Power: Universal 100–240V AC, 50/60Hz (IEC C14 socket

Specifications – HH TRS-1800 Subwoofer

Model: TRE-1800
System type: 18" Active Subwoofer, Bass reflex
Power Rating: 350W RMS, 700W Continuous, 1400W Peak
Frequency response: 35Hz - *Variable 60-200hz
Max SPL (1M) (Peak): 130 dB SPL
LF Driver: 18" HH designed professional bass driver
Input Connectors: 2x Balanced XLR
Output Connectors: 2x Balanced XLR link outs, 2x Balanced XLR fixed hi-pass outs
Controls: Volume, Variable crossover frequency (60-200)
EQ: Shape switch
Protection: Comprehensive protection and clip free limiting + clip indicator
Indicators: Power, Clip Indicator,Front illuminated logo (with on/off switch)
AC Power: User Switcheable 110-120 or 220-240V~ 50/60HZ
Unit dimensions (HWD): 540 x 580 x 592 mm
Unit weight: 30Kg, 66.1 lbs

Specifications - TRM-1201 Active Monitor Speaker

Power: 350W RMS, 700W continuous, 1400W peak
Frequency response (-10dB): 50Hz - 20kHz (FOH mode)
Frequency response (-3dB): 55Hz - 18kHz
LF driver: 12-inch HH driver
HF driver: 1-inch HH compression driver
Max SPL (1m peak): 130dB
Coverage: 80° x 80°
Crossover frequency: 2.8kHz
Power supply: 100V-120V~/220-240V~ 50/60Hz user switchable
Inputs: Balanced female XLR/6.3mm jack combi socket
Outputs: Balanced male XLR with ground lift switch
Protection: Dual band limiters
Controls: Volume, monitor/FOH mode
Monitor angle: 35°
Cabinet: Acoustically optimised plywood cabinet with integrated carry handles
Pole mount: 35mm pole mount socket included
Grille: Rear reinforced heavy gauge steel grille with acoustic foam
Finish: Painted black
Indicators: Power, signal present, clip indicator
Unit dimensions (H x W x D): 340 x 510 x 500mm / 13.4" x 20.1" x 19.7"
Unit weight: 17.7kg / 39lbs
Carton dimensions (H x W x D): 605 x 540 x 470mm / 23.8" x 21.3" x 18.5"
(0.154m³)
Packed weight: 21kg / 46.3lbs

}
