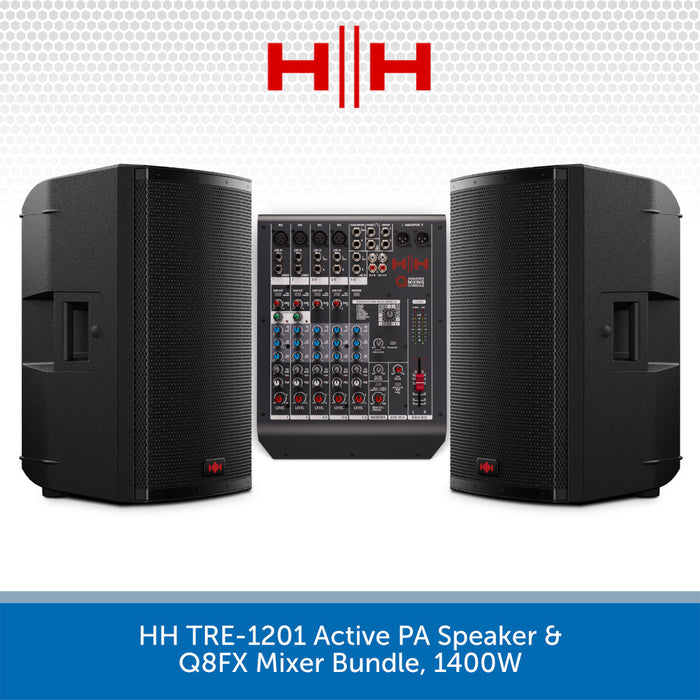

HH TRE-1201 12" Active PA Speaker & Q8FX Mixer Bundle, 1400W
DETAILS
Powerful, portable sound for live performance, events and public address.
This bundle combines two HH Tensor TRE-1201 active PA speakers with the HH Q8FX analogue mixer. It offers a complete solution for performers, DJs, presenters or venues needing professional sound in a compact footprint.
With a combined continuous power output of 1400W and built-in DSP, the system delivers impressive clarity and headroom. The Q8FX mixer adds hands-on control with effects, EQ and multiple connectivity options—ideal for mobile rigs, rehearsal spaces or events.
Included in the box:
- 2 x HH Tensor TRE-1201 12” active PA speakers
- 1 x HH Q8FX 8-channel analogue mixer
- 2 x IEC mains cables (for speakers)
- 1 x IEC mains cable (for mixer)
NOTE: 2 x XLR cables required to connect everything, purchase them HERE.
Key Features:
- 2 x 700W RMS TRE-1201 active speakers with built-in DSP and 4 EQ modes
- Onboard 2-channel mixer with combo inputs for plug-and-play flexibility
- Rugged cabinet with pole-mount socket, handles, and flying points
- Q8FX analogue mixer with 4 mic and 3 stereo line inputs
- 16 built-in DSP effects with reverb and delay options
- USB interface for 2-in/2-out digital audio at 24-bit / 48kHz
- 3-band EQ on each channel and global phantom power
- RCA input for external media playback
- Ideal for portable live sound, rehearsal, small venues, or streaming
HH Tensor TRE-1201 Active Speakers with DSP Control
The TRE-1201 is a 1400W peak active loudspeaker with a 12" LF driver and 1.33" compression HF driver. Built for high-output performance, it delivers up to 130dB SPL and covers a wide 90° x 60° field.
It includes an intelligent onboard DSP with selectable EQ modes: Music, Live, Monitor, and Vocal. The 2-channel mixer accepts mic, instrument, or line-level inputs. A durable, lightweight cabinet design with 45° monitor angle and mounting options makes it ideal for both FOH and wedge use.
HH Q8FX Analogue Mixer
The Q8FX gives you 8 channels of clean, responsive mixing with four mic inputs, three stereo line channels, and a stereo RCA input.
Channels 1 and 2 include single-knob compressors to help manage your dynamics with ease. A 3-band EQ and low-cut filter allow precise tone shaping across all channels.
The mixer includes 16 onboard DSP effects such as reverbs, delays, and echoes. This helps you add space and character to vocals or instruments in live setups.
Built-in USB audio interface (2-in/2-out) makes it ideal for basic recording, podcasting, or backing track playback.
With monitoring options, aux sends, stereo returns, and an 8-segment LED meter, the Q8FX delivers full mixing functionality in a portable format.
SPECS & DOWNLOADS
HH Tensor TRE-1201 Specifications
- Power: 1400W peak
- Frequency response: 45Hz – 18kHz
- Max SPL: 130dB (Peak @1m)
- LF driver: 12" glass-reinforced cone
- HF driver: 1.33" compression driver
- Coverage: 90° horizontal x 60° vertical
- Crossover frequency: 2.5kHz
- Inputs: 2 x balanced XLR/¼" jack combo
- Outputs: 1 x balanced XLR mix out
- EQ modes: Music, Live, Monitor, Vocal
- DSP functions: Crossover, EQ, limiters, phase/time alignment
- Controls: Channel gain x2, master volume, EQ mode, logo on/off, ground lift
- Cabinet: Polypropylene with 45° monitor angle
- Mounting options: 35mm pole mount, 4 x M8 points
- Dimensions (HWD): 610 x 357 x 356mm
- Weight: 14.4kg
HH Q8FX Specifications
- Mic inputs: 4 x XLR (CH1–6)
- Line inputs (mono): 2 x ¼” TRS (CH1–2)
- Line inputs with mic (stereo): 2 x stereo ¼” TRS (CH3–6)
- Line inputs (stereo): 1 x stereo ¼” TRS (CH7–8)
- EQ: 3-band (±15dB) – Low: 100Hz, Mid: 2.5kHz, High: 12kHz per channel
- Low cut filter: 75Hz @ 18dB/octave (CH1–6)
- Compressor: 2:1 ratio, 9dB makeup gain, -8dBu threshold (CH1–2 only)
- Main outputs: Balanced stereo XLR
- Monitor outputs: Stereo ¼” TRS
- FX send: Mono ¼” TRS
- Headphone output: Mono ¼” TRS
- RCA inputs/outputs: Stereo phono sockets
- Digital effects: 16 built-in DSP effects with enable switch and parameter control
- USB audio interface: 2-in, 2-out, 16-bit/24-bit, 48kHz
- Power supply: 100–240V ~ 50/60Hz, IEC C14 socket (AC cord included)
