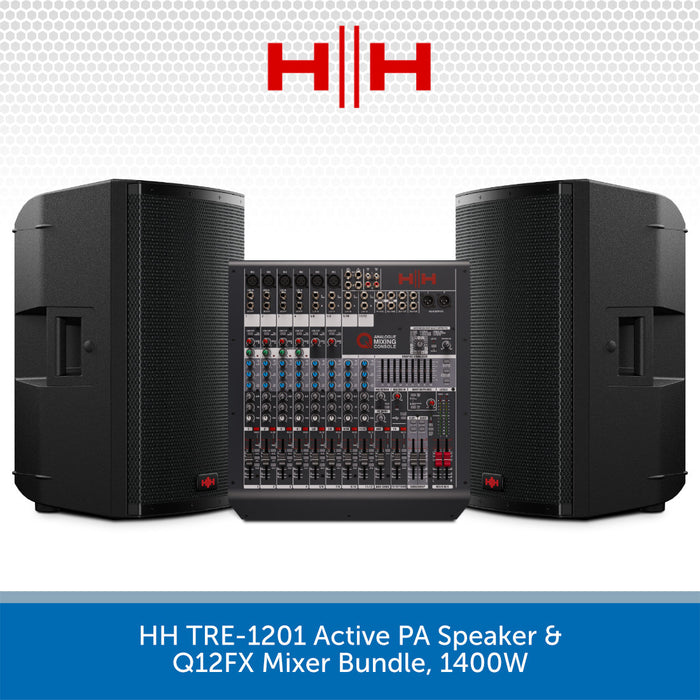

HH TRE-1201 12" Active PA Speaker & Q12FX Mixer Bundle, 1400W
DETAILS
A professional sound system for live bands, DJs, and venues.
This bundle combines two HH Tensor TRE-1201 active PA speakers with the HH Q12FX analogue mixer. It offers a complete solution for performers, DJs, presenters or venues needing professional sound in a compact footprint.
With a combined continuous power output of 1400W and built-in DSP, the system delivers impressive clarity and headroom. The Q12FX mixer adds hands-on control with effects, EQ and multiple connectivity options—ideal for mobile rigs, rehearsal spaces or events.
Included in the box:
- 2 x HH Tensor TRE-1201 12” active PA speakers
- 1 x HH Q12FX 12-channel analogue mixer
- 2 x IEC mains cables (for speakers)
- 1 x IEC mains cable (for mixer)
NOTE: 2 x XLR cables required to connect everything, purchase them HERE.
Key Features:
- 2 x 700W RMS TRE-1201 active speakers with built-in DSP and 4 EQ modes
- Onboard 2-channel mixer with combo inputs for plug-and-play flexibility
- Rugged cabinet with pole-mount socket, handles, and flying points
- Q12FX analogue mixer with 6 mic and 4 stereo line inputs
- 16 built-in DSP effects with reverb and delay options
- USB interface for 2-in/2-out digital audio at 24-bit / 48kHz
- 3-band EQ on each channel and global phantom power
- RCA input for external media playback
- Ideal for portable live sound, rehearsal, small venues, or streaming
HH Tensor TRE-1201 Active Speakers with DSP Control
The TRE-1201 is a 1400W peak active loudspeaker with a 12" LF driver and 1.33" compression HF driver. Built for high-output performance, it delivers up to 130dB SPL and covers a wide 90° x 60° field.
It includes an intelligent onboard DSP with selectable EQ modes: Music, Live, Monitor, and Vocal. The 2-channel mixer accepts mic, instrument, or line-level inputs. A durable, lightweight cabinet design with 45° monitor angle and mounting options makes it ideal for both FOH and wedge use.

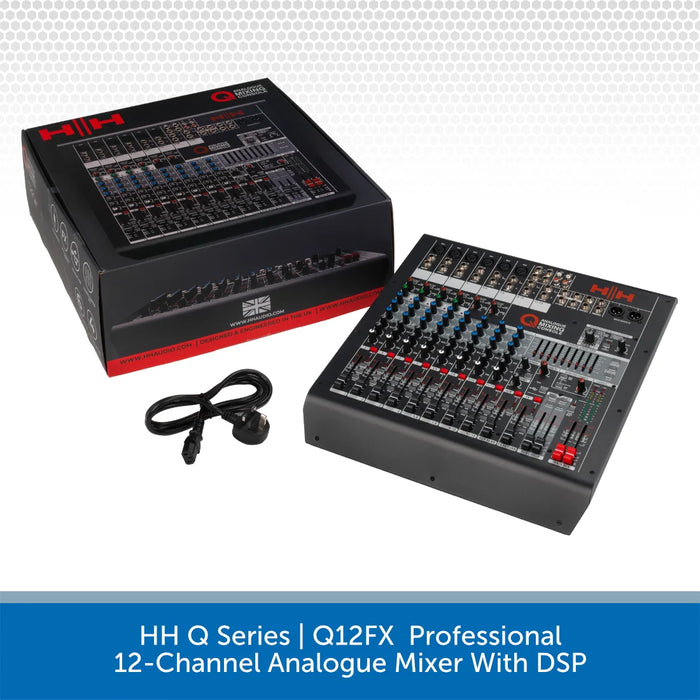

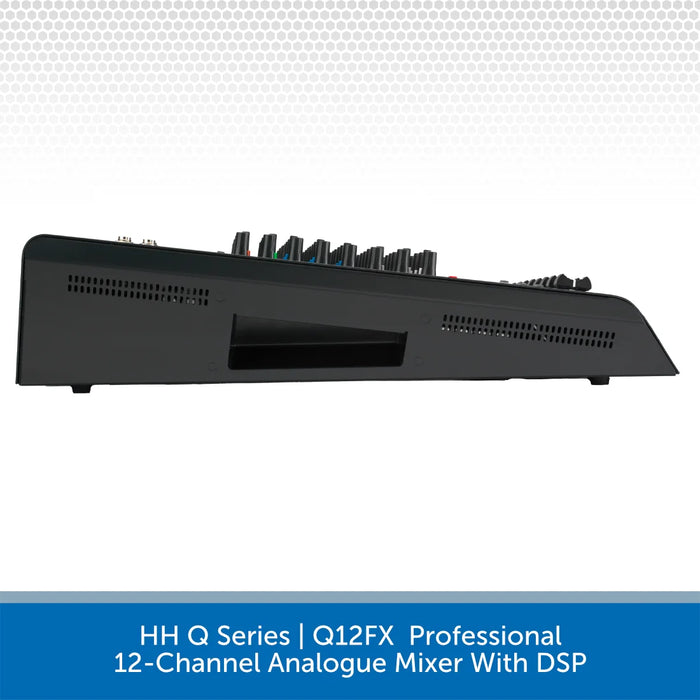

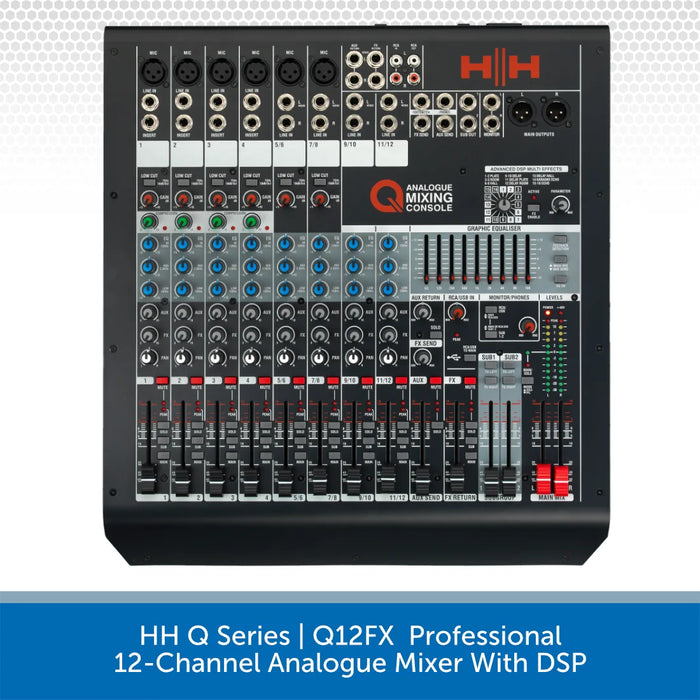

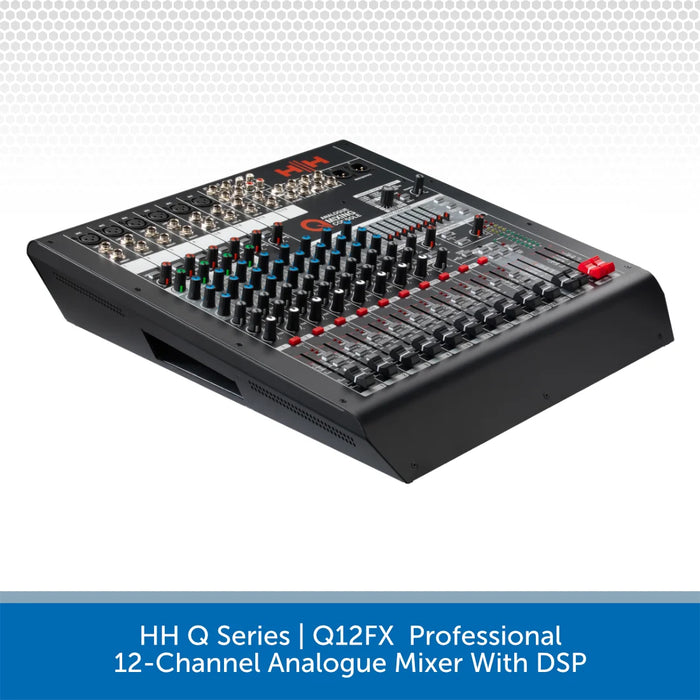

HH Q12FX Analogue Mixer
The Q12FX gives you 12 channels of clean, responsive mixing with six mic inputs, four stereo line channels, and a stereo RCA input.
Channels 1 to 4 feature single-knob compressors to help you manage vocal or instrument dynamics. A 3-band EQ and low-cut filter across all channels allow accurate tone shaping for live or recording use.
Built-in 16-effect DSP includes reverbs, delays, and echoes to add depth and clarity to your mix.
The onboard USB audio interface (2-in/2-out) makes it suitable for basic multitrack recording, streaming, or backing track playback.
A 9-band graphic EQ with feedback detection lets you fine-tune your main mix. With two aux sends, subgroup routing, and an 8-segment LED meter, the Q12FX offers versatile control in a compact footprint.
SPECS & DOWNLOADS
HH Tensor TRE-1201 Specifications
- Power: 1400W peak
- Frequency response: 45Hz – 18kHz
- Max SPL: 130dB (Peak @1m)
- LF driver: 12" glass-reinforced cone
- HF driver: 1.33" compression driver
- Coverage: 90° horizontal x 60° vertical
- Crossover frequency: 2.5kHz
- Inputs: 2 x balanced XLR/¼" jack combo
- Outputs: 1 x balanced XLR mix out
- EQ modes: Music, Live, Monitor, Vocal
- DSP functions: Crossover, EQ, limiters, phase/time alignment
- Controls: Channel gain x2, master volume, EQ mode, logo on/off, ground lift
- Cabinet: Polypropylene with 45° monitor angle
- Mounting options: 35mm pole mount, 4 x M8 points
- Dimensions (HWD): 610 x 357 x 356mm
- Weight: 14.4kg
HH Q12FX Specifications
- Mic inputs: 6 x XLR (CH1–6)
- Line inputs (mono): 4 x ¼” TRS (CH1–4)
- Line inputs with mic (stereo): 2 x stereo ¼” TRS (CH5–6)
- Line inputs (stereo): 2 x stereo ¼” TRS (CH9–12)
- EQ: 3-band per channel (±15dB), Low 100Hz, Mid 2.5kHz, High 12kHz
- Low cut: 75Hz cut-off @ 18dB/Octave (CH1–8)
- Compressor: Single-knob (CH1–4), 2:1 ratio, 9dB makeup gain, -8dBu threshold
- Main outputs: Balanced stereo XLR
- Monitor outputs: Stereo ¼” TRS
- Subgroup outputs: 2 x ¼” TRS
- FX send: Mono ¼” TRS
- Aux send: Mono ¼” TRS
- Phones: ¼” TRS
- RCA: Stereo phono sockets (in/out)
- Effects: 16 DSP effects (reverb, delay) with enable switch and parameter control
- Graphic EQ: 9-band with feedback detection and on/off switch
- USB audio: 2-in / 2-out, 16-bit / 24-bit, 48kHz sample rate
- Power: Universal 100–240V AC, 50/60Hz (IEC C14 socket
