Electro-Voice ELX200-12P & ELX200-18SP Active PA Speaker Bundle with Stands & Cables
DETAILS

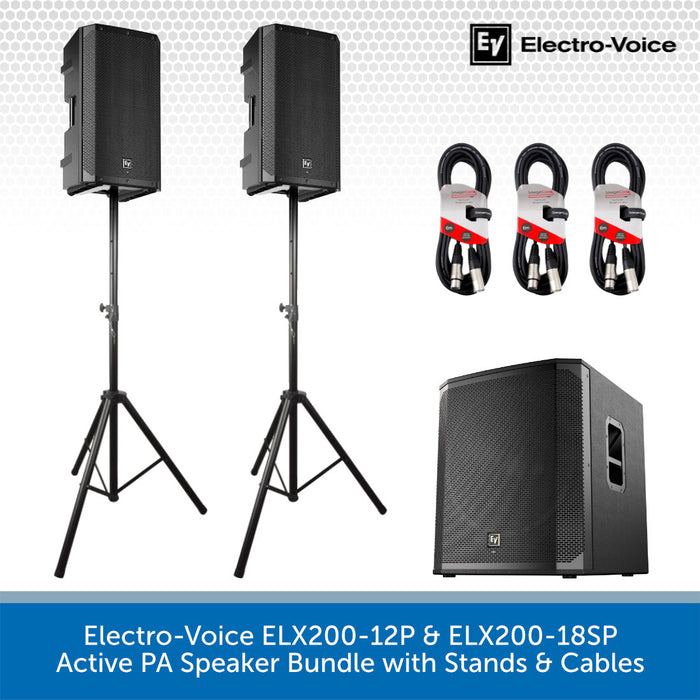

Electro-Voice ELX200-12P & ELX200-18SP – Complete Active PA System Bundle.
This Electro-Voice PA bundle combines professional 12" tops with a powerful 18" subwoofer for a complete portable sound solution. It includes a pair of ELX200-12P active speakers, one ELX200-18SP powered subwoofer, two Ultimax UTX 325 speaker stands, and three 6m Stagecore XLR cables.

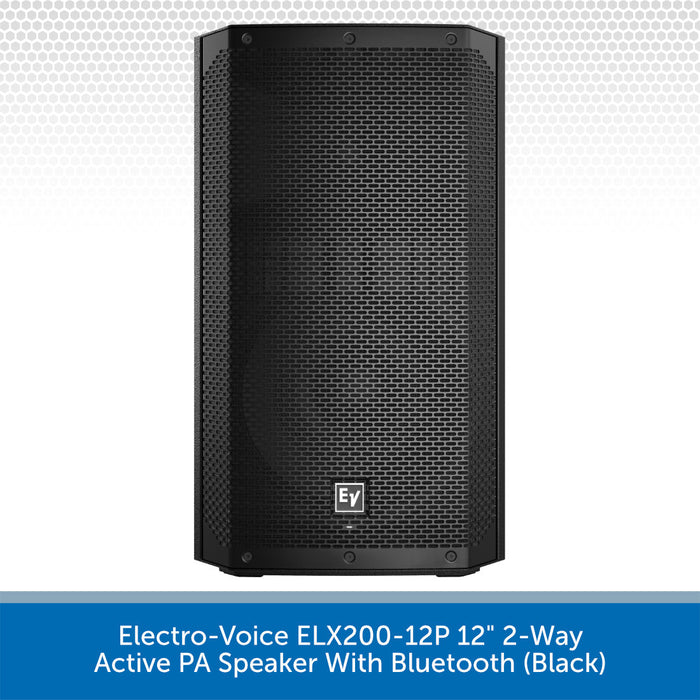

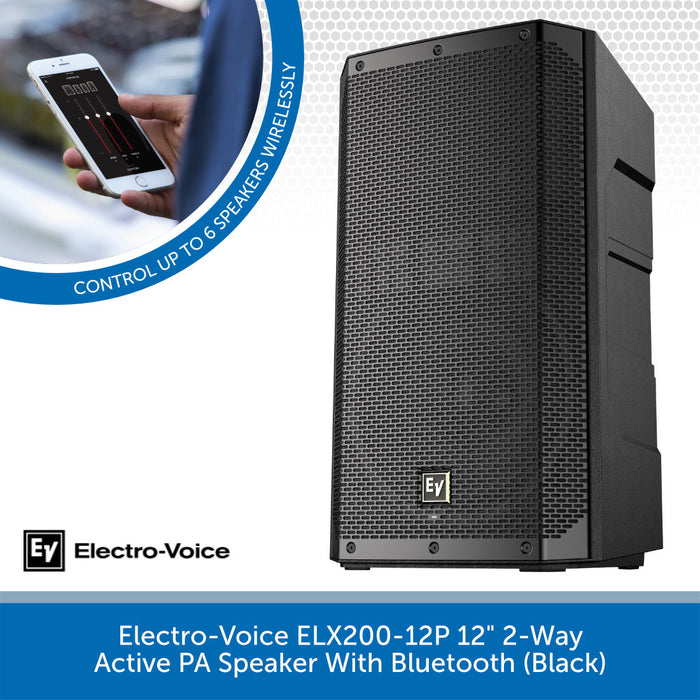

The ELX200-12P tops provide 1200W Class-D amplification with advanced DSP and Bluetooth control, achieving a maximum SPL of 130 dB. QuickSmartDSP allows easy setup with four presets (Music, Live, Speech, Club), system-match crossovers, 3-band EQ, and user-programmable settings. The EV QuickSmart Mobile app enables wireless control and monitoring of up to six speakers. Each top speaker sits securely on its own UTX 325 stand, ensuring optimal height and sound coverage for live performances.

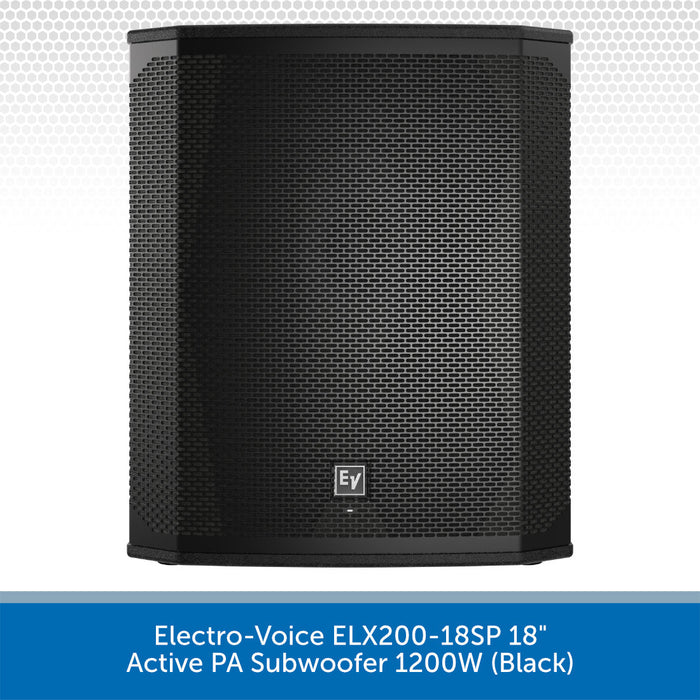

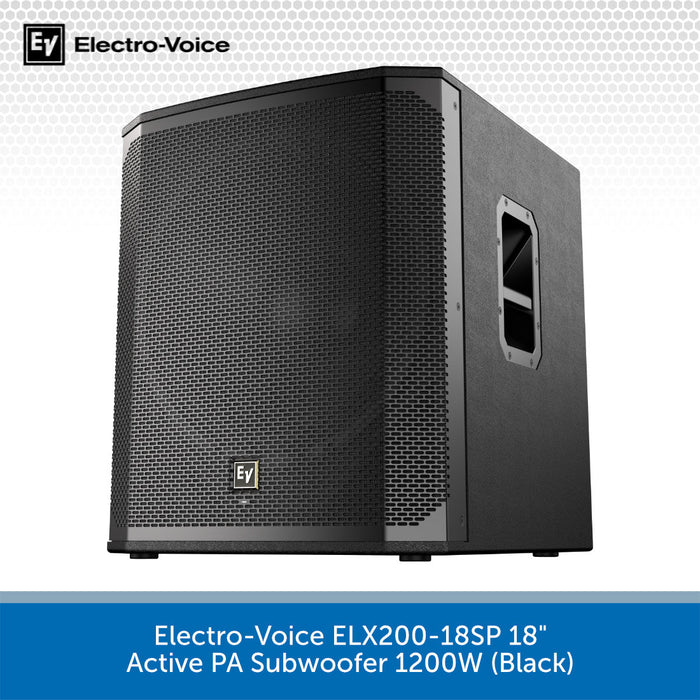

The ELX200-18SP powered subwoofer delivers deep, high-impact bass with a 1200W Class-D amplifier and an 18-inch EVS-18L driver, producing up to 132 dB SPL. QuickSmartDSP provides presets, adjustable crossover points, three-band EQ, limiter monitoring, and five user-programmable settings. Wireless control via the QuickSmart Mobile app allows system monitoring and configuration of up to six ELX200 loudspeakers simultaneously. Its rugged 15 mm plywood cabinet with EVCoat finish, dual handles, and integrated M20 pole mount plate ensures durability and easy setup.
The Ultimax UTX 325 aluminium stands provide stable, height-adjustable support for each top speaker, and the three included 6m Stagecore XLR cables allow direct connection to a mixing desk—two for the tops and one for the subwoofer.
This bundle is ideal for DJs, live bands, schools, houses of worship, and venues that require a compact yet powerful PA system with professional-grade performance.
Electro-Voice ELX200-12P & ELX200-18SP Bundle Key Features:
- Complete PA Bundle: Includes 2 x ELX200-12P tops, 1 x ELX200-18SP subwoofer, 2 x UTX 325 stands, and 3 x 6m XLR cables.
- Powerful Amplification: 1200W Class-D per speaker and sub for professional output.
- QuickSmartDSP: Presets, 3-band EQ, system-match crossovers, limiter monitoring, and user memory.
- Bluetooth Control: Wireless setup and monitoring via EV QuickSmart Mobile app.
- Durable Construction: Polypropylene tops and plywood sub with EVCoat finish.
- Secure Stands: UTX 325 aluminium stands with auto-lock ratchet and tripod base for each top.
- Reliable Cables: 3 x 6m Stagecore XLR cables for connection from mixing desk to tops and sub.
-
Portable Design: Lightweight, easy to transport, and quick to set up.
SPECS & DOWNLOADS
Download the PDF Data Sheet HERE >
Electro-Voice ELX200-12P Specifications:
- Speaker Type: Full-range active loudspeaker
- Amplifier Power: 1200W Class-D
- Max SPL: 130 dB
- Frequency Response (-3 dB): 57 Hz – 16 kHz
- Frequency Range (-10 dB): 51 Hz – 20 kHz
- Coverage (H x V): 90° x 60°
- Crossover Frequency: 1700 Hz
- LF Driver: 12" EVS-12M woofer
- HF Driver: DH-1C 1" titanium compression driver

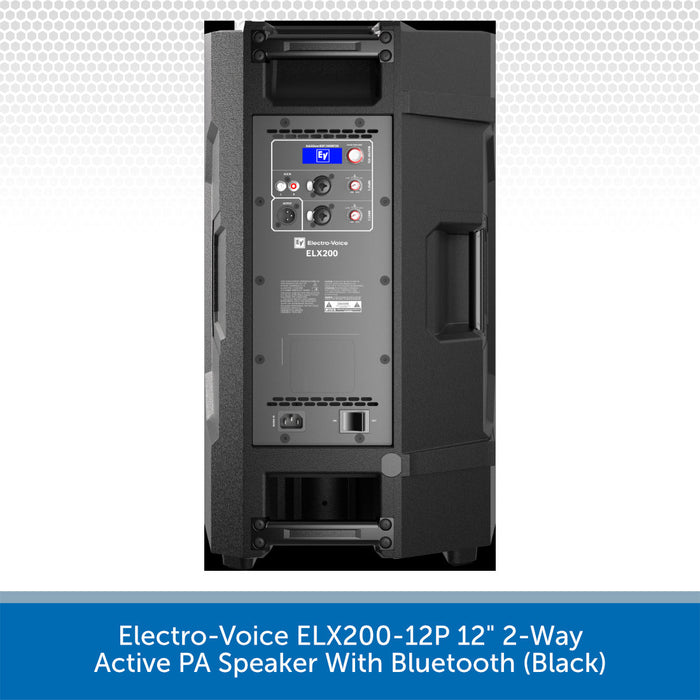

- Connectors: 2 x XLR/TRS combo, 1 x RCA stereo input, 1 x XLR output
- Enclosure Material: Polypropylene composite
- Grille: 18 AWG steel with powdercoat
- Suspension: 3 x M10 mounting points
- Dimensions (H x W x D): 629 x 363 x 351 mm
- Weight: 15.6 kg (Net), 17.7 kg (Shipping)
-
Colour Options: Black
Download the PDF Data Sheet HERE >
Electro-Voice ELX200-18SP Specifications:
- Colour: Black
- Power Rating: 1200 W
- Powered or Passive: Powered
- Speaker Type: Subwoofer
- Max. SPL/1m (calc): 132 dB
- Frequency Response (-3 dB): 47 Hz – 105 Hz
- Frequency Range (-10 dB): 40 Hz – 145 Hz
- LF Driver: EVS-18L (18")
- Low-Pass Frequency: Adjustable (80 Hz, 100 Hz, 120 Hz, 150 Hz)

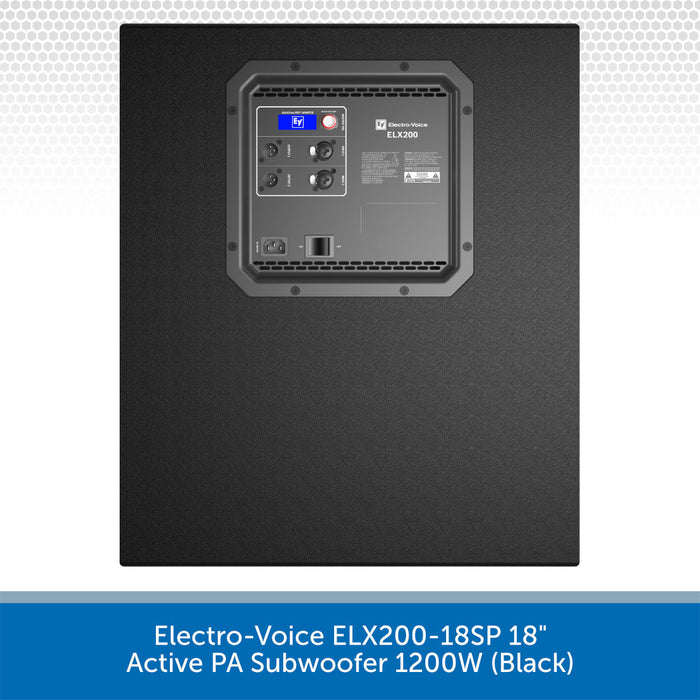

- Connector Type: 2x XLR/TRS combo jacks, 2x XLR link outputs
- Enclosure Material: 15 mm plywood with EVCoat
- Grille: 18 AWG steel with powdercoat
- Power Consumption: 100 – 240 V~, 50 – 60 Hz, 1.8 A
- Dimensions (H x W x D): 600 x 507 x 574 mm
- Weight Net: 29.0 kg
- Shipping Weight: 33.1 kg
Ultimax UTX 325 Specifications:
- Height Adjustment: 1250mm – 2000mm
- Maximum Load: 40kg per stand
- Tube Diameter: 35mm
- Weight: 3.7kg per stand
- Construction: Aluminium
- Finish: Black or White
- Included Accessories: Padded carry bag (fits both stands)
StageCore XLR Cable Specifications:
- Oxygen-Free Cooper
- Strong and Durable
- RohS Compliant
- Colour: Black
- Lengths: 6m
- Limited Lifetime Warranty
