Ecler NIMBO-14 4" High-Performance Wall Speaker (Single) IP44 Rated 40W/8Ω – White, Black, Gold, or Titanium
DETAILS
Stylish, Compact Wall Speaker from Ecler with Wide Dispersion and Premium Sound.
The Ecler NIMBO-14 is a high-performance 4" passive wall speaker designed for premium audio installations in bars, restaurants, retail stores, hotels, and other commercial environments.
It combines exceptional sound quality with a compact, architecturally-inspired design, developed in collaboration with interior designers and architects for both indoor and protected outdoor use.

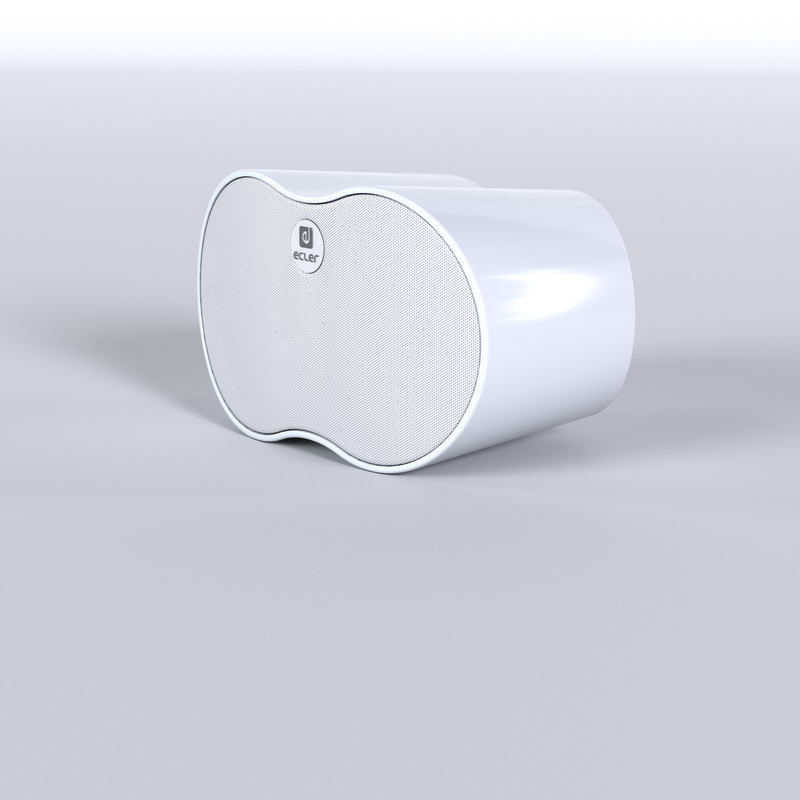

This 2-way full-range loudspeaker features a 4" woofer with a 4-layer voice coil and a centrally-aligned 1" silk dome tweeter, designed to act as a single-point source for even sound dispersion across wide areas. The glass fibre-reinforced ABS enclosure is both durable and acoustically inert, while the weather-resistant IP44 rating ensures the NIMBO-14 is suitable for covered outdoor spaces such as patios and terraces.

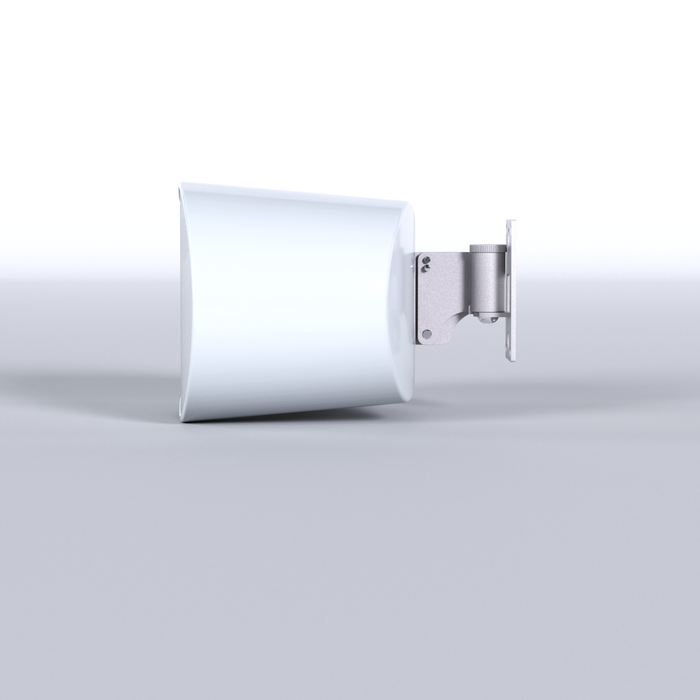

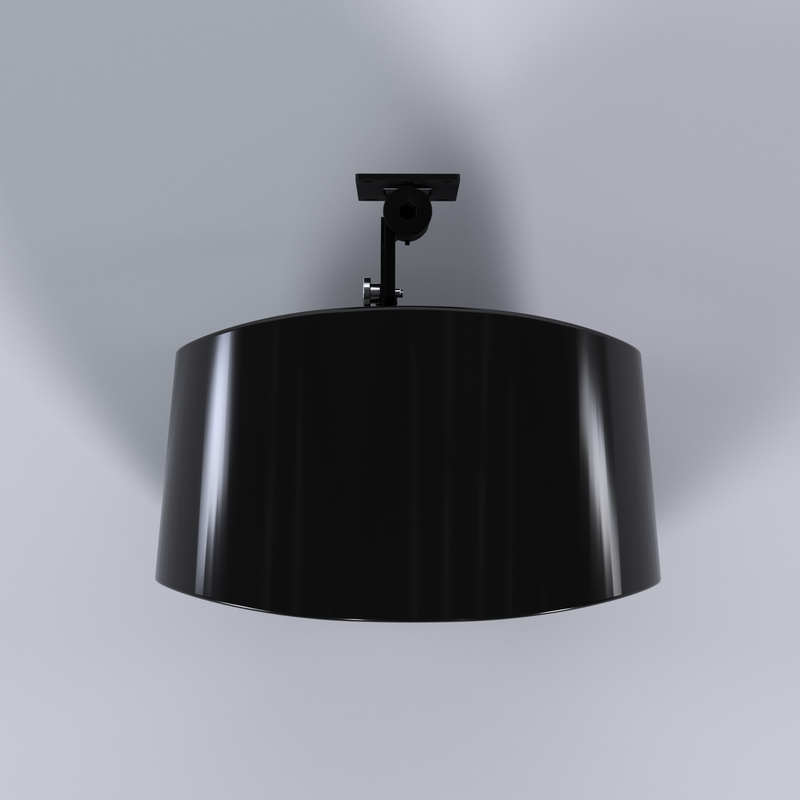

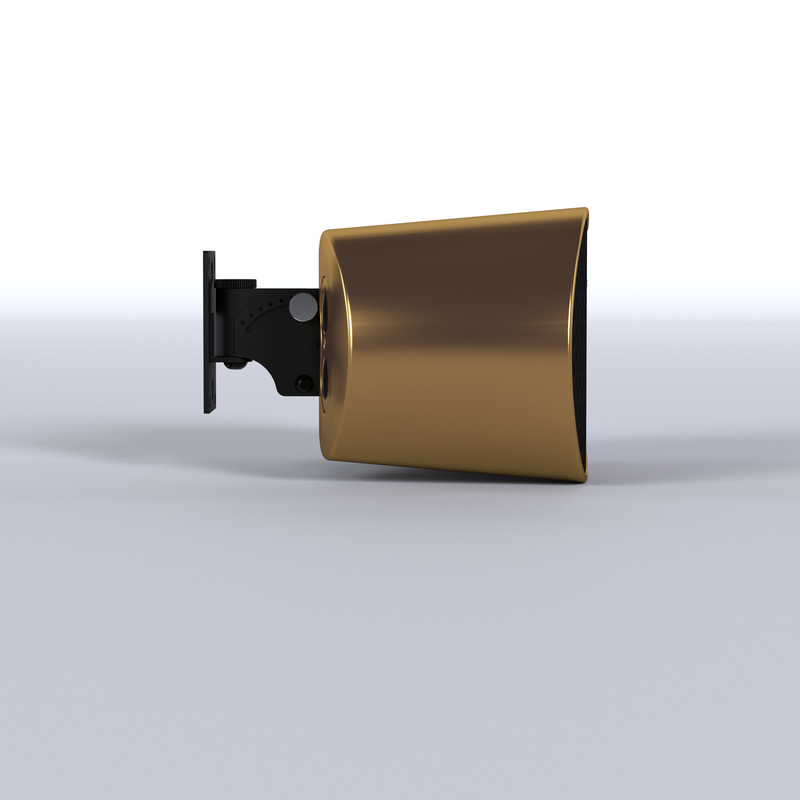

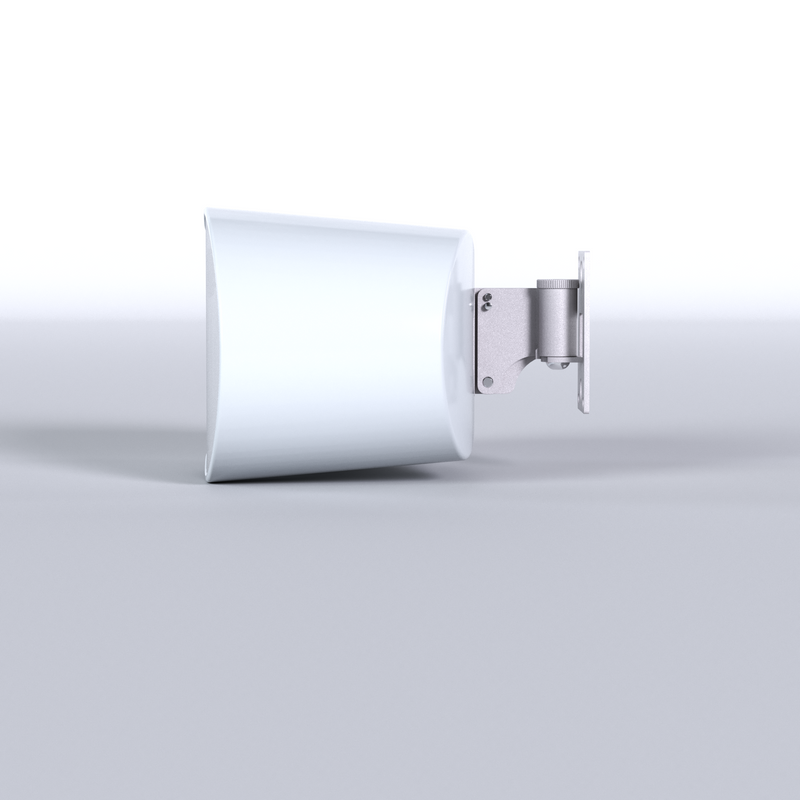

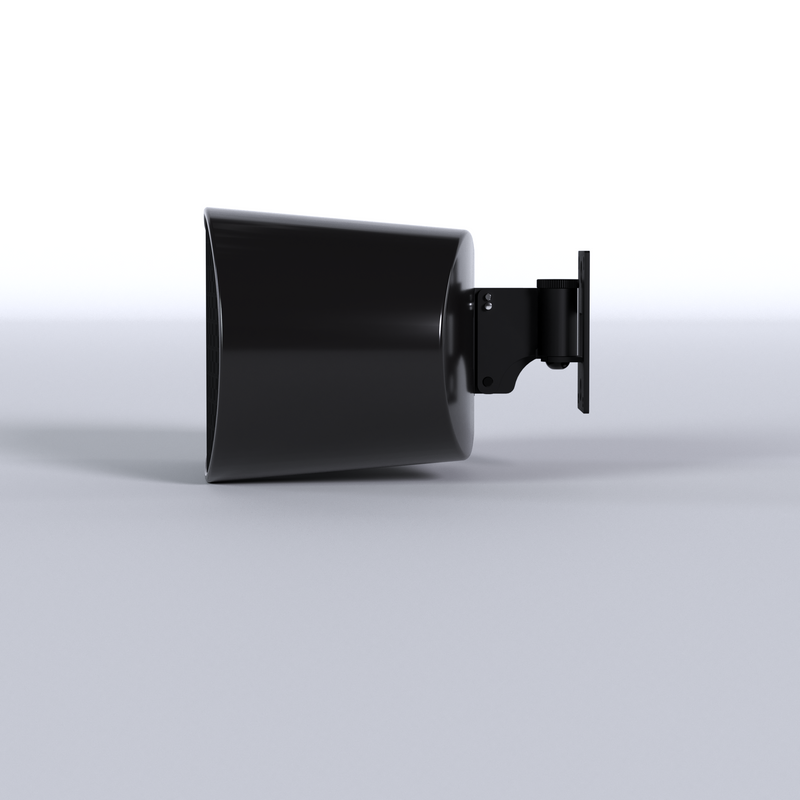

Each speaker is supplied with Ecler's HANDY wall-mount bracket in stainless steel, offering precise pan and tilt adjustment from a single screw. Available in four elegant finishes – White, Black, Gold, or Titanium – the NIMBO-14 offers both versatility and design sophistication.
Ecler NIMBO-14 Key Features:
- Premium 2-Way Passive Design: With 4" woofer and 1" silk dome tweeter for balanced, full-range sound
- Compact Yet Powerful: 40W RMS power handling (160W peak), suitable for commercial venues
- Wide Dispersion Pattern: 128° x 196° coverage for even sound distribution
- Weather-Resistant Build: IP44 rated for protected outdoor use
- Elegant Modern Aesthetic: Designed in collaboration with architects and interior designers
- Strong, Non-Resonant Enclosure: Glass fibre-reinforced ABS cabinet with aluminium grille

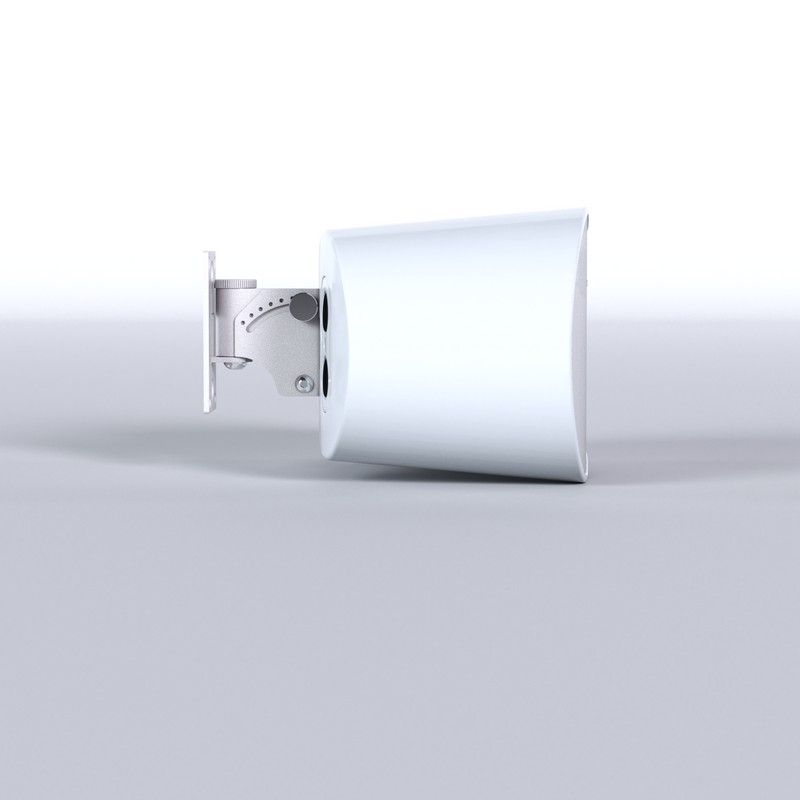

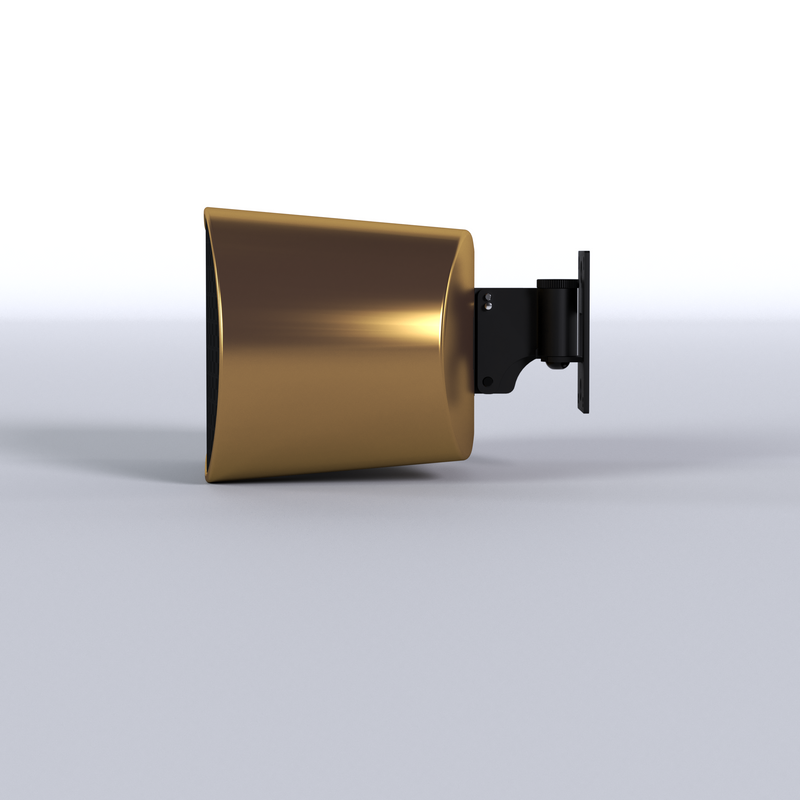

- Handy Bracket System: Inox wall mount with single-screw pan and tilt adjustment

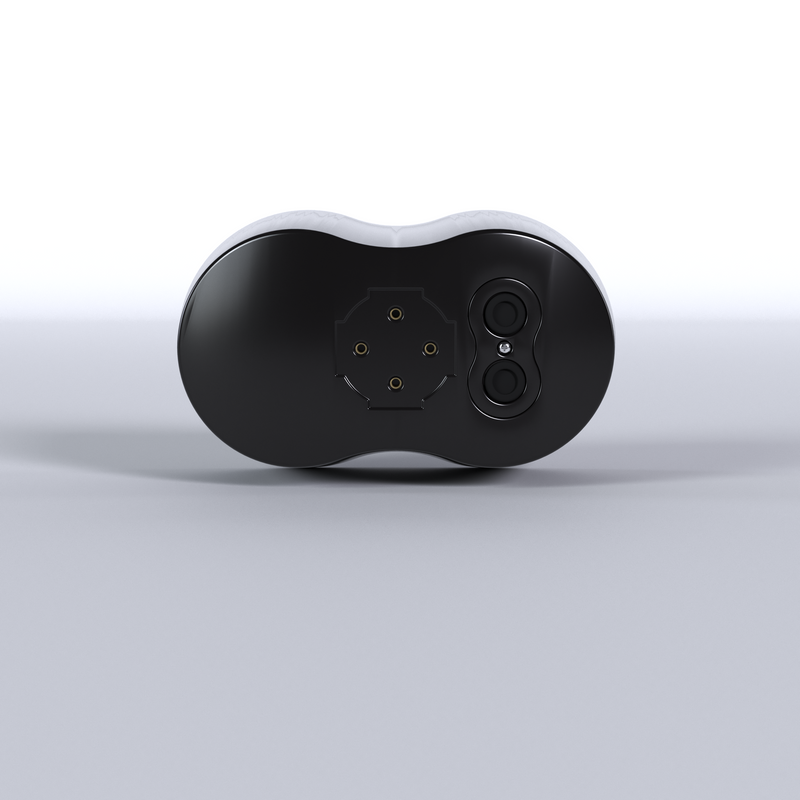

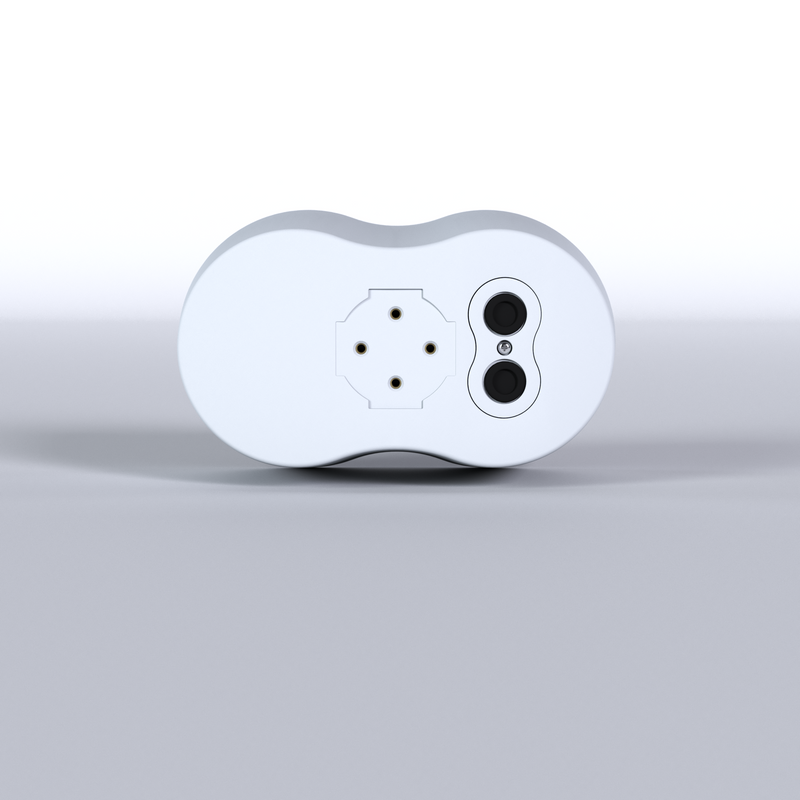

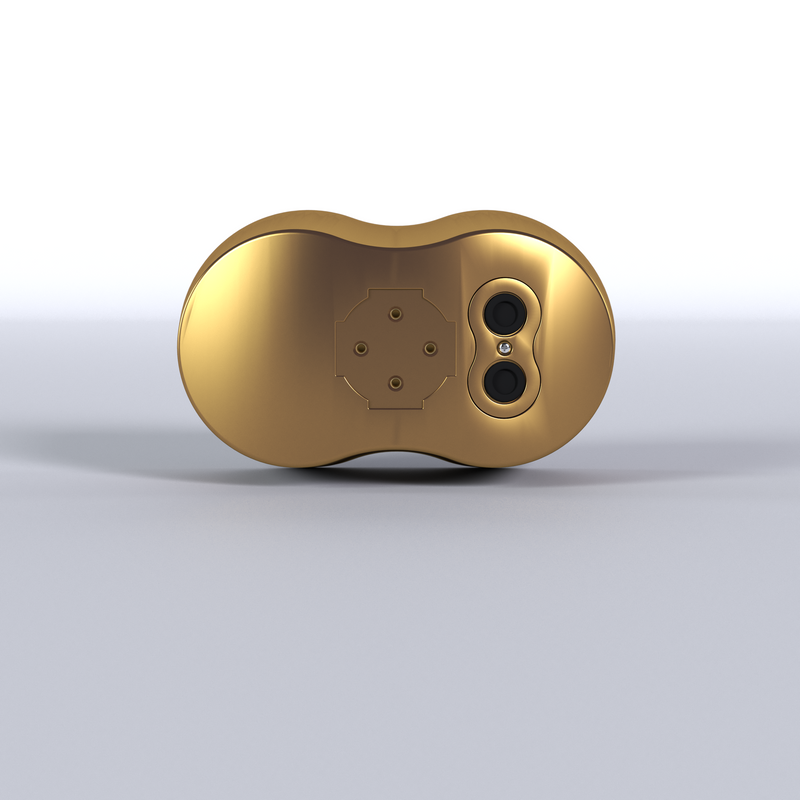

- Flexible Connectivity: Dual Euroblock connectors for input and link-through

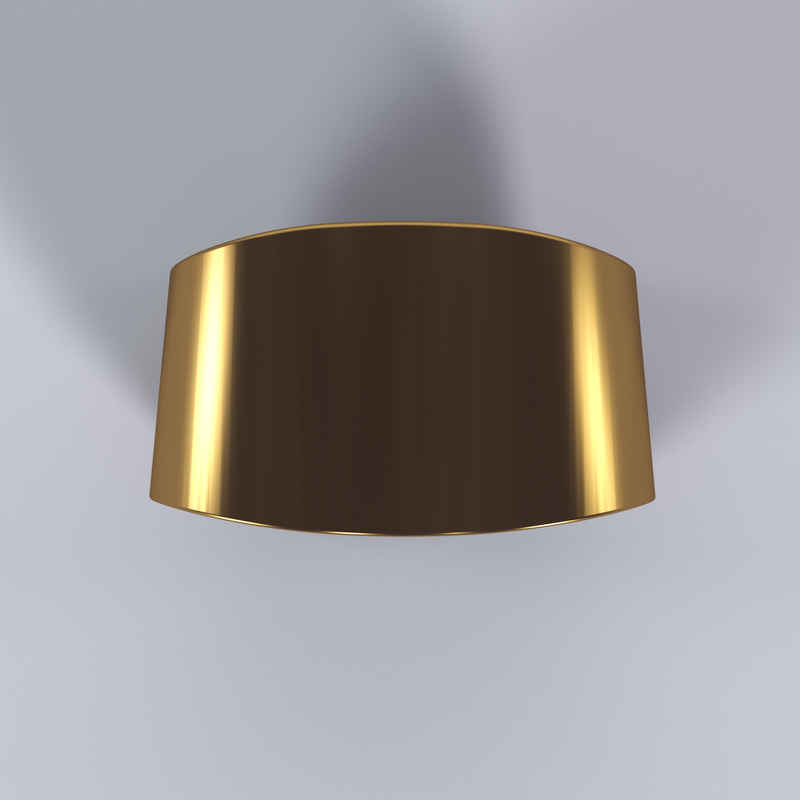

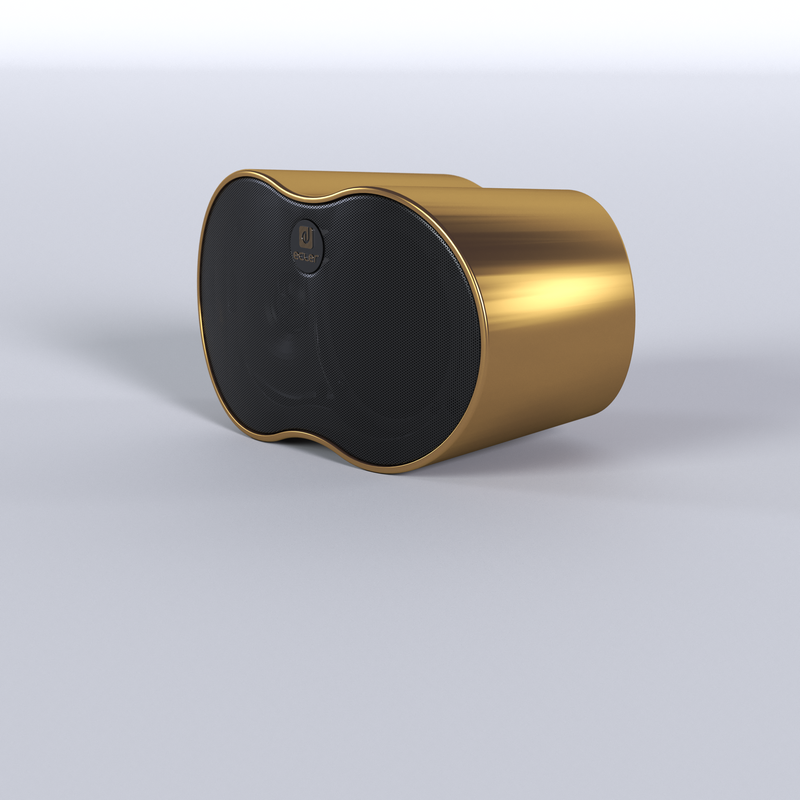

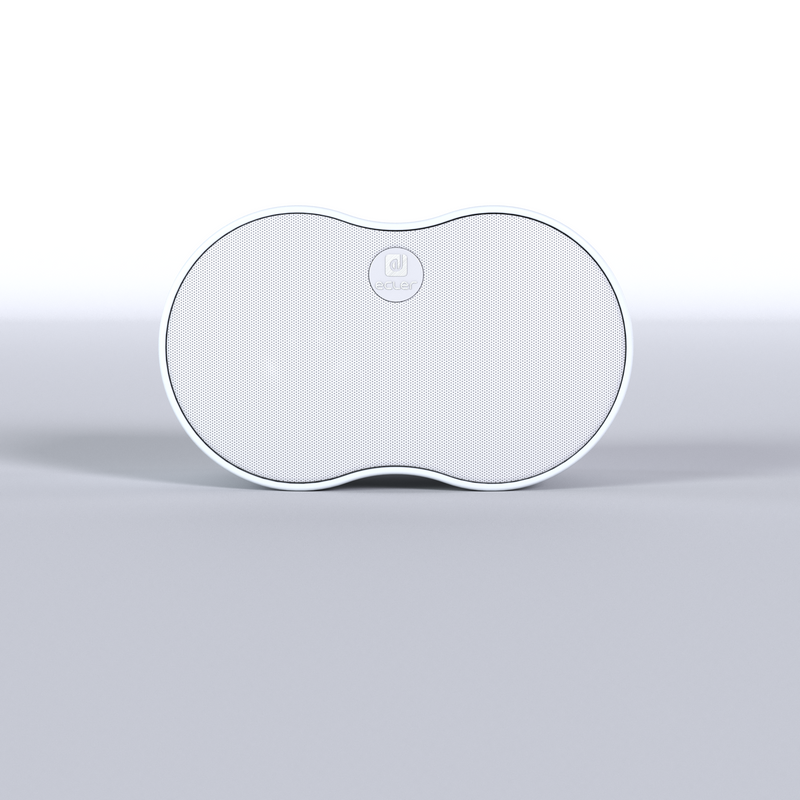

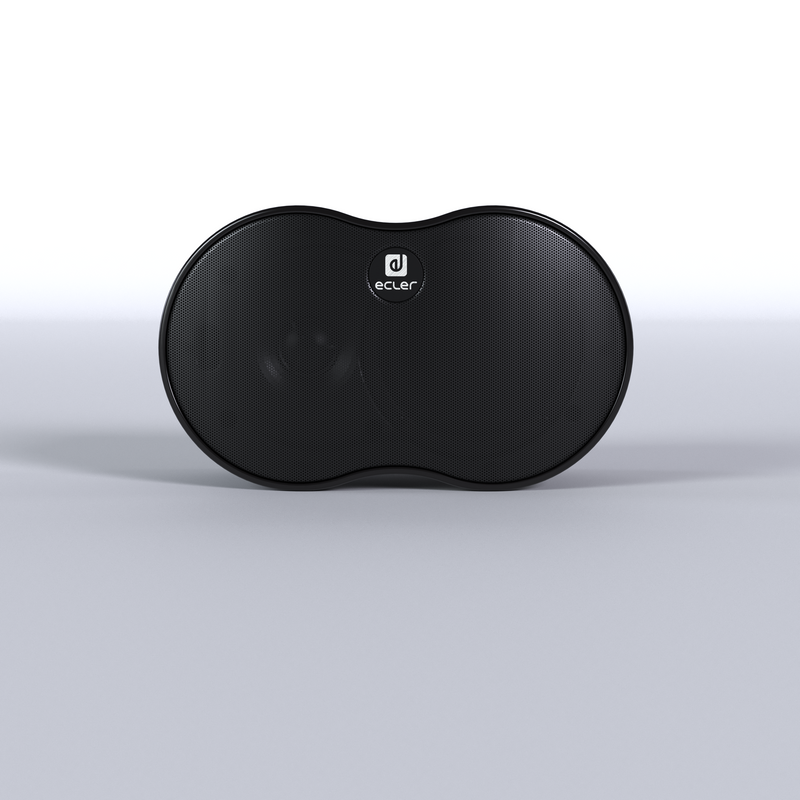

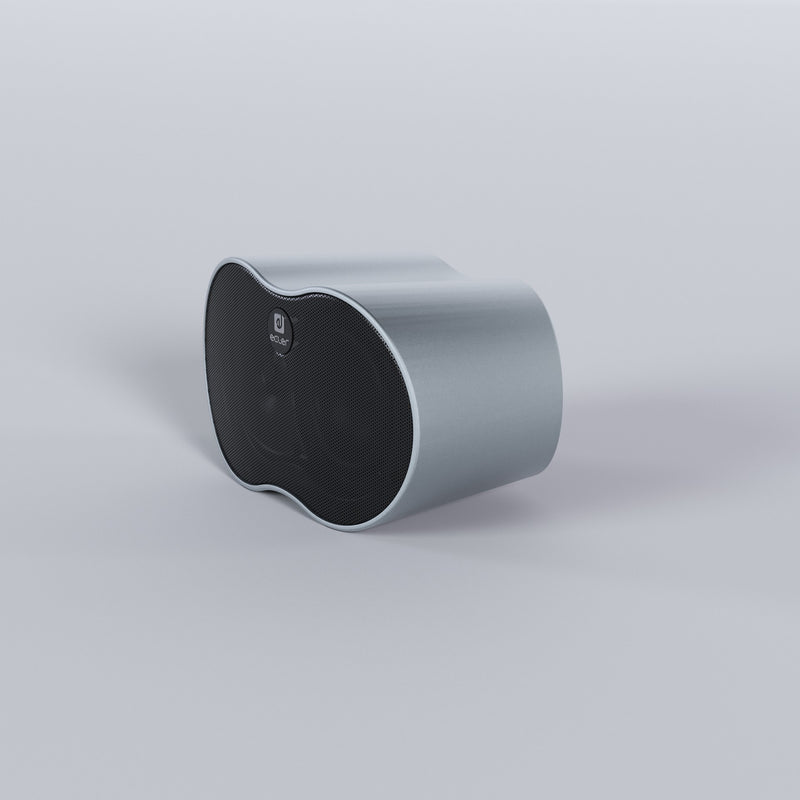

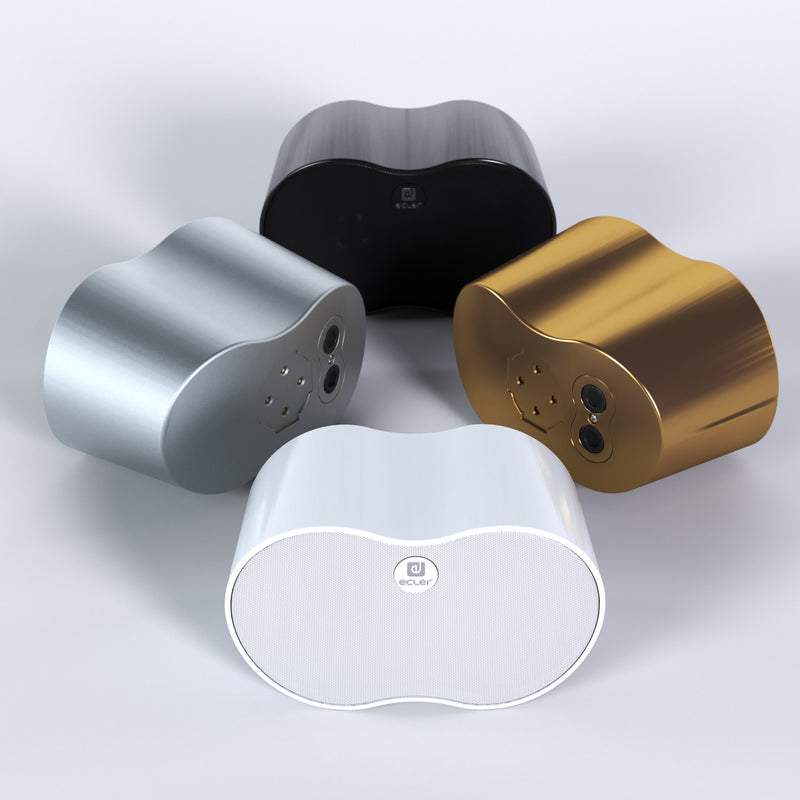

- Available in 4 Colours: White (RAL9003), Black (RAL9005), Gold (RAL1036), and Titanium (RAL9007 MATT)
- Sold Singly: Priced and supplied per speaker
SPECS & DOWNLOADS
Ecler NIMBO-14 Specifications
Download the PDF Data Sheet HERE >
- Power Handling: 40W RMS / 160W Peak
- Recommended Amplifier Power: 80W RMS
- Nominal Impedance: 8Ω
- Frequency Response: 75 Hz – 20 kHz (-10 dB)
- Sensitivity: 81 dB (1W/1m)
- Max SPL: 97 dB continuous / 103 dB peak
- Crossover Frequency: 1.65 kHz
- Drivers: 1 x 4" woofer, 1 x 1" silk dome tweeter
- Coverage Angle: 128° (H) x 196° (V)
- Connection Type: Double INPUT/LINK Euroblock connectors
- Enclosure Material: ABS reinforced with glass fibre
- Grille Material: Aluminium, pressure mounted
- Mounting Bracket: Inox wall bracket with pan/tilt
- IP Rating: IP44 (weather-protected)
- Operating Temperature: -20°C to 70°C
- Operating Humidity: <85% RH
- Dimensions: 250 x 148.7 x 150 mm (WxHxD)
- Weight: 1.7 kg
- Included Accessories: Wall bracket, 2x Euroblock connectors
- Optional Accessories: GROUNDY and CEILY brackets
- Finish Options: White, Black, Gold, Titanium
- Shipping Dimensions: 330 x 250 x 240 mm
-
Shipping Weight: 2.7 kg
