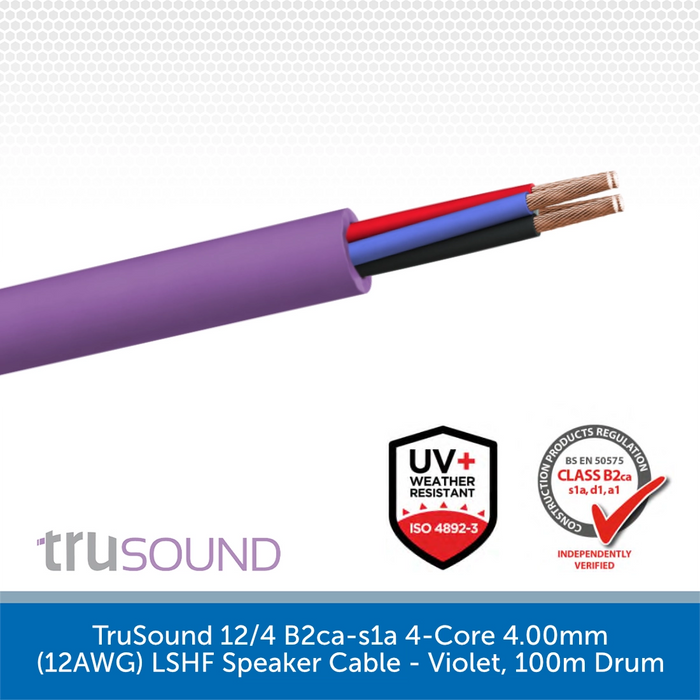

TruSound 12/4 B2ca-s1a 4-Core 4.00mm (12AWG) LSHF Speaker Cable - Violet, 100m Drum

Name: TruSound 12/4 B2ca-s1a 4-Core 4.00mm (12AWG) LSHF Speaker Cable - Violet, 100m Drum
Brand: TruSound
SKU: TSS04004H06-B204
Price: 749.0 GBP
Availability: InStock

by TruSound

SKU TSS04004H06-B204

£749.00 (inc. VAT) - £749.00 (inc. VAT)

£749.00 (inc. VAT)

£749.00 (inc. VAT) - £749.00 (inc. VAT)

£749.00 (inc. VAT)

DETAILS

The TruSound 12/4 is a CPR-rated B2ca 4-Core 4.0mm LSHF Speaker Cable, engineered for 100V line and low impedance installs in public buildings and high-rise developments.

The TruSound 12/4 B2ca speaker cable is the correct specification choice for fixed 100V line and low impedance audio installations in environments including schools and universities, hospitals and healthcare facilities, airports and transport hubs, cinemas and theatres, hotels and hospitality venues, offices and commercial buildings, high-rise residential tower blocks, underground rail networks, tunnels and stations.

What is B2ca and Why Does it Matter?

For contractors, installers, electricians and specifiers working on projects in schools, hospitals, airports, hotels, offices, high-rise residential developments, underground rail networks and other high-occupancy or high-risk environments, cable fire safety classification is not optional — it is a legal and regulatory requirement. The TruSound 12/4 achieves a B2ca-s1a, d1, a1 CPR classification under EN50575:2014+A1:2016, one of the highest Euroclass fire ratings available for cables under the Construction Products Regulation (CPR).

B2ca indicates extremely limited flame spread and minimal heat release in the event of a fire. The additional classifications are equally important: s1a denotes very low smoke production, d1 indicates no flaming droplets or particles, and a1 confirms minimal acidity of combustion gases. Combined with its Low Smoke Halogen Free (LSHF) construction, the TruSound 12/4 produces minimal smoke and releases no toxic halogen gases in a fire situation — helping to maintain safe evacuation routes and limiting damage to sensitive equipment and building infrastructure.

The Ultimate in Fixed Installation Speaker Cable

The TruSound 12/4 represents the most capable and heavy-duty option in the TruSound B2ca speaker cable range — combining the heaviest available conductor gauge with a four-core configuration for the most demanding permanent fixed installation scenarios. The 4-core 4.0mm (12AWG) construction is the ideal specification choice for complex, high-power installations where multiple circuits, extended cable runs and maximum current carrying capacity are all required simultaneously. Whether used for dual-zone high-power low impedance feeds, bi-amplified main speaker trunk runs, large-scale 100V line distribution networks or combined signal and return paths across airports, underground rail networks, large hospitals and similar high-demand environments, the TruSound 12/4 provides the headroom, reliability and fire safety compliance that the most critical installations demand. The stranded oxygen-free bare copper conductors ensure exceptional signal conductivity and long-term reliability, whilst the dual-layer Low Smoke Halogen Free insulation and sheathing provide robust mechanical protection alongside the cable's outstanding fire performance credentials.

The distinctive violet sheath makes the TruSound 12/4 immediately identifiable on site and within installation pathways — a practical benefit for installers and maintenance engineers working within complex multi-cable building environments. The four cores are identified by Red, Blue, Black and White colour coding for straightforward and consistent termination throughout the installation.

Compliance You Can Rely On

The TruSound 12/4 carries a comprehensive suite of compliance certifications to give contractors, specifiers and building control professionals complete confidence in the product. In addition to its B2ca CPR classification, the cable is compliant with BS EN 60332-1-2 for flame retardancy, BS EN 61034-2 for low smoke generation and BS EN 60754-1&2 for halogen gas emission. It is RoHS and CE compliant under LVD (2014/35/EU) and CPR (305/2011), and has been UV and weather tested to ISO 4892-3 for reliable performance in exposed installation environments. The cable carries a voltage rating of 450/750V and has been test voltage rated at 2.5kV for 5 minutes.

TruSound TSS04004H06-B204 Key Features:

B2ca-s1a, d1, a1 CPR Rated: Achieves one of the highest Euroclass fire ratings for cables under EN50575:2014+A1:2016, meeting the most stringent fire safety requirements for public and commercial buildings.
Low Smoke Halogen Free (LSHF): Both insulation and sheath are LSHF rated, producing minimal smoke and no toxic halogen gases in the event of a fire to maintain safe evacuation routes.
Stranded Oxygen-Free Bare Copper Conductors: High-purity OFC conductors for exceptional signal conductivity, low resistance and long-term reliability in permanent installations.
4-Core 4.0mm (12AWG) Construction: The most capable option in the TruSound B2ca range, combining maximum conductor gauge with four-core flexibility for the most complex and demanding fixed installation scenarios.
Maximum Current Carrying Capacity: The 4.0mm conductor cross-section provides the highest current carrying capacity in the range, ideal for high-power low impedance main feeds and large-scale distributed audio trunk runs.
Dual-Zone & Bi-Amp Capability: Four-core configuration supports dual-zone high-power low impedance feeds, bi-amplified speaker systems and combined signal and return path applications.
Distinctive Violet Sheath: Easily identifiable on site and within cable pathways for straightforward maintenance and identification.
Red, Blue, Black & White Core Identification: Clear four-core colour coding for consistent, error-free termination throughout the installation.
450/750V Voltage Rating: Suitable for a wide range of building audio and PA system installations.
Flame Retardant: BS EN 60332-1-2 compliant.
Low Smoke Generation: BS EN 61034-2 compliant.
Halogen Free: BS EN 60754-1&2 compliant.
RoHS & CE Compliant: LVD (2014/35/EU) and CPR (305/2011).
UV & Weather Tested: ISO 4892-3 for reliable performance in exposed environments.
100m Drum: Generous drum length for large-scale commercial and public sector installations.

SPECS & DOWNLOADS

Download the PDF Spec Sheet HERE >

TruSound TSS04004H06-B204 Specifications:

Cable Type: 4-core speaker cable
Conductor Size: 4.0mm² (12AWG)
Conductor Material: Stranded oxygen-free bare copper (OFC)
Number of Cores: 4
Core Identification: Red, Blue, Black, White
Insulation Material: Low Smoke Halogen Free (LSHF)
Sheath Material: Low Smoke Halogen Free (LSHF)
Sheath Colour: Violet
Voltage Rating: 450/750V
Test Voltage: 2.5kV for 5 minutes
Insulation Resistance: > 200 MΩ.M
Minimum Bend Radius: 15 x OD
CPR Classification: B2ca s1a, d1, a1 (EN50575:2014+A1:2016)
Flame Retardant: BS EN 60332-1-2
Low Smoke Generation: BS EN 61034-2
Halogen Gas Emission: BS EN 60754-1&2
RoHS Compliant: Yes
CE Compliant: LVD (2014/35/EU), CPR (305/2011)
UV & Weather Tested: ISO 4892-3
Drum Length: 100m

}
