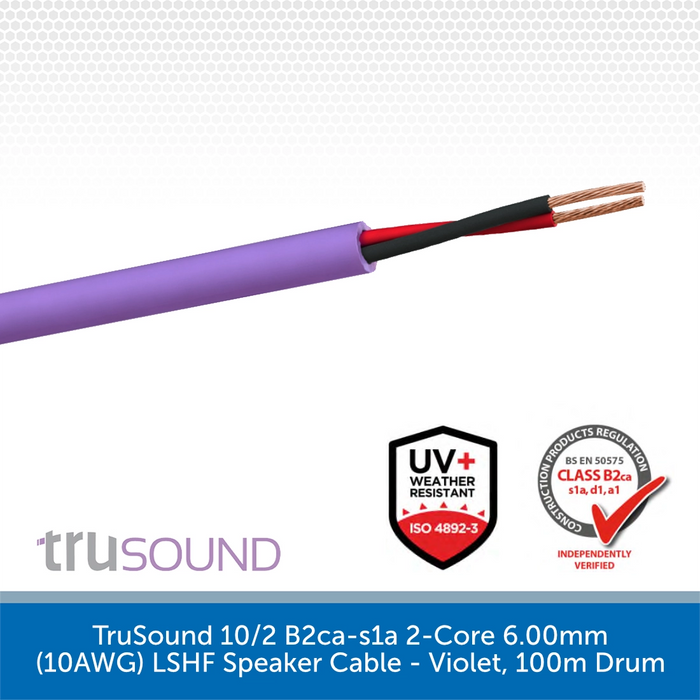

TruSound 10/2 B2ca-s1a 2-Core 6.00mm (10AWG) LSHF Speaker Cable - Violet, 100m Drum

Name: TruSound 10/2 B2ca-s1a 2-Core 6.00mm (10AWG) LSHF Speaker Cable - Violet, 100m Drum
Brand: TruSound
SKU: TSS06002H06-B204
Price: 519.0 GBP
Availability: InStock

by TruSound

SKU TSS06002H06-B204

£519.00 (inc. VAT) - £519.00 (inc. VAT)

£519.00 (inc. VAT)

£519.00 (inc. VAT) - £519.00 (inc. VAT)

£519.00 (inc. VAT)

DETAILS

The TruSound 10/2 is a CPR-rated B2ca 2-Core 6.0mm LSHF Speaker Cable, engineered for 100V line and low impedance installs in public buildings and high-rise developments.

The TruSound 10/2 B2ca speaker cable is the correct specification choice for fixed 100V line and low impedance audio installations in environments including schools and universities, hospitals and healthcare facilities, airports and transport hubs, cinemas and theatres, hotels and hospitality venues, offices and commercial buildings, high-rise residential tower blocks, underground rail networks, tunnels and stations.

What is B2ca and Why Does it Matter?

For contractors, installers, electricians and specifiers working on projects in schools, hospitals, airports, hotels, offices, high-rise residential developments, underground rail networks and other high-occupancy or high-risk environments, cable fire safety classification is not optional — it is a legal and regulatory requirement. The TruSound 10/2 achieves a B2ca-s1a, d1, a1 CPR classification under EN50575:2014+A1:2016, one of the highest Euroclass fire ratings available for cables under the Construction Products Regulation (CPR).

B2ca indicates extremely limited flame spread and minimal heat release in the event of a fire. The additional classifications are equally important: s1a denotes very low smoke production, d1 indicates no flaming droplets or particles, and a1 confirms minimal acidity of combustion gases. Combined with its Low Smoke Halogen Free (LSHF) construction, the TruSound 10/2 produces minimal smoke and releases no toxic halogen gases in a fire situation — helping to maintain safe evacuation routes and limiting damage to sensitive equipment and building infrastructure.

Maximum Conductor Gauge for the Most Demanding Installations

The TruSound 10/2 is the highest gauge cable in the TruSound B2ca speaker cable range, and has been engineered to meet the requirements of the most demanding, highest-power and longest-run permanent fixed installation scenarios. The 2-core 6.0mm (10AWG) conductor cross-section delivers the lowest possible line resistance and highest current carrying capacity available in the range — making it the definitive specification choice for main amplifier trunk runs, long-distance low impedance speaker feeds and high-power distributed audio infrastructure across the largest and most complex commercial and public sector environments. Whether feeding main PA amplifier banks across an international airport terminal, running trunk cables through the risers of a high-rise tower block, or delivering high-power audio across an underground rail network, the TruSound 10/2 provides the electrical performance, fire safety compliance and long-term reliability that mission-critical installations demand. The stranded oxygen-free bare copper conductors ensure exceptional signal conductivity, whilst the dual-layer Low Smoke Halogen Free insulation and sheathing provide robust mechanical protection alongside the cable's outstanding fire performance credentials.

The distinctive violet sheath makes the TruSound 10/2 immediately identifiable on site and within installation pathways — a practical benefit for installers and maintenance engineers working within complex multi-cable building environments. The two cores are identified by Red and Blue colour coding for straightforward and consistent termination throughout the installation.

Compliance You Can Rely On

The TruSound 10/2 carries a comprehensive suite of compliance certifications to give contractors, specifiers and building control professionals complete confidence in the product. In addition to its B2ca CPR classification, the cable is compliant with BS EN 60332-1-2 for flame retardancy, BS EN 61034-2 for low smoke generation and BS EN 60754-1&2 for halogen gas emission. It is RoHS and CE compliant under LVD (2014/35/EU) and CPR (305/2011), and has been UV and weather tested to ISO 4892-3 for reliable performance in exposed installation environments. The cable carries a voltage rating of 450/750V and has been test voltage rated at 2.5kV for 5 minutes.

TruSound TSS06002H06-B204 Key Features:

B2ca-s1a, d1, a1 CPR Rated: Achieves one of the highest Euroclass fire ratings for cables under EN50575:2014+A1:2016, meeting the most stringent fire safety requirements for public and commercial buildings.
Low Smoke Halogen Free (LSHF): Both insulation and sheath are LSHF rated, producing minimal smoke and no toxic halogen gases in the event of a fire to maintain safe evacuation routes.
Stranded Oxygen-Free Bare Copper Conductors: High-purity OFC conductors delivering the lowest possible line resistance and highest current carrying capacity in the TruSound B2ca range.
2-Core 6.0mm (10AWG) Construction: The largest conductor gauge in the TruSound B2ca range, purpose-built for the longest cable runs and highest-power low impedance and 100V line installations.
Lowest Line Resistance in the Range: The 6.0mm conductor cross-section minimises signal loss and voltage drop over the longest cable runs in large-scale commercial and public sector installations.
Maximum Current Carrying Capacity: Ideal for main PA amplifier trunk runs, high-rise riser cables and high-power distributed audio infrastructure across airports, rail networks and large hospitals.
Distinctive Violet Sheath: Easily identifiable on site and within cable pathways for straightforward maintenance and identification.
Red & Blue Core Identification: Clear core colour coding for consistent, error-free termination throughout the installation.
450/750V Voltage Rating: Suitable for a wide range of building audio and PA system installations.
Flame Retardant: BS EN 60332-1-2 compliant.
Low Smoke Generation: BS EN 61034-2 compliant.
Halogen Free: BS EN 60754-1&2 compliant.
RoHS & CE Compliant: LVD (2014/35/EU) and CPR (305/2011).
UV & Weather Tested: ISO 4892-3 for reliable performance in exposed environments.
100m Drum: Generous drum length for large-scale commercial and public sector installations.

SPECS & DOWNLOADS

Download the PDF Spec Sheet HERE >

TruSound TSS06002H06-B204 Specifications:

Cable Type: 2-core speaker cable
Conductor Size: 6.0mm² (10AWG)
Conductor Material: Stranded oxygen-free bare copper (OFC)
Number of Cores: 2
Core Identification: Red, Blue
Insulation Material: Low Smoke Halogen Free (LSHF)
Sheath Material: Low Smoke Halogen Free (LSHF)
Sheath Colour: Violet
Voltage Rating: 450/750V
Test Voltage: 2.5kV for 5 minutes
Insulation Resistance: > 200 MΩ.M
Minimum Bend Radius: 15 x OD
CPR Classification: B2ca s1a, d1, a1 (EN50575:2014+A1:2016)
Flame Retardant: BS EN 60332-1-2
Low Smoke Generation: BS EN 61034-2
Halogen Gas Emission: BS EN 60754-1&2
RoHS Compliant: Yes
CE Compliant: LVD (2014/35/EU), CPR (305/2011)
UV & Weather Tested: ISO 4892-3
Drum Length: 100m

}
