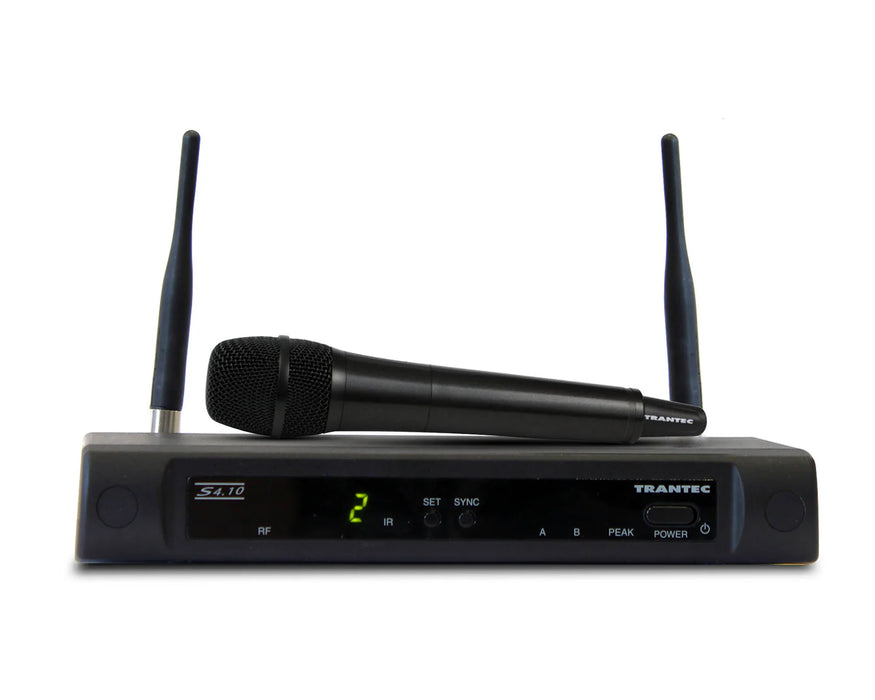

Trantec S4.10H UHF Wireless Handheld Microphone System with 16 Frequencies - CH38 or CH70
DETAILS
The Trantec S4.10H is a professional UHF Wireless Handheld Microphone System with 16 selectable frequencies, fully synthesised PLL quartz tuning and antenna diversity reception — available in Channel 38 or Channel 70, delivering reliable, high-performance wireless audio for live performances, presentations and events.
The Trantec S4.10H is a robust and reliable professional UHF wireless handheld microphone system designed for live vocal performances, presentations, conferences, houses of worship, schools and a wide range of event applications. Built around Trantec's fully synthesised PLL quartz tuning technology, the S4.10H delivers stable, interference-free UHF wireless performance with 16 selectable frequencies and support for up to 10 simultaneous channels — making it equally well suited to single microphone applications and larger multi-channel setups requiring several wireless systems operating concurrently.
The S4.10H is available in two frequency variants — Channel 70 and Channel 38 — please select your required version before adding to basket. Channel 70 operates within the licence-free UHF band, requiring no PMSE licence for use in the UK. Channel 38 offers an alternative frequency option and requires a PMSE licence for operation. Both variants deliver the same professional performance and feature set.
Reliable Diversity Reception

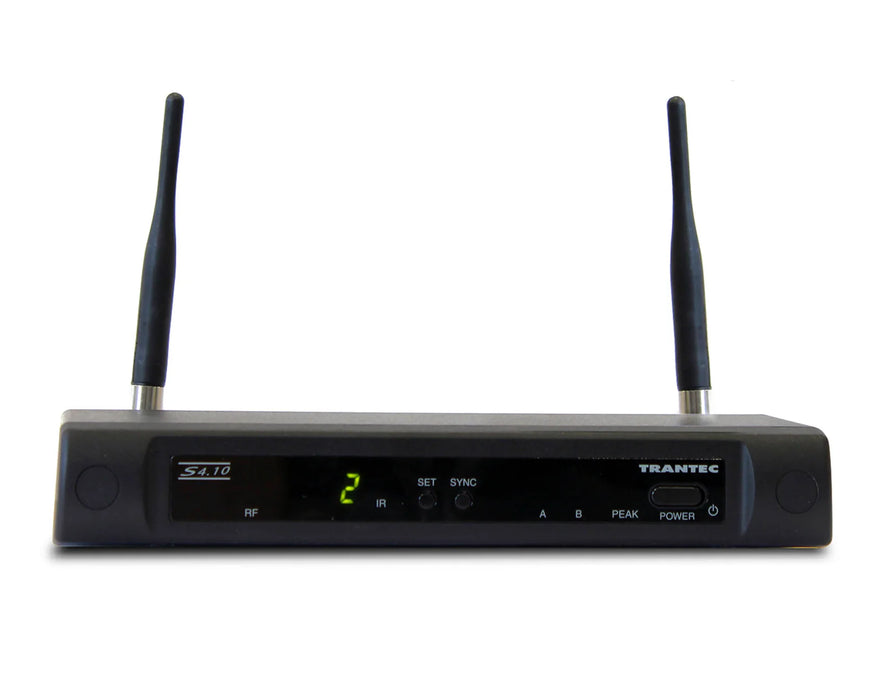

The S4.10H receiver features antenna diversity operation with a detachable antenna, ensuring consistent signal reception and minimising dropouts as the performer moves around the stage or venue. Receiver LEDs provide clear real-time monitoring of AF peak level, RF level and diversity channel A or B status — giving the operator a clear and instant overview of system performance at all times. Three squelch systems — Tone SQ, Carrier SQ and Noise SQ — work together to ensure a clean, noise-free output signal. The compact professional metal receiver chassis measures 215 x 39 x 102mm and can be used freestanding or rack-mounted in a standard 19" rack enclosure, with options for single or dual receiver mounting for permanent venue installations.

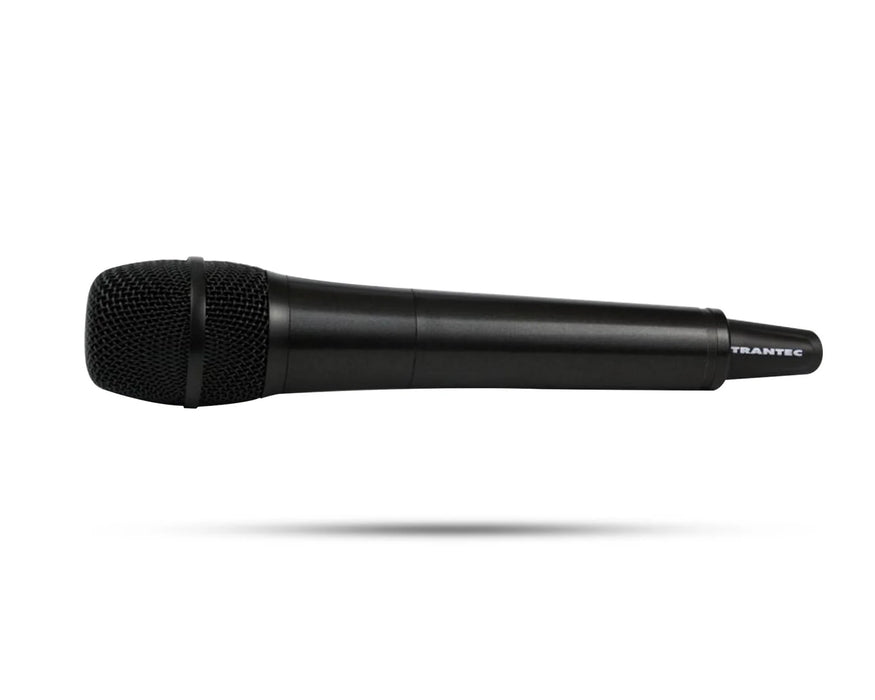

Handheld Transmitter
The S4.10H handheld transmitter delivers 10mW of RF carrier power with a maximum input SPL of 140dB for confident, distortion-free vocal capture at any volume level. Powered by a single AA alkaline battery, the transmitter provides approximately 10 hours of continuous use on a single battery — enough for a full day of back-to-back performances or events without the need for a battery change. The resin and coating finish transmitter measures 250 x 55mm and weighs just 245g with battery for comfortable extended handheld use.
Versatile Receiver Connectivity
The S4.10H receiver provides both balanced XLR (-20dBu) and unbalanced ¼" jack (+10dBu) audio outputs for straightforward connection to a wide range of PA amplifiers, mixers and installed audio systems, making it compatible with virtually any professional audio setup.
Trantec S4.10H Key Features:
- 16 Selectable Frequencies: Greater frequency flexibility than the S4.10W, with 16 options for interference-free operation in busy RF environments.
- Up to 10 Simultaneous Channels: Supports multi-microphone environments with up to 10 channels operating concurrently.
- Fully Synthesised PLL Quartz Tuning: Stable, reliable and interference-free UHF wireless performance.
- Antenna Diversity Reception: Minimises dropouts and ensures consistent signal reception across the performance or event space.
- Three Squelch Systems: Tone SQ, Carrier SQ and Noise SQ for a clean, noise-free output signal.
- Channel 70 or Channel 38 Available: Licence-free Channel 70 or Channel 38 (PMSE licence required) — select your required version before adding to basket.
- Approximately 10 Hours Battery Life: Single AA alkaline battery in the handheld for a full day of performances or events.
- 140dB Maximum Input SPL: Handles the highest vocal input levels without distortion.
- Compact Lightweight Handheld: 245g with battery and 250 x 55mm for comfortable extended use.
- Balanced XLR & Unbalanced Jack Outputs: Flexible receiver connectivity for PA systems, mixers and installed audio.
- Receiver LED Monitoring: AF peak level, RF level and diversity channel A/B status indicators.
- Professional Metal Receiver Enclosure: Robust construction for reliable long-term use in professional environments.
-
19" Rack Mountable: Single or dual receiver rack mounting option for permanent venue installations.
SPECS & DOWNLOADS
Trantec S4.10H Specifications:
Receiver
- Diversity Reception: Antenna diversity
- Sensitivity: 10uV at 45dBA S/N
- Squelch: Tone SQ, Carrier SQ, Noise SQ
- Audio Frequency Response: 50Hz – 15kHz
- Audio Output (Balanced XLR): -20dBu
- Audio Output (Unbalanced ¼" jack): +10dBu
- Power Supply: 12V DC, 500mA
- Dimensions (W x H x D): 215 x 39 x 102mm (excluding antenna and BNC)
- Weight: 480g
Handheld Transmitter
- RF Carrier Power: 10mW
- Audio Frequency Response: 80Hz – 15kHz
- Maximum Input SPL: 140dB
- Battery Life: Approx. 10 hours
- Power Supply: 1 x AA alkaline battery (1.5V)
- Finish: Resin coating
- Dimensions: 250 x 55mm
- Weight: 245g (with battery)
General
- Frequency Options: Channel 70 (licence-free) / Channel 38 (PMSE licence required)
- Selectable Frequencies: 16
- Simultaneous Channels: Up to 10
- Rack Mount: 19" option for 1 or 2 receivers
