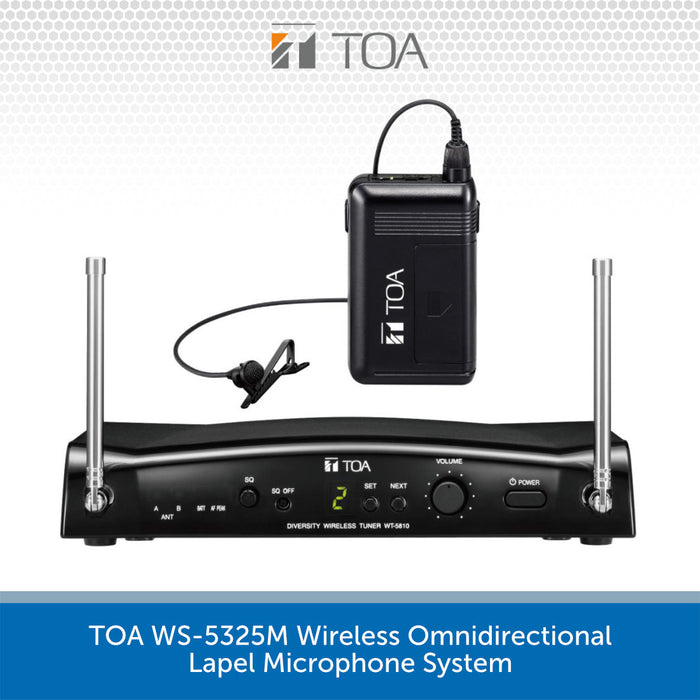

TOA WS-5325M Wireless Omnidirectional Lapel Microphone System

by TOA
SKU WS5325M
Original price £516.00 (inc. VAT) - Original price £516.00 (inc. VAT)
Original price
£516.00 (inc. VAT)
£516.00 (inc. VAT) - £516.00 (inc. VAT)
Current price £516.00 (inc. VAT)
DETAILS

A reliable UHF tie-clip microphone system designed for clear, hands-free presentations with a discreet profile.

A reliable, licence-compliant UHF headset microphone system designed for clear, hands-free presentations and active performers.

The TOA WS-5325M wireless system is perfect for presenters, instructors, fitness coaches, and performers who need complete freedom of movement. The system includes the WM-5325 beltpack transmitter, YPM-5300 unidirectional lavalier microphone, and WT-5810 true diversity receiver.

The YPM-5300 lapel microphone provides focused vocal pickup while minimising background noise, making it ideal for speech applications. Paired with the compact WM-5325 beltpack transmitter, the system offers stable UHF transmission with up to 64 selectable channels for flexible frequency management in busy RF environments.

Available on licensed Channel 38 or licence-free Channel 70, making it suitable for a wide range of UK installations.

TOA WS-5325M Key Features

  • Complete UHF lavalier wireless microphone system
  • Discreet tie-clip microphone for hands-free use
  • 64 selectable channels (beltpack transmitter)
  • Lightweight unidirectional electret condenser mic
  • Space diversity receiver for stable signal performance
  • Balanced XLR and jack outputs
  • Single AA battery operation (approx. 10 hours)
  • Available on Channel 38 or licence-free Channel 70
SPECS & DOWNLOADS

WM-5325 Beltpack Transmitter

  • Modulation: Frequency modulation

  • Frequency Range: 576 – 932 MHz, UHF

  • Selectable Channels: 64

  • RF Carrier Power: Under 50 mW

  • Tone Frequency: 32.768 kHz

  • Modulation System: PLL synthesizer

  • Maximum Input Level: –14 dB to –29 dB (audio level control: min to max)

  • Maximum Deviation: ±40 kHz

  • Battery: 1 × LR6 (AA)

  • Battery Life: Approx. 10 hours (alkaline)

  • Indicator: Power / Battery lamps

  • Antenna: Built-in

  • Operating Temperature: –10°C to +50°C

  • Finish: Resin with rubber coating

  • Dimensions: 62 (W) × 102.5 (H) × 23 (D) mm

  • Weight: 90 g (with battery)

YPM-5310 Omni-Directional Lavalier Microphone

  • Type: Electret condenser

  • Directivity: Omnidirectional

  • Sensitivity: –63 dB ±3 dB (0 dB = 1V/0.1 Pa, 1 kHz)

  • Frequency Response: 100 Hz – 12 kHz

  • Maximum Input Level: 120 dB SPL

  • Cable Length: 1.3 m

  • Connector: Ø3.5 mm mini plug

  • Finish: Dark black

  • Weight: 20 g (cable included)

WT-5810 Diversity Receiver

  • Power Requirement: AC mains (supplied AC-DC adapter)

  • Power Consumption: 130 mA (12V DC)

  • Receiving Frequency: 576 – 865 MHz, UHF

  • Selectable Channels: 16

  • Receiving System: Double super-heterodyne

  • Diversity System: Space diversity

  • Receiving Sensitivity: Over 90 dB S/N ratio (20 dBμV input, 40 kHz deviation)

  • Squelch Sensitivity: 18 – 40 dBμV variable

  • Squelch System: Noise SQ, carrier SQ and tone SQ combined

  • Tone Frequency: 32.768 kHz

  • S/N Ratio: Over 104 dB (A-weighted, unbalanced output)

  • Harmonic Distortion: Under 1% (typical)

  • Frequency Response: 100 – 15,000 Hz (±3 dB)

  • Mixing Output:

    • MIC: –60 dB, 600Ω, balanced (XLR-3-31)

    • LINE: –20 dB, 600Ω, unbalanced (phone jack)

  • Mixing Input: –20 dB, 10 kΩ, unbalanced (phone jack)

  • Antenna: Dual rod antennas

  • Indicators: ANT A/B, Audio (peak), battery alarm

  • Channel Check: Usable frequencies scanning

  • Operating Temperature: –10°C to +50°C

  • Finish: Resin, black

  • Dimensions: 206 (W) × 40.6 (H) × 152.7 (D) mm

  • Weight: 590 g



}
