Sennheiser XSW2-ME2 Wireless Beltpack/Lavalier Microphone System CH38
DETAILS
Sennheiser XSW2-ME2 Offers Reliable Hands-Free Wireless Audio.

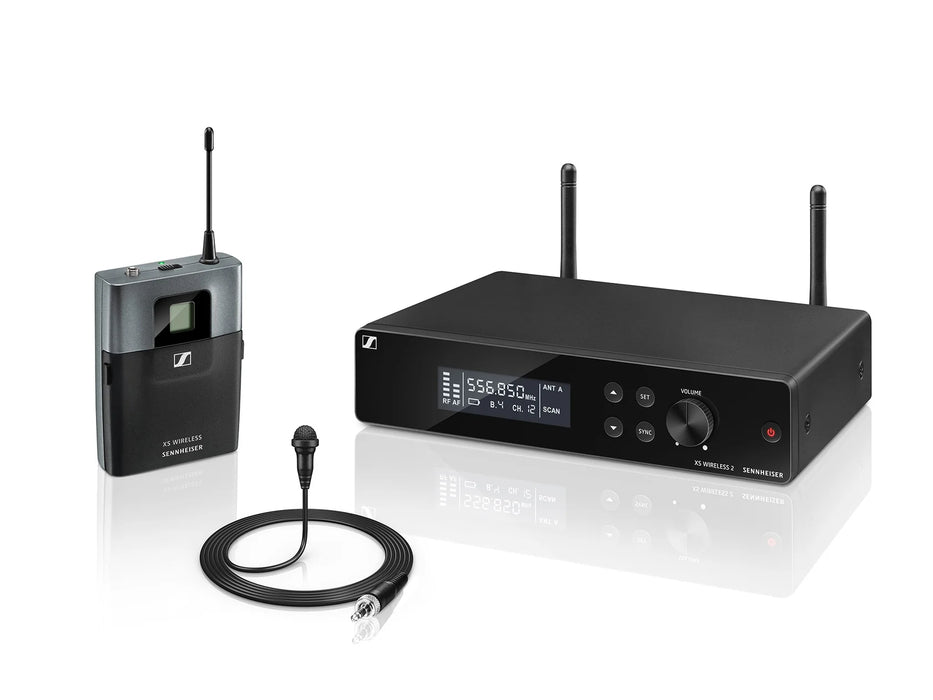

The Sennheiser XSW2-ME2 Wireless Lavalier Microphone System CH38 is a professional solution for presenters, moderators, schools, conferences, and places of worship. It combines natural, hands-free audio with a flexible, easy-to-use wireless system for speech and live performance applications.
Compact and discreet, the ME2 omnidirectional clip-on lavalier microphone captures clear and natural sound, while the lightweight bodypack transmitter provides freedom of movement. The system’s robust true diversity receiver with metal housing, external antennas, and included rackmount kit ensures stable UHF transmission with up to 12 compatible channels.
Featuring an intuitive LCD display, automatic frequency management, and simple one-touch synchronization, the XSW2-ME2 makes setup quick and reliable, even in demanding live environments. The bodypack transmitter runs on AA batteries for up to 10 hours, making it a dependable wireless microphone solution for extended use.
Sennheiser XSW2-ME2 Key Features:
- Omnidirectional Lavalier Microphone (ME2): Provides natural, hands-free audio for presentations and performances.
- Lightweight Bodypack Transmitter: Comfortable and allows complete freedom of movement.
- True Diversity Receiver: Ensures reliable signal reception with minimal dropouts.
- Rugged Metal Receiver Housing: Includes rackmount kit and external antennas for secure installations.
- UHF Operation (CH38): Operates within 606–630 MHz with up to 12 compatible channels.
- Easy Setup: Automatic frequency management and one-touch synchronization.
- Wide Switching Bandwidth: Up to 24 MHz for flexible channel selection.
-
Long Battery Life: Up to 10 hours with standard AA batteries.
SPECS & DOWNLOADS
Sennheiser XSW2-ME2 Specifications
System
- Frequency Range (CH38): 606–630 MHz
- Switching Bandwidth: Up to 24 MHz
- Frequency Banks: 8 banks, each with up to 12 preset channels
- Modulation: Wideband FM
- Diversity Reception: True Diversity
- RF Output Power: 10 mW
- Squelch: Adjustable (3 – 28 dBµV)
- Signal-to-Noise Ratio: ≥ 103 dBA
- THD: ≤ 0.9%
-
Operating Time: Up to 10 hours (transmitter)

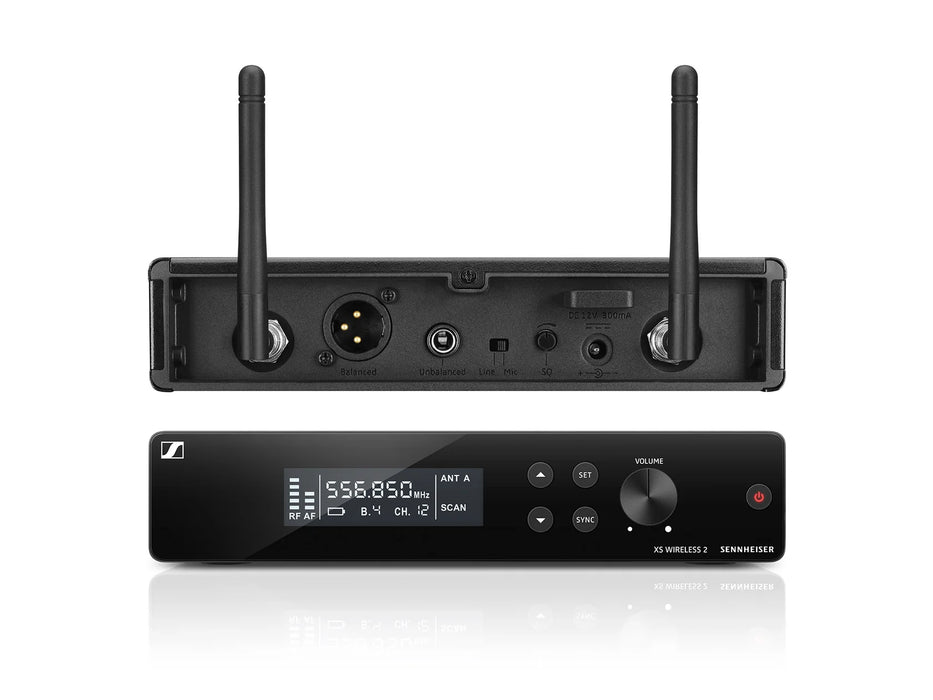

Receiver (EM-XSW2)
- Dimensions: 200 x 42 x 127 mm
- Weight: Approx. 680 g
- Housing: Metal
- Audio outputs: 6.3 mm jack (unbalanced) +6 dBu, XLR (balanced) +12 dBu
- Power supply: 12 V DC / 300 mA

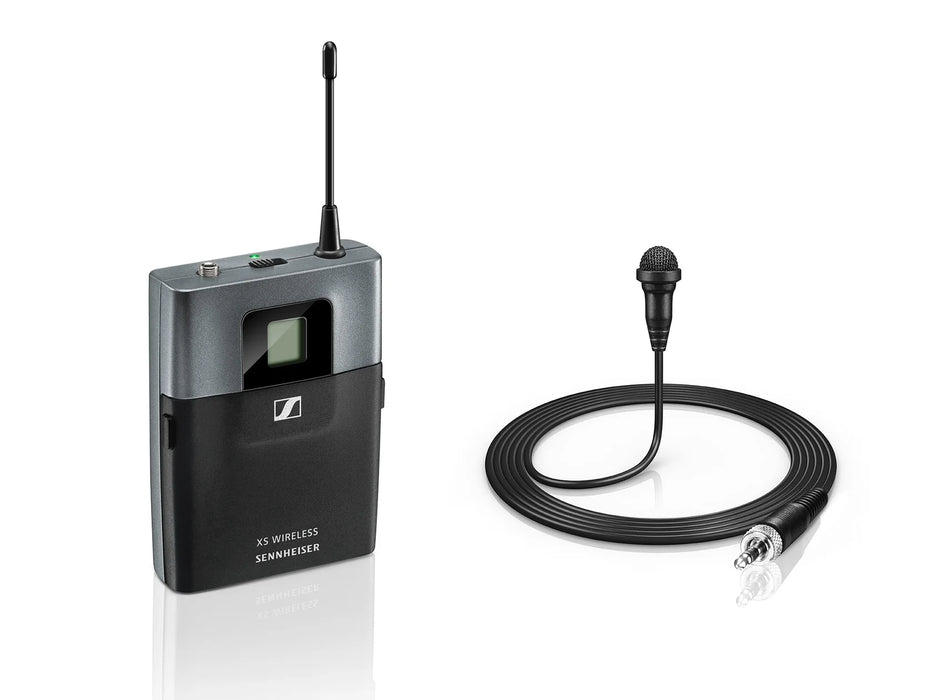

Bodypack Transmitter (SK-XSW)
- Dimensions: 71 x 96 x 28 mm
- Weight: Approx. 95 g
- Adjustment range: 0 to -30 dB, adjustable in 10 dB steps
- Line/Mic input: Switchable, 20 dB pad
- Battery life: Approx. 10 hours (2x AA batteries)
ME2 Lavalier Microphone
- Transducer principle: Electret condenser
- Pick-up pattern: Omnidirectional
- Frequency response: 50 Hz – 16 kHz (-3 dB)
- Cable length: 1.5 m (approx.)
