Sennheiser EW-D ME2/835-S Dual Digital Wireless Handheld & Beltpack Microphone System (S1-7) CH38
DETAILS
Sennheiser EW-D ME2/835-S: Dual Digital Wireless System with Handheld & Lavalier Microphones.
The Sennheiser EW-D ME2/835-S Dual Digital Wireless Microphone System combines the flexibility of a handheld transmitter with the discretion of a lavalier microphone, making it a versatile solution for live performance, speech, conferences, and places of worship. Operating on the S1-7 frequency range (606.2 – 662 MHz, Channel 38), it offers reliable licensed wireless performance in the UK.
This system includes the EW-D SKM-S handheld transmitter with MMD 835 capsule, delivering the renowned sound of the dynamic cardioid e 835 capsule, ideal for vocals and speech with excellent feedback rejection. It also comes with the EW-D SK bodypack transmitter paired with the ME 2 omnidirectional lavalier microphone, offering a discreet solution for presenters, theatre, and broadcast use.
The EW-D platform provides a 134 dB input dynamic range and 24-bit digital UHF transmission, ensuring crystal-clear audio without the need for sensitivity adjustments. With up to 90 channels, 56 MHz tuning bandwidth, and 2,240 selectable frequencies, the system delivers dependable multi-channel operation. Setup is streamlined with the Sennheiser Smart Assist App, which enables Bluetooth® Low Energy connection for easy syncing, frequency management, and remote control.
Both transmitters provide up to 8 hours of battery life with AA batteries or up to 12 hours with the optional BA 70 rechargeable battery pack, ensuring reliable performance for long events.
Sennheiser EW-D ME2/835-S Key Features:
- Dual System Flexibility: Includes both a handheld transmitter with e 835 capsule and a bodypack with ME 2 lavalier microphone.
- Renowned Sennheiser Sound: e 835 capsule for powerful vocals, ME 2 lavalier for discreet spoken word.
- Digital UHF Transmission: Operating on Channel 38 (606.2–662 MHz, UK licensed frequency range).
- Smart Assist App: Bluetooth® LE connection for quick setup, frequency scanning, and control.
- Wide Dynamic Range: 134 dB input range, eliminating the need for sensitivity adjustments.
- Scalable Multi-Channel Use: Up to 90 channels with intermodulation-free operation.
- Selectable Frequencies: 2,240 available with auto-scan functionality.
- Flexible Power Options: Up to 8 hrs with AA batteries or 12 hrs with optional BA 70 pack.
-
Lightweight & Practical: Handheld with mute switch, compact bodypack, and discreet lavalier.
SPECS & DOWNLOADS
Sennheiser EW-D ME2/835-S Specifications
Download the PDF Instruction Manual HERE >
System
- Frequency Range: S1-7 (606.2–662 MHz, CH38)
- Audio Frequency Response: 20 Hz – 20 kHz (-3 dB)
- THD: ≤ -60 dB (1 kHz @ -3 dBfs)
- Tuning Bandwidth: 56 MHz
- Selectable Frequencies: 2,240
- Max Channels: Up to 90
- Operating Temperature: -10 °C to +55 °C
- Relative Humidity: 5–95 % (non-condensing)

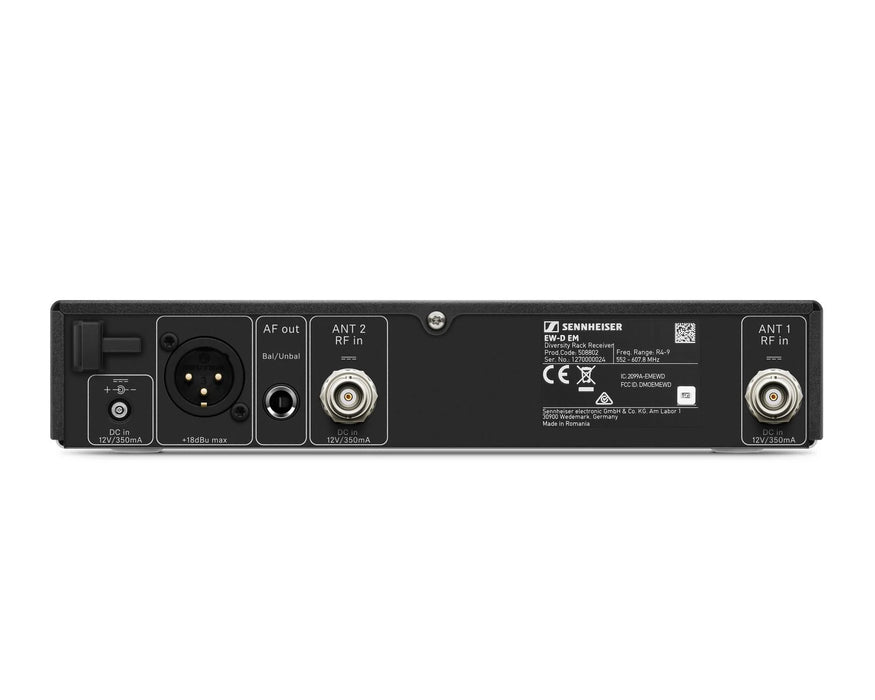

Receiver (EW-D EM Rack Receiver)
- Dimensions: 212 x 44 x 189 mm
- Weight: Approx. 1 kg
- Max Audio Output: 18 dBu
- Power Supply: 11–13 V DC, ≤ 300 mA
Handheld Transmitter (EW-D SKM-S with MMD 835)
- Microphone Capsule: Dynamic cardioid (e 835)
- Frequency Response: 80 Hz – 16 kHz
- Max SPL: 154 dB
- Sensitivity: 2.1 mV/Pa
- Dimensions: 50 x 268 mm (incl. capsule)
- Weight: 304 g (with capsule, without batteries)
- Power Supply: 2 x AA batteries (8 hrs) or BA 70 rechargeable pack (12 hrs)
Bodypack Transmitter (EW-D SK) with Lavalier (ME 2)
- Microphone Capsule: ME 2 pre-polarized condenser, omni-directional
- Frequency Response: 50 Hz – 18 kHz
- Max SPL: 130 dB
- Sensitivity: 17 mV/Pa
- Equivalent Noise Level: 32 dB (A-weighted)
- Connector: 3.5 mm jack
- Cable Length: 1.6 m
- Bodypack Dimensions: 63 x 80 x 20 mm
- Weight: Approx. 120 g (without batteries)
- Power Supply: 2 x AA batteries (8 hrs) or BA 70 rechargeable pack (12 hrs)
Packaging
- Box Dimensions: 405 x 350 x 73 mm
- Weight: 3.1 kg (complete set)
