Martin Audio CDD12 12" High-Performance Wall Speaker, 300W 8 Ohm (Single)
DETAILS
The Martin Audio CDD12 is a compact, high-output wall speaker engineered for medium-throw commercial and live music applications.
The Martin Audio CDD12 is a compact, passive two-way loudspeaker system designed to provide high-output performance from a discreet enclosure. It is ideal for foreground music in venues such as live music clubs, nightclubs, bars, restaurants, museums, convention centres, hotels, retail outlets, leisure centres and houses of worship.
The CDD12 incorporates Martin Audio’s patented Coaxial Differential Dispersion™ (CDD) technology, which delivers more even coverage across an audience than conventional fixed-dispersion systems. This design projects relatively more output towards the rear of the listening area while maintaining wide horizontal coverage near the speaker, providing smooth and consistent sound across the space.
The speaker features a 12” (300mm) low-frequency driver and a 1” exit high-frequency compression driver in a coaxial configuration. The LF driver uses a 2.5” (65mm) voice coil and efficient motor with an aluminium demodulating ring to reduce distortion. The HF driver features a 1.75” (44mm) polyimide diaphragm and low-compression phase plug to reduce non-linearity. The integrated static waveguide further improves high-frequency dispersion, maintaining coverage at higher frequencies and reducing beaming.

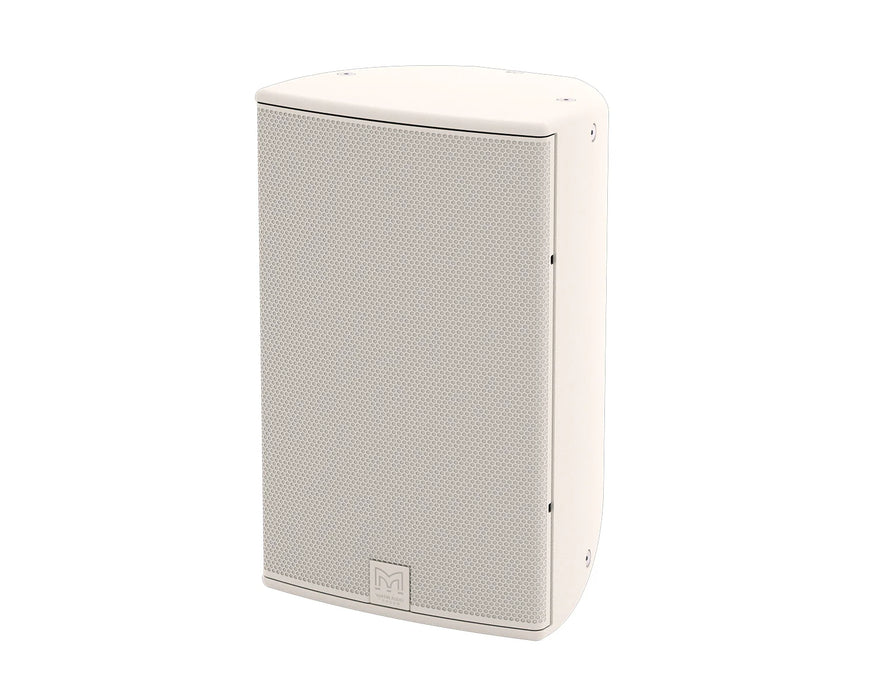

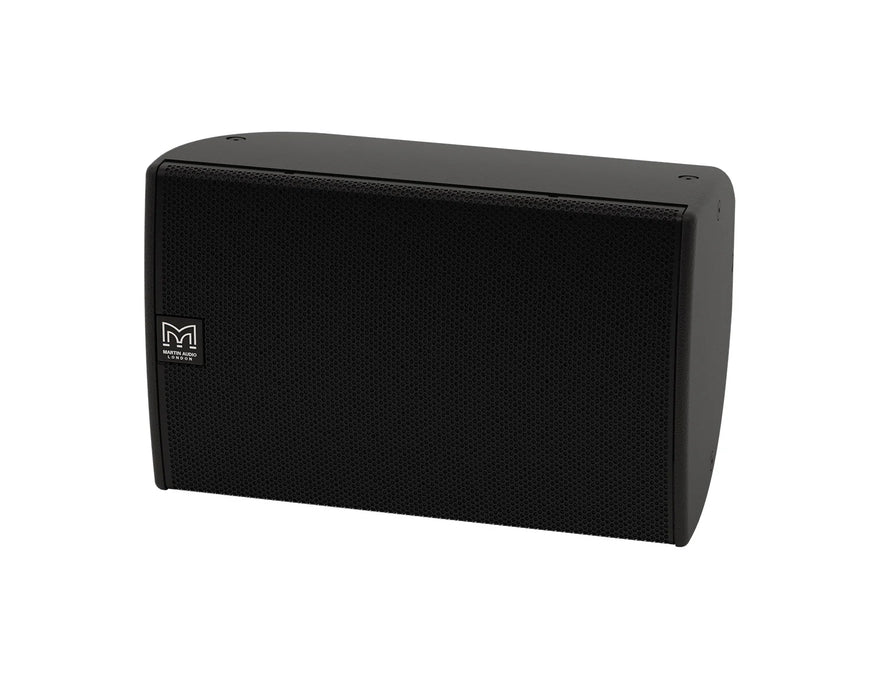

Housed in a visually distinctive birch plywood enclosure, the CDD12 can be mounted horizontally or vertically, with rotation of the coaxial driver easily achieved by removing the screw-free protective grille. It can be wall-mounted using an optional bracket or suspended from a ceiling via integrated eyebolt points or a horizontal yoke bracket, offering flexible installation options.
With a nominal impedance of 8 ohms and 300W AES power handling, the CDD12 is capable of delivering high sound pressure levels suitable for foreground music and medium-throw applications. Finished in black (RAL9005) or white (RAL9016) as standard, it can also be supplied in any RAL colour to order.
Martin Audio CDD12 Key Features:
- Compact high-output design: Delivers foreground-level performance from a small-format enclosure
- CDD™ technology: Coaxial Differential Dispersion for consistent audience coverage
- Coaxial point-source driver: Smooth, coherent sound reproduction
- Integrated waveguide: Maintains coverage and reduces HF beaming
- User-rotatable driver: Supports vertical or horizontal mounting
- Birch plywood enclosure: Durable, elegant and visually unobtrusive
- Screw-free grille: Clean aesthetics and easy driver access
- Flexible mounting options: Wall, yoke or ceiling suspension
- High power handling: 300W AES for demanding music applications
- Custom finish options: Available in black, white, or any RAL colour
SPECS & DOWNLOADS
Martin Audio CDD12 Specifications:
- Type: Compact, high-output Coaxial Differential Dispersion passive two-way system
- Frequency response: 62Hz–20kHz ±3dB, -10dB @ 50Hz
- Drivers: LF: 12” (300mm) / 2.5” (63.5mm) voice coil, long excursion, shared ferrite motor / HF: 1” exit / 1.7” (44mm) polyimide dome compression driver
- Rated power: 300W AES, 1200W peak
- Sensitivity: 97dB
- Maximum SPL: 122dB continuous, 128dB peak
- Nominal impedance: 8 Ohms
- Dispersion (-6dB): 110°–60° horizontal, 60° vertical (user-rotatable)
- Crossover: 1.9kHz passive
- Enclosure: 38 litre birch plywood
- Finish: Black or White textured paint
- Protective grille: Perforated steel with scrim cloth backing
- Connectors: Low profile 20A push-lock
- Pin connections: Input +, Input -, Link -, Link +

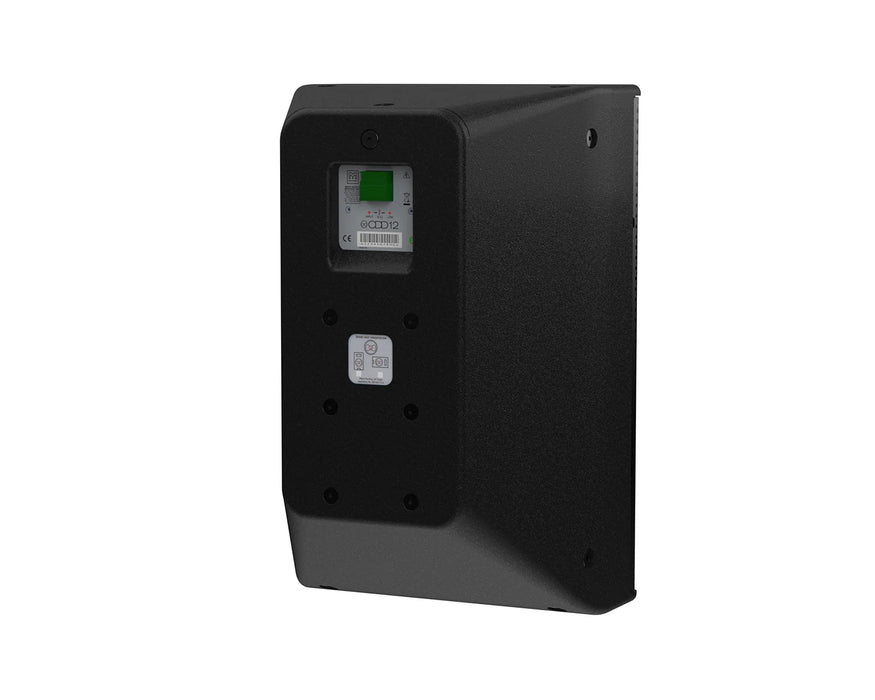

- Fittings: 6 x M8 inserts for wall bracket, 10 x M8 fly points
- Dimensions: 360mm (W) x 560mm (H) x 350mm (D)
-
Weight: 19kg
