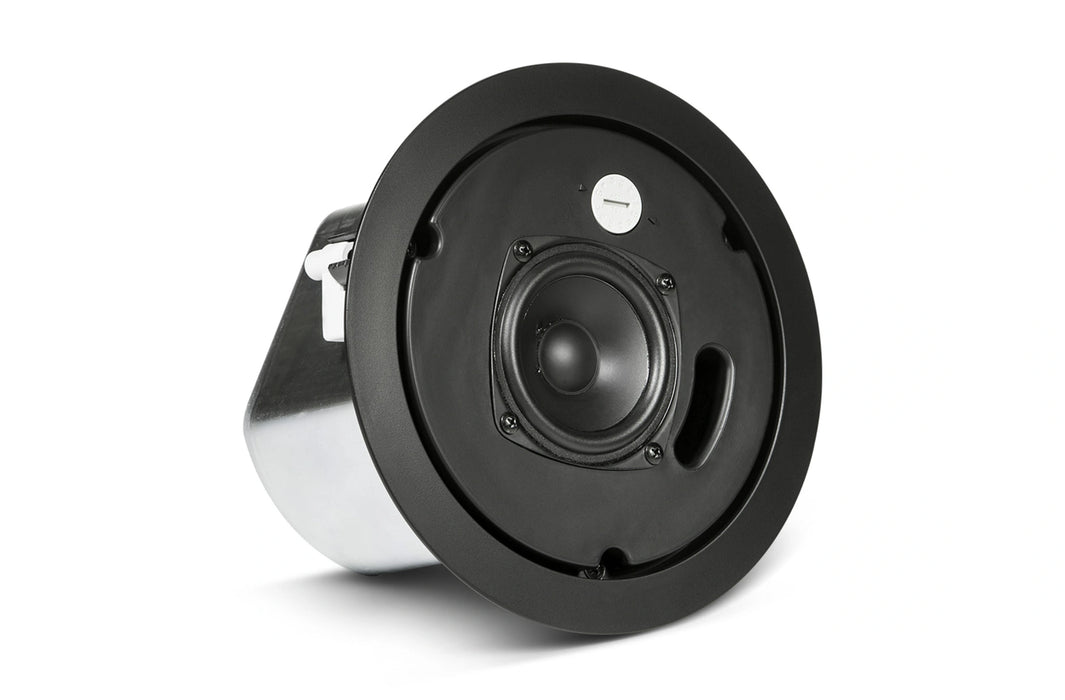

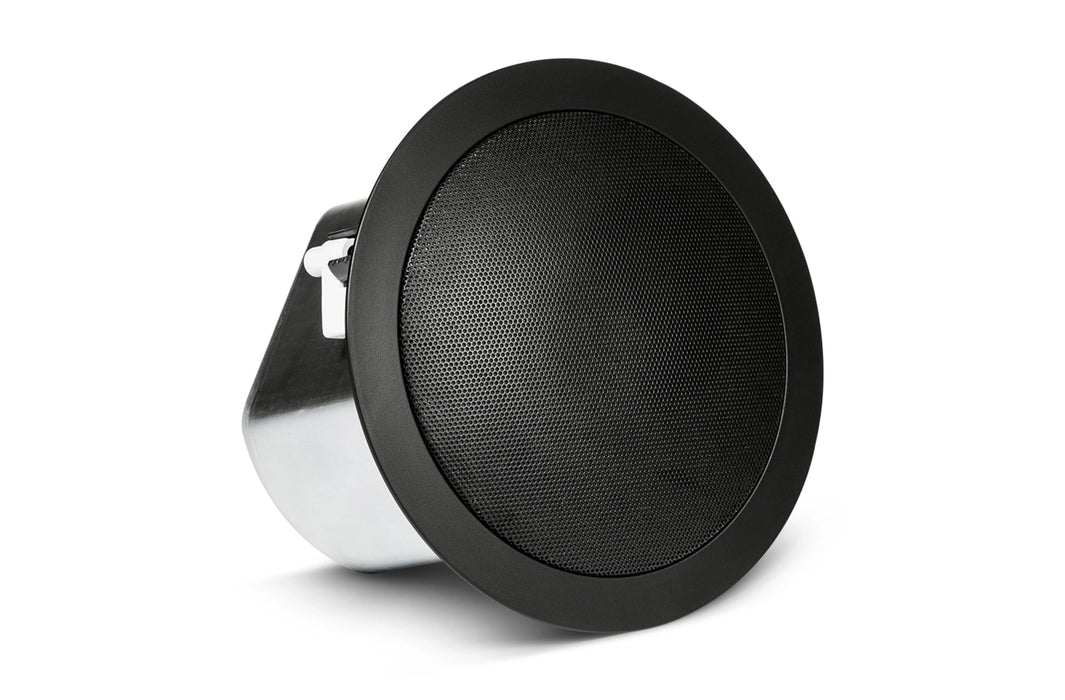

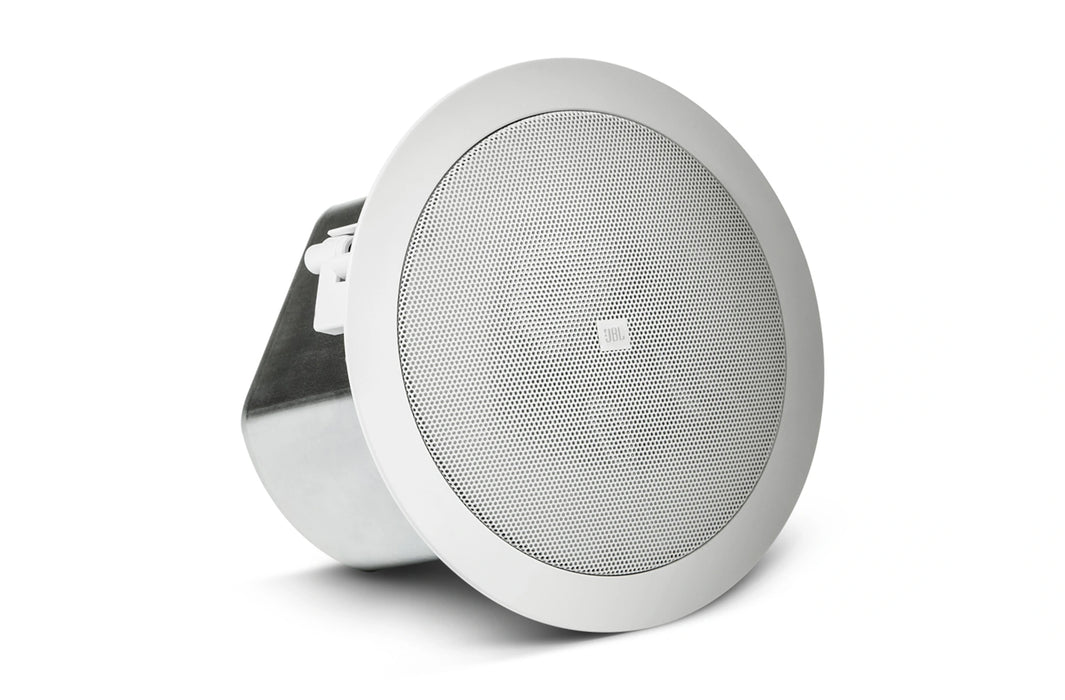

JBL Control 12C/T 3" Full-Range Ceiling Speakers 100V/8 Ohm (Pair)

Name: JBL Control 12C/T 3" Full-Range Ceiling Speakers 100V/8 Ohm (Pair)
Brand: JBL Professional
SKU: JBLCONTROL12CTW
Price: 223.0 GBP
Availability: InStock

by JBL Professional

SKU JBLCONTROL12CTW

Save 31%

£324.00 (inc. VAT)

£324.00 (inc. VAT) - £324.00 (inc. VAT)

£324.00 (inc. VAT)

£223.00 (inc. VAT)

£223.00 (inc. VAT) - £223.00 (inc. VAT)

£223.00 (inc. VAT)

Quantity

DETAILS

The JBL Control 12C/T is a 3" Full-Range Ceiling Speaker delivering wide 130° conical coverage across 100V line and 8 Ohm operation.

The JBL Control 12C/T has been designed to provide excellent sound quality across a wide variety of low to medium volume applications — including music cafes, retail stores, business music systems, airports, reception and waiting rooms, lounges, courtrooms, convention centres, hotels, educational facilities and more. Its exceptionally wide 130° conical coverage ensures consistent, even sound quality for listeners both on and off axis, making it an ideal choice wherever broad, uniform audio distribution is required from a single ceiling speaker.

High-Technology Driver Design

At the heart of the Control 12C/T is a 76mm (3") full-range driver engineered with JBL's characteristic attention to detail. A lightweight, high-temperature Kapton™ voice coil former and aluminium coupling ring work together to reduce distortion and extend high-frequency response, whilst FEA-optimised motor construction and cone geometry deliver a smooth frequency response and improved off-axis performance. A high-temperature grade voice coil ensures stable performance under long-term and high-power operating conditions, whilst the butyl rubber surround provides long-term durability and excellent sonic damping. The polypropylene cone is water and humidity resistant for reliable performance in a wide range of installation environments.

Dual Operating Modes for Maximum Flexibility

The Control 12C/T is switchable between 8 Ohm low-impedance direct operation and 70V or 100V distributed audio systems, accommodating a 15W multi-tap transformer with taps at 15W, 7.5W and 3.8W at both 70V and 100V — plus an additional 1.9W tap at 70V. This dual-mode flexibility makes it straightforward to integrate the Control 12C/T into virtually any new or existing audio system, from simple direct-drive setups to large-scale distributed PA installations.

Quick & Easy Installation

The Control 12C/T has been designed with fast, hassle-free installation firmly in mind. A pre-attached blind-mount backcan eliminates the need for separate backcan assembly, whilst the compact depth of just 138mm allows the speaker to fit into more shallow ceiling voids than many comparable alternatives. A removable locking 4-pin connector with screw-down terminals accommodates wire up to 12 AWG and provides loop-through connectivity, whilst dual strain relief assemblies provide secure clamping for use with either cable or flex conduit. Two tile rail supports, a C-ring support backing plate and a cutout template are all included in the box to further simplify the installation process. A safety seismic attachment ring on the top surface provides an additional security fixing point where required.

Safety Compliant & Plenum Rated

The Control 12C/T carries an impressive range of safety approvals and compliance certifications, including UL1480, UL2043, NFPA90, NFPA70 and CE. The ABS baffle meets UL94-V0 and UL94-5VB flammability ratings, and the integrated backcan is suitable for use in air handling (plenum) spaces — making it compliant for installation in the widest possible range of commercial ceiling environments. The baffle is also paintable and UV resistant for a discreet, long-lasting finish. Available in White or Black. Sold as a pair.

JBL Control 12C/T Key Features:

3" Full-Range Driver: 76mm polypropylene cone driver with Kapton™ voice coil former, aluminium coupling ring and butyl rubber surround for low distortion and extended HF response.
Wide 130° Conical Coverage: Exceptionally broad coverage pattern delivering consistent sound quality on and off axis across the entire listening area.
Dual Operating Modes: Switchable between 8 Ohm low-impedance direct operation and 70V/100V distributed audio systems for maximum installation flexibility.
15W Multi-Tap Transformer: Taps at 15W, 7.5W and 3.8W at 70V and 100V (plus 1.9W at 70V) for precise level matching in distributed installations.
Blind-Mount Backcan: Pre-attached backcan for quick and easy installation without separate assembly.
Compact 138mm Depth: Shallow backcan fits into ceiling voids where deeper speakers cannot.
Removable Locking 4-Pin Connector: Screw-down terminals with loop-through for secure wiring and easy daisy-chaining.
Dual Strain Relief: Secure clamping for use with cable or flex conduit.
Plenum Rated: Suitable for use in air handling spaces, UL2043 compliant.
UL94-V0 & UL94-5VB Flame Rating: ABS baffle meets stringent fire safety standards for commercial installation.
Safety Seismic Attachment Ring: Additional security fixing point on the top surface.
Paintable UV-Resistant Baffle: Discreet, long-lasting finish that can be painted to match any ceiling.
Comprehensive Accessories Included: C-ring backing plate, tile rail supports, cutout template, paint shield, locking connector and grille all supplied.
Available in White or Black: To suit any ceiling or interior environment.
Sold as a Pair

SPECS & DOWNLOADS

Download the Spec Sheet HERE >

JBL Control 12C/T Specifications:

Driver: 76mm (3") full-range, polypropylene cone, butyl rubber surround, Kapton™ voice coil former, aluminium coupling ring
Frequency Range (-10dB): 68Hz – 17kHz
Frequency Response (±3dB): 95Hz – 15kHz
Sensitivity: 84dB (1kHz – 16kHz)
Coverage Angle: 130° conical
Directivity Factor (Q): 9.8
Directivity Index (DI): 7.4dB
Maximum SPL: 97dB (low-impedance) / 103dB peak / 96dB (top 70V/100V tap)
Power Rating (Low-Z Direct): 40W continuous program / 20W continuous pink noise (80W peak)
Impedance: 8 Ohm (direct/bypass setting)
Transformer Taps: 15W, 7.5W, 3.8W @ 70V & 100V / 1.9W @ 70V only
Input Connector: Removable locking 4-pin, screw-down terminals, max 12 AWG (2.5mm²)
Connector Wiring: Pin 1 = +In / Pin 2 = -In / Pin 3 = +Loop Thru / Pin 4 = -Loop Thru
Strain Relief: Dual, for cable or flex conduit
Baffle Material: ABS, UL94-V0 and UL94-5VB flame rated, UV resistant, paintable
Backcan: Formed zinc-plated steel, plenum rated
Dimensions: 196mm diameter x 138mm depth
Ceiling Cutout Size: 170mm diameter
Ceiling Thickness Range: Up to 35mm (MTC-TCD dog-ears available for up to 55mm)
Safety Seismic Attachment: One point, top surface
Net Weight: 1.6kg per speaker
Safety Approvals: UL1480, UL2043, NFPA90, NFPA70, CE, RoHS, C-tick N108, IEC60849/EN60849

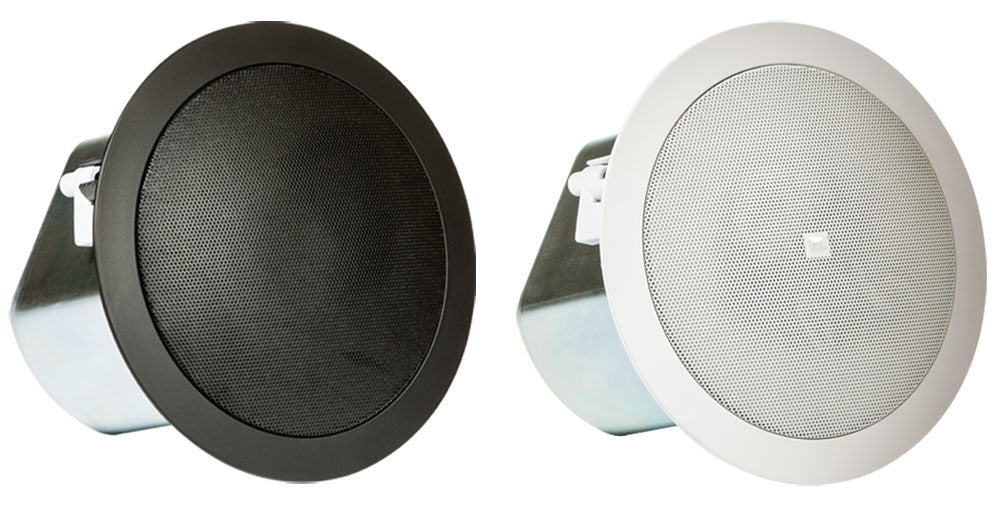

Available Colours: White, Black (-BK)
Included Accessories: C-ring support backing plate, 2 x tile support rails, cutout template, paint shield, removable locking connector, grille
Optional Accessories: MTC-24NC new construction bracket, MTC-24MR mud-ring bracket, MTC-TCD thick-ceiling dog-ears, MTC-48TR tile rail (1200mm)
Sold As: Pair

}
