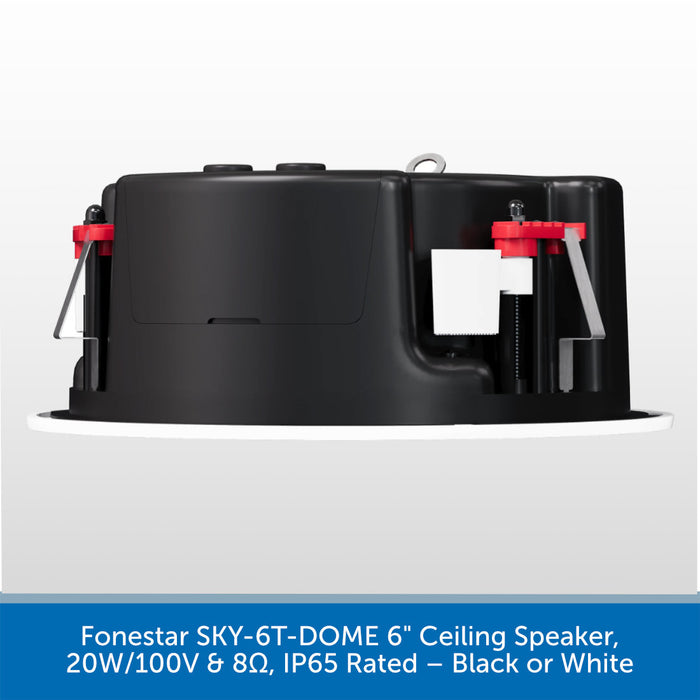

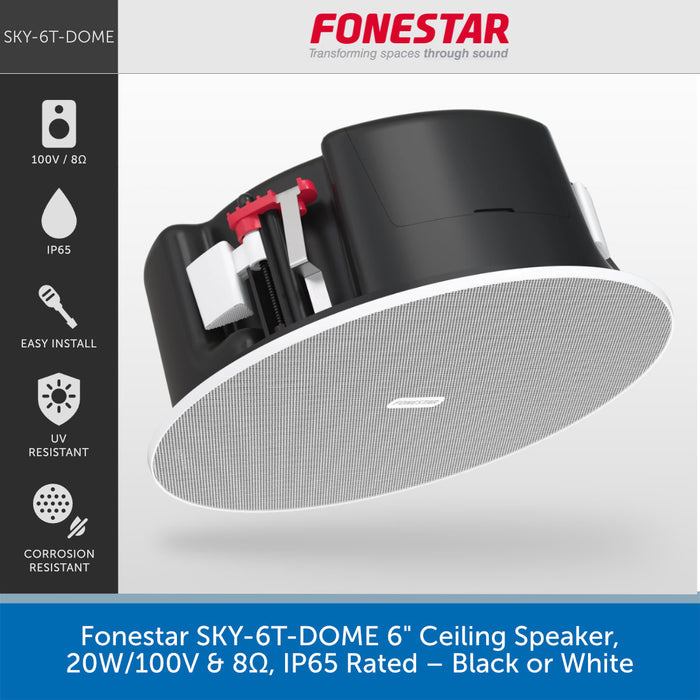

Fonestar SKY-6T-DOME 6" Ceiling Speaker, 20W/100V & 8Ω, IP65 Rated – Black or White
DETAILS
Low-Profile IP65-Rated Ceiling Speaker With Protective Dome – Fonestar SKY-6T-DOME.
The Fonestar SKY-6T-DOME is a 6.5" coaxial ceiling loudspeaker designed for robust commercial and leisure installations, especially in high-moisture or outdoor-prone spaces. Combining strong full-range output with durability, it’s ideal for hotels, spas, poolsides, saunas, gyms, and marine environments.
Its IP65-rated enclosure is made from UV-stabilised ABS plastic and features a salt mist-resistant aluminium grille, ensuring it withstands harsh environmental conditions including prolonged sun exposure and coastal air. The rear dome enclosure is integrated, and installation is straightforward thanks to push-fit terminals and a front-access tap selector switch. Multiple 100V line tappings and 8Ω low impedance operation offer system flexibility.
Fonestar SKY-6T-DOME Key Features:
- 6.5" Coaxial Ceiling Speaker with adjustable 1" tweeter
- IP65 Rated for use in humid, wet, or outdoor locations
- UV-Stabilised ABS Construction ensures longevity in sunlit spaces
- Salt Mist Resistant to EN ISO 9227:2006 for marine/coastal use
- Corrosion-Resistant Aluminium Grille, painted for extra protection

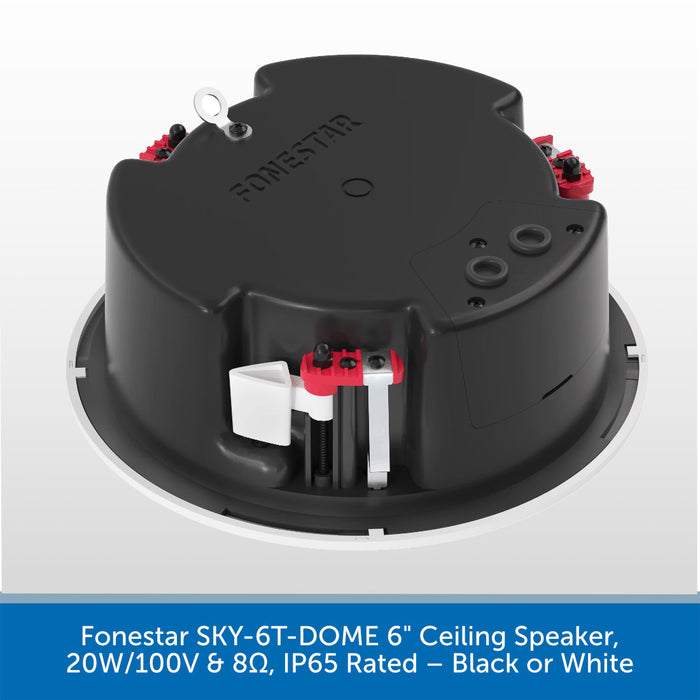

- Integrated Rear Dome to keep out moisture and debris
- Power Tappings: 30W / 15W / 7.5W / 3.75W (100V) and 8Ω operation

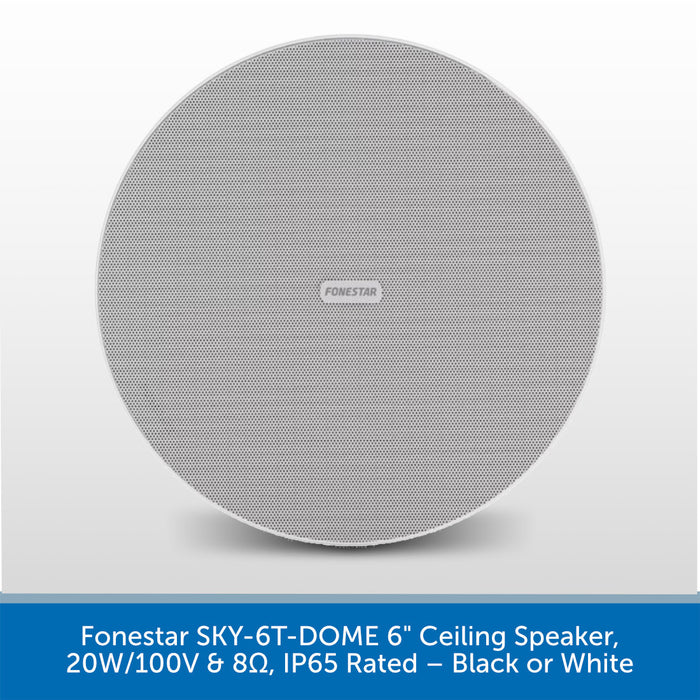

- Frameless Magnetic Grille in white for discreet ceiling finish
- Front-Facing Tap Selector for fast power setting changes
- Quick-Connect Terminals for 0.4–4 mm² cable sizes
-
Supplied With Installation Template for easy setup
SPECS & DOWNLOADS
Fonestar SKY-6T-DOME PDF Spec Sheet > DOWNLOAD HERE
Fonestar SKY-6T-DOME Specifications
- Power Handling: 20W RMS / 25W Max
- Speaker Type: Coaxial 6" polypropylene woofer with 1" adjustable tweeter
- Frequency Response: 45–20,000 Hz (-10 dB), 60–20,000 Hz (-3 dB)
-
Impedance Settings:
- 100V: 20W (500Ω), 10W (1,000Ω), 5W (2,000Ω), 2.5W (4,000Ω)
- 70V: 10W (490Ω), 5W (980Ω), 2.5W (1,960Ω), 1.25W (3,920Ω)
- Low Z: 8Ω
- Sensitivity: 90 dB @ 1W/1m
- Max SPL: 103 dB continuous / 106 dB peak @ 1m
- Coverage Angle: 150º @ 1kHz (-6 dB)
- Ingress Protection: IP65 (IEC 60529)
- Salt Mist Resistance: EN ISO 9227:2006
- Material: UV-resistant ABS body with painted aluminium grille
- Connectors: Quick-connect terminals for 0.4–4 mm² cables, junction box with input/output
- Front Access Switch: Power tap and 8Ω selection accessible from front
- Operating Temperature: -20ºC to +70ºC
- Storage Temperature: 10ºC to 40ºC
- Max Humidity: 95%
- Colour Options: White (RAL 9003) or Black
-
Dimensions:
- Speaker: 249 mm Ø x 95 mm height
- Recessed Depth: 90 mm
- Grille Thickness: 5 mm
- Cut-Out Hole: 219 mm Ø
- Max Ceiling Thickness: 30 mm
- Weight: 1.85 kg
-
Accessories: Installation template included
