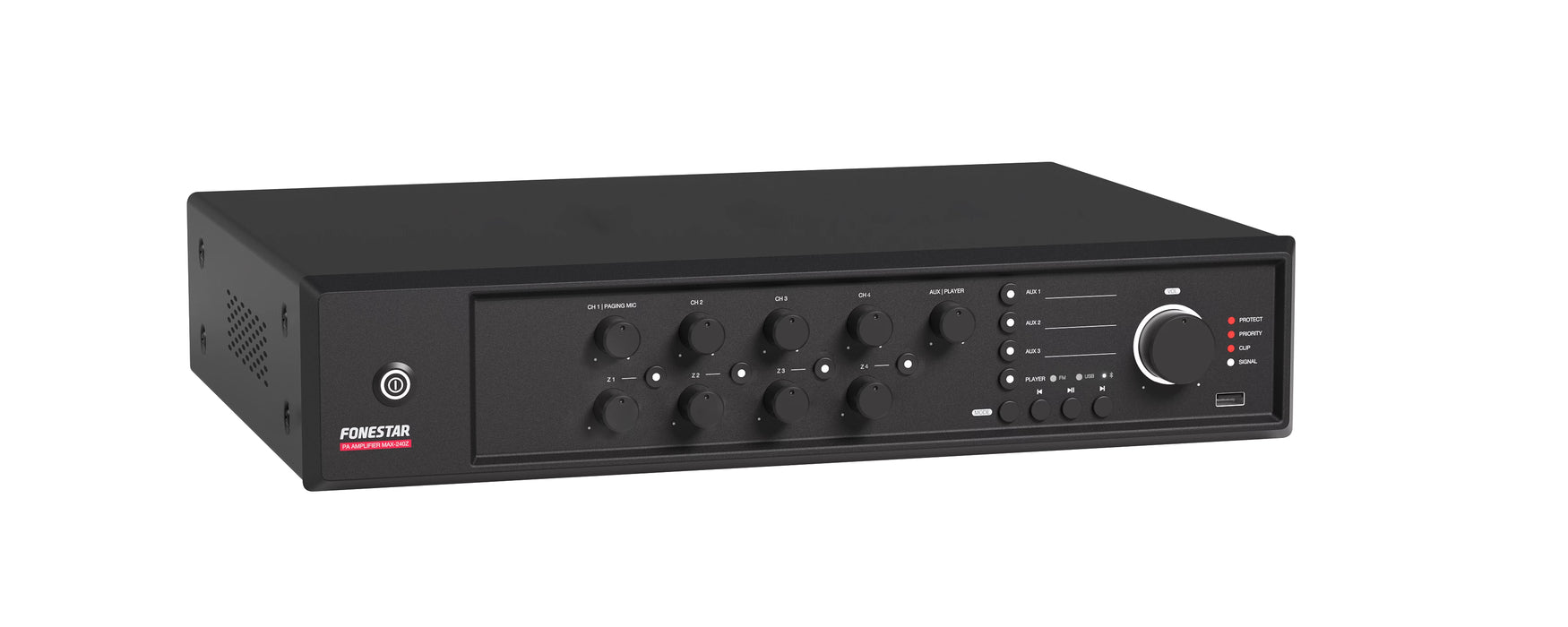

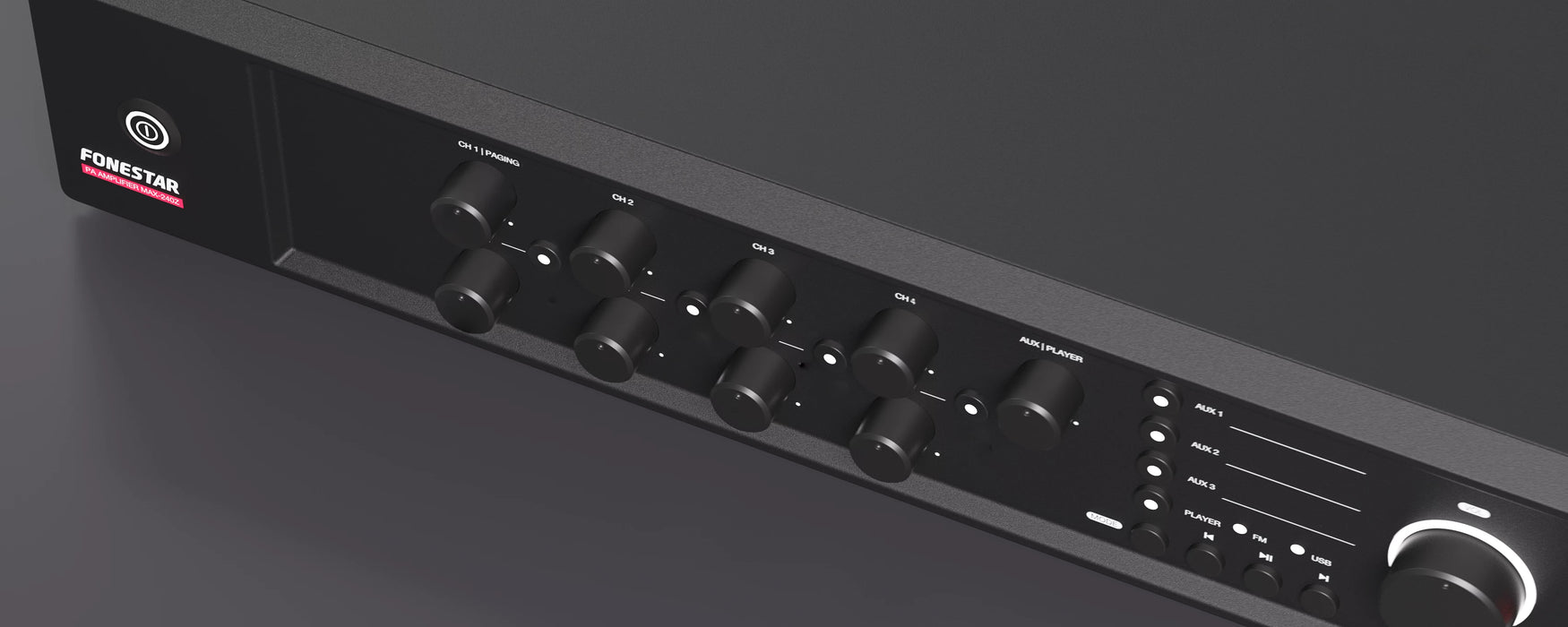

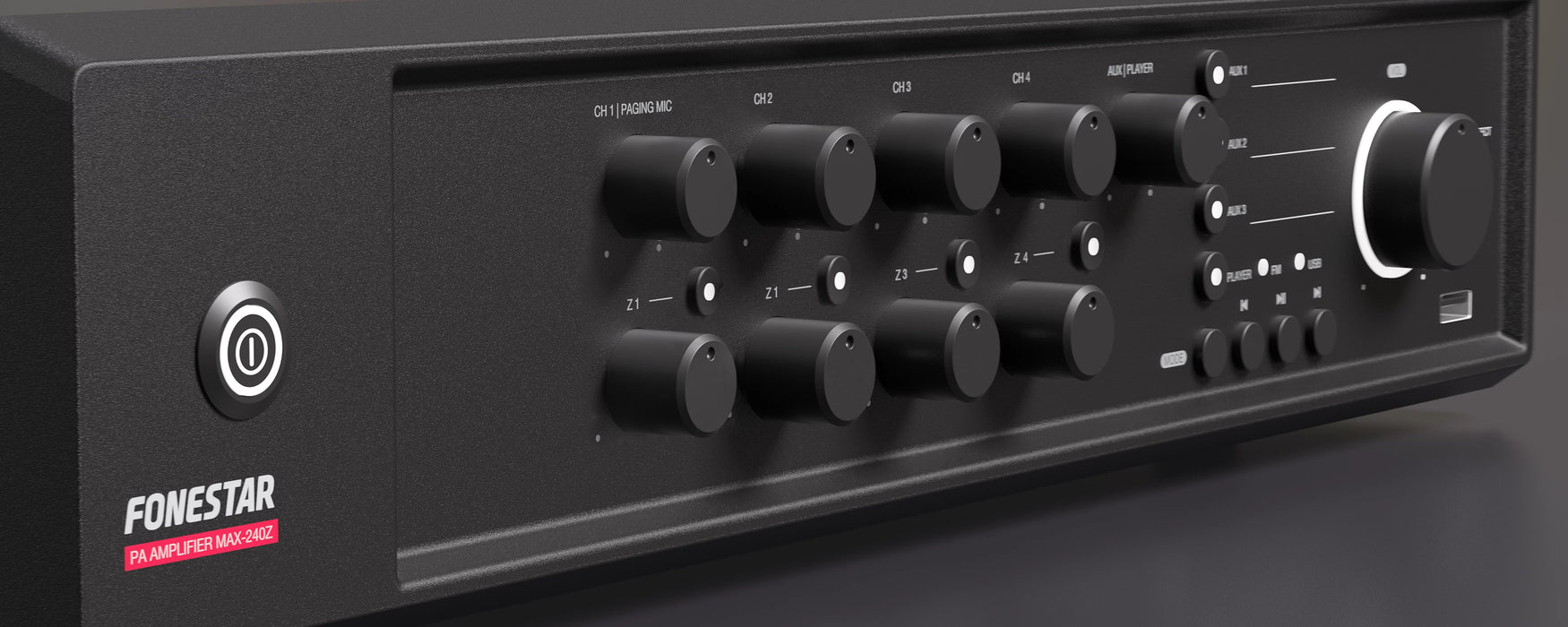

Fonestar MAX-240Z 4-Zone 240W Mixer Amplifier with FM & USB Media Player
DETAILS
The Fonestar MAX-240Z is a powerful and adaptable 240W mixer amplifier designed for multi-zone audio installations and public address applications.
Ideal for use in restaurants, bars, retail spaces, and educational facilities, it delivers flexibility and ease of use for diverse sound distribution needs.
This amplifier features four independent zonal speaker outputs with individual volume controls, allowing tailored audio levels across separate areas. For installations requiring a unified system, a single speaker output is available, delivering the full 240W output without zonal control.
Equipped with a built-in media player, the MAX-240Z supports USB, FM radio, and Bluetooth streaming for seamless playback of background music or other audio content. Rear-mounted RCA inputs further enhance its versatility by allowing connection to external audio sources.
Optimised for public address systems, the MAX-240Z includes four microphone inputs, each with switchable VOX priority, chime functionality, and 48V phantom power, ensuring clear and reliable announcements with automatic music attenuation during important messages.
A standout feature of the MAX-240Z is its emergency and mute input, designed for integration with alarm and evacuation systems, making it a dependable choice for safety-critical environments. With its energy-efficient Class D amplifier and SMPS power supply, this unit guarantees consistent, high-quality performance and is suitable for both desktop and rack-mounted installations.
Fonestar MAX-240Z Key Features:
- 240W Power Output: Delivers powerful and consistent sound performance.
- 4-Zone Control: Independent volume control for each zone, or a single 240W output for unified installations.
- Built-in Media Player: Supports USB, FM radio, and Bluetooth streaming.
- RCA Inputs: Easily connect external audio devices for greater flexibility.
- Public Address Ready: 4 microphone inputs with VOX priority, chime, and 48V phantom power.
- Emergency & Mute Input: Connects seamlessly to alarm and evacuation systems for safety compliance.
- Versatile Installation: Suitable for desktop or rack-mounted setups.
-
Energy Efficient: Class D amplifier with SMPS power supply for reliable operation.
SPECS & DOWNLOADS
Fonestar MAX-240Z PDF Spec Sheet > DOWNLOAD HERE
Fonestar MAX-240Z Specifications
-
Power: 240 W RMS
-
Frequency Response: 45-22,000 Hz
-
Distortion: THD+N: < 0.5% @ 1 kHz
-
S/N Ratio: Mic >75 dB, Line >83 dB, Aux >81 dB
-
Protections: Soft start, overcurrent, overload, temperature and short circuit
-

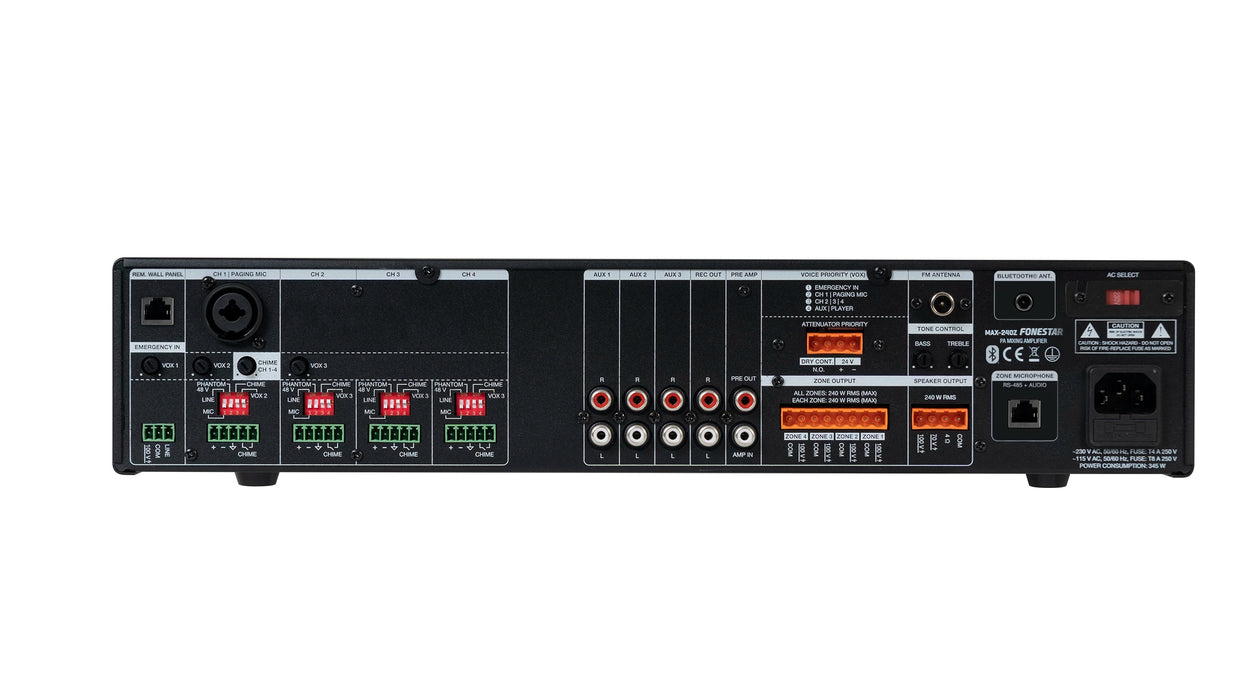

Inputs: CH 1 mic/line balanced with 48V phantom. Combo connector (XLR + 6.3mm) and euroblock. Contact closure ring tones.
CH 2 and 3 microphone/line balanced with Phantom 48V. Euroblock connector. Contact closure ring tones.
Mic signal level: 5.6 mV RMS (-45 dBV) / 600 Ω.
Line signal level: 250 mV RMS (-12 dBV) / 100k Ω.
3 x AUX. 2 x RCA connectors. Signal level 316 mV RMS (-10 dBV) / 47.000 Ω.
1 x emergency. Euroblock connector. Signal level: line 326 mV RMS (-10 dBV) or 100 V line.
Mute (Emergency Priority) by contact closure. Euroblock connector.
1 x Amp-in. RCA connector. signal level 1.2 V RMS (+ 1.5 dBV). -
Outputs: 1 REC. 2 x RCA connector. Signal level 316 mV RMS (-10 dBV). Pre-master.
1 Pre-out. RCA connector. Signal level 1.2 V RMS (+1.5 dBV).
100 V, 70 V or 4 Ω speaker output, or 4 zones of 100 V speakers with 7 positions volume selector and OFF. Euroblock connector.
1 attenuator priority, 24 V 100 mA and contact closure. Euroblock connector. -
Impedance: 4 Ω and 100 V line (83 Ω)
-
Operating Temperature: Operation: -10º ~ 40ºC
-
Maximum Humidity: 905%
- Power Supply: 230/115 V AC 50-60Hz, Power consumption: 175 W, AC fuse 230 V 2 A / 115 V 4 A
- Dimensions: 430 x 89 x 320 mm depth. 2 U 19” rack
- Weight: 8.5 kg
