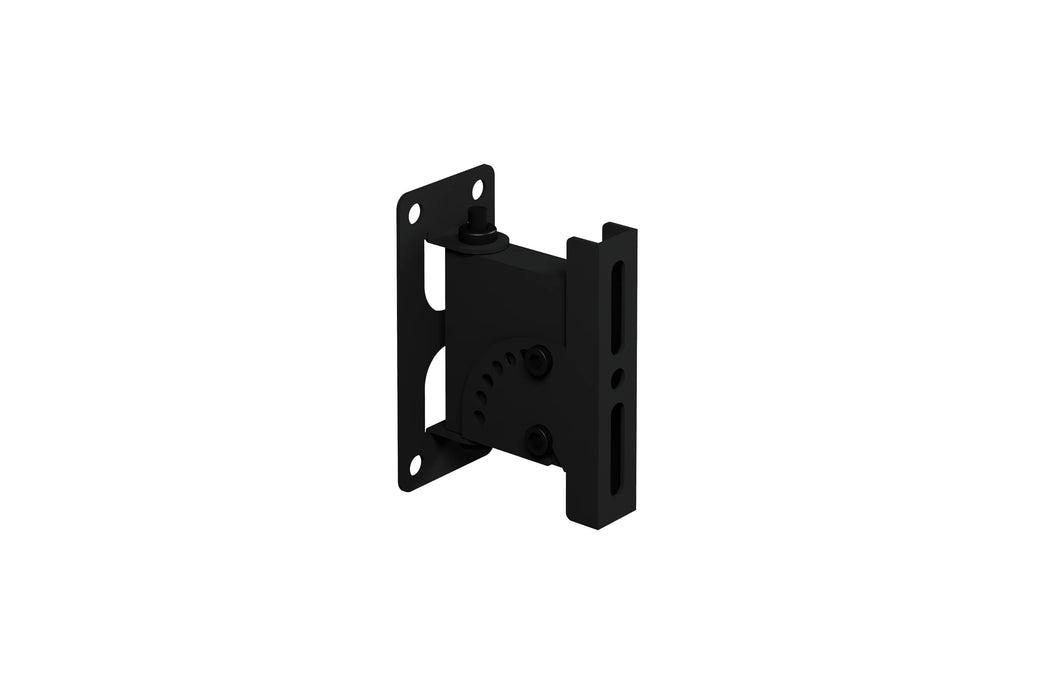

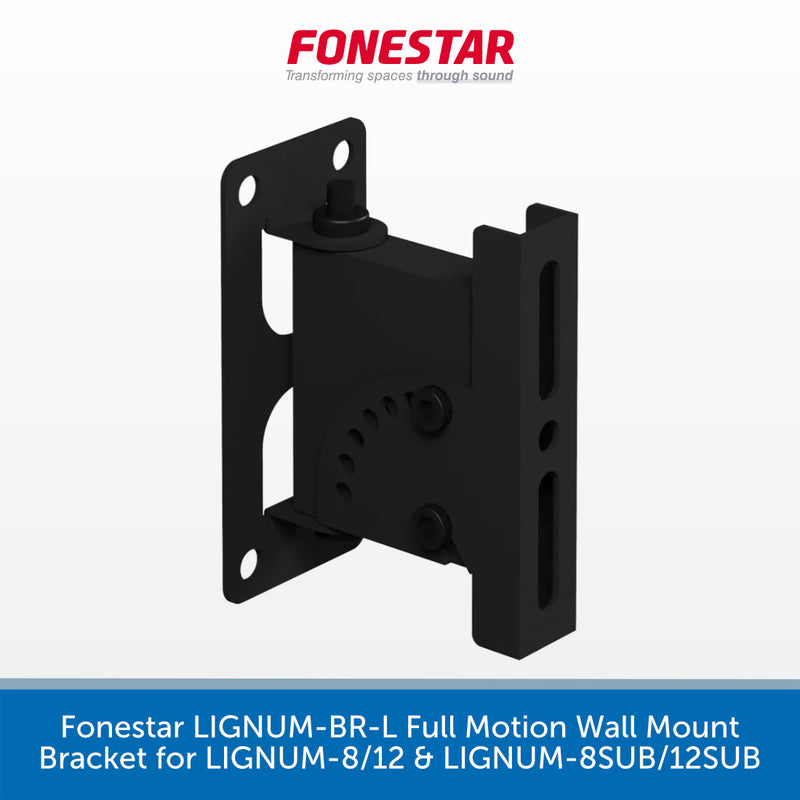

Fonestar LIGNUM-BR-L Full Motion Wall Mount Bracket for LIGNUM-8/12 & LIGNUM-8SUB/12SUB
DETAILS
The Fonestar LIGNUM-BR-L is a Full Motion Wall Mount Bracket for the LIGNUM-8, LIGNUM-12, LIGNUM-8SUB and LIGNUM-12SUB, offering 180° horizontal swivel and 90° vertical tilt for precise, adaptable speaker positioning in professional fixed installations.
The Fonestar LIGNUM-BR-L is the purpose-designed wall mounting solution for the larger models in the LIGNUM loudspeaker and subwoofer range, providing the secure, stable and precisely adjustable fixing that professional commercial, corporate and educational installations demand. Whether mounting a LIGNUM-8 or LIGNUM-12 full-range speaker, or a LIGNUM-8SUB or LIGNUM-12SUB subwoofer, the LIGNUM-BR-L ensures a clean, professional installation with the flexibility to direct sound coverage exactly where it is needed.
The LIGNUM-BR-L's full motion arm delivers 180° of horizontal swivel adjustment combined with up to 90° of vertical tilt in six steps of 15°, giving installers precise control over the speaker's orientation to optimise coverage for the specific acoustic requirements of the space. With a compact overall footprint of 80 x 150 x 95mm and a wall distance of just 90mm at 0° horizontal and 0° vertical, the LIGNUM-BR-L keeps the speaker close to the wall for a discreet, unobtrusive installation that integrates cleanly into any environment. The robust black steel construction supports a maximum load of 20kg, providing the structural reliability required for sustained use in demanding professional environments. Fixing to the wall is via four screws, which are not included.
Fonestar LIGNUM-BR-L Key Features:
- Full Motion Wall Mount: Purpose-designed for the Fonestar LIGNUM-8, LIGNUM-12, LIGNUM-8SUB and LIGNUM-12SUB.
- 180° Horizontal Swivel: Full horizontal adjustment for adaptable sound coverage direction to suit the specific requirements of the installation space.
- 90° Vertical Tilt: Up to 90° of vertical tilt adjustment in six steps of 15° for precise speaker angle optimisation.
- 20kg Maximum Load Capacity: Robust construction providing secure, reliable support for all compatible LIGNUM models in demanding professional environments.
- Compact 90mm Wall Distance: Keeps the speaker close to the wall at 0° for a discreet, clean and professional installation finish.
- Sturdy Black Steel Construction: Durable, professional-grade build quality for long-term reliability in commercial, corporate and educational installations.
- Clean, Discreet Design: Compact 80 x 150mm wall plate for minimal visual impact and a professional finish in any environment.
-
Simple Fixing System: Four screw fixing to the wall (screws not included) for straightforward and secure installation.
SPECS & DOWNLOADS
Fonestar LIGNUM-BR-L PDF Spec Sheet > DOWNLOAD HERE
Fonestar LIGNUM-BR-L Specifications:
- Compatible Speakers: Fonestar LIGNUM-8, LIGNUM-12, LIGNUM-8SUB, LIGNUM-12SUB
- Arm Movement: 180° horizontal swivel, 90° vertical tilt (6 steps of 15°)
- Maximum Load Capacity: 20kg
- Wall Distance: 90mm (at 0° horizontal, 0° vertical)
- Wall Plate Dimensions: 80 x 150mm
- Overall Dimensions (W x H x D): 80 x 150 x 95mm
- Speaker Fixing: 4 x screws (not included)
- Colour: Black
-
Weight: 0.682kg
