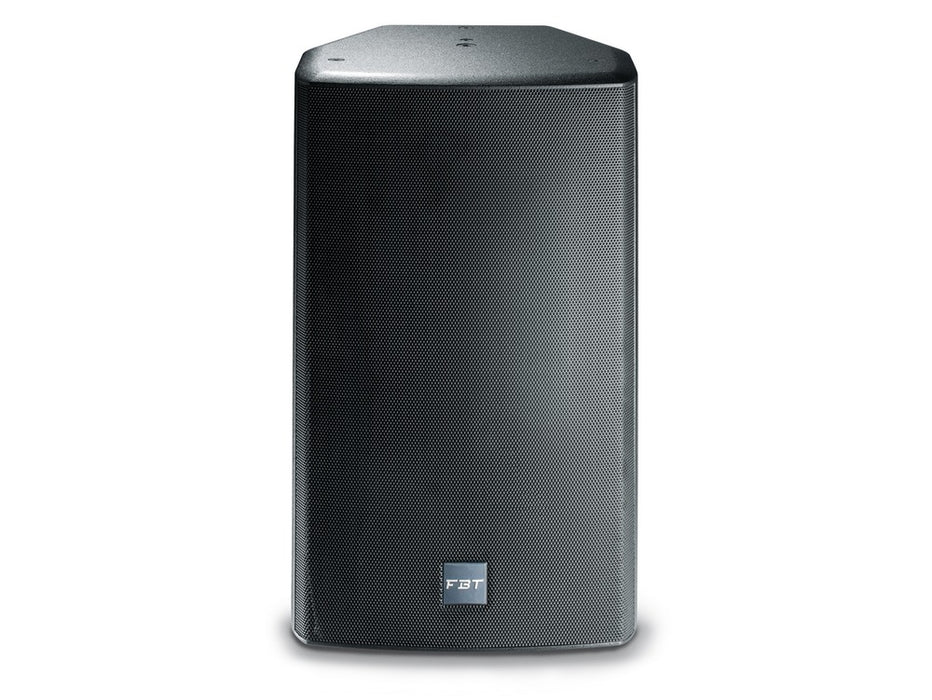

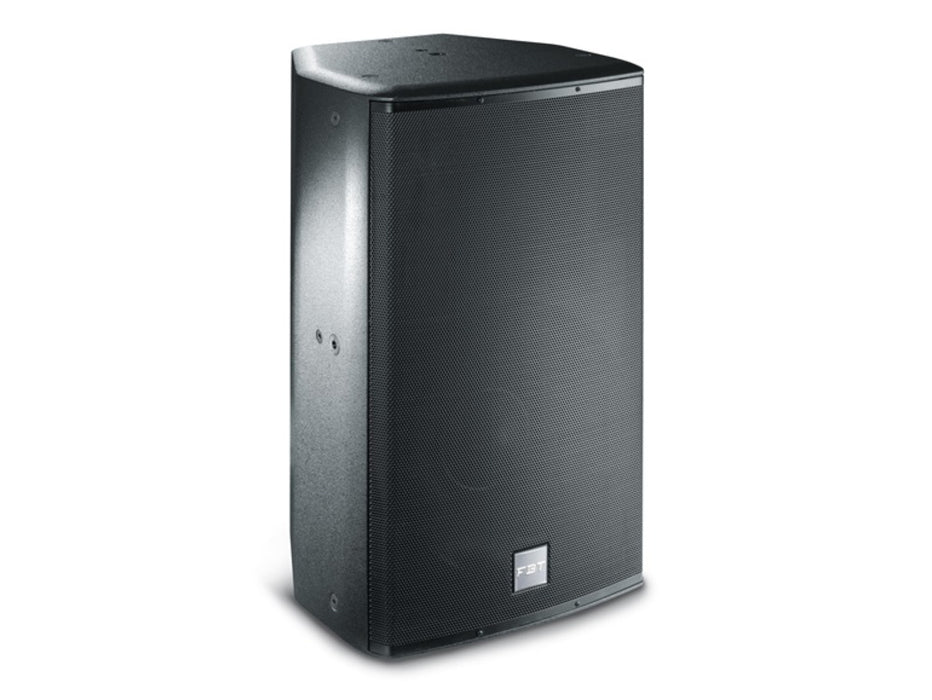

FBT Archon 115 15" Passive 2-Way Loudspeaker, 1000W/8Ω - Black

by FBT
SKU 36255
Original price £1,439.00 (inc. VAT) - Original price £1,439.00 (inc. VAT)
Original price £1,439.00 (inc. VAT)
£1,439.00 (inc. VAT)
£1,439.00 (inc. VAT) - £1,439.00 (inc. VAT)
Current price £1,439.00 (inc. VAT)
DETAILS

Powerful large-format architectural speaker with premium B&C Italian drivers — the FBT Archon 115.

The FBT Archon 115 is a premium 2-way passive loudspeaker designed for high-demand architectural installations requiring exceptional SPL output, wide bandwidth and stylish visual appeal.

With custom Italian-made B&C drivers — a high-excursion 15” LF woofer with 3” voice coil and a precise 2” HF compression driver — the Archon 115 delivers outstanding intelligibility, fast dynamic response and ultra-low distortion even at high output levels.

The Archon 115’s robust 15mm Baltic birch plywood cabinet is finished in extra-textured black paint as standard, with the option for custom RAL colours and special finishes such as gloss, matt or textured to suit any interior. An acoustically transparent steel grille with protective cloth keeps the drivers safe while maintaining a clean architectural look.

Designed for flexible installation, the Archon 115 features a rotatable 60° x 40° constant directivity horn for optimal horizontal or vertical dispersion, plus a repositionable FBT logo badge. Multiple M10 rigging points, U-bracket threads, and a rear pocket handle make mounting, flying and positioning straightforward and secure.

Selectable full-range or bi-amp operation with built-in crossover protection provides installation flexibility. For distributed audio, a line transformer can be added for 100V/70V systems, and weatherproof versions are available on request for exterior use. The Archon 115 easily pairs with dedicated compact subwoofers like the Archon 208S or Archon 215S for extended low-frequency performance.

Perfect for large bars, clubs, performance venues, retail spaces and multi-purpose halls that need a powerful yet stylish loudspeaker solution.

FBT Archon 115 Key Features:

  • Premium B&C Italian Drivers: Custom high-excursion LF woofer and HF compression driver.
  • Architectural Cabinet: 15mm Baltic birch plywood in black, with custom RAL colours and finishes available.
  • Rotatable Horn: 60° x 40° constant directivity for precise coverage.
  • High SPL & Wide Bandwidth: 1000W RMS power handling and up to 134dB SPL peak.
  • Flexible Crossover: Selectable full-range or bi-amp modes with built-in protection.
  • Versatile Rigging: Multiple M10 rigging points, U-bracket threads, speaker stand top hat and rear handle.
  • Professional Connectivity: 2 x NL-4 Speakon plus Euroblock terminals.
  • Optional Line Transformer: 100V/70V transformer installation available.
  • Outdoor Ready: Weatherproof versions available for exterior installations.
  • Extendable Bass: Pairs perfectly with Archon subwoofers for deeper low-end.
SPECS & DOWNLOADS

FBT Archon 115 Specifications

Download the PDF Data Sheet HERE >

  • Configuration: 2-way passive loudspeaker
  • Recommended Amplifier: 1000W RMS
  • Long Term Power: 500W
  • Short Term Power: 2000W
  • Nominal Impedance: 8 Ohms
  • Frequency Response: 48Hz – 18kHz (-6dB)
  • Low Frequency Woofer: 15” (3” coil) B&C custom woofer
  • High Frequency Driver: 2” (2.5” coil) B&C compression driver
  • Sensitivity (@1W/1m): 100dB
  • Maximum SPL (Continuous/Peak): 130dB / 134dB
  • Dispersion (HxV): 60° x 40° rotatable horn
  • Crossover Frequency: 1.3kHz passive or active bi-amp
  • Recommended HP Filter: 35Hz – 24dB/oct
  • Recommended External Filter: Digital management with presets
  • Input Connectors: 2 x Speakon NL-4 (in & thru), 4 x Euroblock terminals
  • Net Dimensions (WxHxD): 435 x 740 x 421mm
  • Net Weight: 29kg (63.9lb)
}
