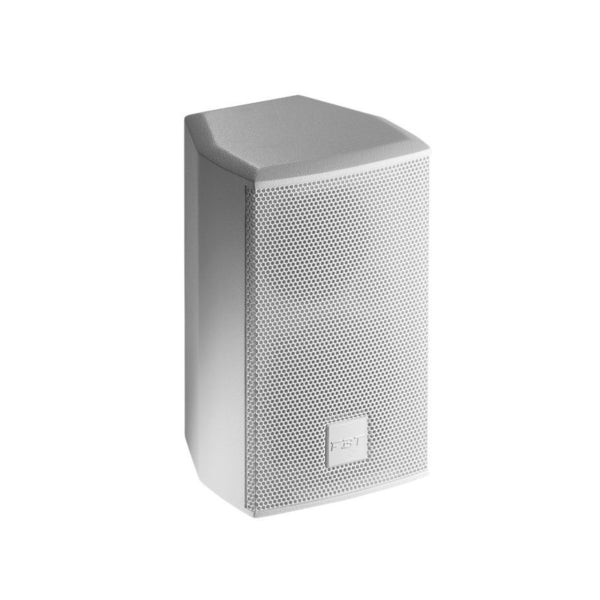

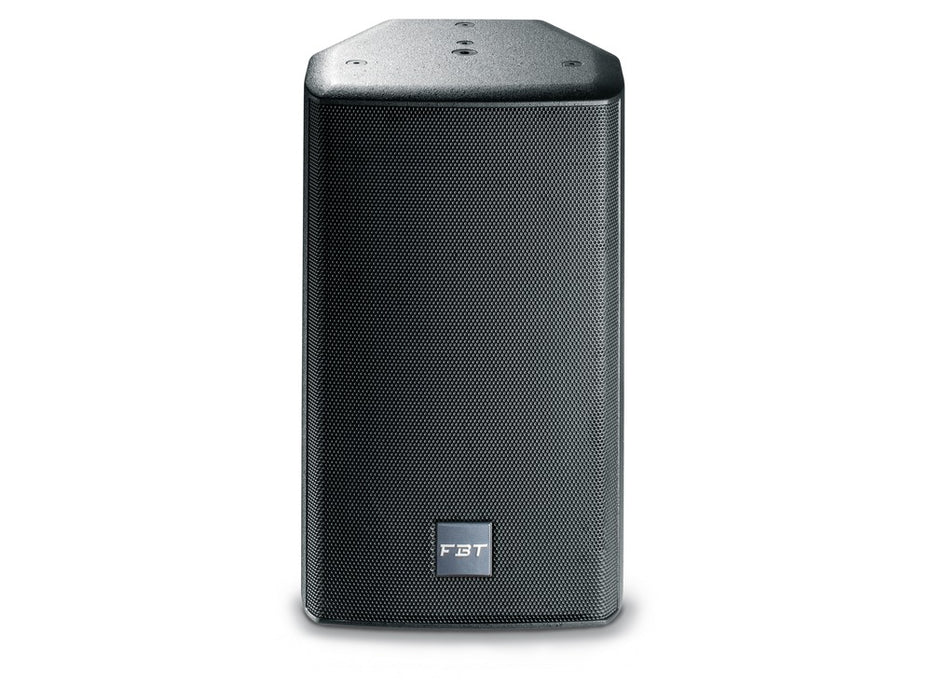

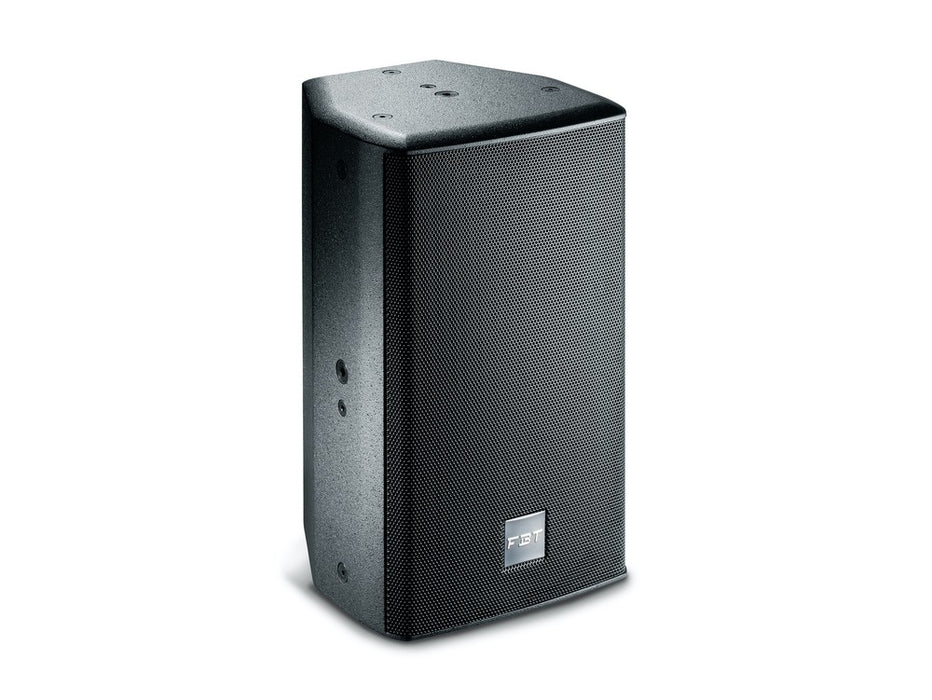

FBT Archon 110 10" Passive 2-Way Loudspeaker, 700W/8Ω - Black or White
DETAILS
Powerful mid-size architectural speaker with premium B&C Italian drivers — the FBT Archon 110.
The FBT Archon 110 is a high-performance 2-way passive loudspeaker designed for demanding installations where exceptional audio clarity, high SPL output and architectural styling are key.
Featuring premium B&C custom-made components — a high-excursion 10” LF woofer with 2.5” voice coil and a precise 1” HF compression driver — this versatile speaker delivers powerful, dynamic sound with superb intelligibility and low distortion.
The Archon 110’s durable 15mm Baltic birch plywood cabinet is finished in extra-textured black or white paint as standard, with the option for custom RAL colours and finishes on request. An acoustically transparent steel grille with protective anti-dust cloth keeps the drivers protected while maintaining a clean aesthetic.
For flexible installation, the Archon 110 is equipped with a rotatable 80° x 50° constant directivity horn and a new repositionable FBT logo badge, ensuring consistent coverage whether mounted horizontally or vertically. Twelve M10 rigging points, two metal flange threads for U brackets, a top-hat for speaker stands and rear pocket handle all make mounting, flying and positioning simple and safe.
Selectable full-range or bi-amp operation and built-in crossover protection offer great system flexibility. For distributed audio, an optional 200W line transformer is available, while the Euroblock terminals and Neutrik NL-4 speakon connectors make installation quick and reliable.
Perfect for bars, clubs, restaurants, retail, corporate or multi-purpose venues needing a compact yet powerful architectural loudspeaker, the Archon 110 easily pairs with dedicated subwoofers such as the Archon 208S or Archon 215S for extended low-end performance.
FBT Archon 110 Key Features:
- Premium B&C Italian Drivers: Custom high-excursion LF woofer and HF compression driver.
- Architectural Cabinet: 15mm Baltic birch plywood in black or white, with custom finishes available.
- Rotatable Horn: 80° x 50° constant directivity for precise coverage.
- High SPL & Wide Bandwidth: 700W RMS power handling and up to 129dB SPL peak.
- Flexible Crossover: Full-range or bi-amp modes with built-in protection.
- Versatile Mounting: 12 x M10 rigging points, U-bracket threads, speaker stand top hat and rear handle.
- Professional Connectivity: 2 x NL-4 Speakon plus Euroblock terminals.
- Optional Line Transformer: 200W transformer available for 100V/70V distributed systems.
-
Outdoor Ready: Optional weatherproof version for exterior installations.
SPECS & DOWNLOADS
FBT Archon 110 Specifications
Download the PDF Data Sheet HERE >
- Configuration: 2-way passive loudspeaker
- Recommended Amplifier: 700W RMS
- Long Term Power: 350W
- Short Term Power: 1400W
- Nominal Impedance: 8 Ohms
- Frequency Response: 60Hz – 18kHz (-6dB)
- Low Frequency Woofer: 10” (2.5” coil) B&C custom woofer
- High Frequency Driver: 1” (1.7” coil) B&C compression driver
- Sensitivity (@1W/1m): 97dB
- Maximum SPL (Continuous/Peak): 125dB / 129dB
- Dispersion (HxV): 80° x 50° rotatable horn
- Crossover Frequency: 1.8kHz passive or active bi-amp
- Recommended HP Filter: 45Hz – 24dB/oct
- Recommended External Filter: Digital management with presets
- Input Connectors: 2 x Speakon NL-4 (in & thru), 4 x Euroblock terminals
- Net Dimensions (WxHxD): 320 x 550 x 325mm
-
Net Weight: 15kg (33lb)
